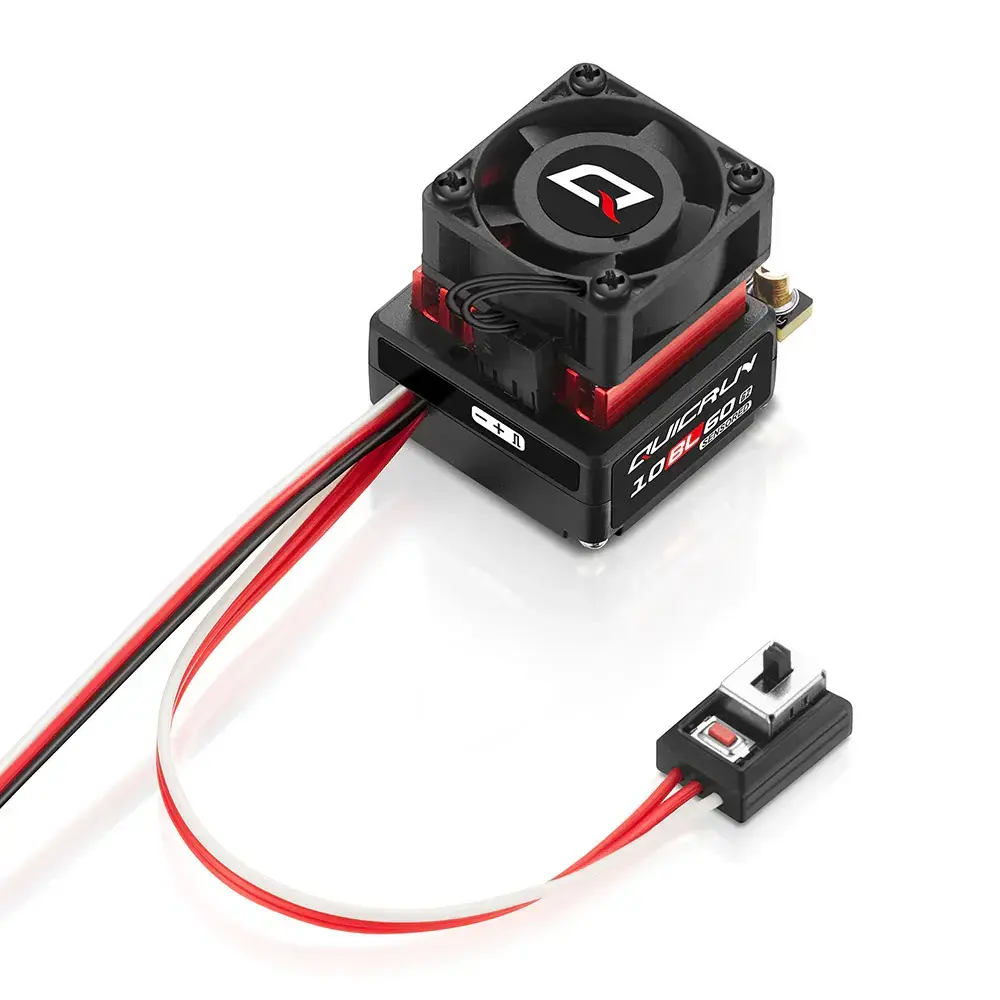

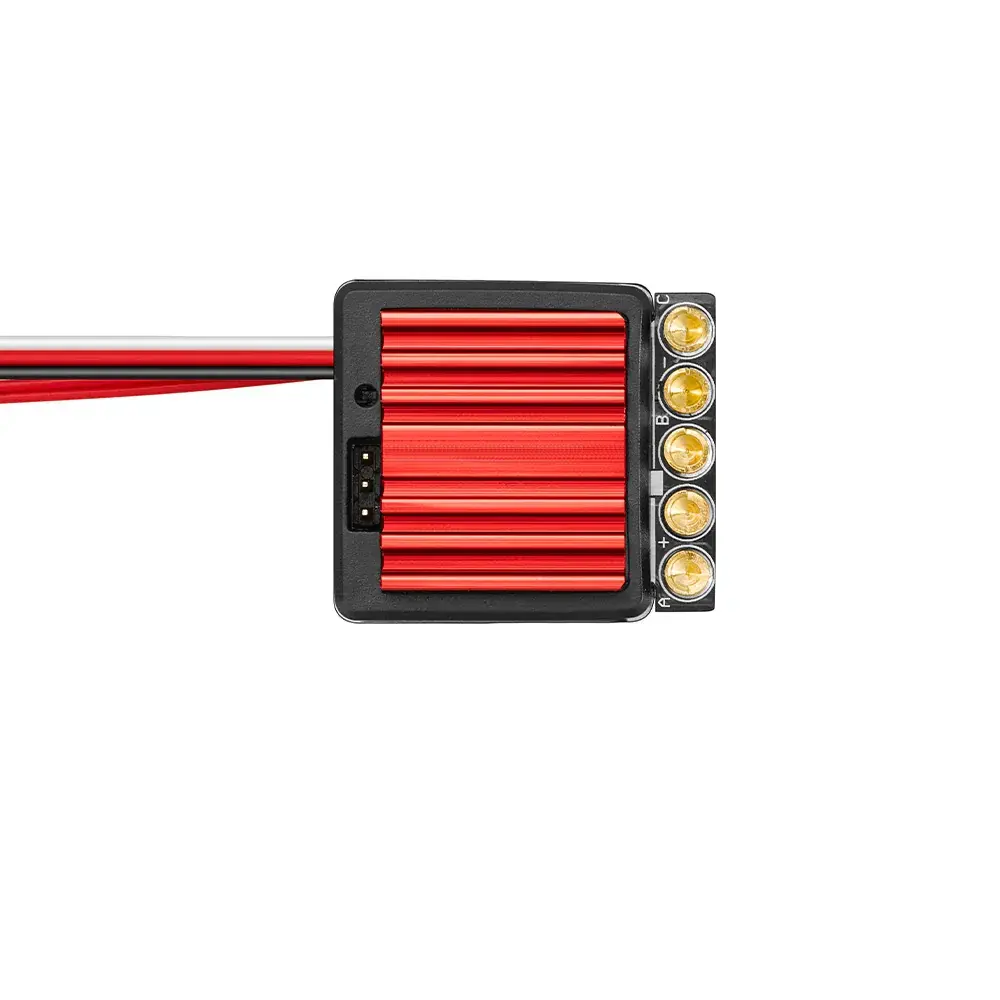

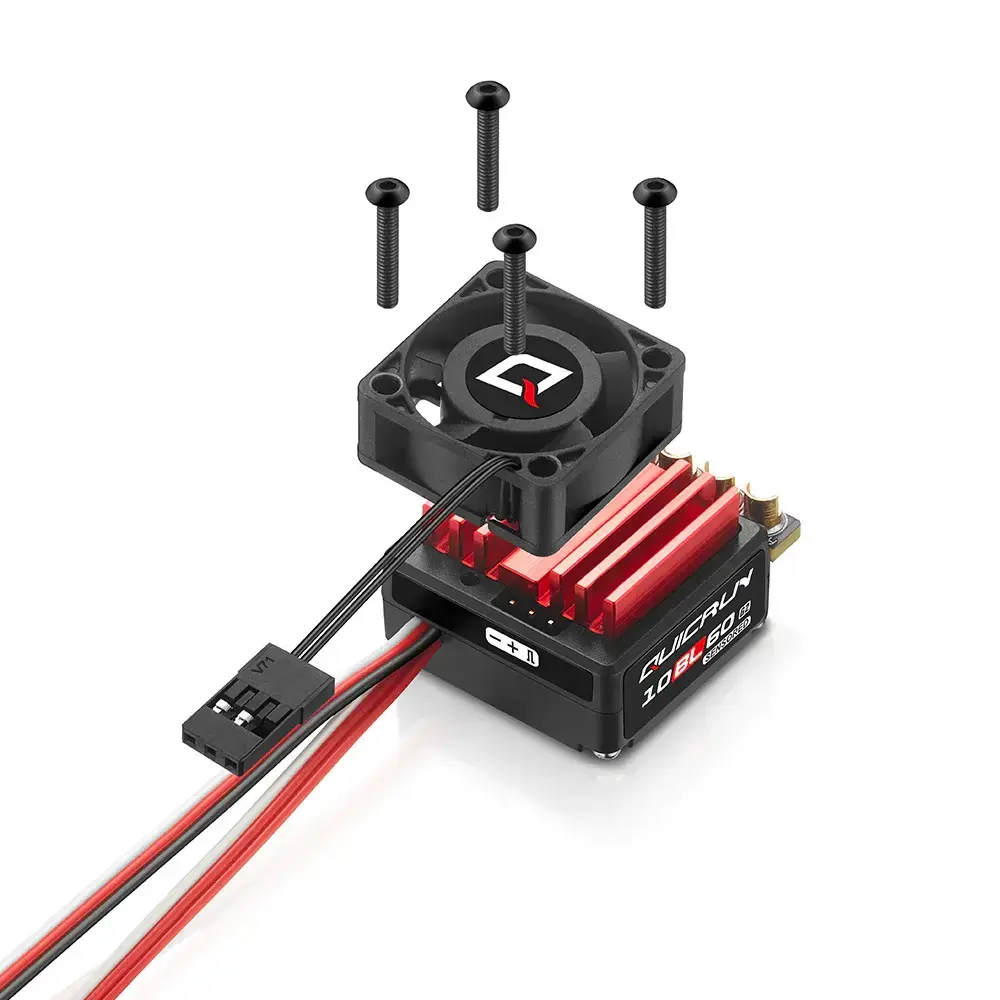

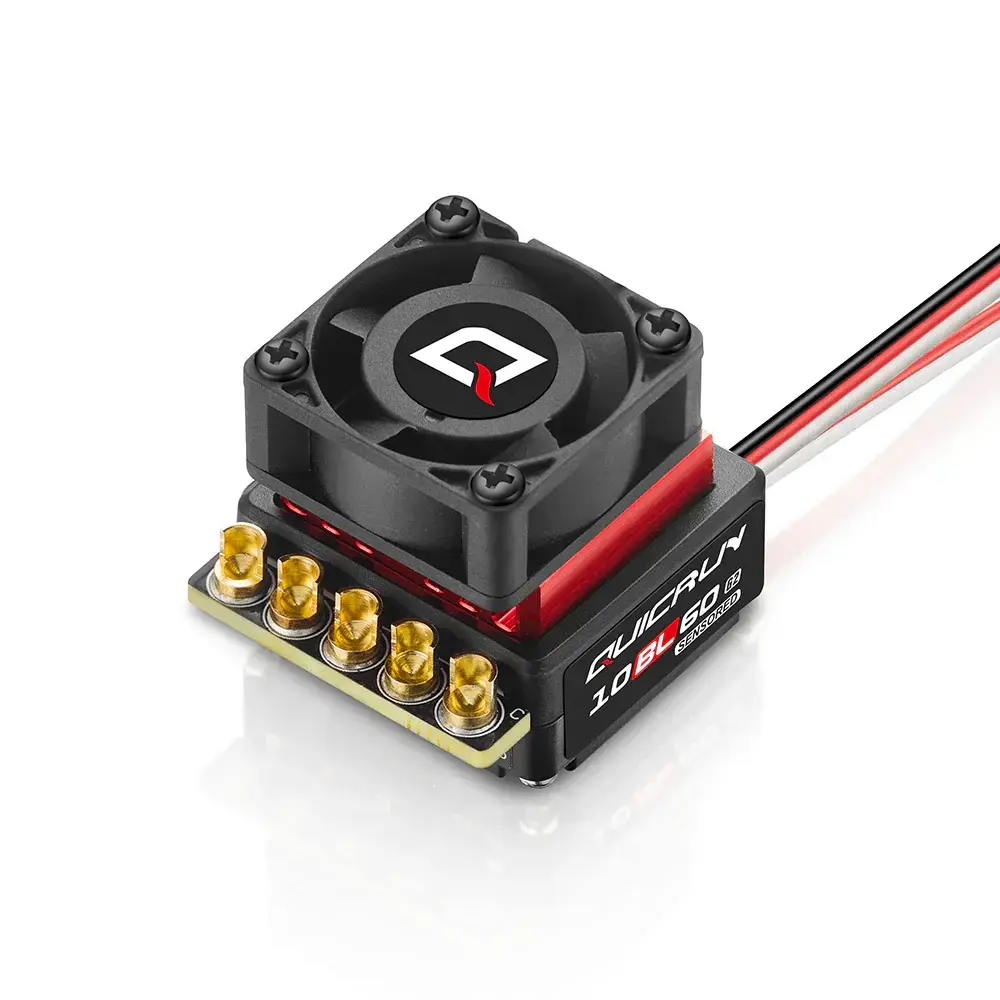

Hobbywing Quicrun 10BL60 Sensored Brushless ESC G2

Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.

Powerful built-in BEC

Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Support Boost/Turbo timing technology

With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability

Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.

Support multiple programming methods

The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment

This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Applications

• Motors: Sensored/Sensorless Brushless motor
• Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
• KV Rating/T Count: QUICRUN 3650 SD G2

Product Specifications

• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Waterproof: NO

Relevant Parameters

• Cont./Peak Current: 60A/200A
• Input Voltage: 2S Lipo
• BEC BEC Output: Switch Mode 6V/7.4V @4A

Wires & Connectors

• Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
• Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
• Input Connectors: No
• Output Connectors: No

ESC Programing via

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Not Supported
• Program Port: Shared with Fan port

Data Recording

• Extreme value: Not Supported
• Real-time Data: Not Supported
• Historical data (Graph): Not Supported
• Firmware Upgrade: Not Supported

Size & Weight

• Size: 35.0*31*30.8mm
• Weight: 66.5g (Included wires & connectors)
• Package total weight: 130.00 grams (incl. packaging)
• Package size: 9.00 x 12.50 x 7.00cm
• Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC
