Traxxas Bigfoot Original 1/10 2WD RC Monster Truck with LED Lighting Blue

The Truck That Started it All

BIGFOOT® is “The Original Monster Truck”. This is the truck that started the monster truck phenomenon and brought car-crushing fun and excitement to fairgrounds and arenas everywhere. Traxxas faithfully captures the spirit and classic look of BIGFOOT No. 1 in amazing detail with this fully licensed replica. Relive the thrill of your first monster truck event with this classic powerhouse. Hammer the throttle for non-stop wheelies and crush the competition underneath its towering stance. Built Traxxas Tough™ for all-day fun, BIGFOOT comes out of the box fully assembled, waterproof, and Ready-To-Race®.



Stunning Replica Details

  • Brilliant blue metallic paint gleams on the heavy-duty officially licensed F-100 Ford XLT Ranger body
  • The beefy chrome front bumper with replica winch and KC fog lights is built Traxxas-tough
  • The stunning chrome grille is authentic down to the smallest details with its light buckets and reflectors
  • The realistic high rise dual-carb manifold secures firmly to the hood
  • Chrome KC Lights straddle the massive chrome roll bar for that tough monster truck look
  • Authentic "shaved" monster truck tires ride on beautiful chrome rims
  • The chrome rear bumper looks tough enough to tow a sled in a pulling competition
  • Chrome body accents and authentic decals replicate the Original BIGFOOT and its show-stopping looks.



Features

  • Scale Replica Body of the BIGFOOT® No. 1 Truck
  • 4-amp DC Peak Detecting Fast Charger
  • Traxxas 7-cell NiMH battery with iDTM
  • Front and rear LED lighting
  • Traxxas TQ 2.4GHz radio system
  • Waterproof electronics permit driving in water, mud and snow.
  • Traxxas #6519 3-channel micro receiver.
  • Waterproof receiver box.
  • High-torque Waterproof Traxxas #2056 steering servo.
  • Monstrous 4-inches of center ground clearance.
  • The included optional 19-tooth pinion gear pushes BIGFOOT®
  • to speeds over 30mph.*
  • Powerful Titan® 12T 550 motor with internal cooling fan.
  • High-performance waterproof XL-5™ Electronic Speed Control.
  • Innovative watersealed design
  • Three Drive Profiles
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • 12-Turn motor limit for 550 size motors
  • 15-Turn motor limit for 540 size motors
  • Traxxas EZ-Set® one-button setup
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Efficient Magnum 272™ three-gear transmission with ball bearings.
  • Sealed gearbox protects the transmission with beefed up motor
  • guard for extra protection.
  • Torque-Control™ slipper clutch system.
  • External gear cover with easy slipper access.
  • Reliable planetary gear differential.
  • Efficient telescoping U-joint driveshafts.

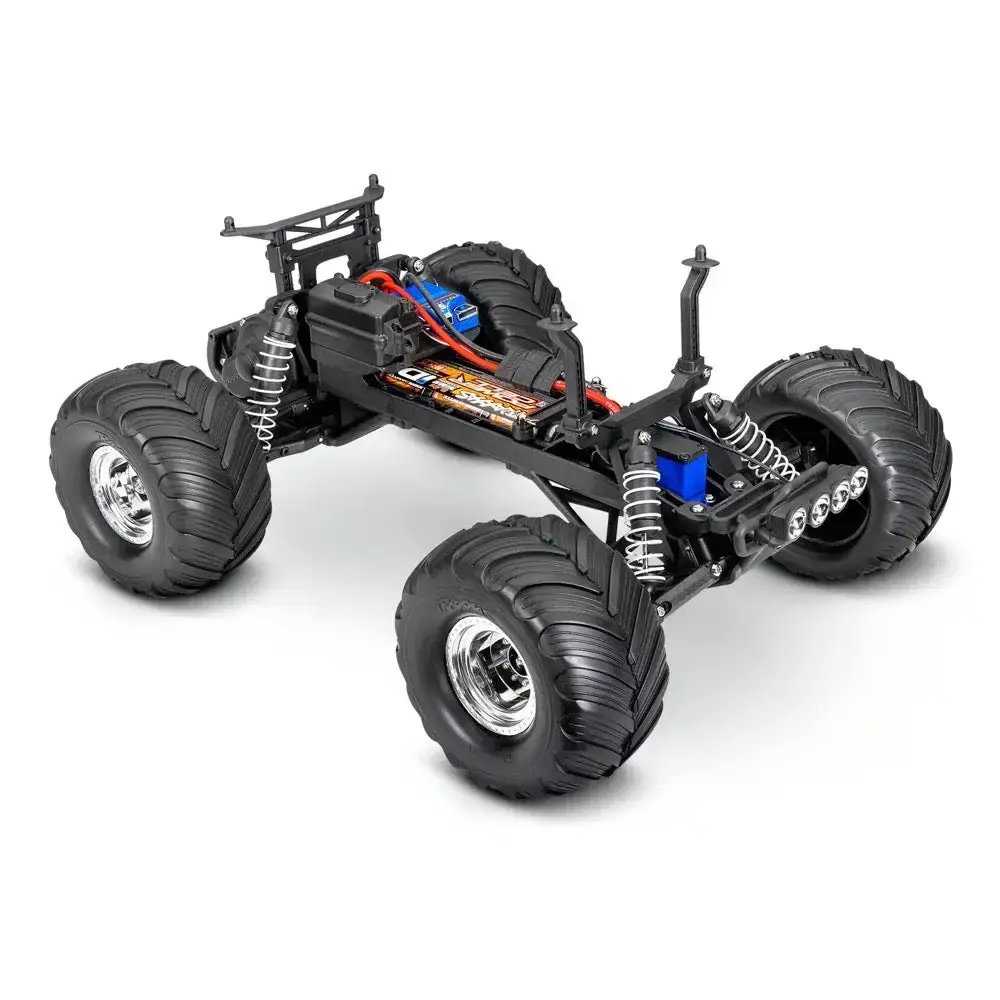

  • Fiber-composite monocoque chassis.
  • Easy access battery compartment.
  • Fully adjustable Ultra Shocks™ with X-ring technology.
  • Powder-coated shock springs feature a new responsive spring rate.
  • Durable solid camber links eliminate the need for adjustment.
  • Captured rod ends won't pop off for superior durability.
  • Bright Chrome Dish dual-profile wheels
  • Pre-glued Terra-Groove 2.2" tires
  • ProGraphix® replica BIGFOOT body.



Battery and Charger Included!

BIGFOOT No. 1 includes a powerful 8.4-volt 3000 mAh Power Cell rechargeable NiMH battery pack to reach its blazing 35+mph top speed. A powerful 4-amp 12V DC fast charger comes in the box for quick charging in the field. An optional #2976 40-watt AC adapter (sold separately) transforms a common wall outlet into a robust power source for the included 4-amp NiMH fast charger.

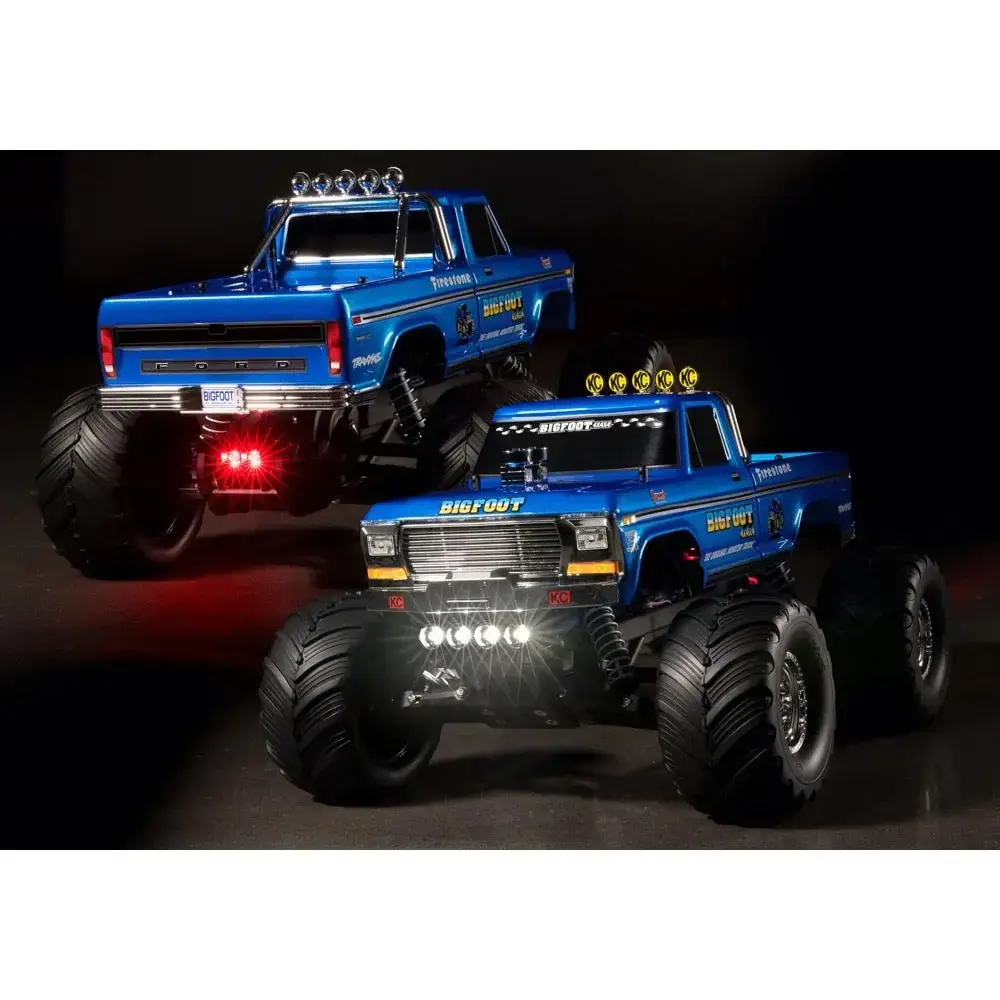

New LED Lighting

BIGFOOT No. 1 now includes LED lighting as standard equipment for more fun after dark. Thick impact-resistant bumpers protect the lights against crash damage with fully-waterproof construction for all-weather fun.



Product Specifications

  • Length : 18.1 inches (459 mm)
  • Front Track : 12.75 inches (324 mm)
  • Rear Track : 12.75 inches (324 mm)
  • Weight : 65.3 ounces (1.85 kg)
  • Height (overall) : 9.5 inches (241 mm)
  • Wheelbase : 10.6 inches (270 mm)
  • Front Shock Length : Long
  • Rear Shock Length : XXLong
  • Front Tires : Terra-Groove 2.2"
  • Rear Tires : Terra-Groove 2.2"
  • Front Wheels : Bright Chrome Dish (Dual Profile)
  • Rear Wheels : Bright Chrome Dish (Dual Profile)
  • Electronic Speed Control : XL-5‚Ñ¢ Electronic Speed Control
  • Motor (electric) : Titan¬Æ 12T 550 (12-Turn)
  • Steering Servo : #2056 High Torque Waterproof
  • Transmitter : TQ 2.4GHz Radio
  • Receiver : #6519 3-Channel Micro
  • Gear Ratio (internal) : 2.72 (final drive: 12.34)
  • Differential Type : Planetary
  • Gear Pitch : 48-Pitch
  • Transmission : Magnum 272‚Ñ¢
  • Steering : Single Point
  • Chassis Type : Modified Tub
  • Chassis Material : Composite Nylon
  • Top Speed : 30+mph**
  • Skill Level : 1
  • *Battery Tray Dimensions : 164 mm x 46 mm x 26 mm
  • Included Charger : 4-amp DC Peak Detecting Fast Charger
  • Included Batteries : Traxxas 7-cell NiMH battery with iD¬Æ
  • Required Batteries : 4 "AA" (transmitter)
