Axial AXI03020 SMT10 Scale Monster Truck Raw Builders Kit - AXI03020

Product Information

Experience the thrill of arena monster truck action wherever you bash with the Axial® SMT10™ Monster Truck RAW Builder’s Kit. The rugged, straight-axle 4WD chassis provides the perfect platform for your choice of body, wheels, tyres and electronics.

Axial SMT10 Scale Monster Truck RAW Builder's Kit

Full-scale monster truck tours such as Monster Jam® fill arenas with capacity crowds eager to see world-class drivers compete in racing and freestyle events. The designers at Axial® Racing have used their crawler expertise to create the perfect platform for bashers who want to build their perfect RC scale monster beast. The 1/10 scale Monster Truck RAW Builder’s Kit is centred on the SMT10™ tube frame 4WD chassis, which was developed for maximum bashing strength and an extremely detailed appearance. It’s very similar to those used in full-size monster trucks. That’s why the chassis excels at hard-core action over grass, gravel, pavement and asphalt tracks. Start with the Monster Truck RAW Builder’s Kit, add your favourite performance electronics and scale body, wheels, and tyres — and put together the powerful monster basher of your dreams!

Build your perfect SMT10™ monster-bashing beast

The headlining attractions at Monster Jam® motorsport events are undeniably the large, loud monster trucks. They keep audiences roaring and riveted, whether they’re battling for the lead in traditional racing or flexing their freestyle muscles through two minutes of gravity-defying tricks and stunts. For its part, Axial® has earned legions of RC racing fans by producing crawler vehicles that keep on pounding over the toughest obstacle-strewn tracks. Axial® knows how to make models that provide the almost unlimited potential to adventure and explore.

Now Axial® has turned its attention to creating a monster truck platform for bashers to make their very own, and the result is the SMT10™ Monster Truck RAW Builder’s Kit — a true-to-scale, 4-wheel drive, straight-axle RC truck that offers an ideal foundation of performance and realism.

Axial® designers went all out when creating the SMT10™ monster truck chassis and roll cage. Very similar full-size Monster Jam® truck chassis, the SMT10™ tube frame was developed for maximum strength and has an extremely realistic appearance. It provides a variety of shock mounting points for suspension tuning options, with additional mounting points on the cage and at the axle for moving the shocks to a more scale, vertical position if desired. Mated to the proven Axial® AR60™ axle, the SMT10™ chassis’ 4-link suspension soaks up any obstacles in its path.

The AX10™ transmission included with the SMT10™ Monster Truck RAW Builder’s Kit is designed to make the most of your motor’s power. Its Dual Pad slipper system features a pad on each side of the spur gear to increase surface area, resulting in improved tuning precision and holding ability. Strong 32-pitch gearing enhances performance in high-torque applications.

Experience the thrill of arena monster truck action wherever you bash with the Axial® SMT10™ Monster Truck RAW Builder’s Kit. Add your choice of body, wheels, tyres and electronics and unleash your inner beast!

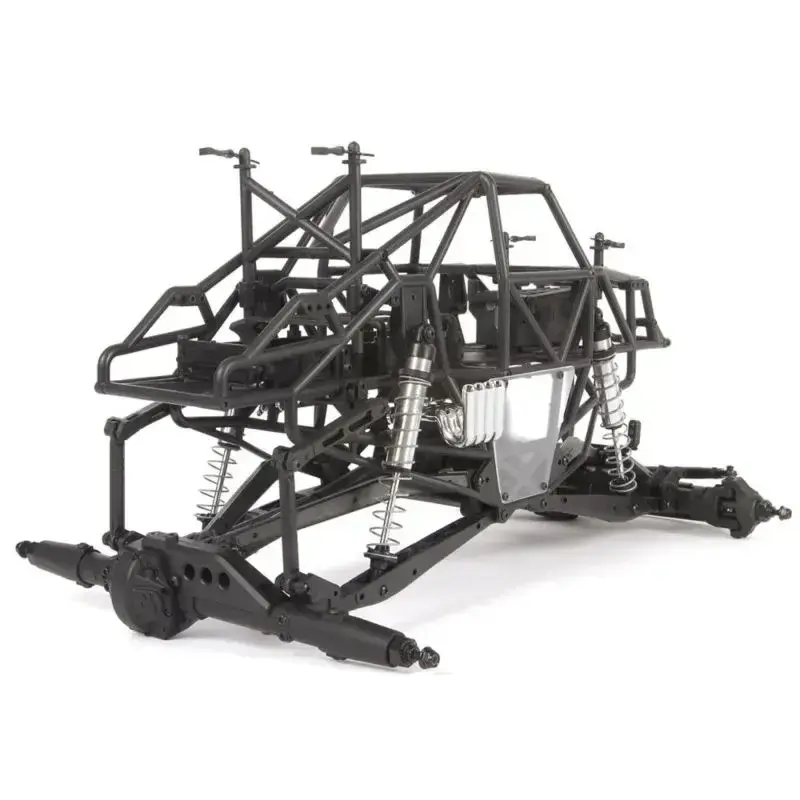

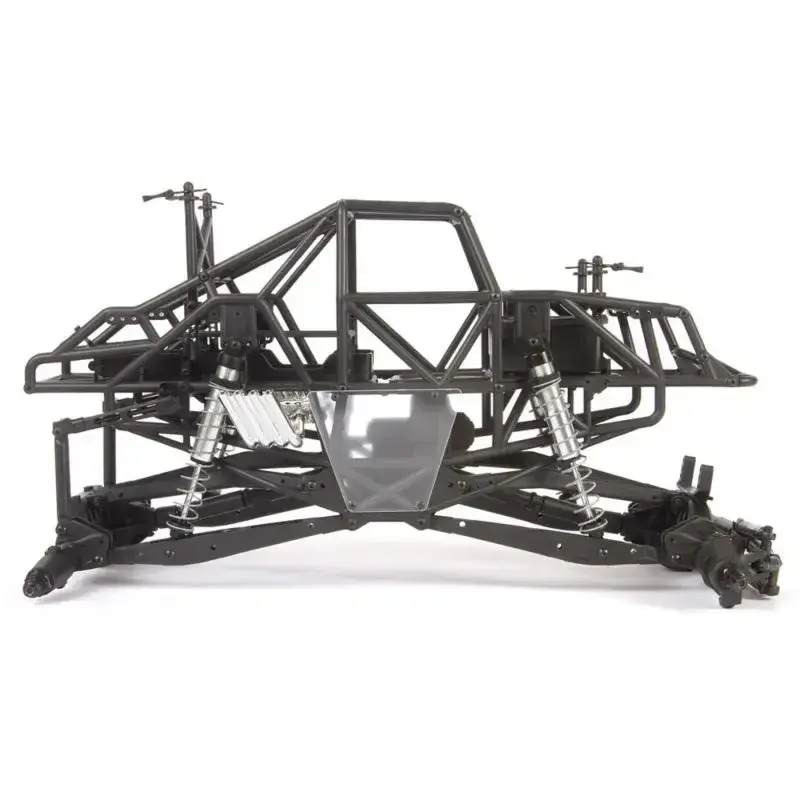

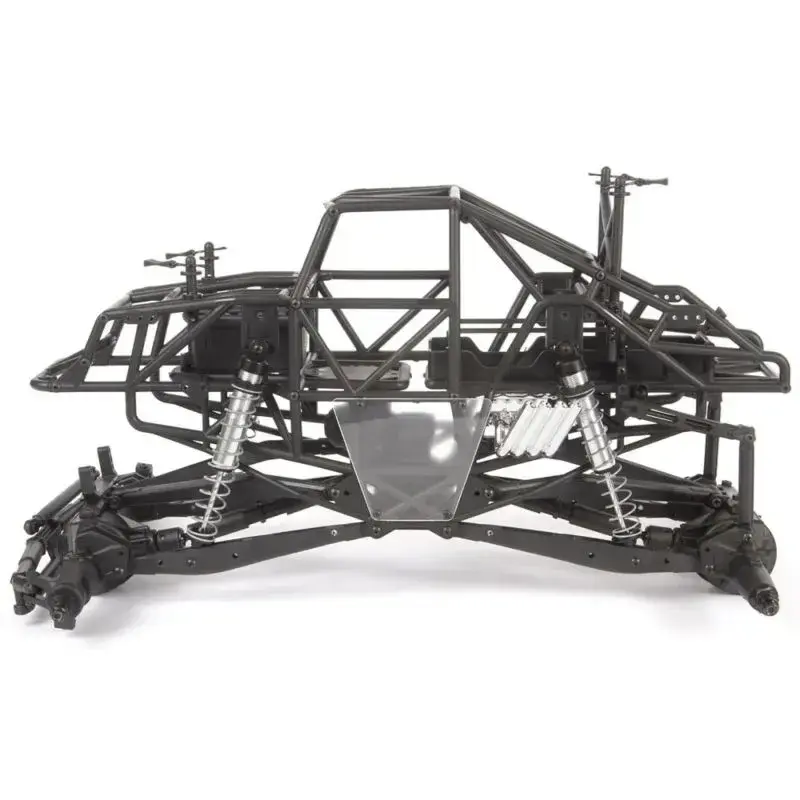

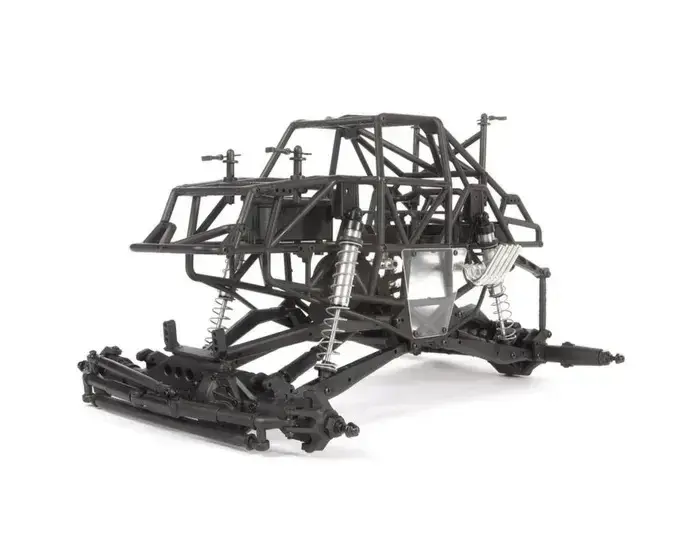

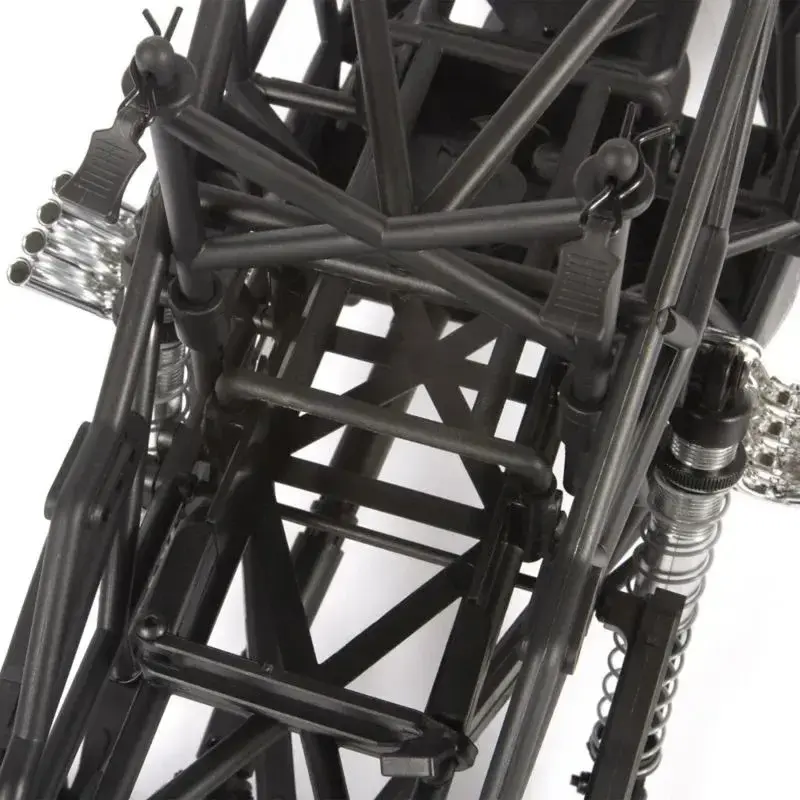

SMT10™ TUBE FRAME CHASSIS

Very similar to modern full-size monster trucks, the SMT10™ chassis delivers maximum strength and scale realism — achieved through triangulation of the chassis tubes, making it ready for maximum attack and hard-core bashing. The variety of shock mounting points allows additional suspension tuning options as well.

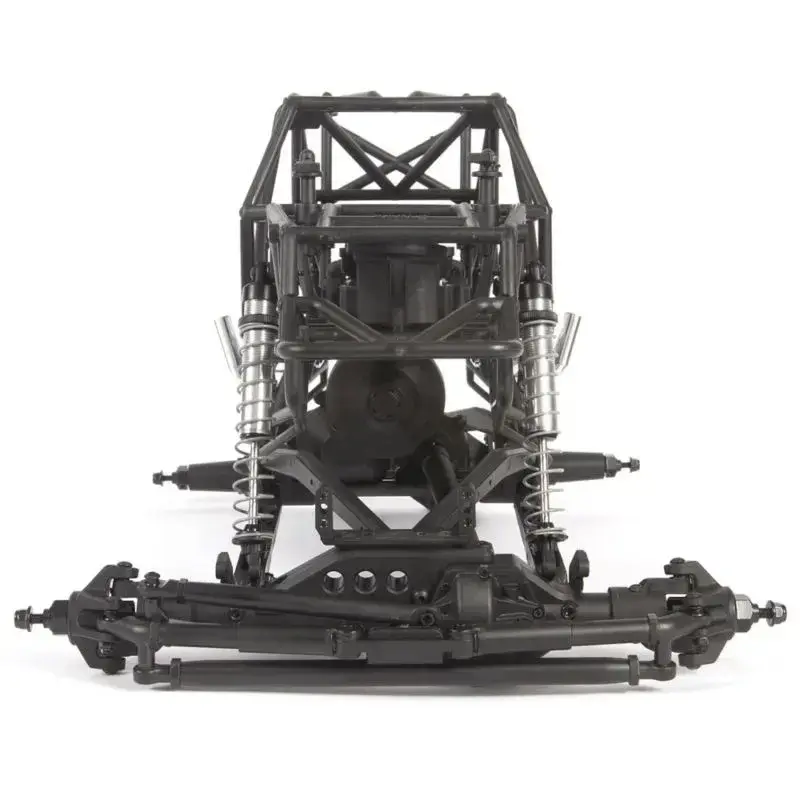

SOLID AXLE 4-LINK SUSPENSION

Mated to the proven AR60™ OCP-Axle, the monster truck’s 4-link suspension soaks up any obstacles in its path.

AR60™ OCP-AXLE

Combined with a true 4-link suspension, the strong composite AR60™ OCP-Axle delivers optimal performance for any terrain with the look of a real 1:1 vehicle.

AX10™ TRANSMISSION

The AX10™ transmission improves tuning precision and holding power with a new Dual Pad slipper system — a pad on each side of the spur gear increases surface area. Its stronger 32-pitch gearing is ideal for high torque applications.

WB8 HD DRIVESHAFTS

The WB8 HD driveshafts feature an updated design with a larger diameter crosspin (2x11mm) for extra strength. Material added on the centre splined slider reduces flex and fatigue.

REAR SWAY BAR

The rear sway bar helps to keep torque twist and body lean to a minimum during acceleration. The SMT10™ chassis design allows you to add an optional sway bar to the front if desired.

WATERPROOF RECEIVER BOX

The waterproof receiver box uses three different silicone seals: one for the antenna, one for the servo wires (includes three slots for three channels), and one that acts as a gasket for the receiver box cover. Run without a worry in mud, water or snow!

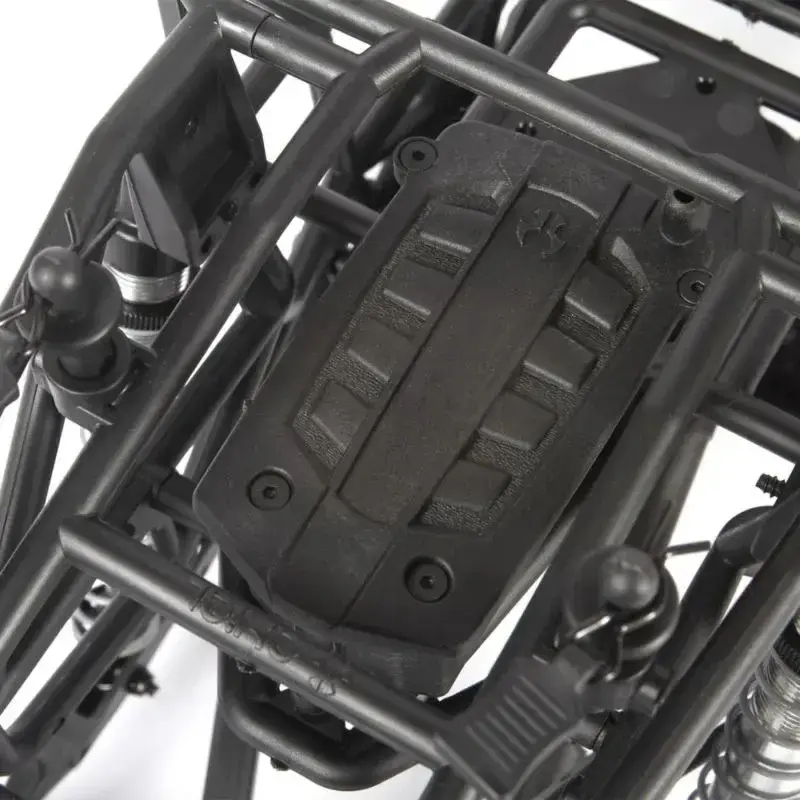

EASY-ACCESS BATTERY TRAY

The battery tray is easy to access from the rear of the vehicle. To install your battery, remove one pin, swing out the tray door and slide in the battery pack. Four screws adjust the height of the tray, allowing room for most standard 2S batteries.

HYDRAULIC RAM STYLE STEERING LINKS

Axial® engineers designed a heavy-duty tie rod, drag link, and simulated scale hydraulic ram steering link to keep your tyres pointed in the right direction so you stay on course.

What’s In The Box

• (1) Axial® SMT10™ Monster Truck RAW Builder’s Kit
