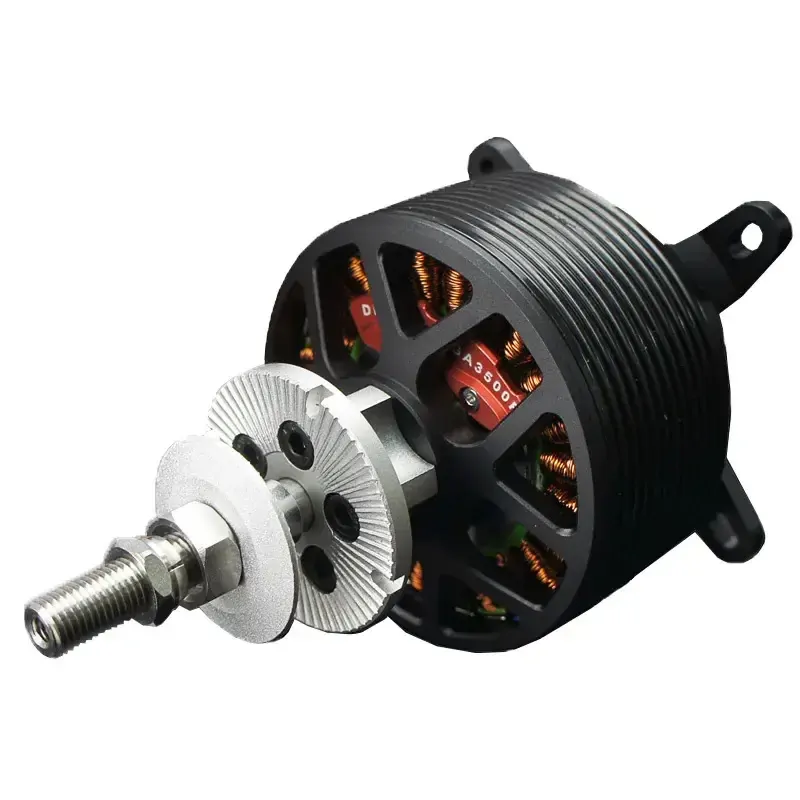

Dualsky GA3500R.11 180kv 30cc Racing Edition Brushless Motor - DSXM52192
$416.99
or 4 payments of $104.25 with
Info
Price Matchup
Description
Dualsky GA3500R.11 180kv 30cc Racing Edition Brushless Motor
Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)
Product Specifications
- KV: 180
- Slots & Poles: 24,28
- Ri (mOhm): 35.5
- Io @10V (A): 1
- Burst Current (15S): 78A, 5.17N*M
- Peak Power (15S): 3460 (4.78HP)
- Battery: 30-51V, 10-12S LiPo
- Weight: 538g (body only), 628g (w/ accessories)
- Dimensions (DxL): 71x78mm
- Shaft diameter: 9mm internal, 8mm output
- Mounting holes: 71mm to 77mm
- Weight of sports airplane: Up to 11kg
- Weight of 3D airplane: Up to 5kg
- Recommended propellers (12S): 20x10E to 22x10E
- Recommended ESC: SUMMIT 120HV
- Application: For 35cc class (equivalent to .170E), 3D airplane (up to 74"-78" wingspan)
Description
SpecificationsDualsky GA3500R.11 180kv 30cc Racing Edition Brushless Motor
Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)
Product Specifications
- KV: 180
- Slots & Poles: 24,28
- Ri (mOhm): 35.5
- Io @10V (A): 1
- Burst Current (15S): 78A, 5.17N*M
- Peak Power (15S): 3460 (4.78HP)
- Battery: 30-51V, 10-12S LiPo
- Weight: 538g (body only), 628g (w/ accessories)
- Dimensions (DxL): 71x78mm
- Shaft diameter: 9mm internal, 8mm output
- Mounting holes: 71mm to 77mm
- Weight of sports airplane: Up to 11kg
- Weight of 3D airplane: Up to 5kg
- Recommended propellers (12S): 20x10E to 22x10E
- Recommended ESC: SUMMIT 120HV
- Application: For 35cc class (equivalent to .170E), 3D airplane (up to 74"-78" wingspan)
More from this category
Hobbywing 30402550 EZRUN 5687SL 4-Pole 1/5 Scale Sensorless Brushless Motor (1100kV)
SKU: HW30402550
$296.92 1% off RRP
1% OFF
Hobbywing 30401136 Xerun D10 Drift Brushless Motor (10.5T) (Purple)
SKU: HW30401136
$178.00 11% off RRP
On Sale
11% OFF
On Sale
5% OFF
On Sale
27% OFF
Description
Dualsky GA3500R.11 180kv 30cc Racing Edition Brushless Motor
Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)
Product Specifications
- KV: 180
- Slots & Poles: 24,28
- Ri (mOhm): 35.5
- Io @10V (A): 1
- Burst Current (15S): 78A, 5.17N*M
- Peak Power (15S): 3460 (4.78HP)
- Battery: 30-51V, 10-12S LiPo
- Weight: 538g (body only), 628g (w/ accessories)
- Dimensions (DxL): 71x78mm
- Shaft diameter: 9mm internal, 8mm output
- Mounting holes: 71mm to 77mm
- Weight of sports airplane: Up to 11kg
- Weight of 3D airplane: Up to 5kg
- Recommended propellers (12S): 20x10E to 22x10E
- Recommended ESC: SUMMIT 120HV
- Application: For 35cc class (equivalent to .170E), 3D airplane (up to 74"-78" wingspan)
Specifications
| SKU | DSXM52192 |
| Barcode # | 6941047121928 |
| Brand | Dualsky |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000064000m3 |
