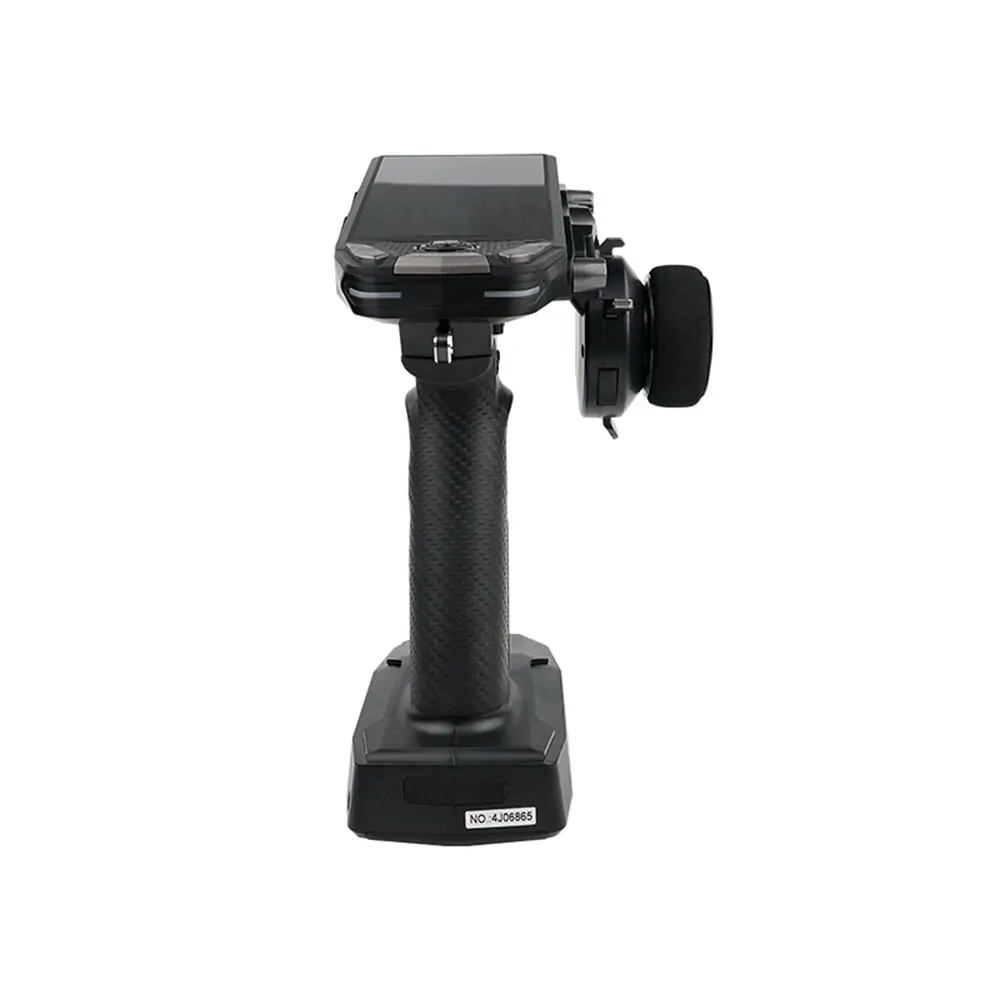

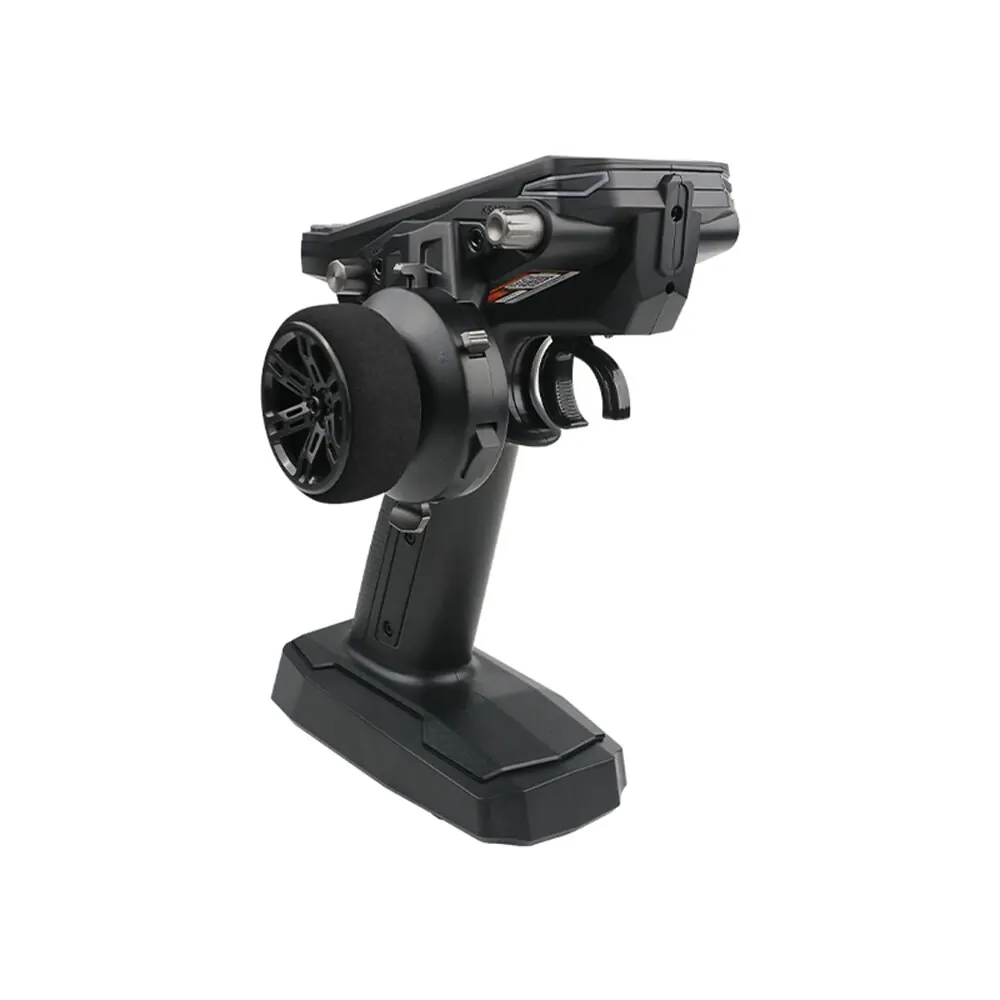

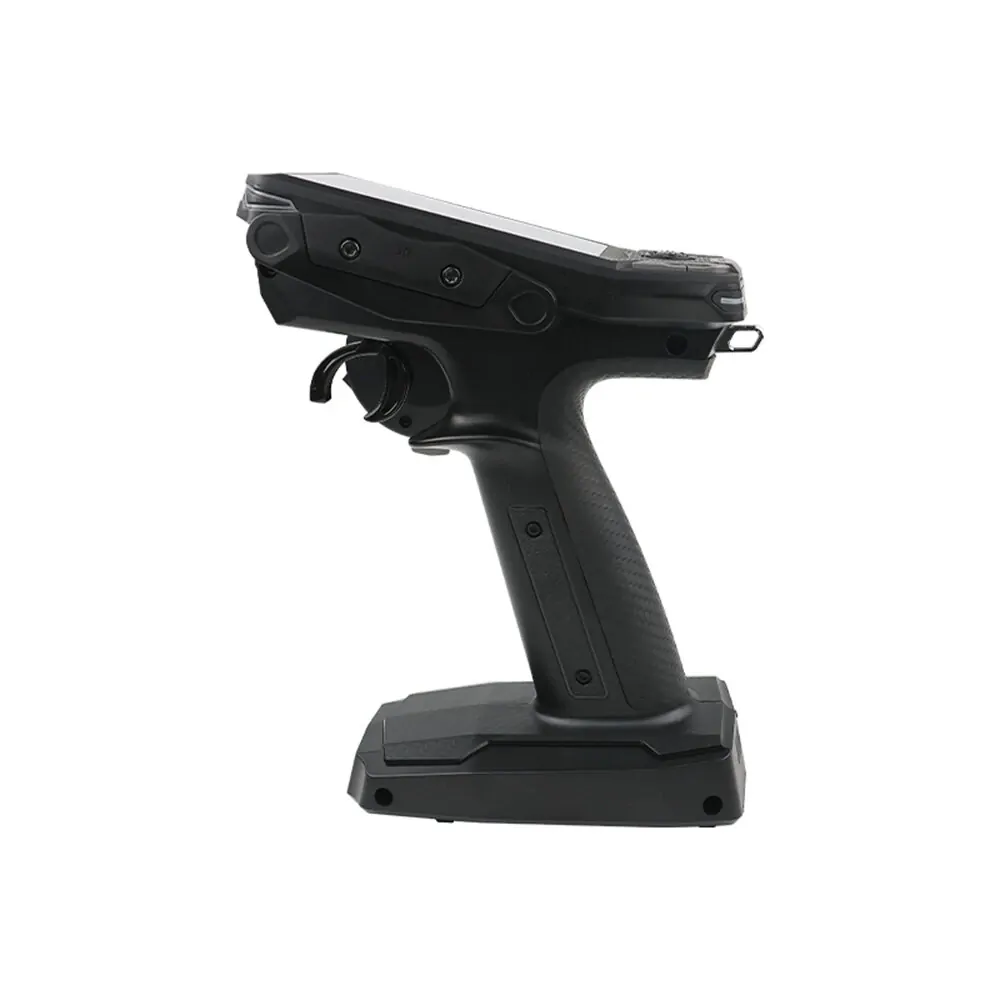

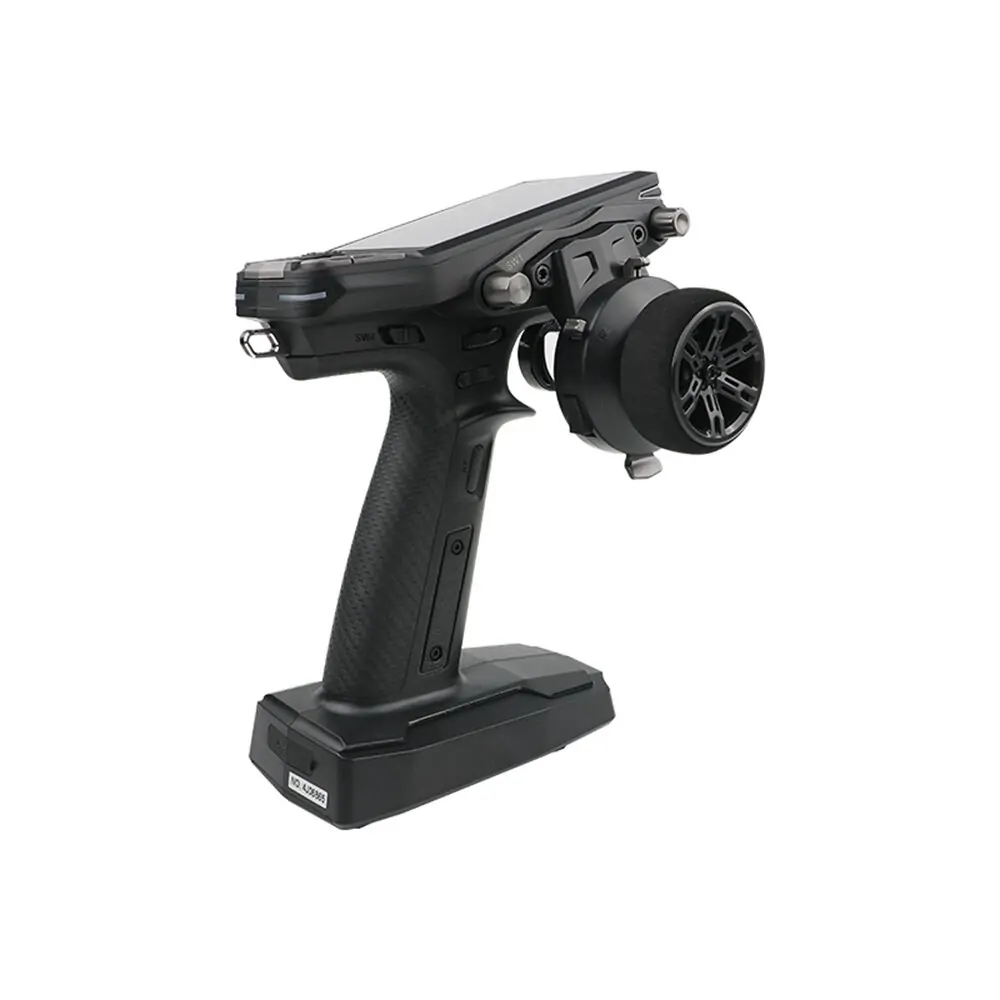

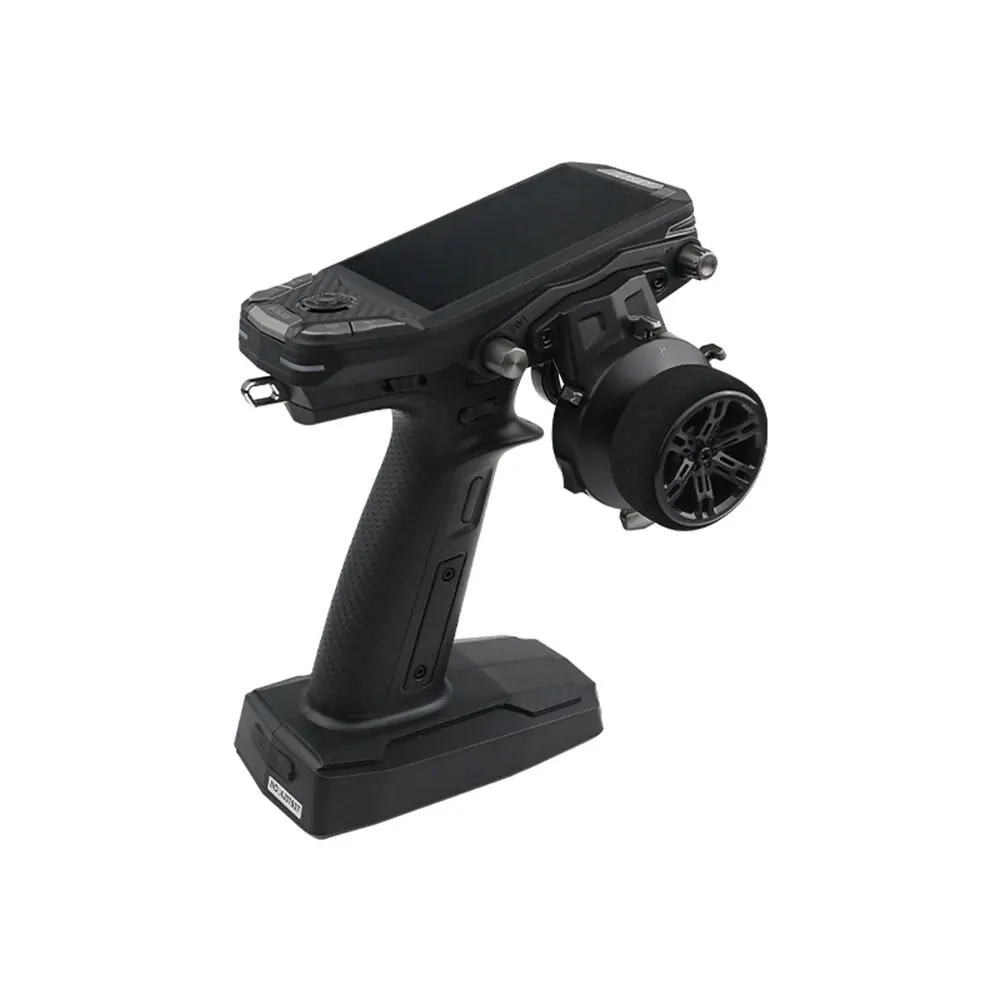

FLYSKY FS-G11P 2.4GHz 11CH ANT Protocol 3.5 inch IPS High-Brightness Display Radio Transmitter Built-in Omni-directional Dual Antennas

The new Flysky G11P is an incredibly well-equipped remote control with a fantastic price/performance ratio!



HIGHLIGHTS

  • The software is pre-programmed in 3 languages __(DE/EN/FR) and only needs to be selected in the menu.
  • The hardware can be perfectly adapted to the pilot's needs through numerous settings.
  • 11 channels are available
  • The "Main Interface" provides information about the most important parameters at a glance. There are also shortcut functions (Home 1 & Home 2) available, which can be assigned 9 different functions according to your own wishes.
  • The power supply is a 2S/7.4V LiPo battery with XH balancer connector or 2* 18650 LiPo batteries (sold separately)
  • USB-C charging port



FUNCTIONS

  • Reverse
  • EPA
  • Subtrim
  • D/R Setup
  • Curve
  • Channel Speed
  • ABS
  • Throttle Iddle Up
  • Throttle Lock
  • Cruise
  • Throttle Type
  • AUX.CH
  • ASSIGN Function
  • Mixes (4WS, Track Mix, Drive Mix, Brake Mix, Programming Mix 1-8)
  • Timers (Up, Down, Lap)
  • sensor
  • 40 model memories
  • failsafe
  • 3 languages __(DE/EN/FR)
  • 2S LiPo operation (batteries not included)
  • Backlight/Sound/Vibration
  • SVC function (separate receiver)
  • Beginner Mode
  • Adjustable trigger travel, trigger preload, steering wheel preload
  • SD card slot
  • USB-C charging port

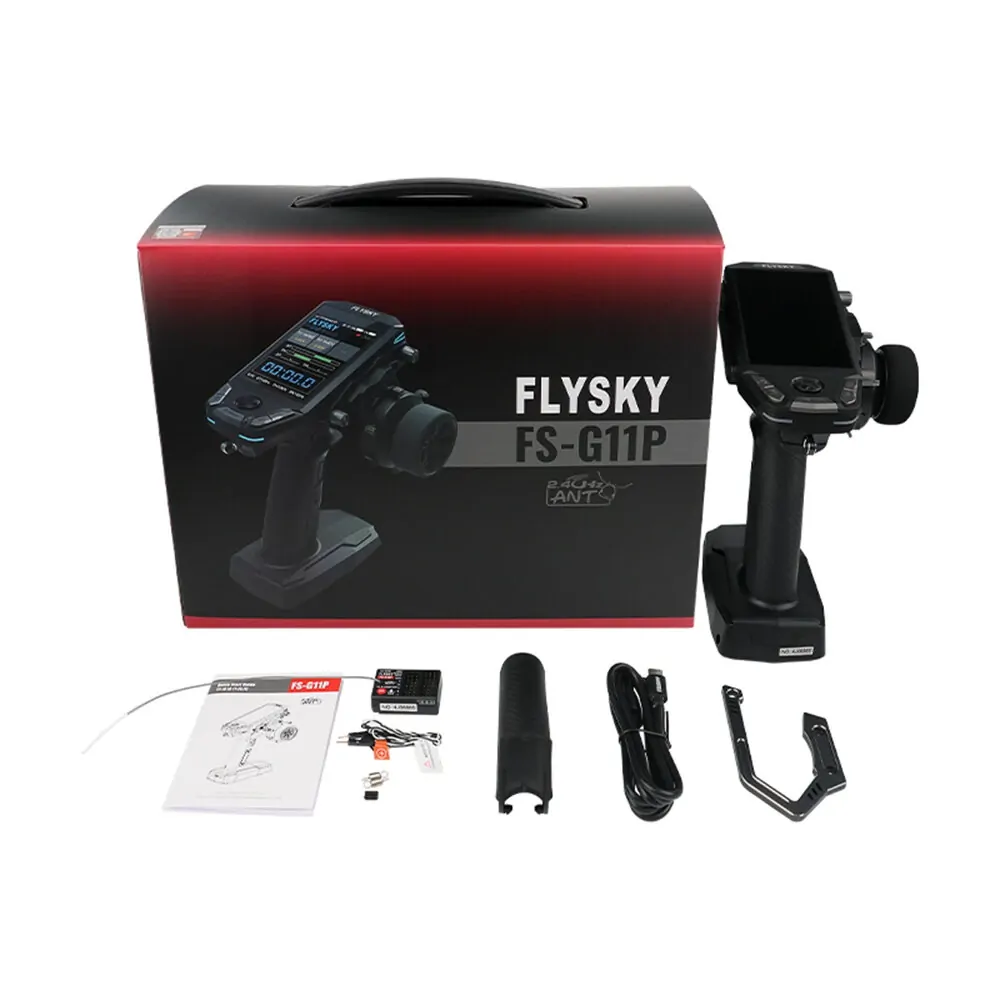

WHAT'S IN THE BOX

  • 2.4GHz G11P transmitter
  • 2.4GHz R11P receiver
  • aluminum handle
  • Quick Start Guide
  • handle (thick/thin)
  • USB-C cable
  • grub screws
  • High Elasticity spring
  • Low Elasticity spring

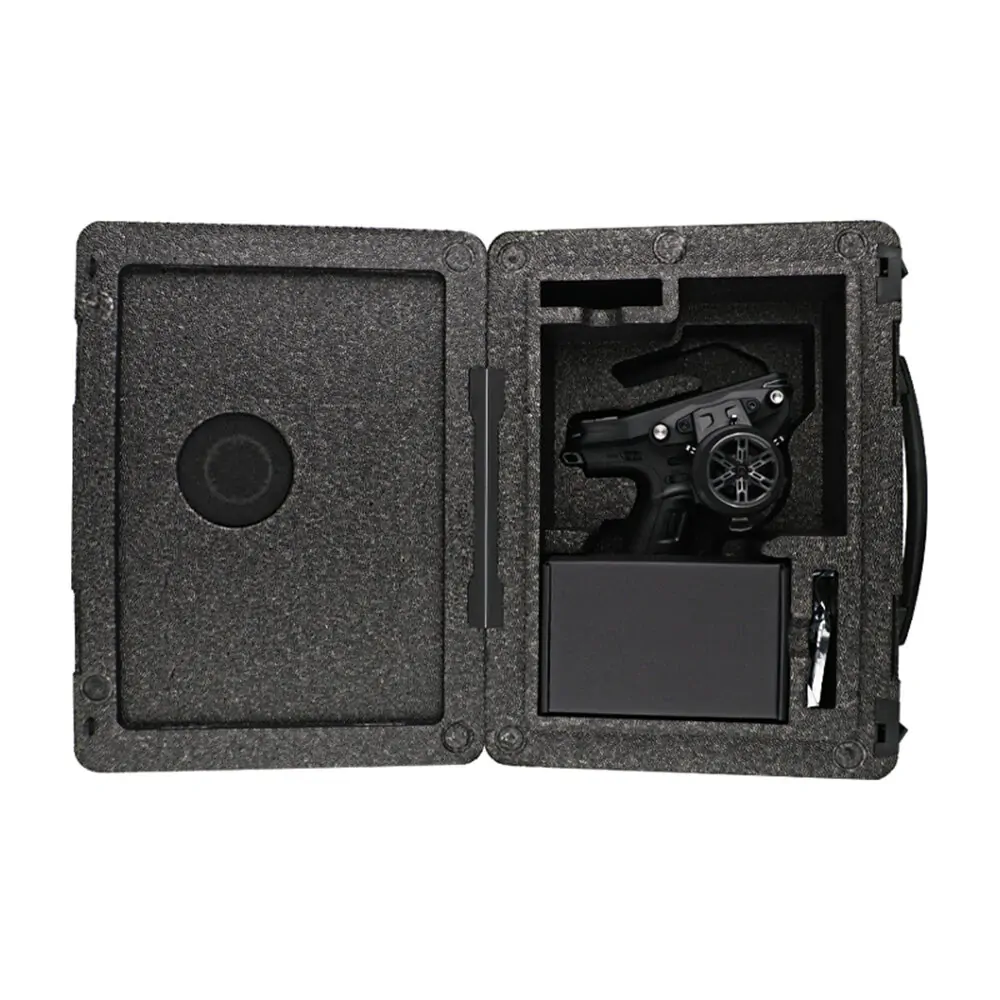

  • transport box



WHAT YOU NEED (NOT INCLUDED)



TRANSMITTER SPECIFICATIONS

  • Model name: FS-G11P
  • Matching receiver: FS-R11P
  • Usable for: Cars and boats
  • Channels: 11
  • Number of frequency bands: 133
  • RF: 2.4GHz ISM
  • Max. Power: <20dBm (eirp) (EU)
  • RF Protocol: ANT
  • Resolution: 4096
  • Data connection: USB Type-C; 3.5mm jack (DSC); SD card slot
  • Input Power: 6-9V/DC; 18650 * 2 pcs. / 2S LiPo (not included)
  • Distance: +/- 300m (ground distance without interference sources)
  • Antenna: 2 internal antennas
  • Display: 3.5 inch 320*480 full dot color non-touch IPS screen
  • Online Updates: Yes
  • Temperature range: -10¡C - +60¡C
  • Humidity: 20% - 95%
  • Languages: German; English; French
  • Weight: 371g
  • Dimension: 150*120.8*197.1mm
  • charging socket: USB-C
  • Certificates: CE, FCC, ID: 2A2UNG11P00



RECEIVER SPECIFICATIONS

  • Model name: FS-R11P
  • Suitable receiver: FS-G11P and other Flysky transmitters with ANT protocol
  • Usable for: Cars and boats
  • Channels: 11
  • RF: 2.4GHz ISM
  • Max. Power: <20dBm (eirp) (EU)
  • RF Protocol: ANT
  • Resolution: 4096
  • Data output: PWM/PPM/i-BUS/S-BUS
  • Operating Power: 3.5-9V/DC
  • Distance: +/- 300m (ground distance without interference sources)
  • Antenna: External single antennas
  • Display: LEDs
  • Online Updates: Yes
  • Temperature range: -10¡C - +60¡C
  • Humidity: 20% - 95%
  • Languages: German; English; French
  • Weight: 10g
  • Dimension: 37.0*25*13.3mm
  • Waterproof: yes PPX4
  • Certificates: CE, FCC, ID: 2A2UNG11P00
