SKU: FS-SR12

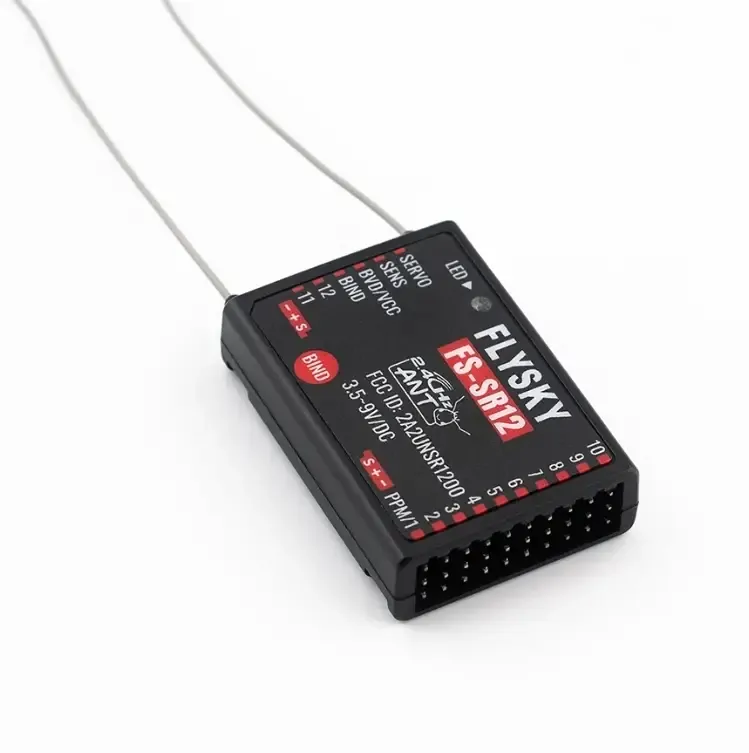

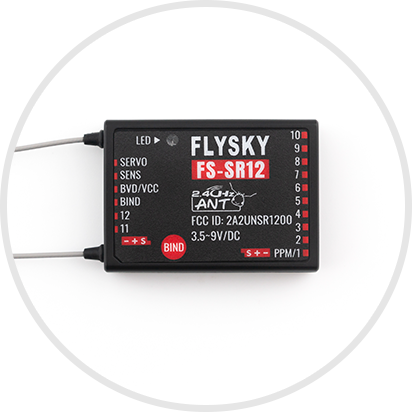

Flysky SR12 Receiver ANT Protocol 12 Channel FS-SR12
$58.89
or 4 payments of $14.72 with
Info
Price Matchup
Description
Flysky SR12 Receiver ANT Protocol 12 Channel FS-SR12
- Product Name: FS-SR12
- Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8
- Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.
- PWM Channels: 12
- RF: 2.4GHz ISM
- Maximum Power: < 20dBm (e.i.r.p.) （EU）
- 2.4G Protocol: ANT
- Resolution: 4096
- Antenna: Two antennas
- Distance: > 1500m (Air distance without interference)
- Input Power: 3.5~9V/DC
- Working Current: 70mA/5V
- Data Output: PWM/PPM/i-BUS/S.BUS
- Online Update: Yes
- Temperature Range: -10℃ ~ +60℃
- Humidity Range: 20% ~ 95%
- Dimensions: 44.8*32*11.3mm
- Weight: 13g
- Certifications: CE, FCC ID: 2A2UNSR1200
Description
SpecificationsFlysky SR12 Receiver ANT Protocol 12 Channel FS-SR12
- Product Name: FS-SR12
- Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8
- Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.
- PWM Channels: 12
- RF: 2.4GHz ISM
- Maximum Power: < 20dBm (e.i.r.p.) （EU）
- 2.4G Protocol: ANT
- Resolution: 4096
- Antenna: Two antennas
- Distance: > 1500m (Air distance without interference)
- Input Power: 3.5~9V/DC
- Working Current: 70mA/5V
- Data Output: PWM/PPM/i-BUS/S.BUS
- Online Update: Yes
- Temperature Range: -10℃ ~ +60℃
- Humidity Range: 20% ~ 95%
- Dimensions: 44.8*32*11.3mm
- Weight: 13g
- Certifications: CE, FCC ID: 2A2UNSR1200
