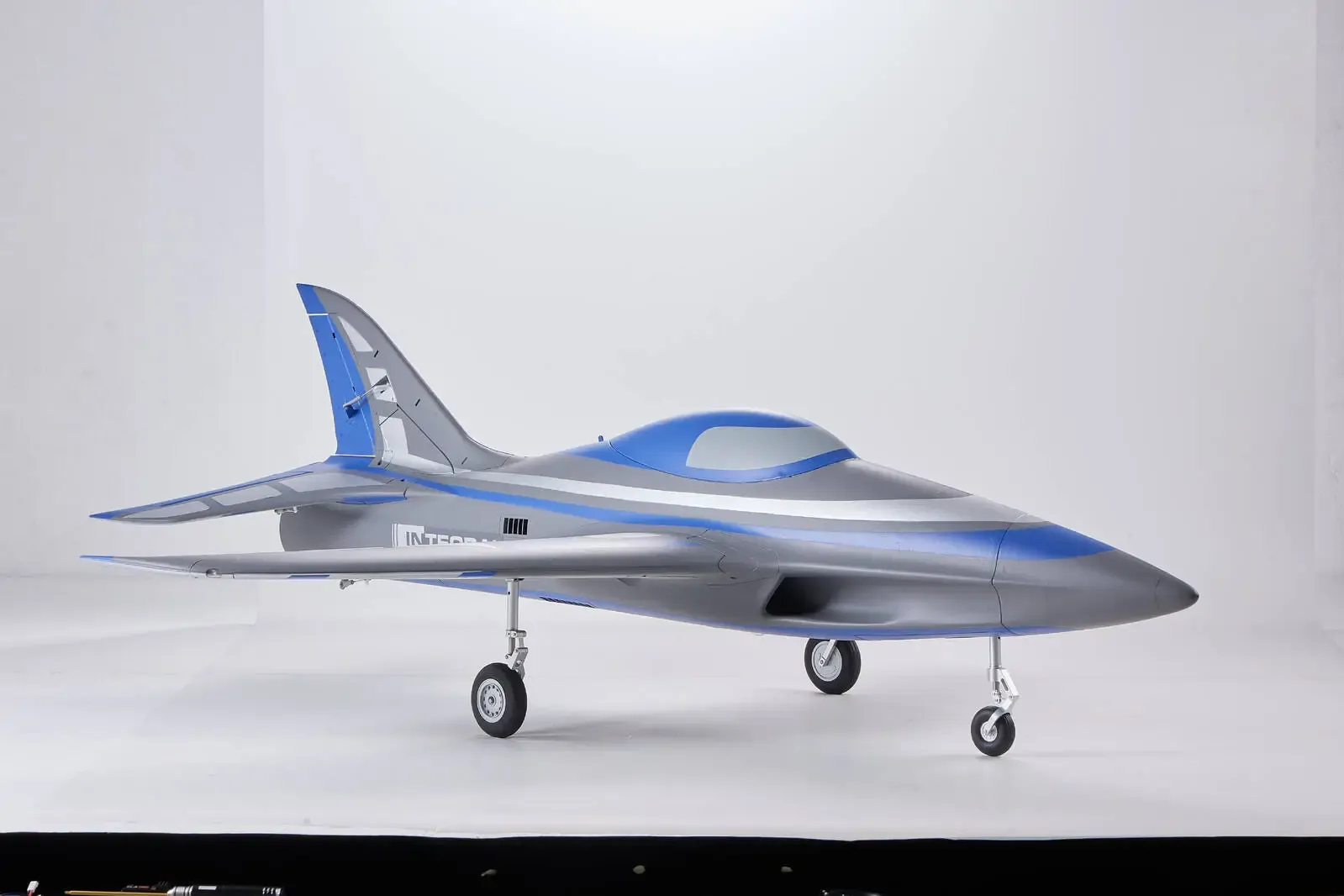

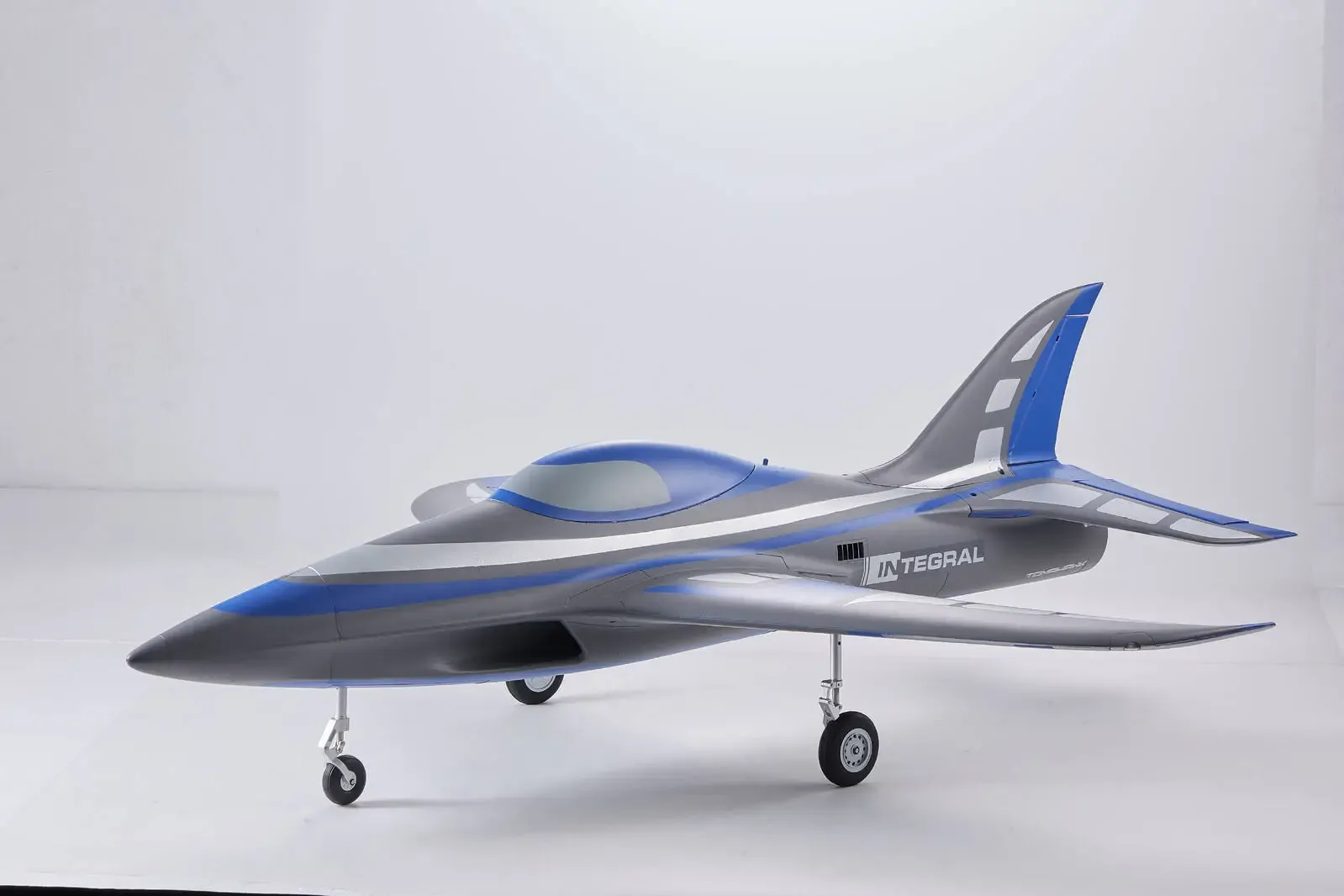

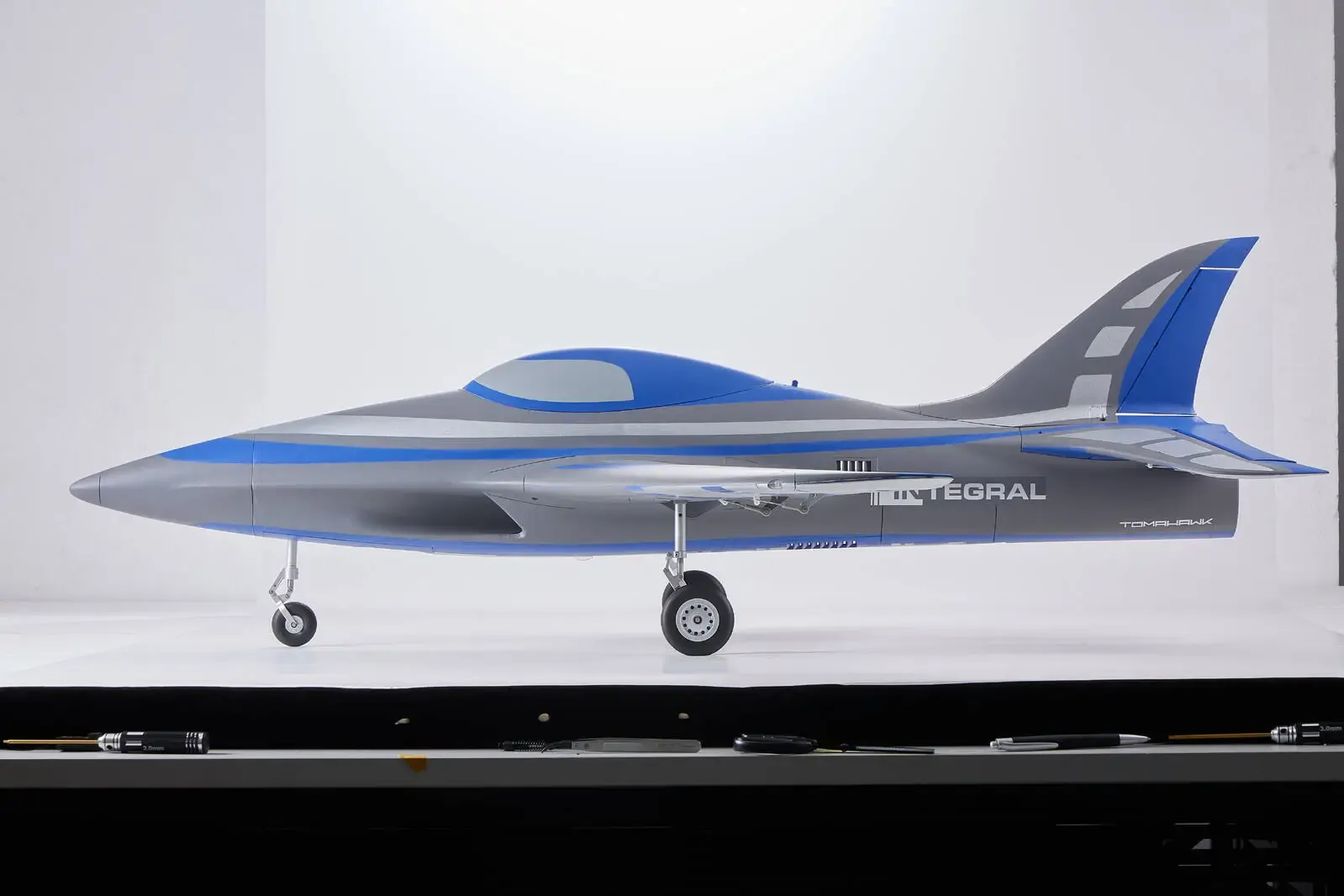

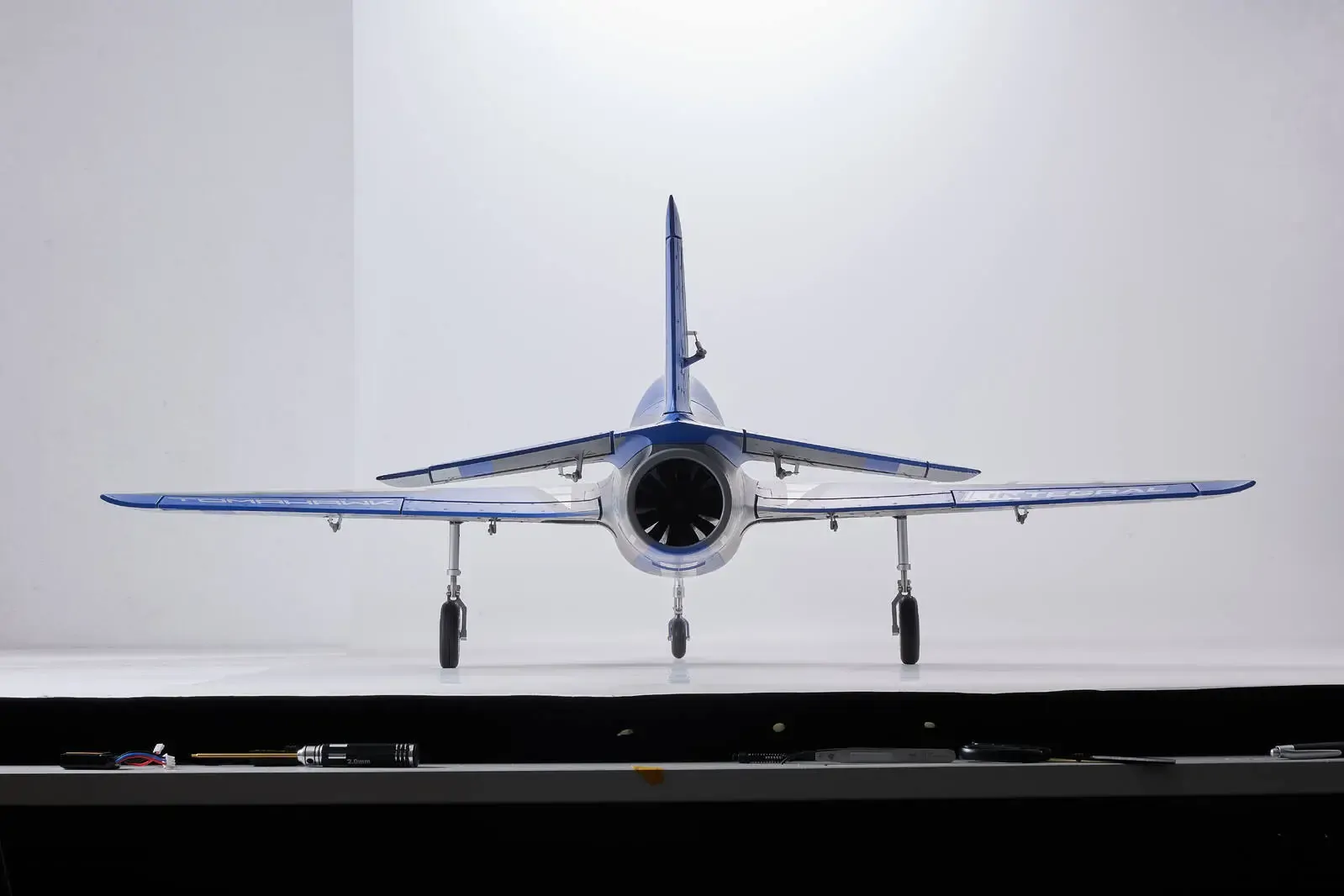

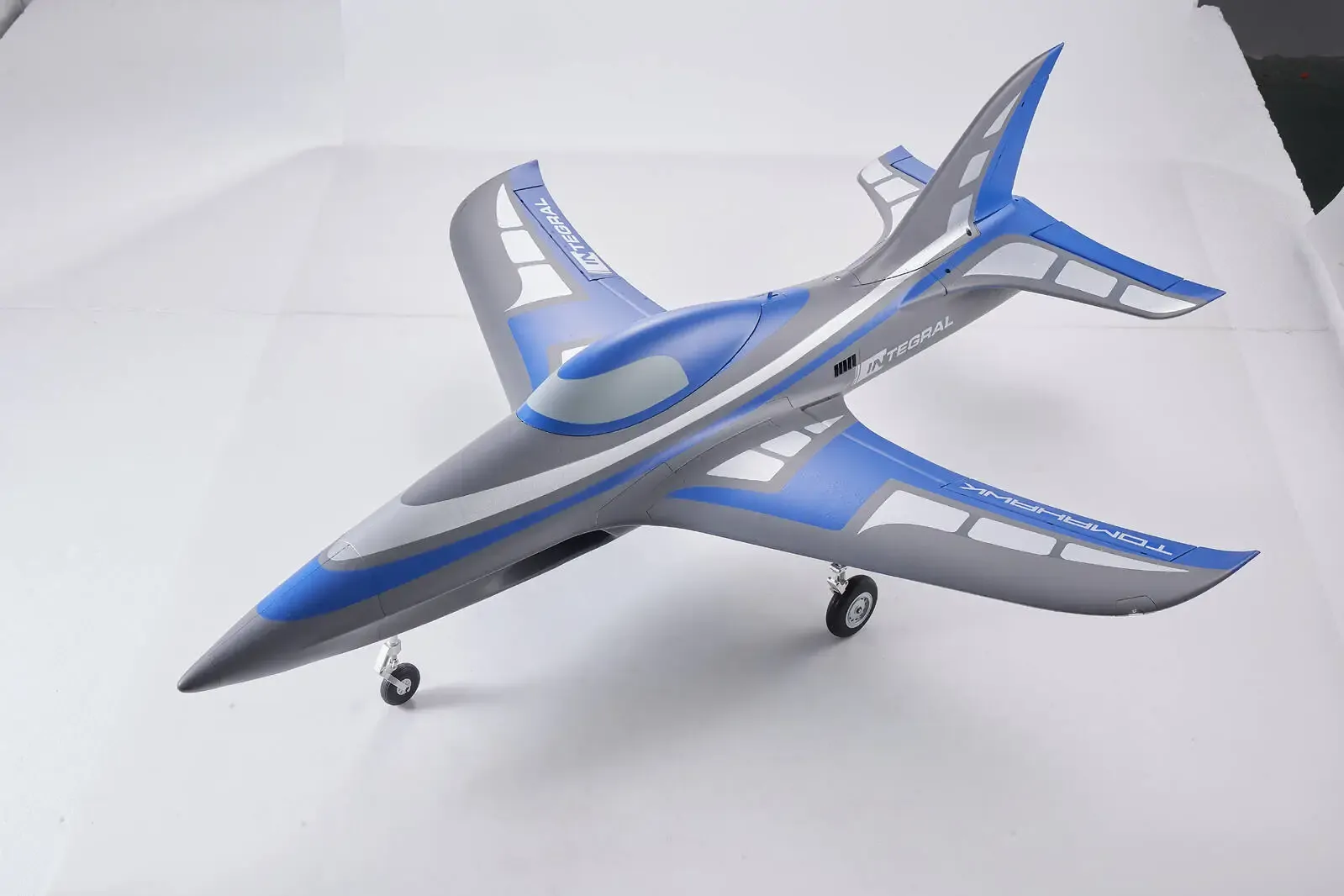

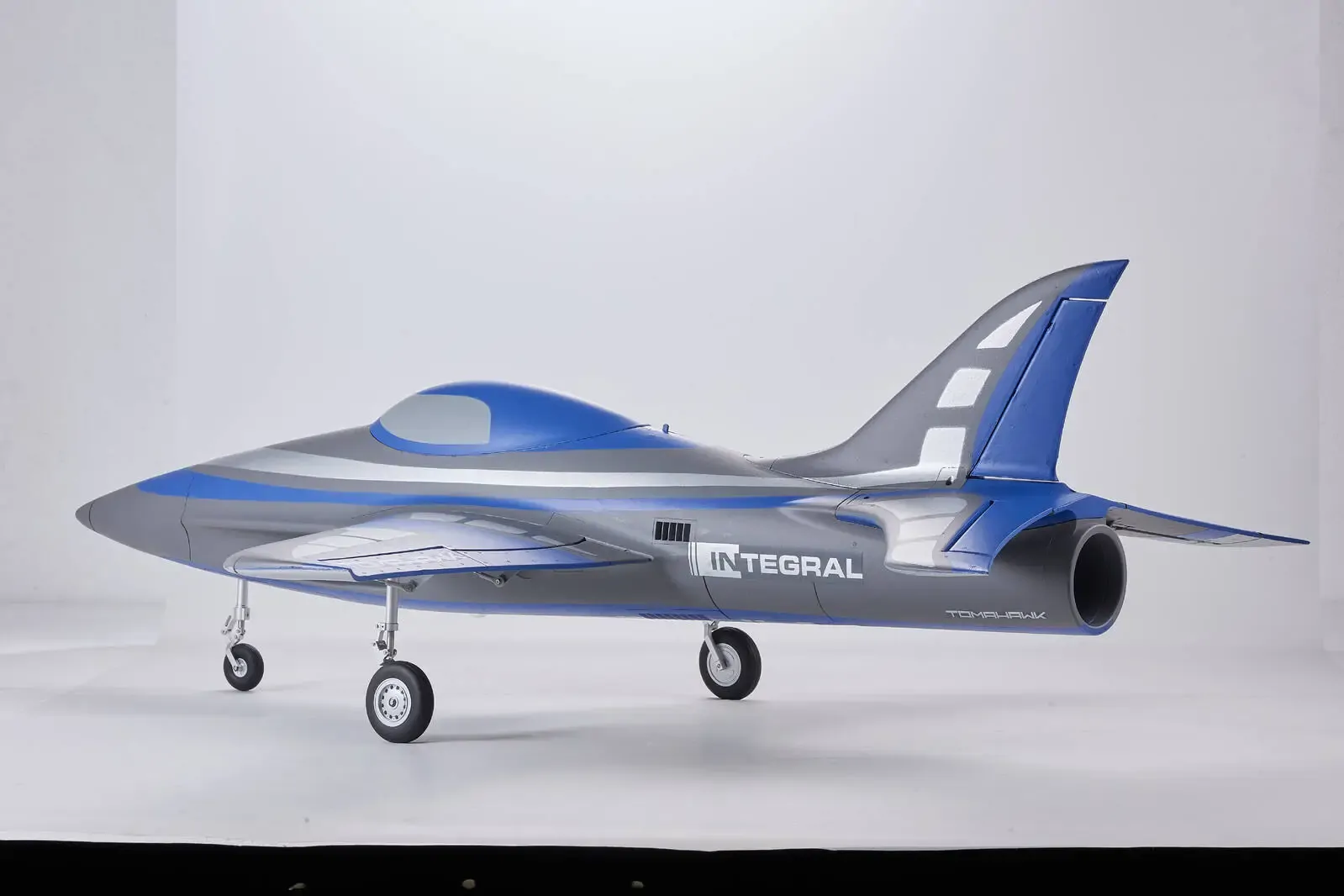

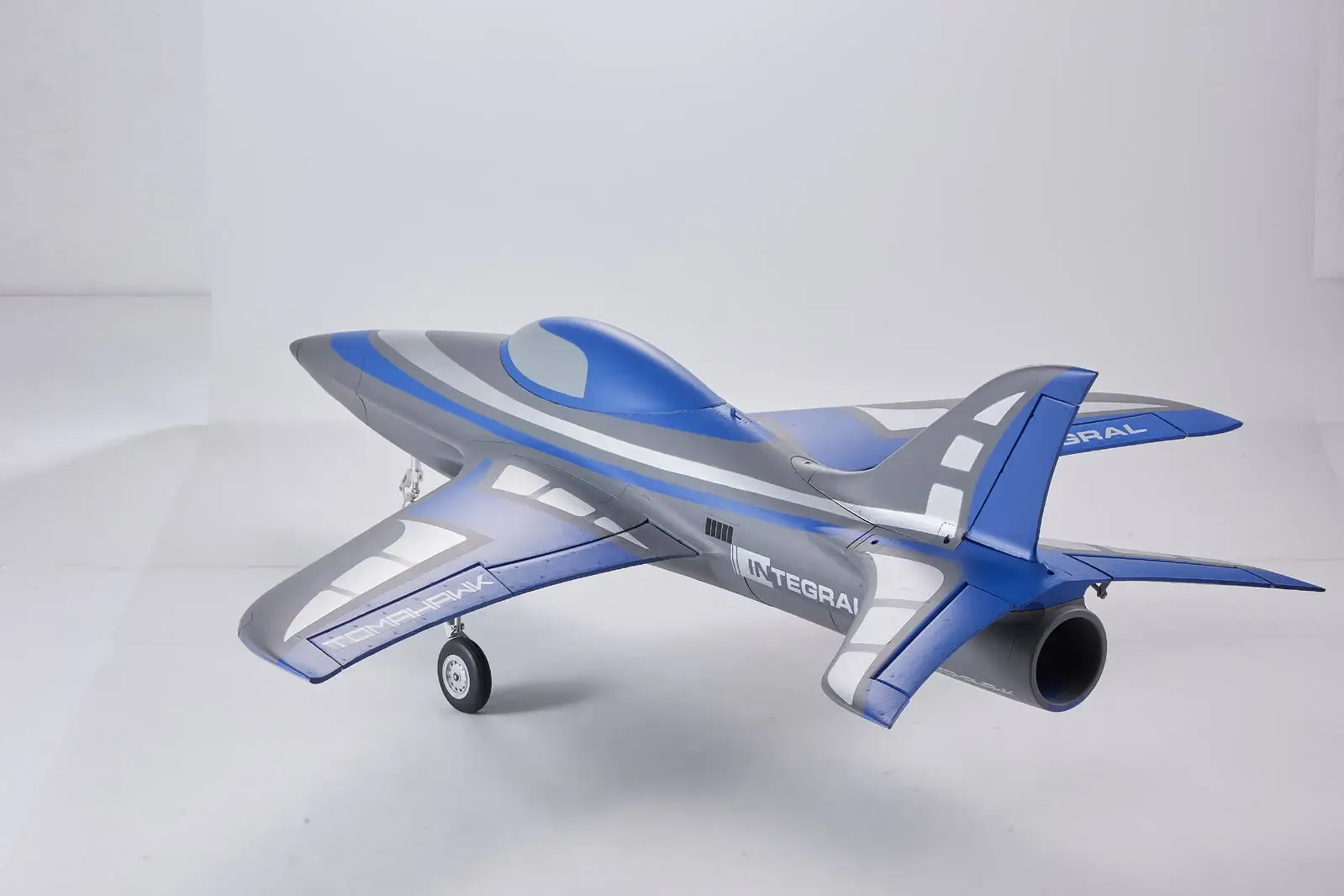

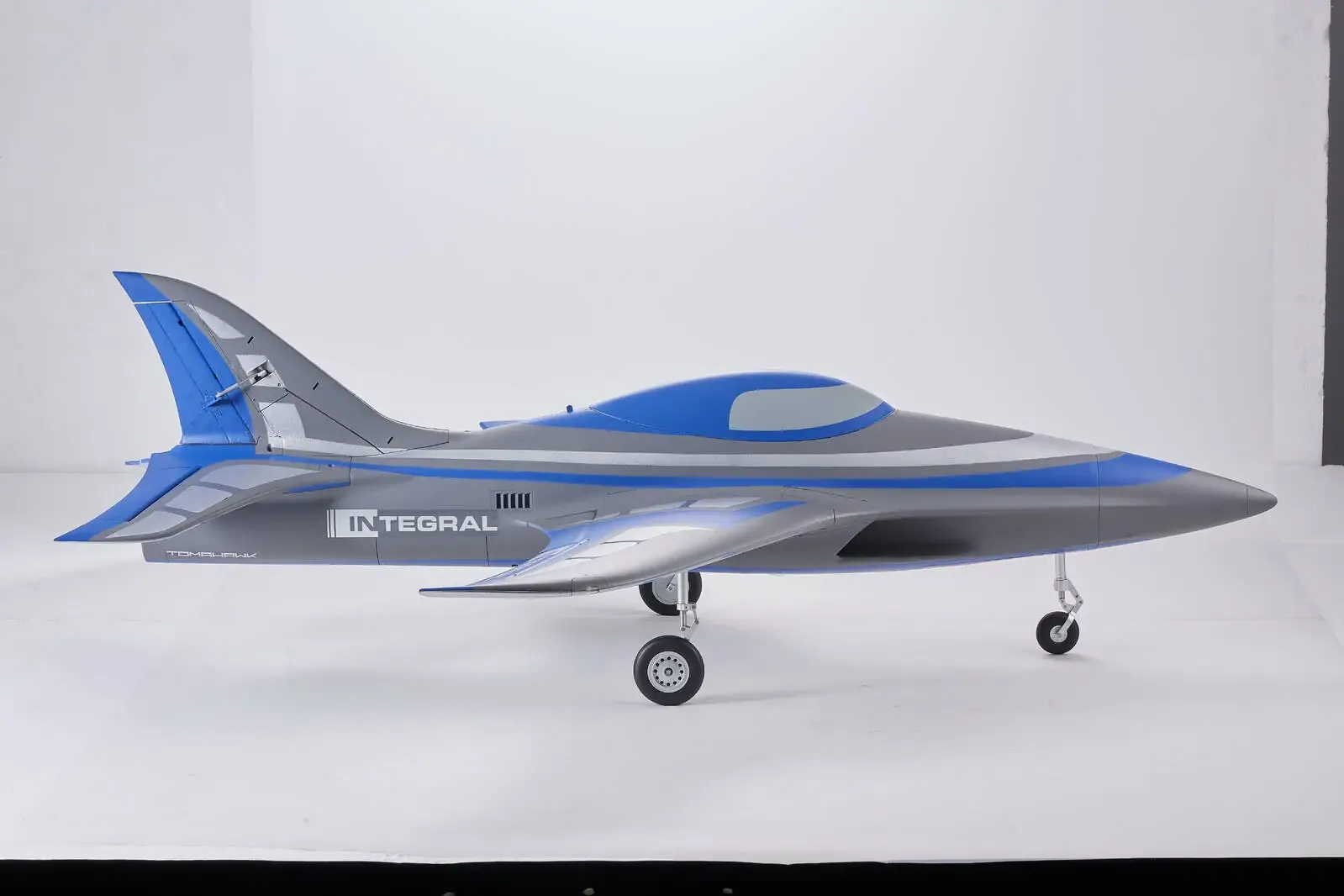

FMS 80mm EDF Integral PNP Blue

The unique and distinctive contour lines help the 80mm Integral deliver a satisfying performance in both speed and manoeuvrability.

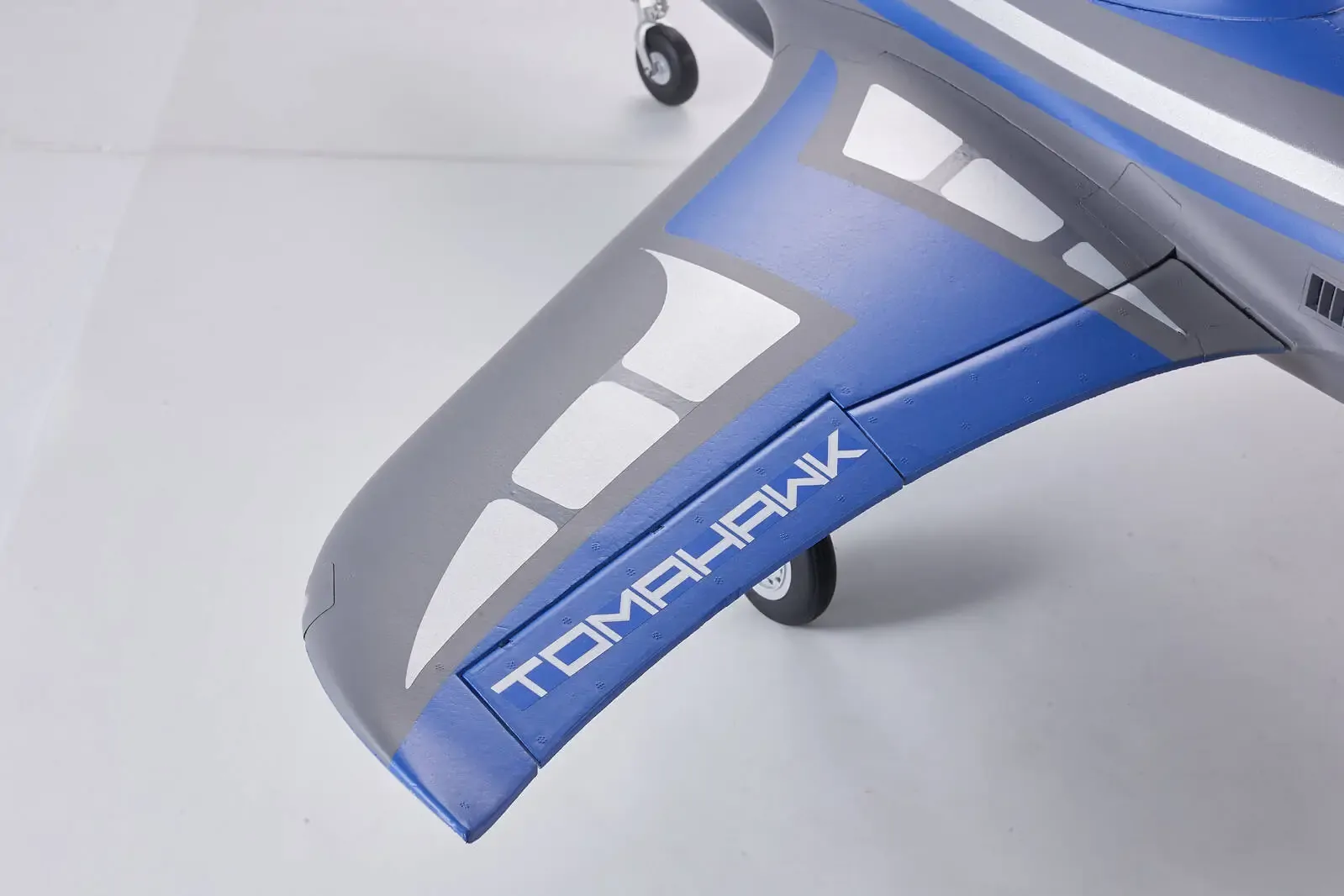

Unlike conventional wing shapes, the wing profile of the Integral features a downward-sloping leading edge that induces a controlled separation of airflow over a small area. This leads to rapid transition of the surface airflow into turbulence downstream, maximizing lift generation and enhancing flight stability. Even in light wind conditions, the aircraft can execute flights with precision and finesse.

The classic red and blue paint schemes, along with the profile's curves, exudes a sense of quality and distinctiveness - Whether in the sky or on the runway, it captures attention instantly!

The power system is composed of
a high-torque 3665-KV2000 inrunner motor, a high-stability 100A ESC (with 5A switch BEC), and a 6S 4000mAh-5000mAh battery (to be purchased separately), which is paired with 8pcs high-precision 13g metal digital servos mounted on the wings, tails and front steering position, allowing pilots to easily experience various control techniques and enjoy the pleasure of high-speed flight.

In addition, the wings and tails of Integral have been pre-embedded with reinforced ribbons, and the cockpit is firmly fixed in place with a buckle, which allows pilots to perform aggressive turns, rolls, and flips without any concerns.

The CNC all-metal landing gear with trailing-link suspension is highly precise and robust, protecting the plane against violent landings.

FMS 80mm Integral-perfect appearance, excellent performance.

Features

• Power system: High-quality 100A ESC, 3665-KV2000 in-runner motor, 80mm 12 bladed fan.
• Full-metal CNC landing gear, trailing-link suspension, highly precise and robust.
• Full use of 13g digital metal servos for improved precision and torque.
• Large tires- suitable for rough-field operations
• Glueless assembly. The aircraft is built with screws.
• Environmentally friendly water-based paint.
• Buckle design latch prevents unexpected canopy release in flight.
• Improved plug-type connectors for added durability and reliability.
• Added navigation lights on wings and taxi light on the bottom of the fuselage for a fun flight.
• Striking and attractive paint scheme.

What You Need (Not Included)

• Battery: 6S LiPo 4000mAh 35C
• LiPo charger

Product Specifications

• Wingspan: 1060mm /41.7in
• Overall Length: 1190mm /46.8in
• Flying Weight: Around 2500g
• Motor Size: 3665-KV2000
• ESCA: 100A
• Servo: 13gX8pcs
• Radio: 6CH Channel
• CG (center of gravity): 155-165mm
• EDF: 80mm Ducted Fan 12-blade
• Recommended Battery: 22.2V 4000mAh-5000mAh 45c
• Battery Compartment Size: 160*55*45mm
• Aileron: Yes
• Rudder: Yes
• Flaps: Yes
• Retracts: Yes
• Approx. Flying Duration: 3 minutes
• Minimum Age Recommendation: 14+
• Experience Level: Medium High
• Assembly Time: 10 minutes
• Wing Load: 116 g/dm_ ( 0.23oz/in_)
• Wing Area: 21.5dm_ ( 333sq.in)
