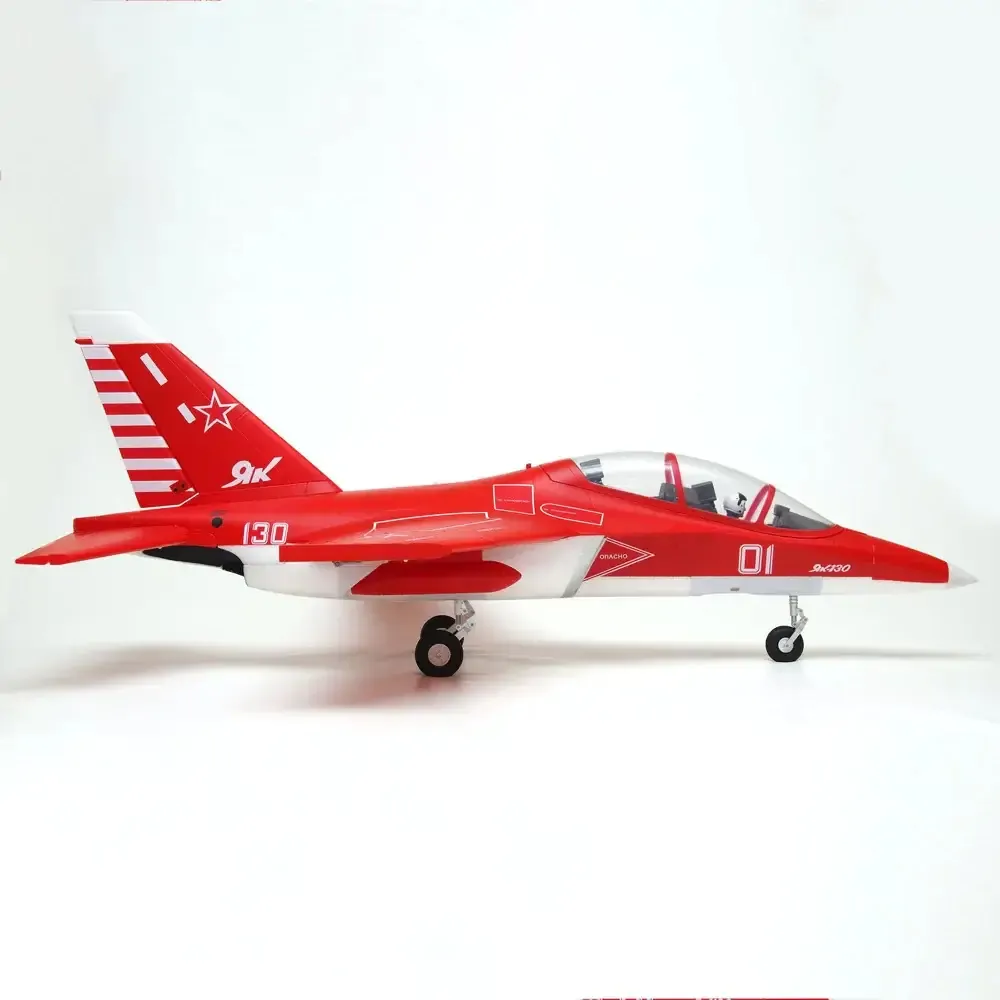

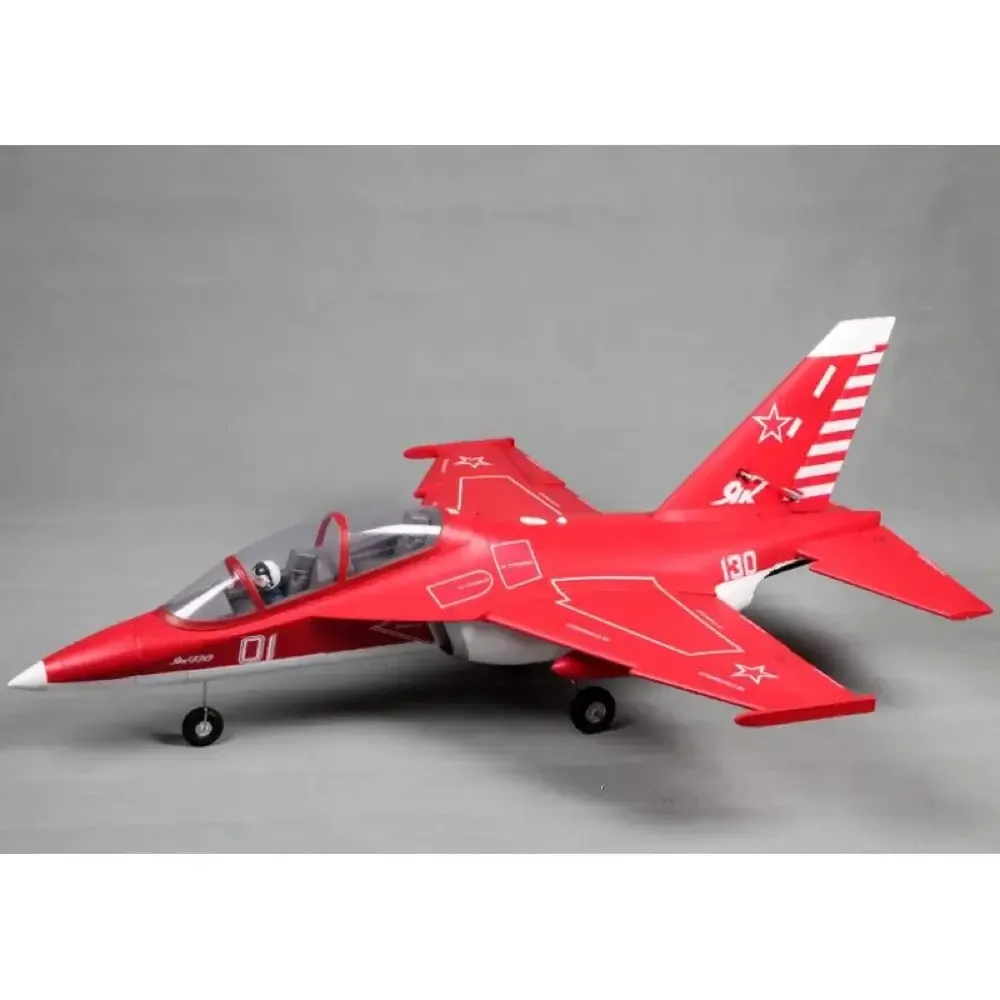

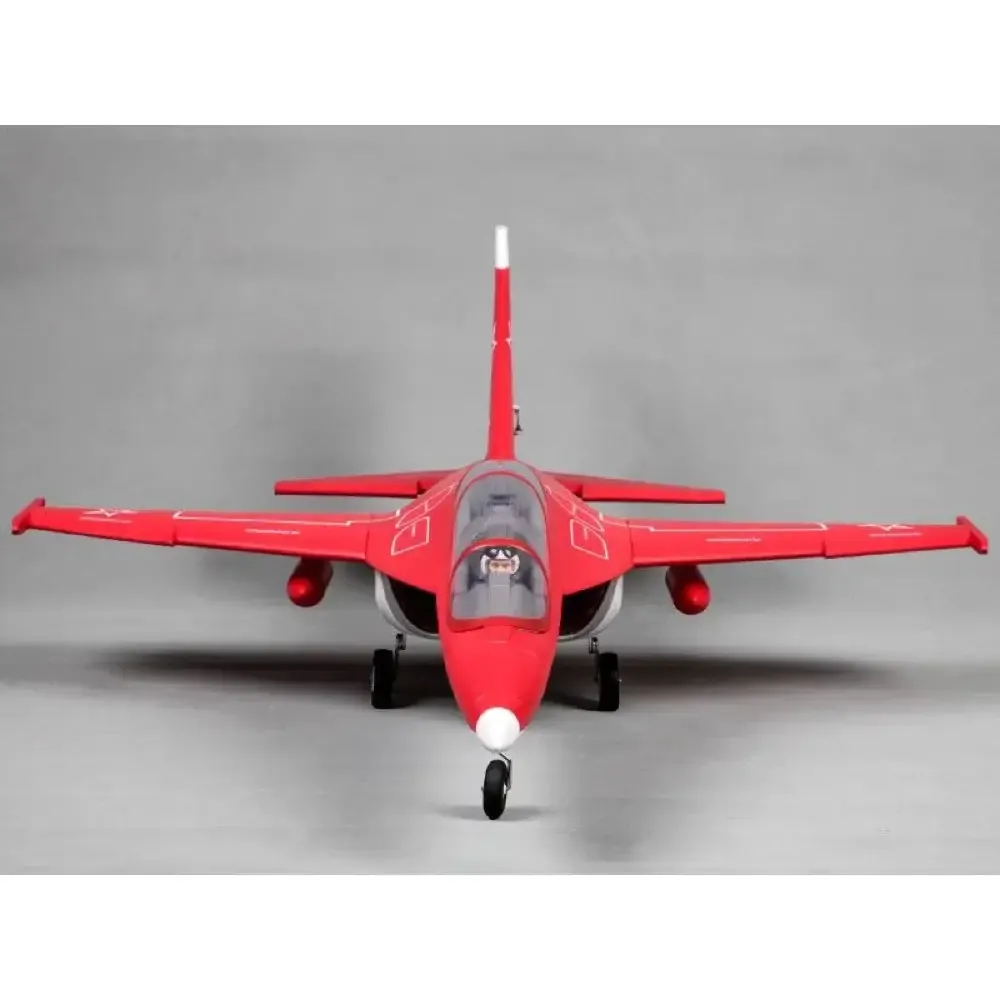

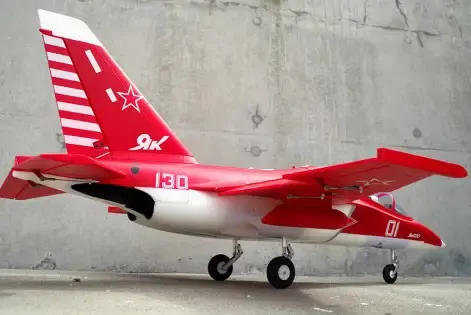

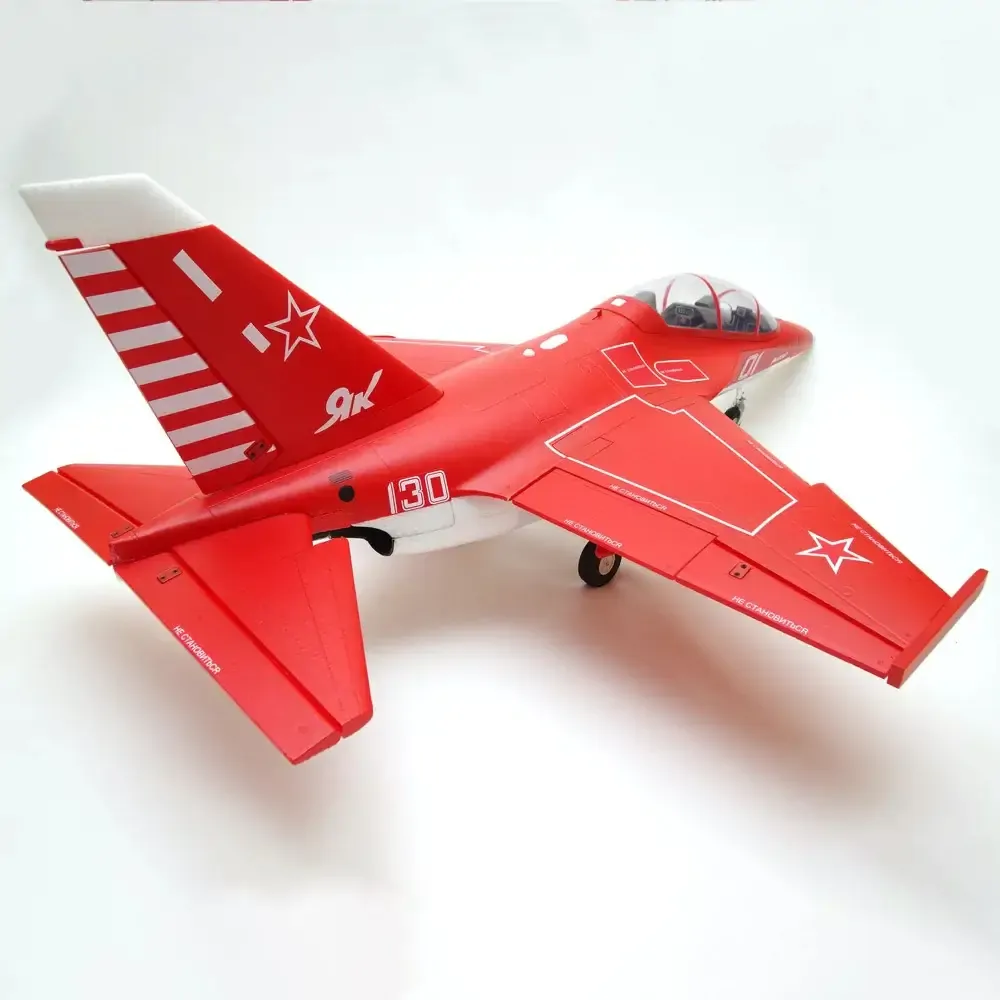

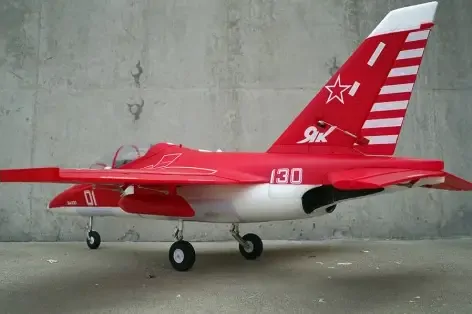

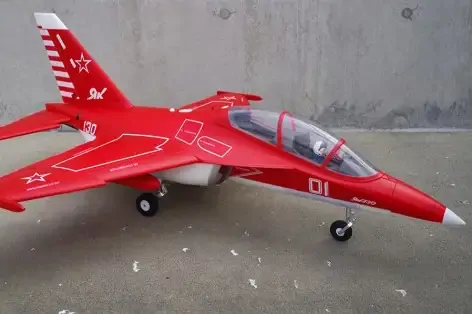

FMS Yak 130 70mm Jet PNP V2

Building on engineering innovations seen in its popular propeller models, FMS has upgraded its fleet of exciting Electric Ducted Fan (EDF) airplanes. Simply put, the FMS Yak 130 EDF Jet V2 70mm is the most scale-accurate Yak on the market. Couple that with a refined, power-packed 12-blade EDF and a tough frame and you have a truly special airplane.

Committed to the design and production of cutting-edge scale model aircraft, FMS has dedicated an extraordinary amount of effort in the design of the Yak 130 V2 to ensure that it’ll also be at the pinnacle of model aviation. Finding a balance between scale and performance has always been a challenge, it took numerous prototypes, test flights and modifications to refine the Yak 130 V2 into its final form. FMS is confident that this is the most accurately defined Yak on the market today.

Small details such as the plastic leading edge of the air intake, which reduces turbulent airflow and protects the air duct from debris, are implemented onto the airframe. The panel lines, cockpit interior, scale pilot and even the auxiliary fuel tanks are made with significant attention to detail. Even the way the aircraft is assembled has been optimized- with a screw-together airframe, it’s now possible to build the Yak 130 V2 in the time it takes to charge the flight battery.

Utilizing the FMS 70mm 12-bladed EDF unit, Predator 2860-1850KV motor and an upgraded 80A ESC, the Yak 130 V2 has more than enough thrust to tackle the most demanding of manoeuvres. A Strong upgraded metal landing gear set provides added support and strength to absorb the impact of less-than-perfect landings. All servos are pre-mounted and are optimized for this aircraft, ensuring absolute reliability and manoeuvrability.

Don’t settle for any less than the best- FMS Yak 130 V2

Pure power

This Yak is performance machine. A Predator 3060-KV1900 motor and upgraded 80-amp ESC power the Yak's EDF, resulting in tremendous power and speed from a 6S battery. An added bonus to the blistering power is the resonating sound from the 12-blade EDF. Not only will you feel the Yak's power, you'll hear it too.

Scale Design

Improvements include a plastic leading edge on the air inlet duct, providing a smooth flow of air into the duct while protecting the inlet from damage that can come from a less-than-perfect landing. Plus, the assembly process has been made simpler, meaning you'll be flying quicker and easier. The Yak-130 V2 feature new robust machined metal retracts that absorbs even the hardest landings on grass or paved runways. All servos are pre-mounted and are digitally designed by FMS for precise maneuvers in high or low-speed flight. A main spar tube runs through the fuselage and wing to help strengthen the airframe, which is then fastened with screws. The surface control horns and wires are pre-installed and utilize a ball-link design, resulting in a remarkably accurate flight control.

Unrivaled scale appearance

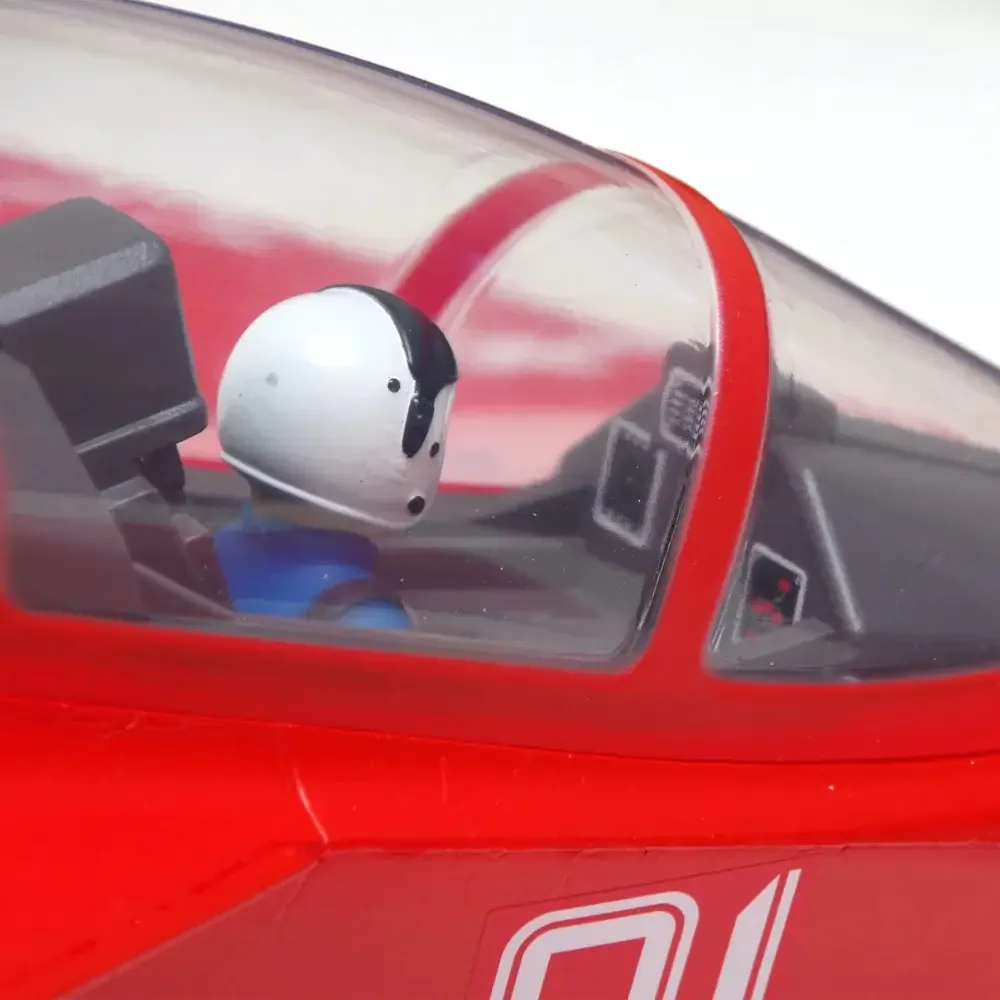

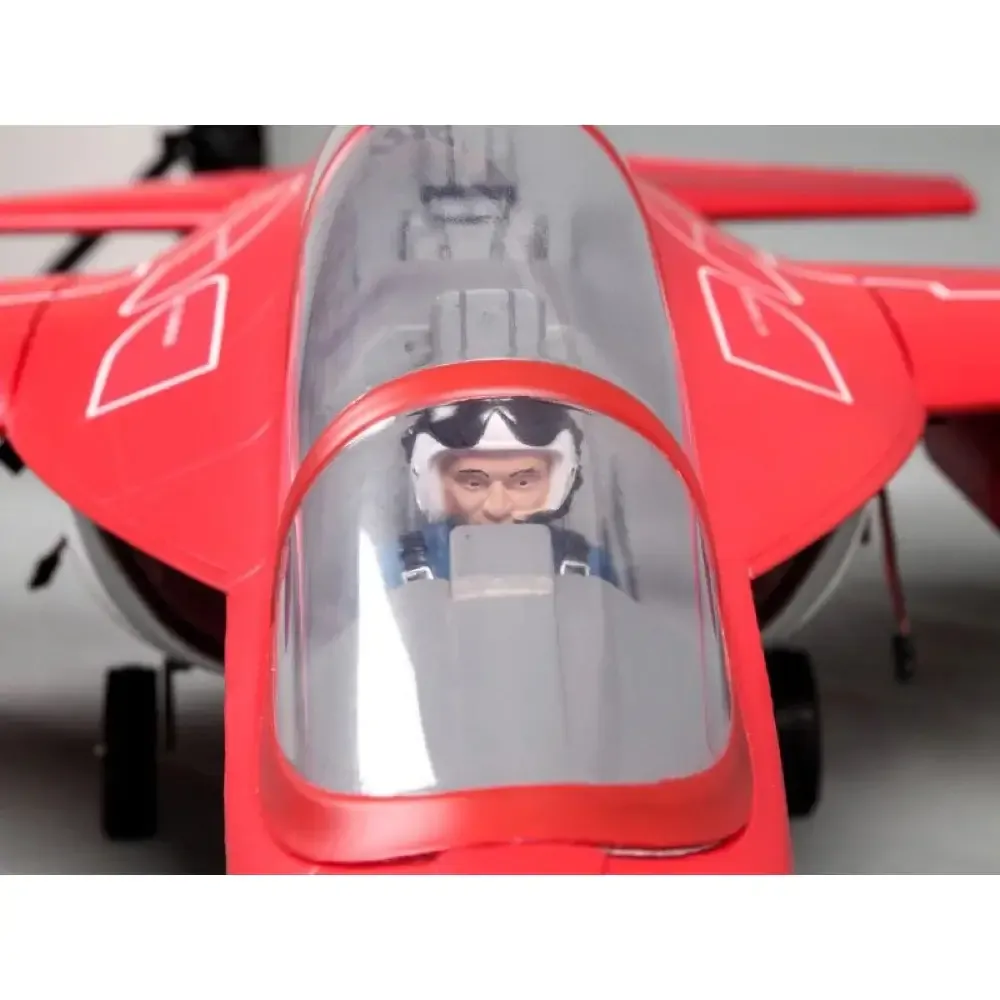

The Yak 130 features incredible scale detail. Panel lines, cockpit interiors, a scaled pilot, and a removable drop fuel tank are just a few of the highlights. FMS has incorporated a new, environmentally friendly water-based paint. The water-based paint results in a glossier appearance and extra protection to the plane's foam parts.

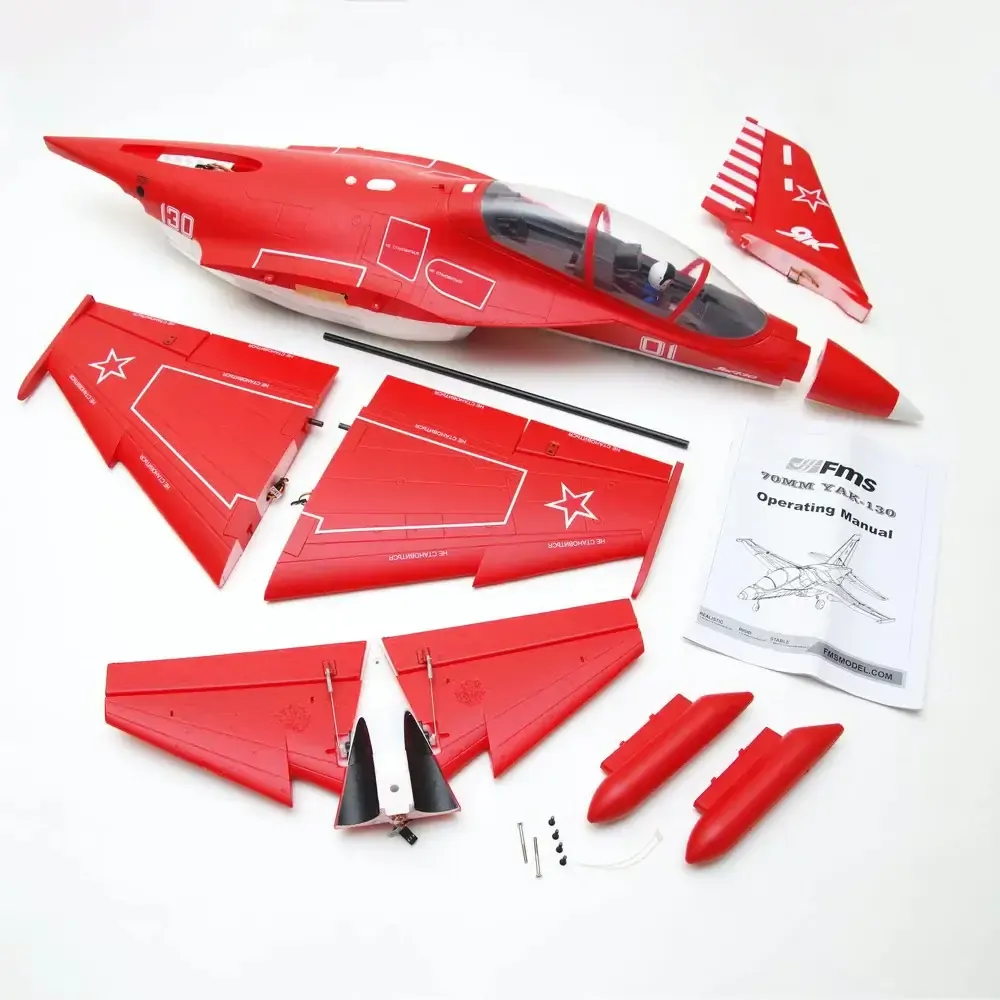

What's In The Box

• FMS YAK-130 EDF Jet V2 PNP
• Brushless 3060-KV1900 Motor
• 80A ESC
• 9-gram Servos
• User Manual

What You Need (Not Included)

• Full-range, 6+ Channel Transmitter
• Full-range, 6+ Channel Receiver
• 6S 22.2V 2600-3300mAh LiPo Flight Battery
• Suitable Li-Po Battery Charger

Features

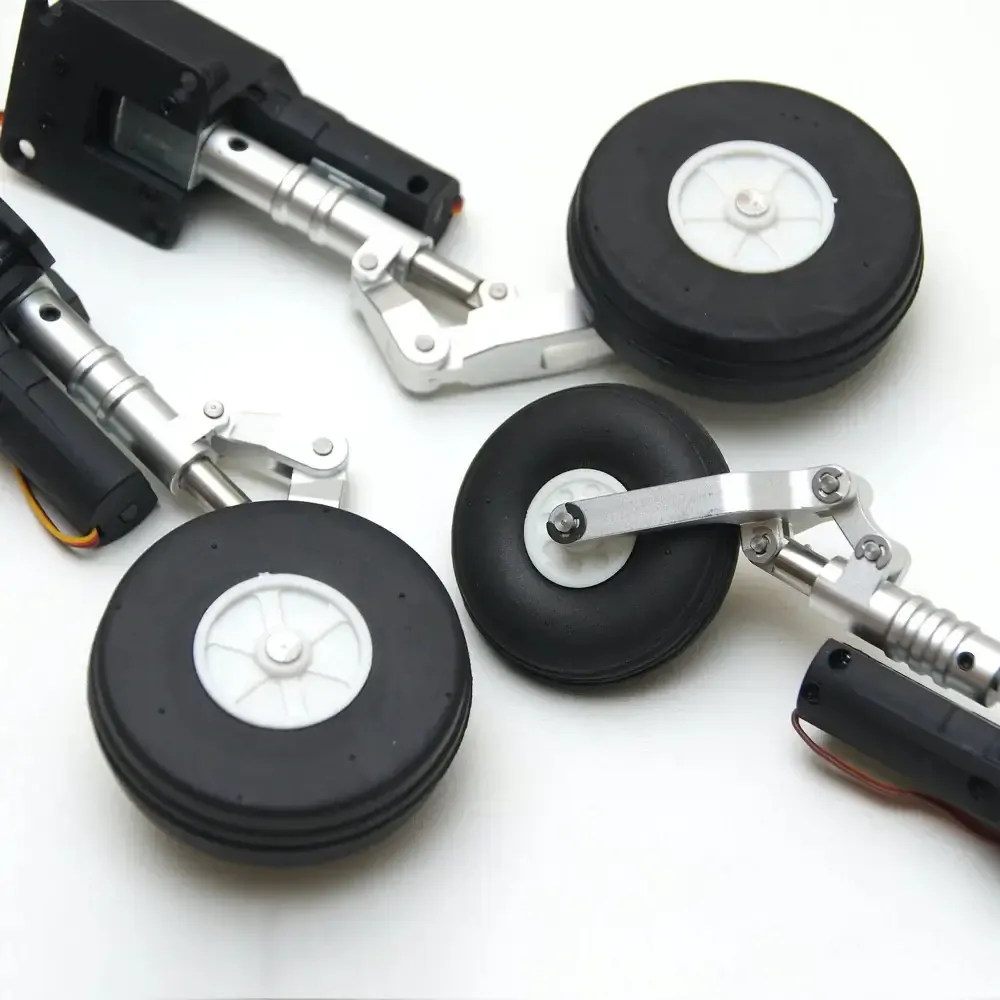

• Upgraded CNC metal retractable landing gear for added support and strength
• Upgraded power system includes a 80A ESC
• 12-blade 70mm fan delivers excellent top speeds plus turbine-like sound
• Scaled appearance with pilot, oil tank, and retractable front and rear landing gear
• Metal-gear digital servos for a faster response and precision
• Functional Flaps
• Button type canopy, set free from fall-off problem
• Simplified assembly structure of main wing set
• Water-based paint for better color and gloss
• No glue required for assembly

Product Specifications

• Approximate Assembly Time : Less than 1 Hour
• Approximate Flight Time : 5 minutes
• CG (Center of Gravity) : 3.1-3.3" (80-85mm) back from leading edge of wing measured at the fuselage
• Charger : Sold Separately
• Completion Level : Plug-N-Play
• Fan Size : 70mm EDF
• Flaps : No
• Power Type : Electric
• Landing Gear : Retractable Tricycle Gear with Steerable Nose Wheel
• Material : EPO
• Minimum Required Radio : 6-channel
• Motor Size : 3060 Kv1900
• Product Length : 41.7" (1060mm)
• Receiver : Sold Separately
• Recommended Motor Battery : 6S 22.2V 2600-3300 35C
• Speed Control : Included
• Transmitter Range : Full Range Transmitter Required
• Trim Scheme Colors : Red and white
• Wing Area : 294.5 sq in (19 sq dm)
• Wing Loading : 0.23 oz/sq in (100 g/sq in)
• Wingspan : 34.6" (880mm)
