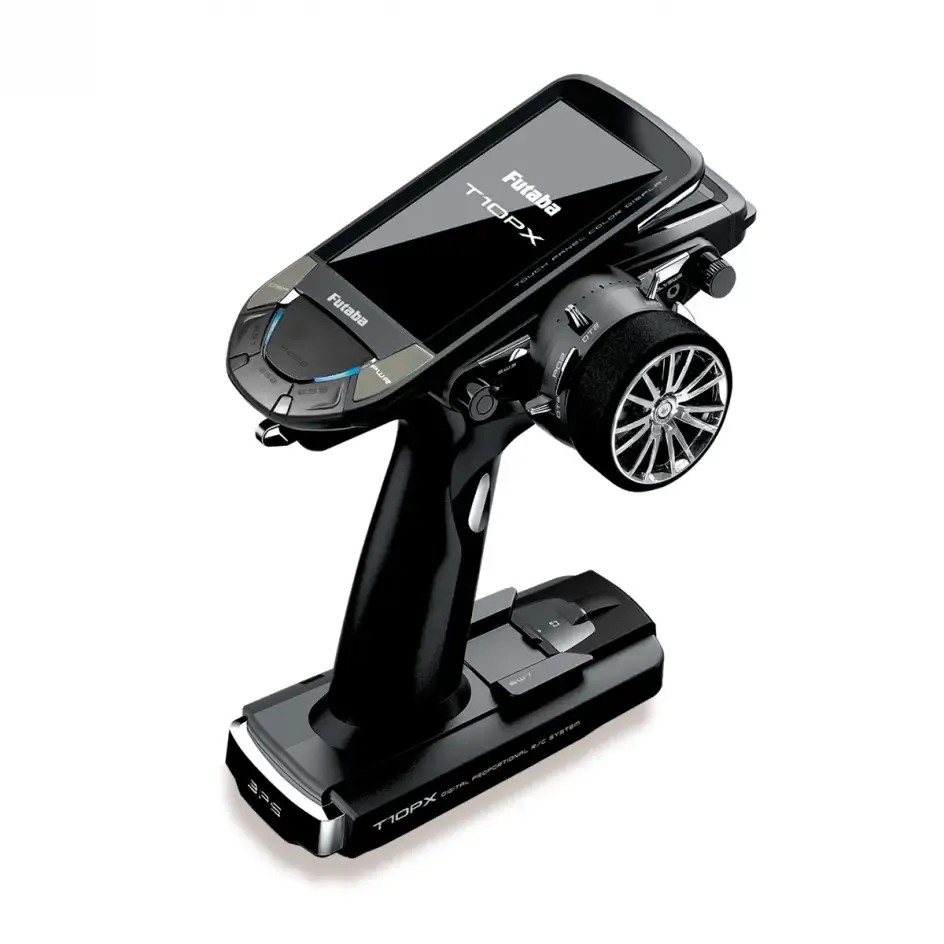

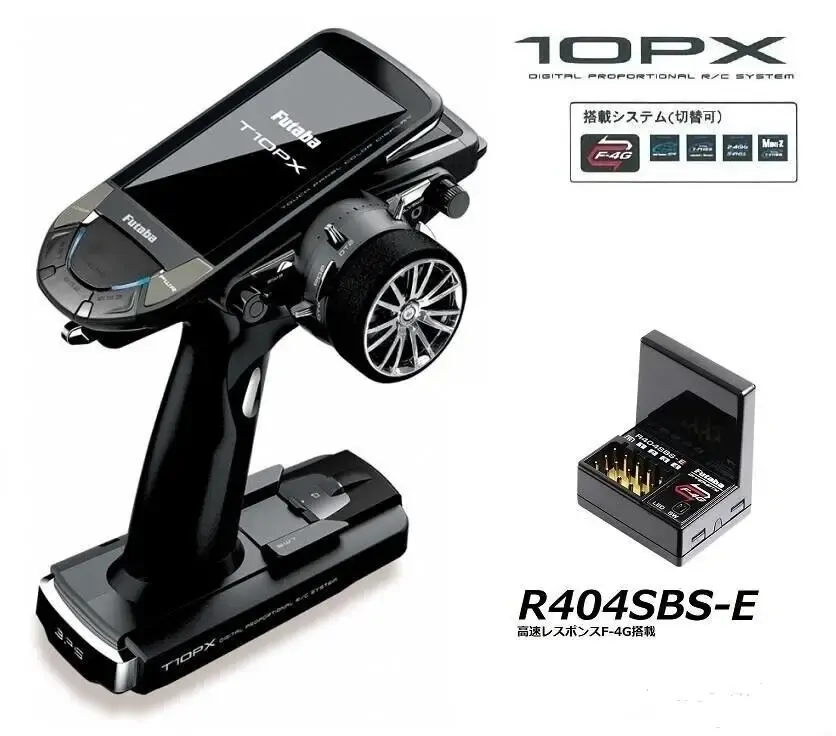

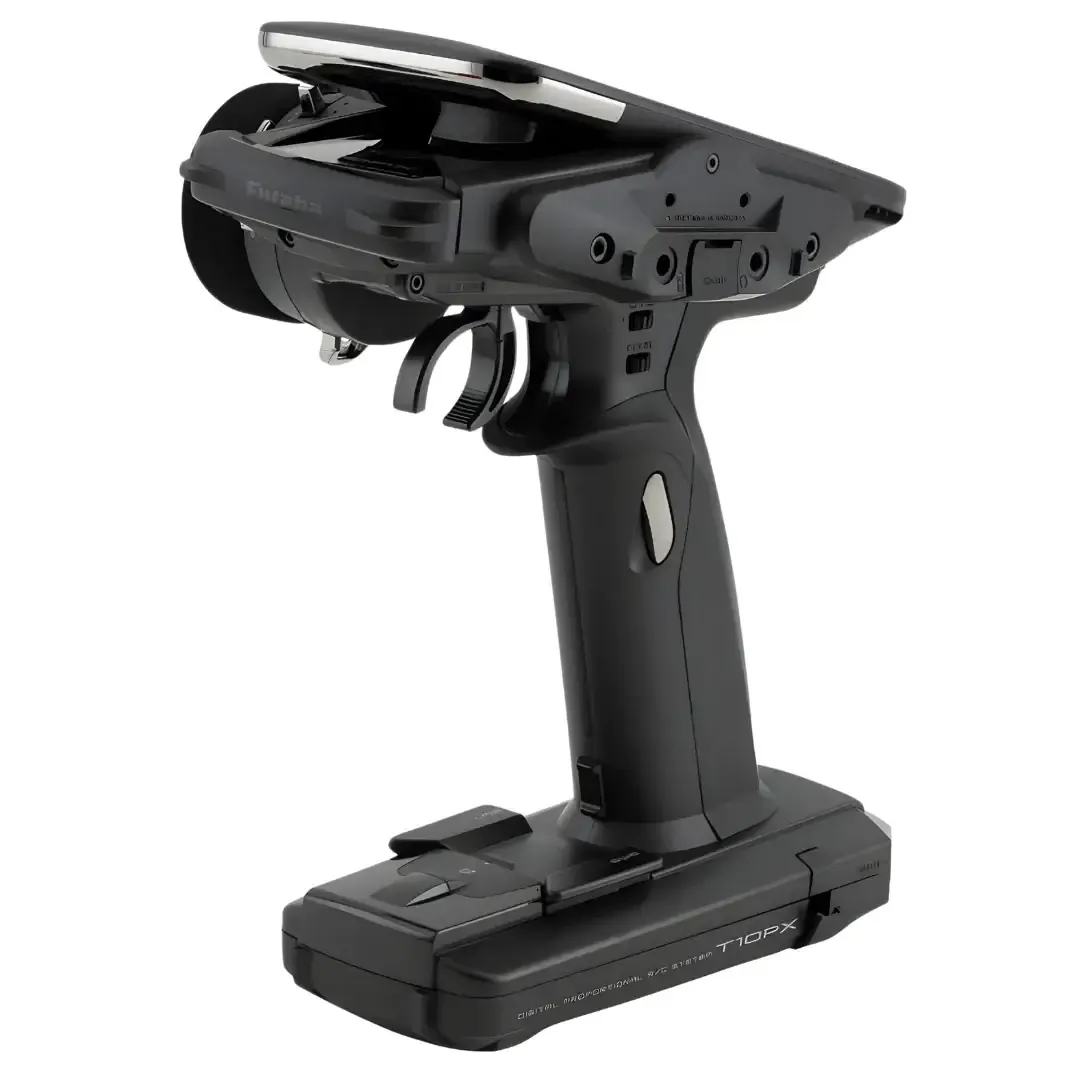

Futaba 10PX 10Ch T-FHSS Transmitter w/ R404SBS-E & Battery

Introducing the Futaba 10PX, your ultimate remote control transmitter for precision and performance. At its heart lies a remarkable full-colour touch screen LCD, boasting a generous 4.3-inch size that's perfect for both indoor and outdoor use. With trans reflective technology, it ensures crystal-clear visibility in any lighting condition.

Beyond the stunning display, the Futaba 10PX packs a punch with 10 channels, powered by the lightning-fast F-4G system, providing telemetry with unrivalled responsiveness. Need even more flexibility? The S.BUS2 system allows you to operate up to 10 channels simultaneously. Plus, you can customize your experience by utilizing the T-FHSS MINIZ system, giving you the power to tailor your setup with the Kyosho Mini-Z Evo dedicated receiver.

In addition to these cutting-edge features, the 10PX offers a wealth of functionality, from brake and steering mixing for large cars to 4WS mixing for crawlers and even gyro sensitivity adjustments. With its LiPo battery compatibility, firmware updates via microSD card, and versatile button configuration, this transmitter empowers you to take control like never before. Elevate your RC experience with the 10PX – it's the ultimate tool for true enthusiasts.

Features

• Full color touch screen LCD T10PX has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
• F-4G system & telemetry Equipped with an F-4G system that enables telemetry with faster response than the T-FHSS SR system.
• 10 channels Up to 10 channels can be operated by using the S.BUS2 system together.
• T-FHSS MINIZ system By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately.
• Update-able software Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
• Model memory for 40 models Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
• Paddle switch + bottom switch + 3 position switch A paddle switch near the wheel, a 3-position switch on the grip, and a bottom switch on the bottom are equipped to support multiple channels and functions.
• Lipo battery as standard
• Brake mixing for large cars Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
• Steering mixing Smooth cornering is possible by the independent left and right steering servo setting.
• 4WS mixing for crawlers and other 4WS type This function can be used with crawlers and other 4-wheel steering type vehicles.
• Dual ESCs mixing for crawlers ESC at the front and rear are controlled independently.
• Gyro mixing The sensitivity of Futaba car rate gyros can be adjusted from the T10PX.
• Tank mixing This function is intended for vehicles such as tanks.
• CPS mixing LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
• S.BUS servo This is a special function that allows setting of the parameters of our S.BUS servo whose settings are changed by using PC Link software.
• MC-Link This is a dedicated function which allows setting of the contents of the Link software which makes possible Futaba speed controller (ESC), MC960CR, MC950CR,MC850C, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes by PC at the T10PX.
• Throttle speed Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily.It also suppresses battery consumption.
• Steering speed When you sense that the steering servo is too fast, etc.,the servo operating speed (direction that suppresses the maximum speed) can be adjusted.
• Non-telemetry LED When the telemetry function is OFF to confirm that the telemetry function is not operating.
• Dial select function This function assigns functions to dials (digital trim,grip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
• Switch select function This function assigns functions to 10 switches. The operating direction can also be set.
• Wheel & Trigger position can be changed The wheel position can be offset by using an accessory APA wheel position offset adapter. The wheel angle can also be adjusted.The position of the throttle trigger can be moved forward and backward.
• Rubber Grip It is possible to convert to a narrow grip type by ex-changing the rubber grip.
• Trim/dial lock functions Lock functions which prohibit setting and operation by transmitter trim, and dials are provided.
• Left-handed support The left and right installation direction of the wheel section can be reversed.
• Vibrator built into the grip The vibrator can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm.
• USB Port The transmitter can be used as a game controller by connecting it to a computer with a USB cable. (Some games cannot be used.)

What's In The Box

• T10PX Transmitter
• 2 x R404SBSE  Receiver
• Futaba 2000mah Lion Battery
• Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included
• Wheel adapter 32 deg
• Wheel Angle spacer 5 deg
• Large diameter steering wheel
• Trigger guard (Lx1/Rx1)
• Grip rubber x1
• Blind paddle x2
• Hex wrench
• Short manual
• Charge Lead

Product Specifications

Transmitter

• Frequency: 2.4GHz @ 100mW

Protocols

• T-FHSS-SR
• T-FHSS
• S-FHSS
• F-4G

Voltages

• LiPo: 7.4V
• LiFe: 6.6V
• Current Drain: 350mA or Less*
• Antenna Type: 1/2 Dipole

Receiver

• Voltage: 3.7-7.4V DC
• Dimensions: 1.00x0.81x0.42in (25.5x20.7x10.6mm)
• Weight: 7.2g (0.25oz)

**When you turn on your 10PX, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.**
