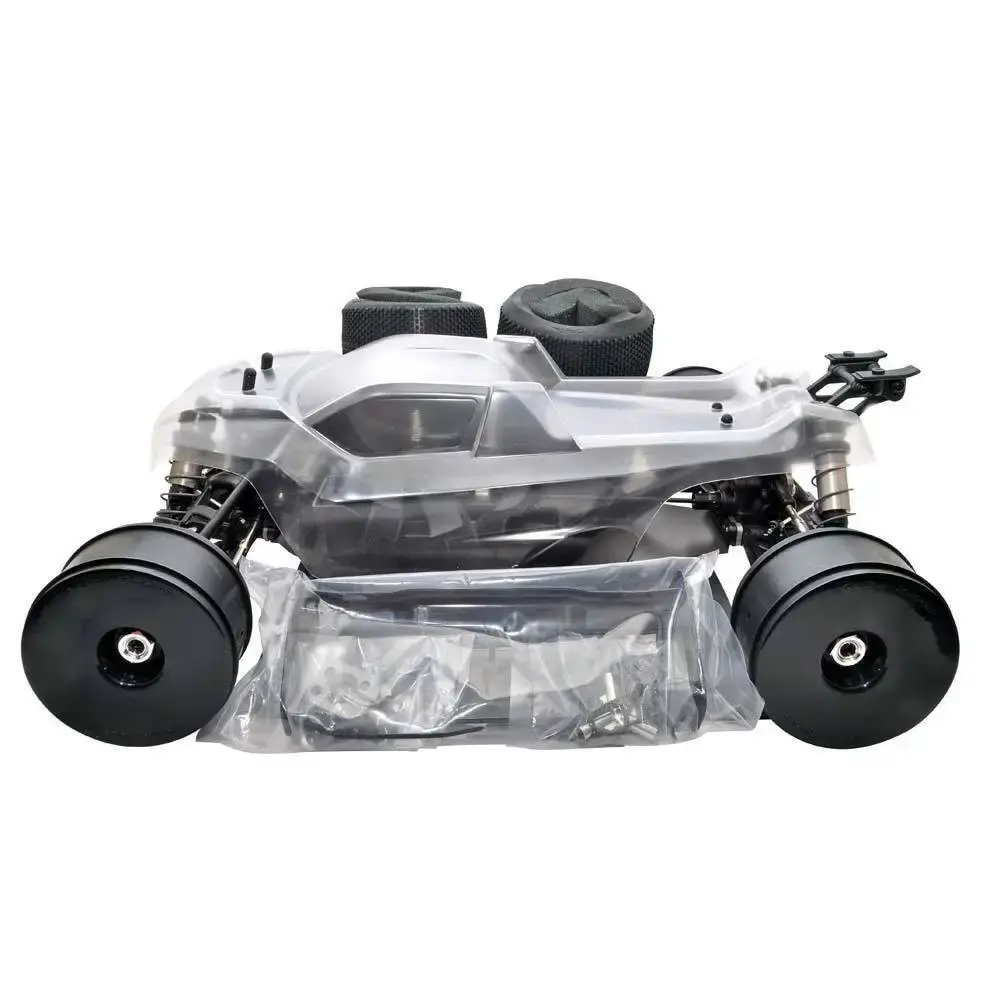

Hyper SS Truggy Elce Kit 80% No Electronics

Made to conquer the course!

Developed using the latest SS Buggy platform, the SSTe features and advanced suspension design for improved traction and stability. Each long throw suspension arm is handled by anti-roll bars and threaded 17mm big bore oil shocks. Optimized steering block and hub carrier provide better steering and rough track handling. Eye catching burnt orange anodized aluminum components add the necessary style, all topped off with the latest cab forward bodyshell and racing dish wheels.

What's In The Box

• Hyper SS Truggy Elce Kit 80% No Electronics
• Tires & Wheels
• Shocks
• Body
• Rear Wing
• Instructions

What You Need (Not Included)

• Radio: 2-channel with high-torque steering servo
• Motor: Brushless
• Electronic Speed Control: Compatible with selected motor
• Battery: 2-4S LiPo depending on selected motor and ESC
• Battery Charger: To match selected battery
• LiPo Charging Bag
• AA Batteries: Eight for transmitter

Features

• Gen2 17mm big bore aluminum shocks
• Twin fiber disk brakes
• Adjustable turnbuckles
• Front and rear anti roll bars
• Wrap around front bumper for added strength and protection
• Adjustable suspension mount inserts for toe-in and anti-squat
• Side guard dirt deflectors
• High downforce wing
• Cab forward body shell
• Dish wheels and HoBao racing tires
• Chassis: 0.14 (3.5mm) thick aluminum, gun metal gray in color with plastic side guards
• Drive: Four wheel shaft with lightweight center shaft
• Differentials: Three

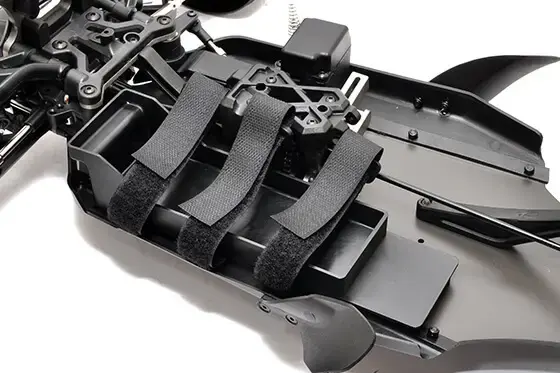

• Battery Box: Molded plastic, accomodates 2S, 3S and 4S LiPo packs,
• three quick release hook and loop straps, dimensions- 5.5 x 1.8 x 1 (140 x 45.7 x 25.4mm)
• Motor Mount: Aluminum, adjustable

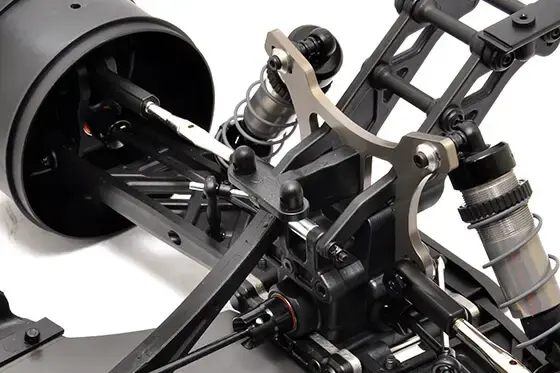

• Shocks: Oil-filled 17mm aluminum body Big Bore
• Shock Towers: 0.16 (4mm) thick aluminum
• Pinion Gear: 16 tooth Mod1 pitch

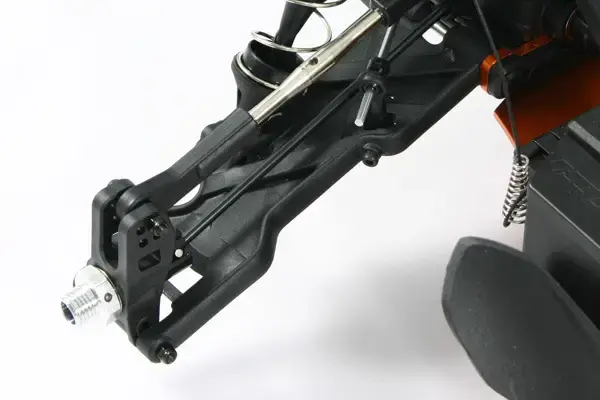

• Suspension: Front & rear anti-roll bars, newly designed front C-hub assembly
• Caster: Adjustable, castertoe-in refers to the angle of the suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Body: Clear, trimmed with black molded plastic rear wing
• Tires: Low tread rectangular pin with foam inserts
• Wheels: Dish style, black in color, 17mm hex

Product Specifications

• Length: 20.5 (521mm)
• Width: 16.9 (429mm)
• Height: 6.6 (168mm)
• Wheelbase: 14.2 (361mm)
• Body: Length: 18.1 (460mm)
• Width: 8.7 (222mm) at widest point
• Height: 4.1 (105mm)
