Hobbywing 38040028 XRotor Nano-Micro 4in1 ESC & Flight Controller Combo

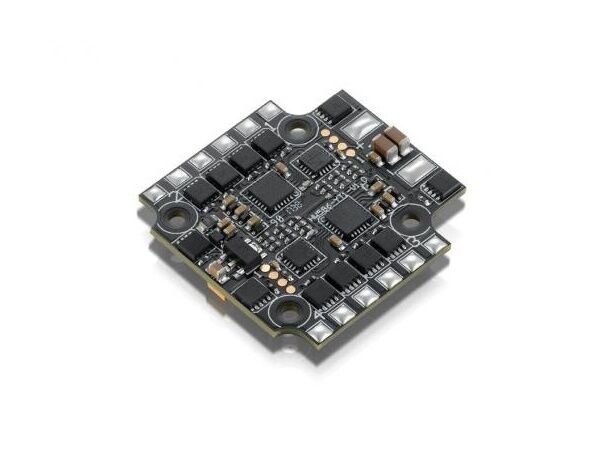

This is the Hobbywing XRotor Nano-Micro 4in1 ESC and Flight Controller Combo.

Features:

  • STM32 F405 MCU allows the FC to run the PID looptime and gyro with higher frequency.
  • SPI Sensor MPU6000 includes an accelerometer and a gyro.
  • Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)
  • The FC which supports Betaflight firmware & allows parameter adjustment via Betaflight software is more applicable to FPV race.
  • TF-card which can record and save more flight/black box data allows users to adjust the setup of their aircraft easily.
  • Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc.
  • LED strip signal output port allows users to adjust the color & flash mode of the LED strip via the FC.
  • Volt/Amp monitoring port allows users to check the battery voltage ( VBAT+ port ) and current (CRT port) (extra current meter is needed).
  • Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
  • Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters)

Specifications:
Application: FPVs with 130 Diagonal Wheelbase or below
FC Programming: supported
Programming via: Betaflight/Cleanflight-configurator
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200, Proshot1000
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: 5V @ 1.5A
USB Port: MicroUSB
Size/Weight: 27x27mm / 3.3g
