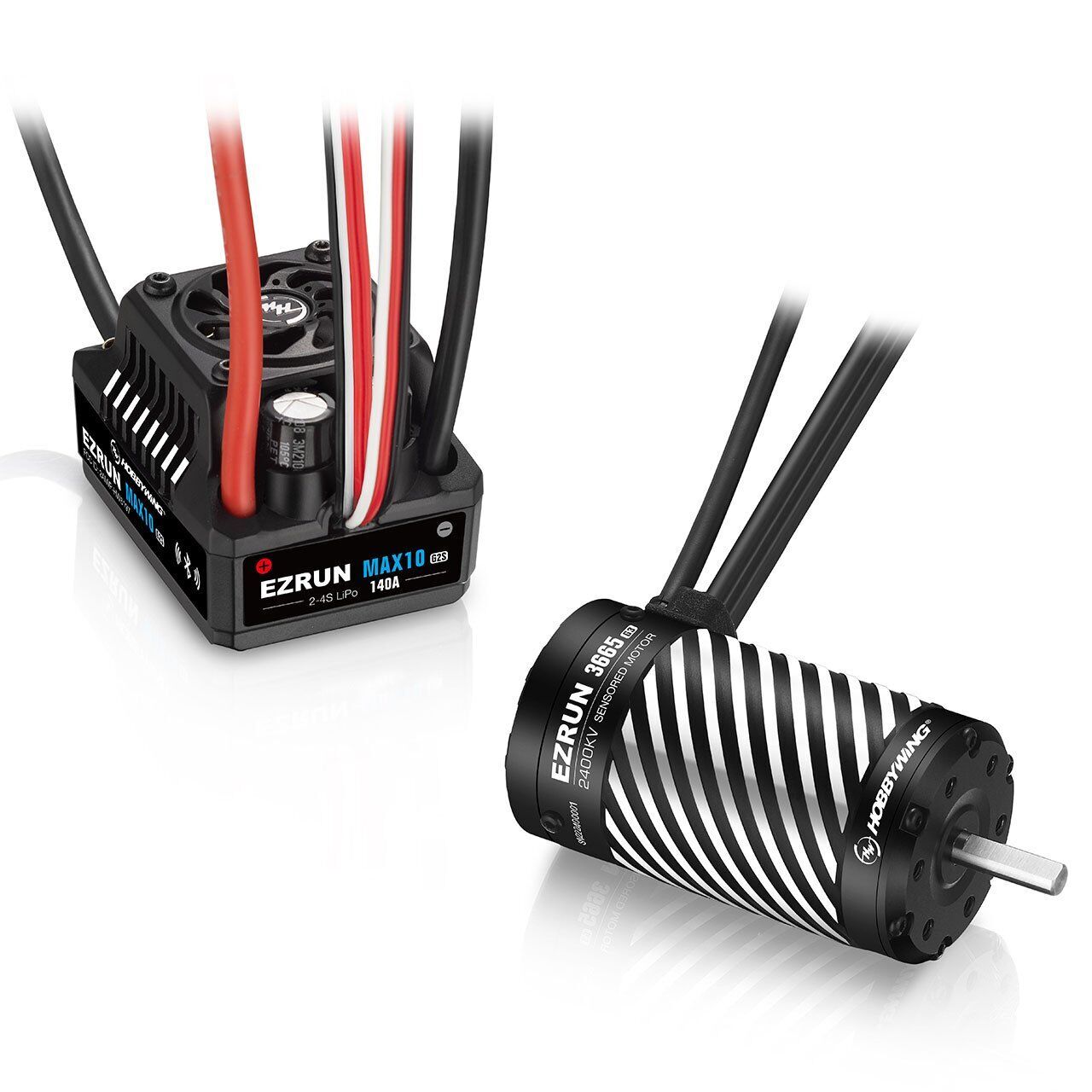

The Hobbywing EZRUN MAX10 G2S 140A Combo with 3665SD G3 2400KV Motor combines the powerful MAX10 G2S 140A ESC with a matching EZRUN 3665SD G3 2400KV sensored brushless motor, creating a factory-matched power system for demanding 1/10 scale RC applications.

The MAX10 G2S builds on the proven MAX10 G2 platform while adding integrated Bluetooth programming, internal data logging and a three-step BEC with an 8.4V option for compatible high-voltage servos.

Bluetooth is integrated directly into the ESC's power switch, allowing connection to a smartphone through the Hobbywing HW LINK app without requiring additional programming hardware. ESC parameters can be adjusted directly from the app, while recorded running data can be reviewed and firmware updates performed wirelessly.

An internal data logging system records the last 10 minutes of runtime, allowing drivers to review the information graphically through the HW LINK app after a run.

The MAX10 G2S 140A supports up to 32 degrees of Turbo Timing. When paired with the included supported Hobbywing motor, Turbo Timing can increase maximum motor RPM by up to approximately 25%. Motor overheat protection is also available with the supplied EZRUN 3665SD G3 motor.

The included EZRUN 3665SD G3 2400KV is a sensored 4-pole brushless motor designed to provide high torque, rapid acceleration and stable performance. Its CNC-machined aluminium housing and high-precision bearings provide durable construction, while its 5mm output shaft is suited to higher-power applications.

Both the ESC and motor feature IP67 dust and water protection, with a waterproof sensor cable maintaining sensored operation in demanding conditions.

The MAX10 G2S uses a temperature-controlled frameless cooling fan with side air discharge. The fan remains off while temperatures are low and automatically activates when additional cooling is required.

Its adjustable 5A switch-mode BEC provides selectable 6.0V, 7.4V and 8.4V outputs, providing flexibility for a variety of steering servos and electronics. A 3S or higher battery is required when using the 7.4V or 8.4V BEC settings.

Supporting 2S to 4S LiPo operation, the included 2400KV motor falls within the supplied MAX10 G2S 140A motor limits for the applicable configurations. The combination is designed for 1/10 on-road and off-road use, including light-duty short course truck applications, while the ESC itself is specified for short course trucks, trucks and monster trucks.

Available from Campbelltown Hobbies, the Hobbywing EZRUN MAX10 G2S 140A 2400KV Combo delivers a complete matched sensored brushless power system with smartphone programming, data logging, Turbo Timing and advanced protection features.

Required Items

  • 2S, 3S or 4S LiPo Battery
  • Compatible LiPo Battery Charger
  • RC Radio System
  • Steering Servo
  • Suitable Pinion Gear for Vehicle Application

Specifications

ESC – Hobbywing EZRUN MAX10 G2S 140A

ESC Type: Sensored & Sensorless Brushless
Continuous Current: 140A
Peak Current: 880A
Input Voltage: 2-4S LiPo
BEC Type: Switch Mode
BEC Output: 6.0V / 7.4V / 8.4V Adjustable
BEC Continuous Current: 5A
Turbo Timing: Up to 32°
Bluetooth: Integrated into Power Switch
Smartphone App: Hobbywing HW LINK
Internal Data Logging: Last 10 Minutes
Firmware Updates: Via App
Cooling Fan: Temperature-Controlled Frameless Fan
Fan Power: BEC
Waterproof Rating: IP67
Programming Port: Separate 3-Pin
Input Connector: XT60
Motor Output: Gold Bullet Sockets
Dimensions: 53 × 39.5 × 37.2mm
Weight: 125g Including Wires & Connectors
Application: 1/10 Short Course Truck, Truck & Monster Truck

ESC Motor Limits

2S LiPo: ≤6000KV with 3652-size motor
3S LiPo: ≤4000KV with 3665-size motor
4S LiPo: ≤2600KV with 4268-size motor

Motor – Hobbywing EZRUN 3665SD G3 2400KV

Motor Type: Sensored Brushless
KV Rating: 2400KV
Battery Compatibility: 2-4S LiPo
Poles: 4
No-Load Current: ≤5.2A
Length: 65.8mm
Diameter: 37mm
Shaft Diameter: 5mm
Weight: 304g
Housing: CNC-Machined Aluminium
Bearings: High-Precision
Waterproof Rating: IP67
Application: 1/10 On-Road / Off-Road Short Course Truck (Light Duty)

Programming Options

  • Integrated Bluetooth
  • Hobbywing HW LINK App
  • LCD Program Box
  • OTA Program Module

Protection Features

  • Low-Voltage Protection
  • ESC Overheat Protection
  • Supported Motor Overheat Protection
  • Signal-Loss Protection
  • Capacitor Overheat Protection
  • IP67 Dust & Water Protection

Important Notes

  • A 3S or higher battery is required to use the 7.4V or 8.4V BEC settings.
  • Turbo Timing works with supported Hobbywing motors, including the supplied EZRUN 3665SD G3.
  • Motor overheat protection is supported with the supplied motor.
  • Effective Bluetooth range is approximately 5 metres by design.

What's Included

  • 1 × Hobbywing EZRUN MAX10 G2S 140A Brushless ESC
  • 1 × Hobbywing EZRUN 3665SD G3 2400KV Sensored Brushless Motor

Optional Accessories

  • Hobbywing HW30502002 LCD Program Box Pro
  • Hobbywing HW30850400 OTA Bluetooth Program Module
