Description

 Specifications FAQ

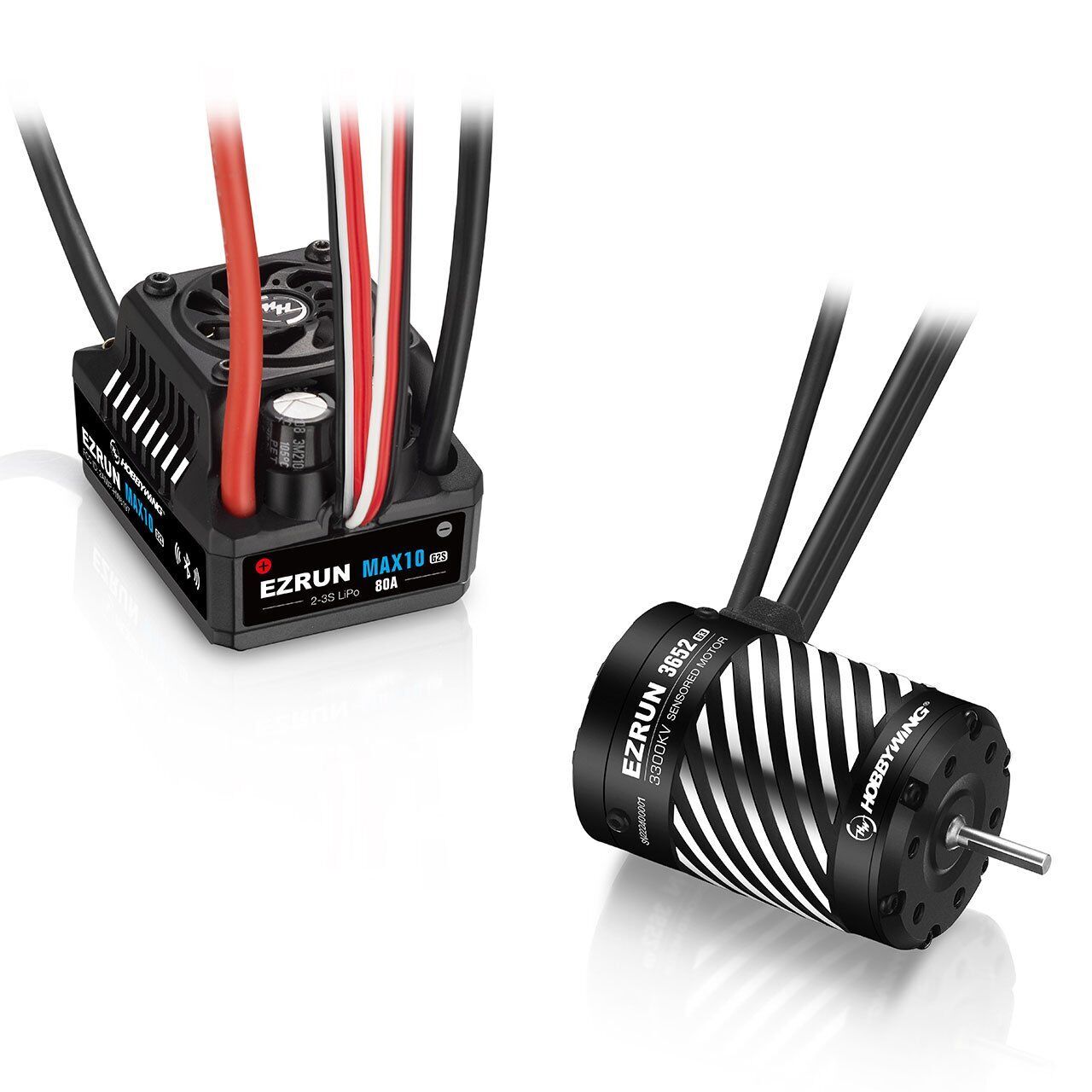

The Hobbywing EZRUN MAX10 G2S 80A Combo with 3652SD G3 3300KV Motor is a factory-matched brushless power system developed for 1/10 scale RC applications. Combining the latest MAX10 G2S 80A ESC with the matching sensored EZRUN 3652SD G3 3300KV motor, this package delivers smooth power, strong torque and advanced tuning features straight out of the box.

The MAX10 G2S evolves the proven MAX10 G2 platform by adding integrated Bluetooth, internal data logging and an additional 8.4V BEC setting. The Bluetooth module is built directly into the power switch, allowing the ESC to connect to the Hobbywing HW LINK app without requiring additional programming hardware. From your smartphone you can adjust parameters, review recorded running data and perform firmware updates.

The ESC's internal data logging system stores the last 10 minutes of runtime, with the recorded information available for graphical review through the HW LINK app.

Pairing the MAX10 G2S with the included Hobbywing 3652SD G3 motor also unlocks features specifically designed to work between compatible Hobbywing components. The ESC supports up to 20 degrees of Turbo Timing, providing up to approximately 25% higher maximum RPM with the supplied motor. Motor overheat protection is also supported with this matched combination.

The included EZRUN 3652SD G3 3300KV is a sensored 4-pole brushless motor designed to provide high torque, rapid acceleration and stable power delivery. Its CNC-machined aluminium housing and high-precision bearings provide the construction required for demanding RC use, while its IP67 protection makes it suitable for a wide variety of running conditions.

Both the ESC and motor are rated IP67 for dust and water protection, and the system uses a waterproof sensor cable to maintain sensored operation in demanding environments.

The MAX10 G2S also features an adjustable 5A switch-mode BEC with selectable 6.0V, 7.4V and 8.4V outputs, providing flexibility for standard and high-voltage steering servos. A 3S battery is required when using the 7.4V or 8.4V BEC settings.

Cooling is handled by an integrated heatsink and temperature-controlled frameless fan with side air discharge. The fan remains off while operating temperatures are low and automatically activates when additional cooling is required.

Designed for 2S and 3S LiPo operation, this matched 80A/3300KV combination is suitable for 1/10 on-road and off-road applications, including light-duty short course trucks.

Available from Campbelltown Hobbies, the Hobbywing EZRUN MAX10 G2S 80A 3300KV Combo provides a complete matched sensored brushless system with smartphone programming, data logging and advanced motor protection in one convenient package.

Required Items

  • 2S or 3S LiPo Battery
  • Compatible LiPo Battery Charger
  • RC Radio System
  • Steering Servo
  • Suitable Pinion Gear for Vehicle Application

Specifications

ESC – Hobbywing EZRUN MAX10 G2S 80A

ESC Type: Sensored & Sensorless Brushless
Continuous Current: 80A
Peak Current: 520A
Input Voltage: 2-3S LiPo
BEC Type: Switch Mode
BEC Output: 6.0V / 7.4V / 8.4V Adjustable
BEC Continuous Current: 5A
Turbo Timing: Up to 20°
Bluetooth: Integrated into Power Switch
Smartphone App: Hobbywing HW LINK
Internal Data Logging: Last 10 Minutes
Firmware Updates: Supported via App
Cooling Fan: Temperature-Controlled Frameless Fan
Fan Power: BEC
Waterproof Rating: IP67
Programming Port: Separate 3-Pin
Input Connector: XT60
Motor Output: Gold Bullet Sockets
Dimensions: 53 × 39.5 × 37.2mm
Weight: 125g Including Wires & Connectors

ESC Motor Limits

2S LiPo: Up to 6000KV
3S LiPo: Up to 4200KV with 3652/3665 Size Motor

Motor – Hobbywing EZRUN 3652SD G3 3300KV

Motor Type: Sensored Brushless
KV Rating: 3300KV
Battery Compatibility: 2-3S LiPo
Poles: 4
No-Load Current: ≤3.9A
Motor Length: 53mm
Motor Diameter: 37mm
Shaft Diameter: 3.175mm
Weight: 228g
Housing: CNC-Machined Aluminium
Bearings: High-Precision
Waterproof Rating: IP67
Application: 1/10 On-Road / Off-Road & Light-Duty Short Course Truck

Programming Options

  • Integrated Bluetooth
  • Hobbywing HW LINK App
  • LCD Program Box
  • OTA Program Module

Protection Features

  • Low-Voltage Protection
  • ESC Overheat Protection
  • Motor Overheat Protection with Supported Motor
  • Signal-Loss Protection
  • Capacitor Overheat Protection
  • IP67 Dust & Water Protection

Important Notes

A 3S battery is required to use the 7.4V or 8.4V BEC settings.

The supplied EZRUN 3652SD G3 motor supports the ESC's Turbo Timing and motor overheat protection functions.

Effective Bluetooth range is approximately 5 metres by design.

What's Included

  • 1 × Hobbywing EZRUN MAX10 G2S 80A Brushless ESC
  • 1 × Hobbywing EZRUN 3652SD G3 3300KV Sensored Brushless Motor
