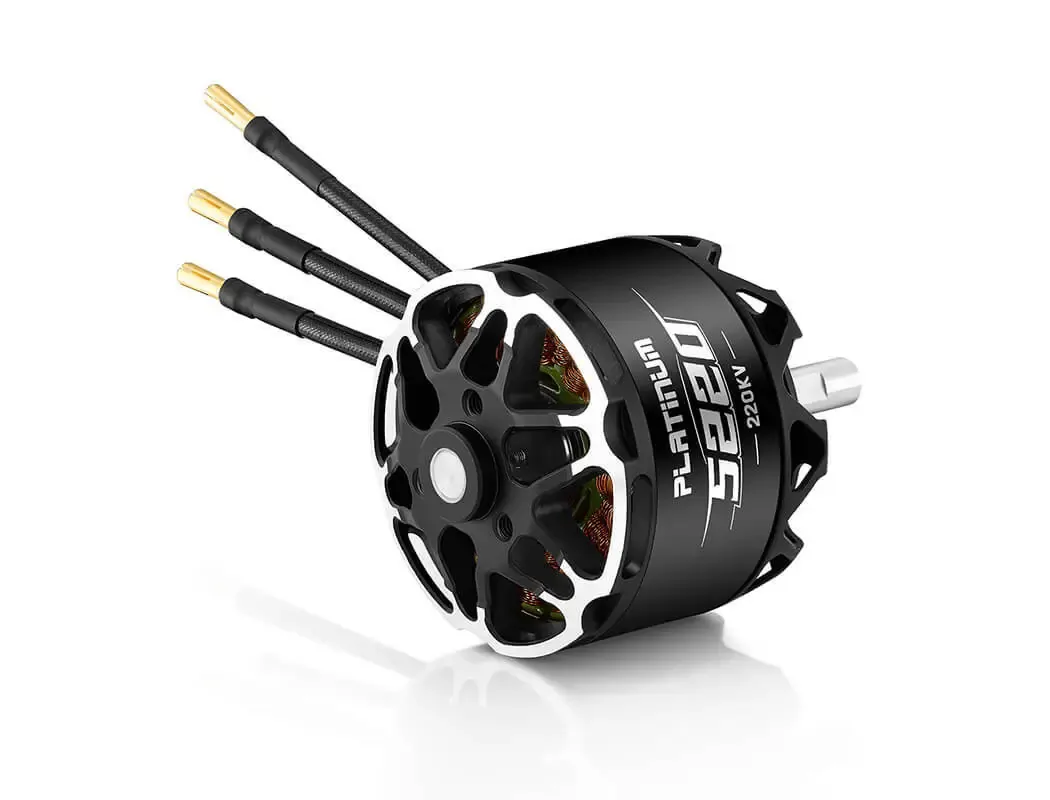

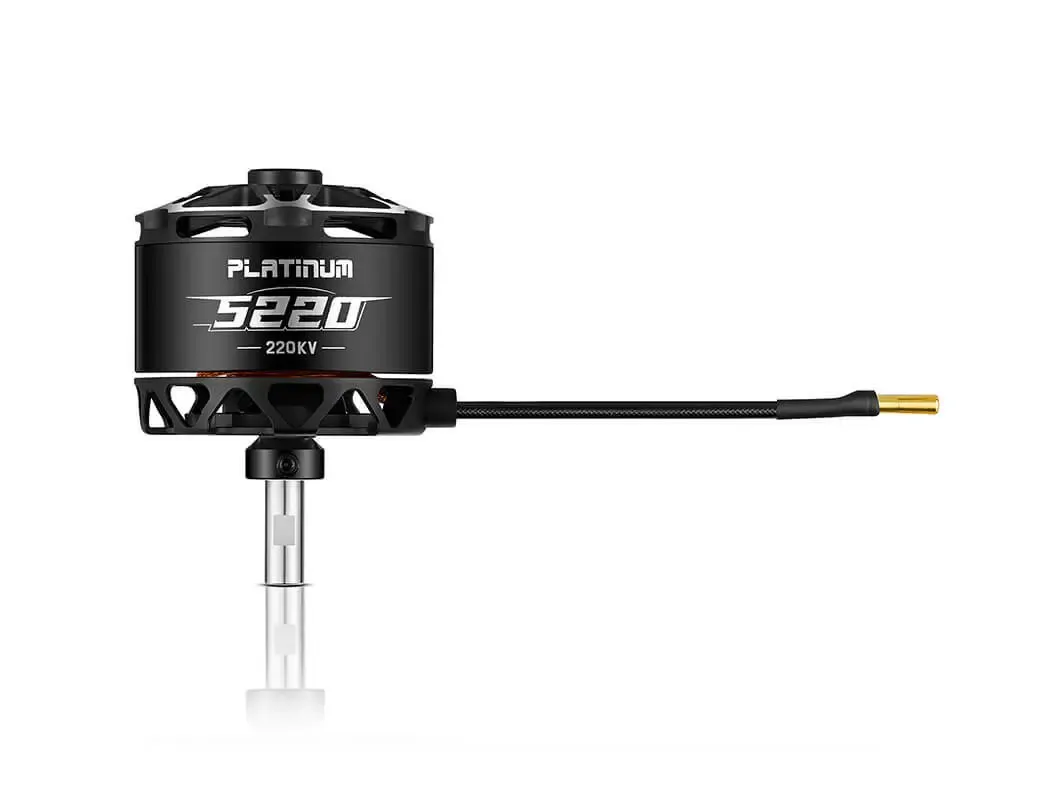

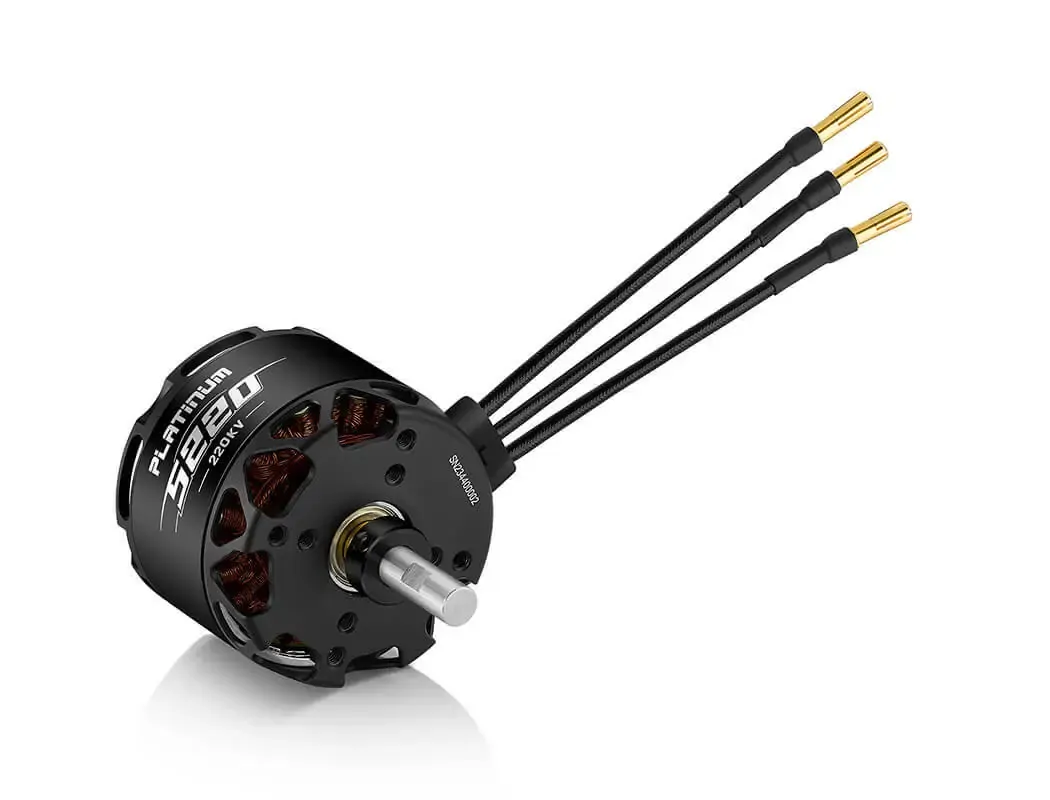

Hobbywing Platinum 5220SL 220KV Fixed Wing Motor

Dual Dynamic Balance Technology to control motor vibration: The rotor and the complete machine undergo dynamic balancing. The rotor dynamic balancing is completed first, then the operating conditions are simulated. A secondary dynamic balance test is performed on the motor to ensure smooth operation and eliminate any imbalance in the assembly.

Unmatched efficiency and powerful performance: Efficiency is boosted by over 2.5% compared to competing motors with the same specifications.

Superior heat dissipation ensures the motor stays cooler: The motor's continuous running time is extended by over 30% compared to competing motors with the same specifications, offering longer performance even under heavy load.

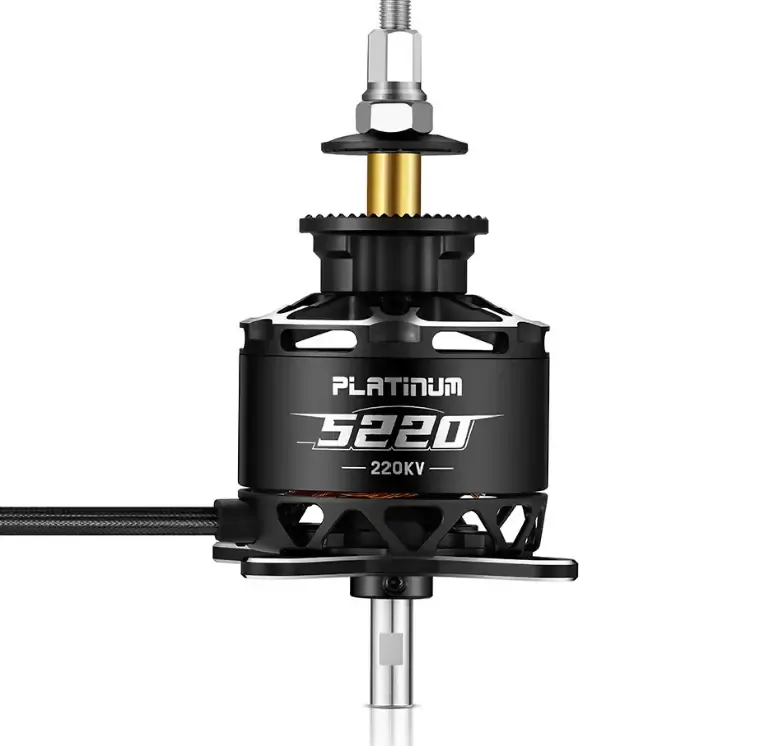

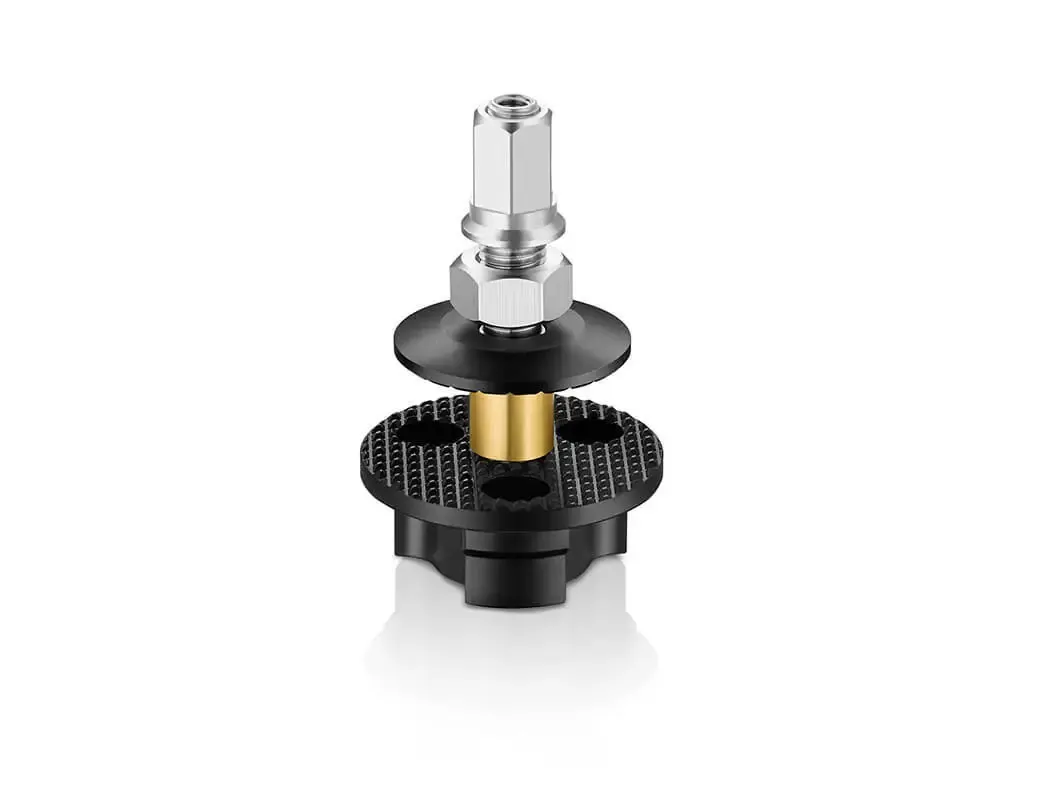

Patented Propeller Locking System for Enhanced Flight Safety: The patented locking design of the propeller mount features an innovative system that effectively prevents the propeller from detaching due to a loose mounting nut, ensuring a safer flight.

Diamond-Shaped Anti-Slip Propeller Mountfor Enhanced Safety and Reliability: Diamond-Shaped Anti-Slip Design of the Propeller Mounting Seat  The propeller mount seat features a diamond-shaped anti-slip design that effectively prevents the propeller from slipping or free spinning, ensuring greater safety and reliability.

Product Specifications

• Motor Size: _60.2 * 83.5mm
• Stator Size: _51.7 * 20mm
• Stator Process: High standard silicon steel sheet, 180¡C high temperature resistance paint-coat
• Enamelled Wire: 200¡C
• Propeller Mounting Dimensions: _22mm-3*M4
• Motor Mounting Dimensions: _30mm-4M4; _44mm-4M4
• Slot & Pole: 24N28P
• Dynamic Balance: ²10mg
• Bearings: 1560ZZ, 698ZZ
• Motor Axle Diameter: _8mm
• Isolation Test: 500V AC high voltage resistance test
• KV: 220
• Battery Compatibility: LiPo-10~12S
• No-load Current: 3.5A / 44.4V
• Maximum Current (Non-hermetic, Ambient Temperature ² 25¡C): 86A / 44s
• Max Power: 3828W / 44s
• Max Thrust: 10.05kg
• Resistance: 27.5m½
• Wire Output: Enamelled Wire
• Wire Length: 100mm
• Weight (With Wire): 430g
• Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
• Recommended Propellers:
  • 10S: 20x8E, 20x10E
  • 12S: 17x8E, 18x8E, 18x10E
