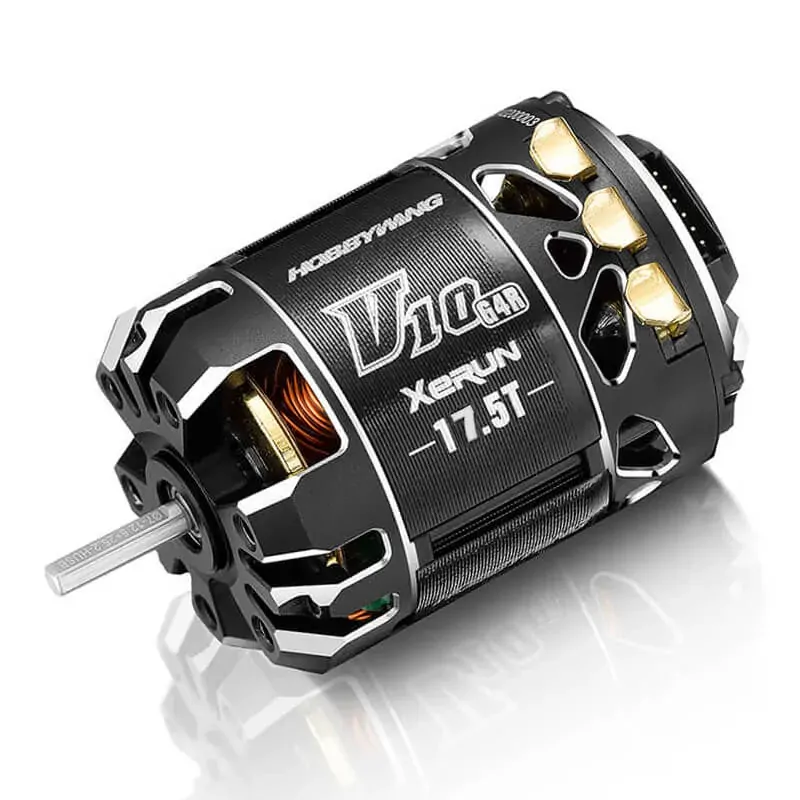

Hobbywing Xerun V10 17.5T G4R Black Motor

Features

• Excellent performance, specially designed for 1/10 or 1/12 STOCK racing.
• Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC.
• The innovative outer diameter structure of a fully exposed stator core maximizes the heat dissipation area, the rear end of the motor is designed in a way to further improve heat dissipation.
• Dual sensor interface is designed to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The use of high-performance stator core, 220°C high-temperature-resistant enamelled wire, high precision high strength bearings and copper solder tabs with super current endurance guarantees outstanding performance and super durability.

Product Specifications

• Scale : 1/10th
• Brushed/Brushless : Brushless (BL)
• Sensored/Sensorless : Sensored (SD)
• Pole Count : 2

Performance Parameters

• KV Rating : 3150KV
• LiPo Cells : 1-2S LiPo
• No-Load Current (A) : 4.6A
• Max Power Output (W) : 213W
• Current at Max Output (A) : 49.4A

Dimensions

• Outer Diameter (OD) : 35.8 mm
• Length : 51.3 mm
• Shaft Diameter : 3.175 mm
• Weight : 158g

Bearings

• Front Bearing : D9 × D4 × T4 mm
• Rear Bearing : D8 × D3 × T4 mm

Recommended ESC

• Model : XeRun XR10 G2S

Applications

• Vehicle Types : 1/12th to 1/10th Stock Class Vehicles
