Hobbywing XeRun XR10 Stock Spec G2 100A ESC

The XR10 Stock Spec G2 ESC is smaller and lighter than the standard XR10 Pro range and is the mini version of XR10 Pro 160A. The super small size (34.8 x 30 x 13.8mm) makes the installation convenient and the light weight provides more weight margin when adjusting the balance of the chassis.

Reliable hardware combined with great software (contains 3 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.

This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and others in real time and allows users to check the data via the LCD G2/Pro program box or OTA Programmer after each use (items sold separately).



Features

  • Increased Maximum Current Rating
  • Special Design for STOCK Class Racing
  • Programming/Upgrading/Data Reading Wirelessly
  • Small Size & Light Weight
  • Upgraded Super Internal BEC
  • Adjustable Throttle & Brake PWM Frequencies
  • Data-logging Capability



Product Specifications

Type
Scale 1/10th
Brushed/Brushless BL
Sensored/Sensorless SD
Waterproof No
Specifications
Cont./Peak Current 100A/500A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @5A
Wires & Connectors
Input Wires Black-13AWG-200MMmm*2
Output Wires Black-13AWG-200MMmm*3
Input Connectors No
Output Connectors No

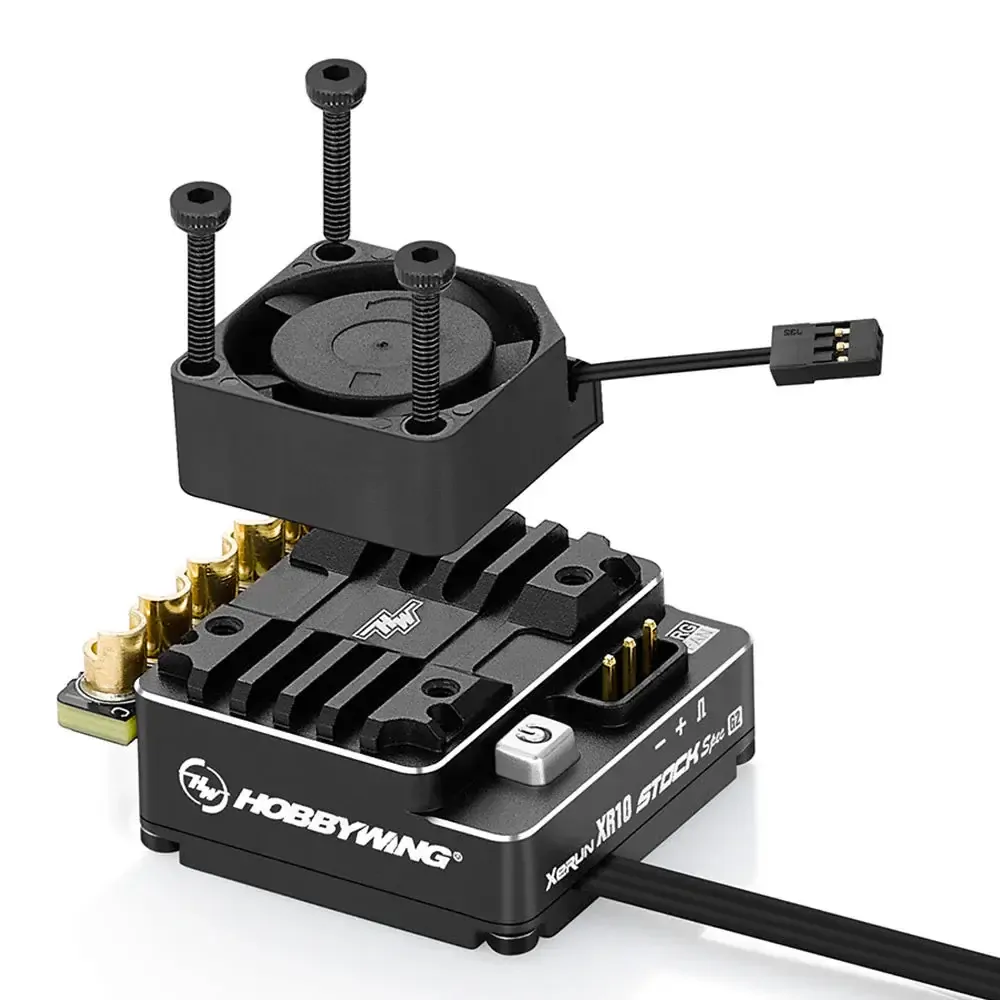

Fan
Size 20*20*8mm
Voltage Range 5-7.4V
Powered by BEC
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Separate Program Port
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 34.8*30*13.8mm
Weight 63g(w/Wires)
Applications
Motors 3650 size motors
Vehicles Stock Class of 1/10th Touring Car and Buggy Racing, 1/10th Drift
KV Rating/T Count ≥10.5T
