Build a drift car around your own style

The HPI Stage-D10 Creator Edition gives you an assembled rear-wheel-drive drift chassis ready for your choice of body, wheels and electronics. Its adjustable steering, suspension and component positions let you personalise both the look and driving feel.

Features

• Oil-filled threaded shocks and adjustable camber, toe, roll centres and Ackermann steering geometry.
• Multiple motor positions and mid or rear battery mounting options, including shorty-pack layouts.
• Sealed geared differential and configurable three- or four-gear transmission.
• Magnetic body mounts, with conventional body posts also included.
• Adjustable wheelbase for a range of 1/10 touring-car bodies.

What's included

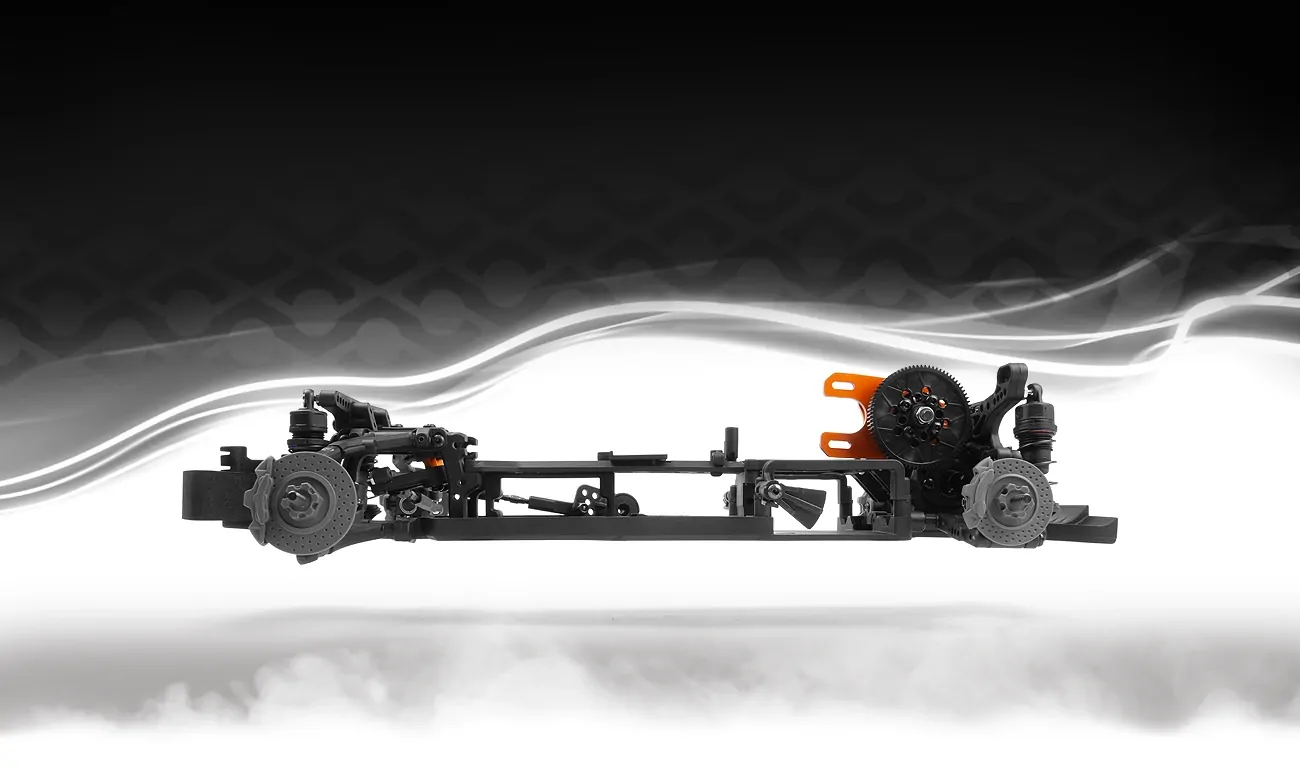

Preassembled bare chassis with suspension and drivetrain, body-mount options, servo-saver and solid-arm options, alternative gearbox parts, electronics mounting provisions and shock tuning parts.

Required to complete

Add a 190mm or 200mm-wide 1/10 body, touring-car wheels and drift tyres, radio system, steering servo, drift gyro, motor, suitable pinion gear and speed controller. You will also need a 2S LiPo battery matched to your chosen speed controller, a compatible balance charger and a LiPo charging case. Body, wheels, tyres and electronics are not included.

Assembly and setup

Install your motor and pinion, set the gear mesh, then mount the servo, gyro, receiver and speed controller. Position the battery and electronics to suit your preferred weight distribution, adjust the wheelbase for your body and calibrate your radio, speed controller and gyro before driving.

Is the Creator Edition ready to drive?

It is supplied as an assembled bare drift chassis, ready for your choice of body, wheels, tyres and electronics. These finishing components are sold separately.

What do I need to complete the chassis?

Add a body, wheels and drift tyres, radio system, steering servo, drift gyro, motor, suitable pinion gear and speed controller. A 2S LiPo battery, compatible balance charger and LiPo charging case are also required.

Which bodies can I use?

The chassis supports 190mm or 200mm-wide 1/10 touring-car bodies. Its wheelbase adjusts from 246mm to 264mm, with 255mm as the standard setting.

Are body mounts included?

Yes. Magnetic body mounts and conventional body posts are supplied, giving you a choice of mounting methods.

What can I adjust to tune the drift handling?

You can adjust steering geometry, camber, toe, suspension settings and component positions. Multiple motor positions and battery mounting options let you tune the weight distribution.
