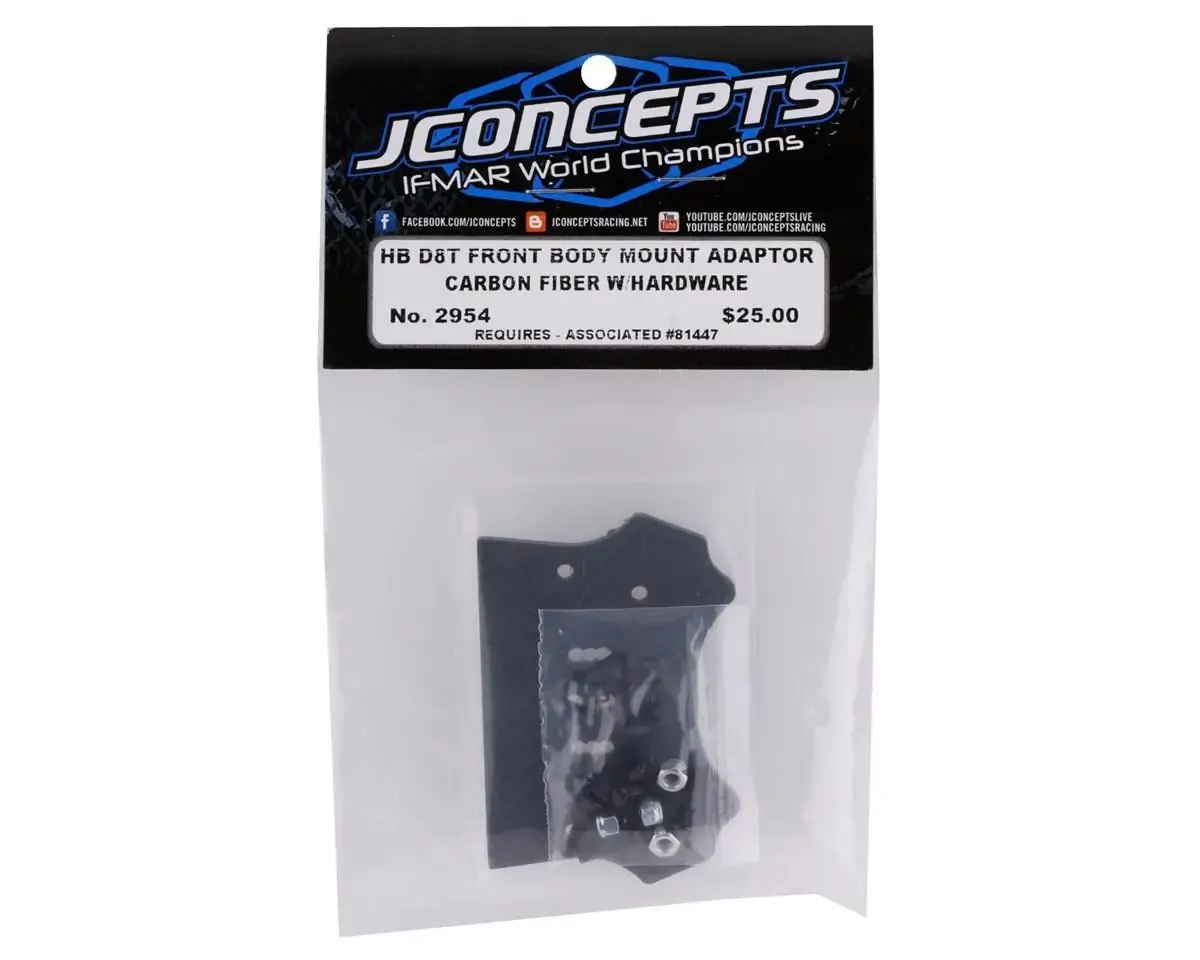

The JConcepts HB D8T Evo 3 F2 Carbon Fiber Truggy Body Mount Adaptor simplifies the process of adding the JConcepts F2 body to the HB D8T Evo 3. To mount the F2 body, a carbon fiber adaptor is needed along with Team Associated ASC81447 body mounts to place the front of the body in correct position. This model specific adaptor bolts directly to the stock tower and once the body mount is added (not included), provides a custom fit and beautiful finish.
To begin, install or mock-up the (not included) AE body mount ASC81447 into the center position on the carbon fiber adaptor by using included hardware. Tighten the screw while allowing the mount to “notch” in to place to give the mount a vertical and stationary position. In some cases, depending on vehicle, the body mount may need to be completely installed to the adaptor first, due to hidden or closed-off screw locations. Once the mount is positioned, attach the carbon fiber adaptor to the shock tower using 3mm hardware and secured in to place with 3mm lock nuts.
Once the carbon fiber adaptor of choice is attached to the shock tower, review the instructions on body trimlines to accommodate the vehicle of choice. It is important to follow along to position body mount holes, perimeter cutlines and possible engine head cut-out and fuel tank openings to the appropriate vehicle. Once the carbon adaptor is in position and body is trimmed for the vehicle, the painting and detailing process can be completed in traditional fashion.
