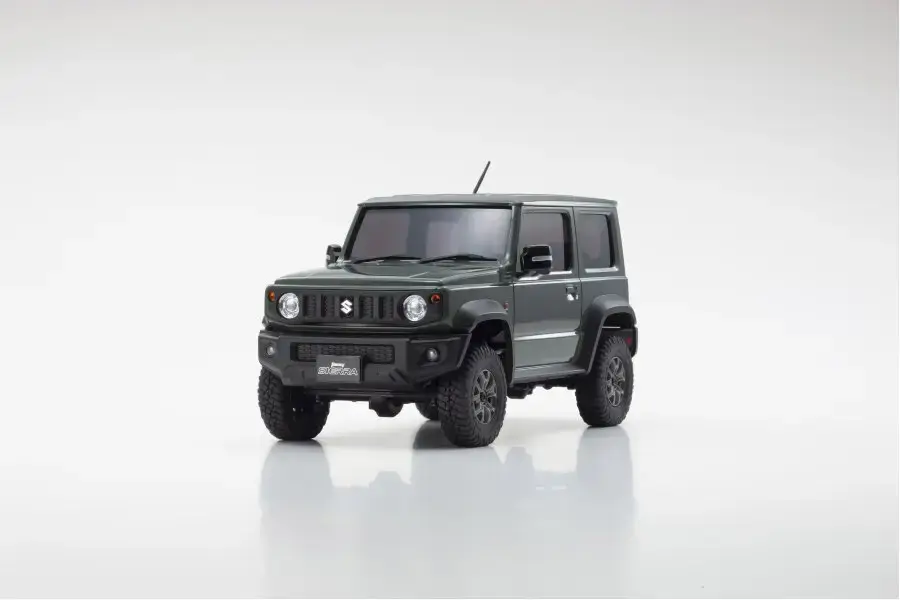

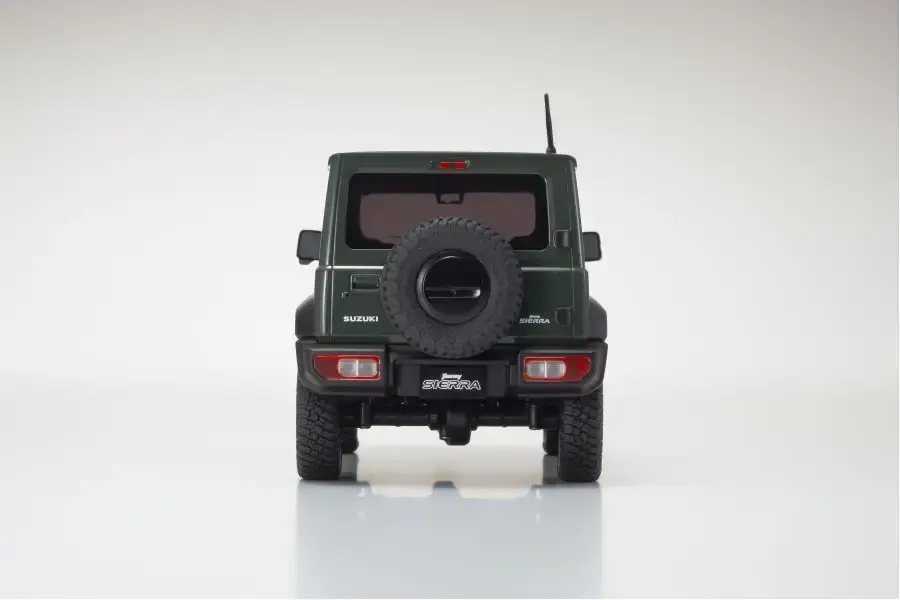

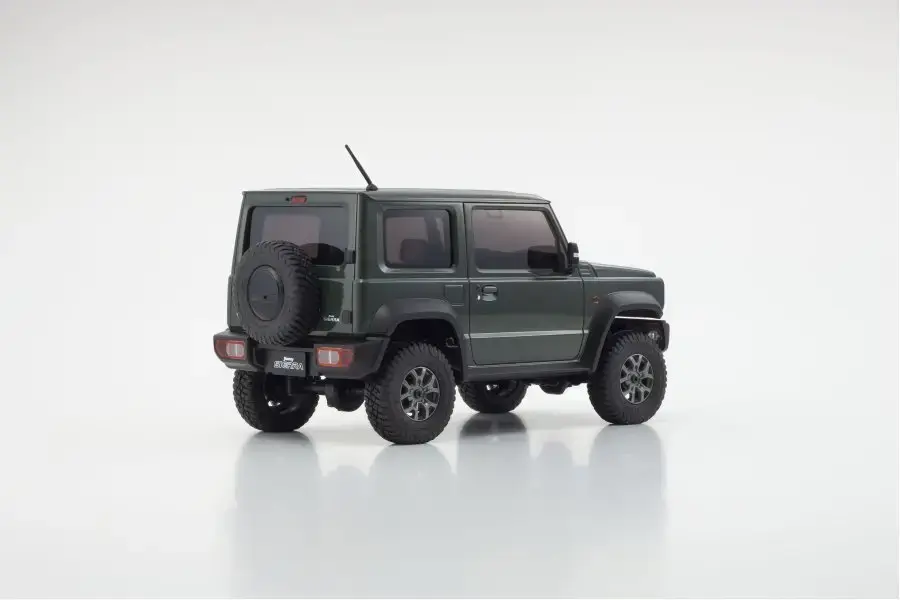

Kyosho 1/18 MINI-Z 4x4 MX-01 Readyset Suzuki Jimny Sierra Jungle Green - KYO-32523GR

Product Information

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Suzuki Jimny Sierra

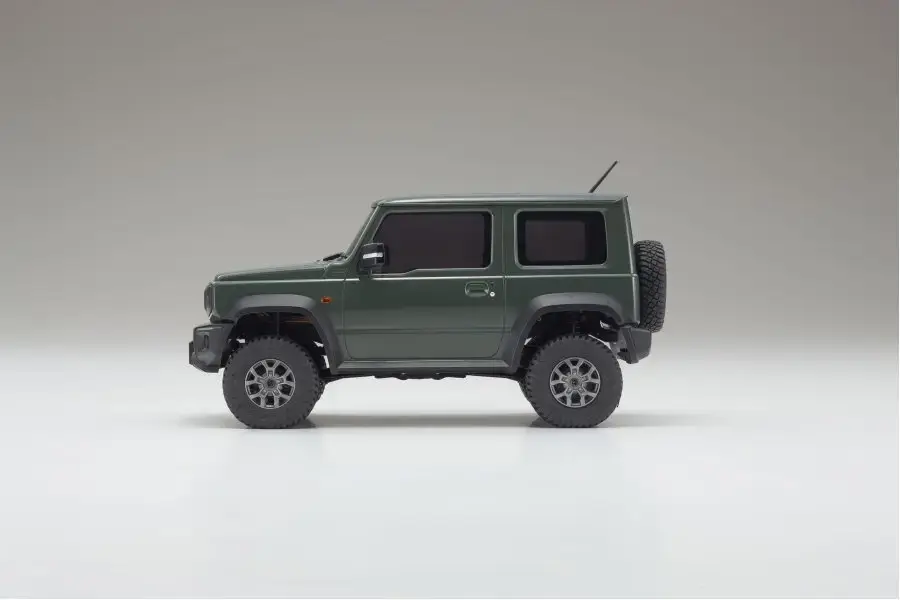

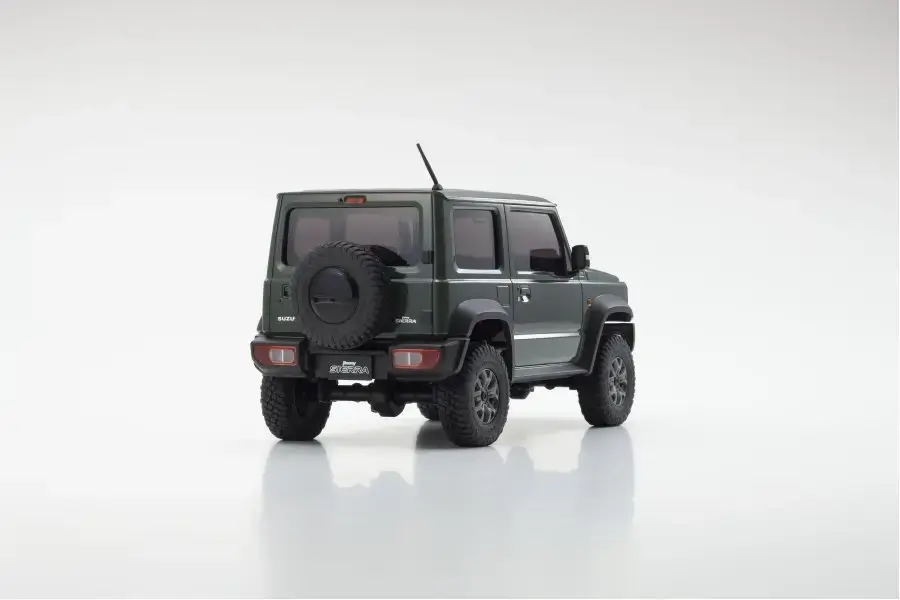

The Jimny Sierra’s popularity is earned through a commitment to functionality and performance. This 1:18-scale MINI-Z 4x4 Readyset accurately recreates the signature features of this very popular compact Japanese 4X4 truck, like the unique square body shape and the bold wheel flares over the generous wheel wells.

Painted Body

The factory-painted body has so much detail it rivals that of a die cast model. Thicker body material provides more durability, enabling it to survive more aggressive off-road runs. Door mirrors are produced with a combination of gloss and matte finishes, while wipers, windshield washers, rain rails and door hinges add even more realistic details.

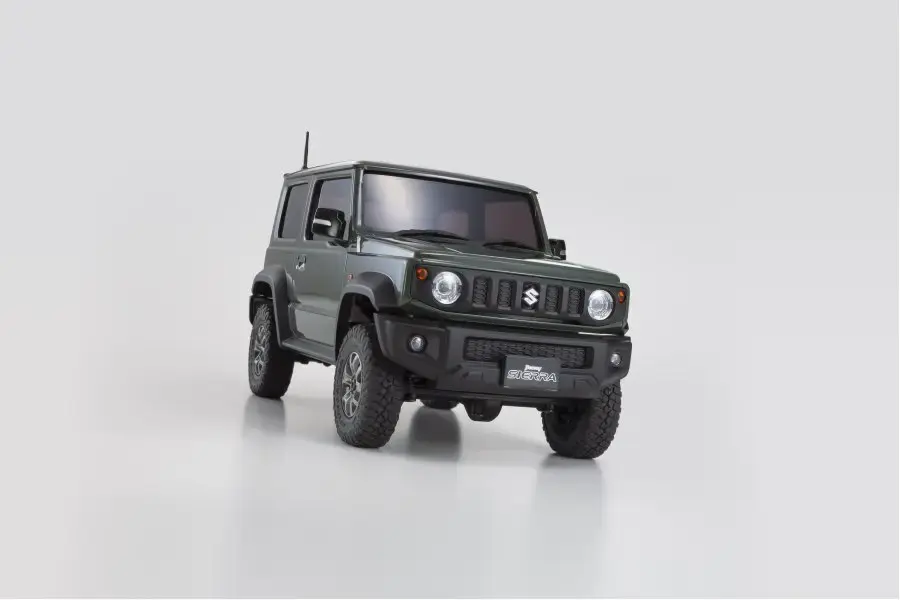

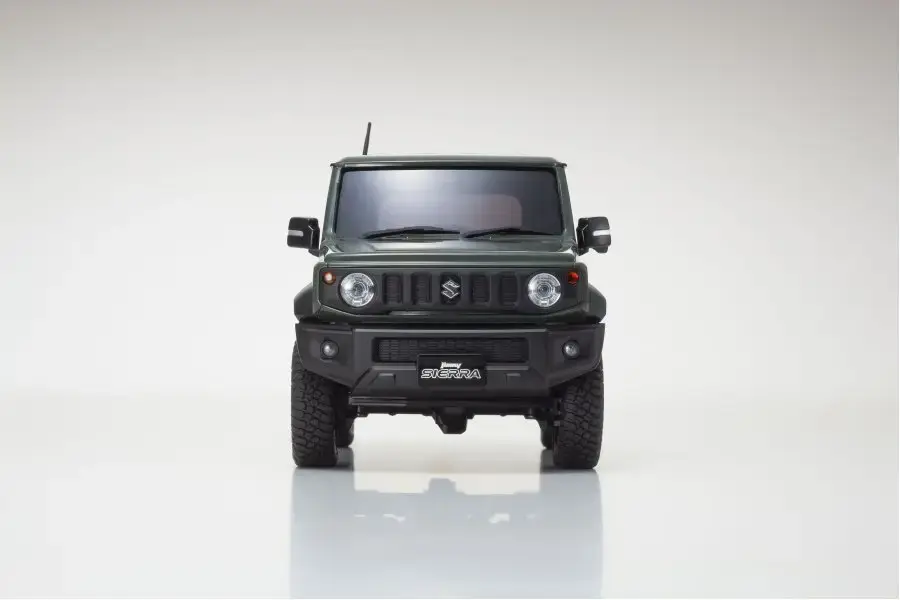

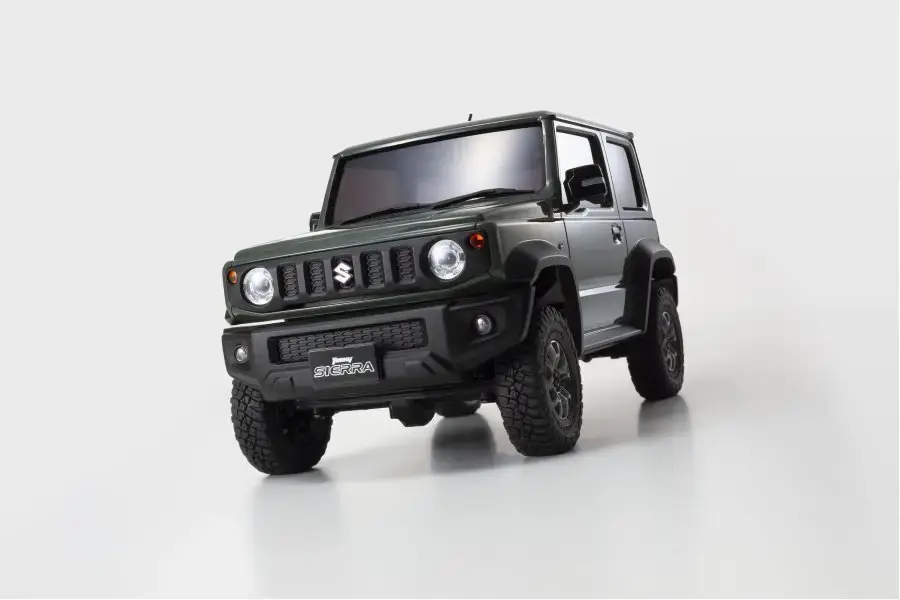

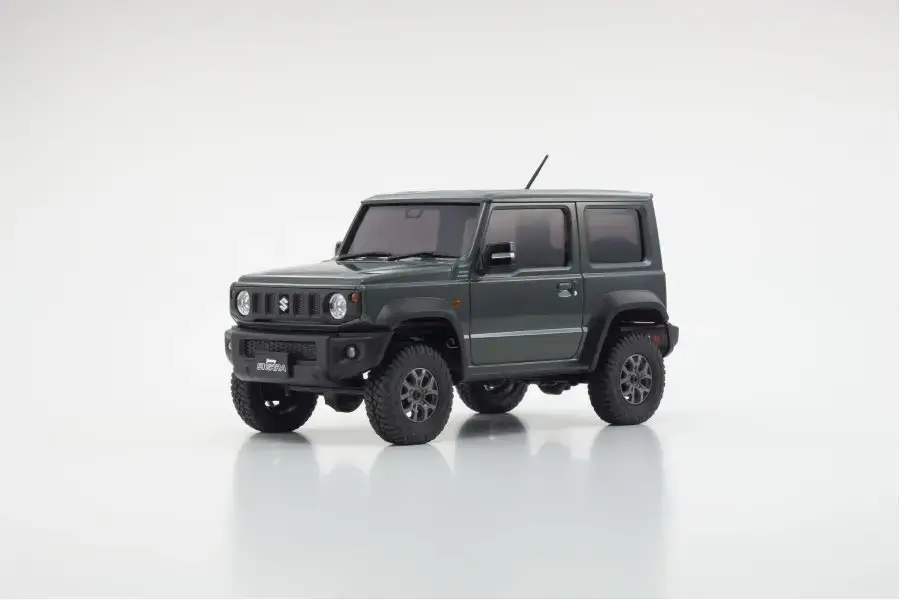

Front Face

The unique styling of the Jimny is recreated with the signature five-slot front grille, round headlights that can be fitted with optional LEDs(MZW429R), and turn signal lights and driving lights that add even more detail to these already very scale trucks.

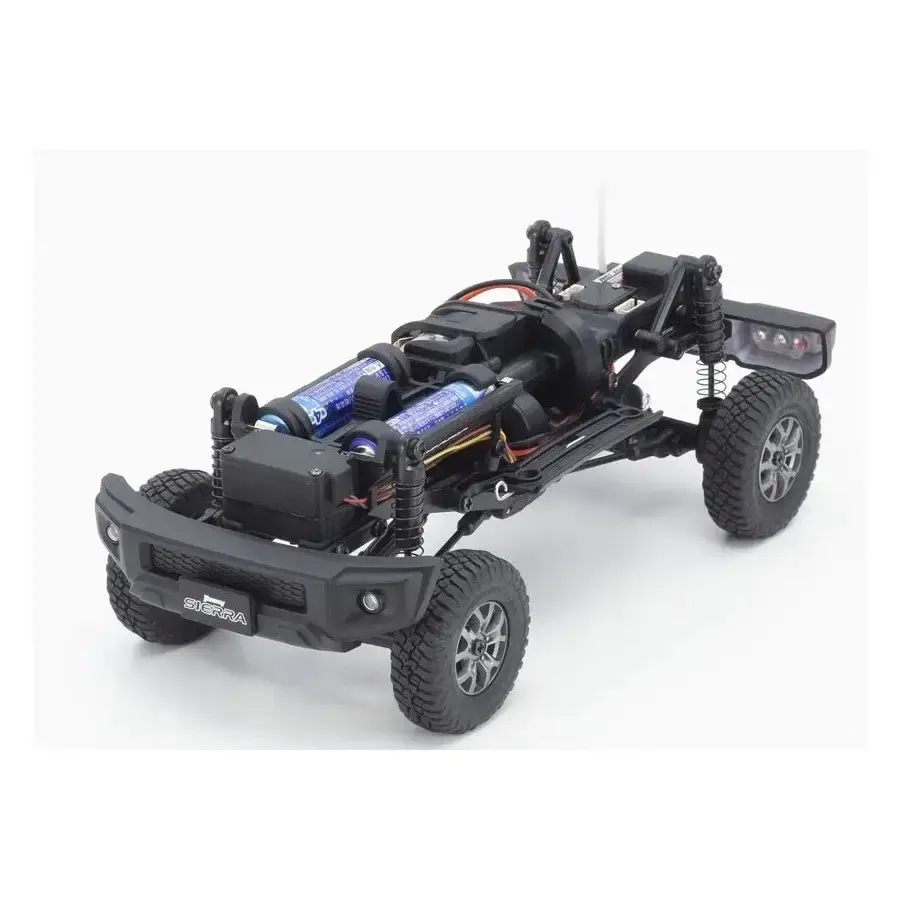

Solid Axles

Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.

Steel Link & Ball End

The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, maximum range of motion, and smooth operation.

Adjustable Wheelbase

The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link. The Jimny, for example, is set to 120mm.

Coil-Over Type Shocks

The newly designed shock absorbers feature 360-degree spring retainers, which means they can't be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose.

130 Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.

Extreme Approach Angles

What's In The Box

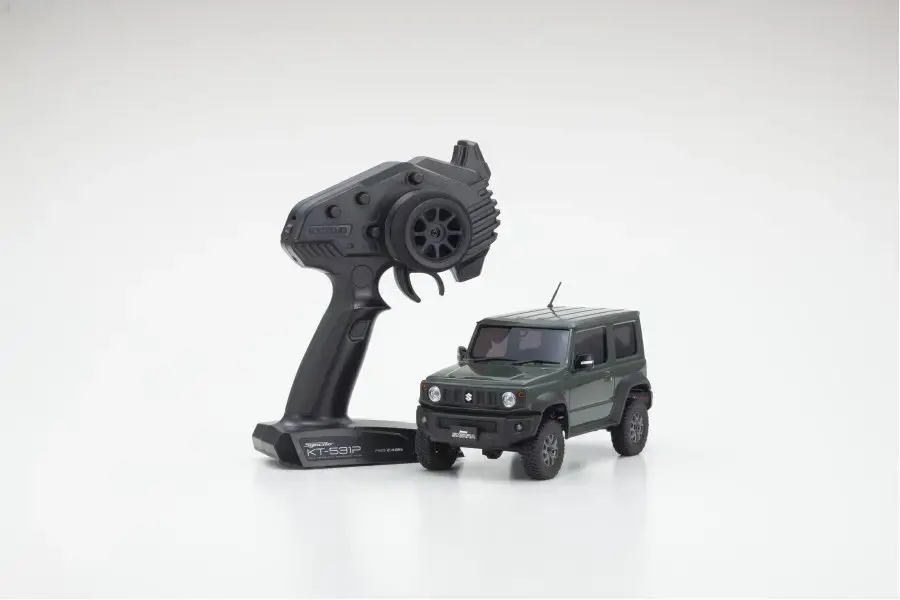

• Mini-Z Suzuki Jimny Sierra 4x4 Rock Crawler (1)
• KT-531P 2.4GHz transmitter (1)
• Pinion gear set（10T,12T,14T,16T,18T,20T) (1)
• Motor spacers (1)

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for chassis （Alkaline or NiMH）

Features

• KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions
• Servo uses an independent receiver/ESC connection and is protected with its own casing.
• ESC Supports an optional LED light set MZW429R (sold separately)
• Full ball bearings (18 total)
• Slipper clutch protects the drivetrain from excess loads
• Multiple pinion gear setup
• Gearbox & Gears come with moulded covers
• BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finis
• Wheelbase can be adjusted using included spacers

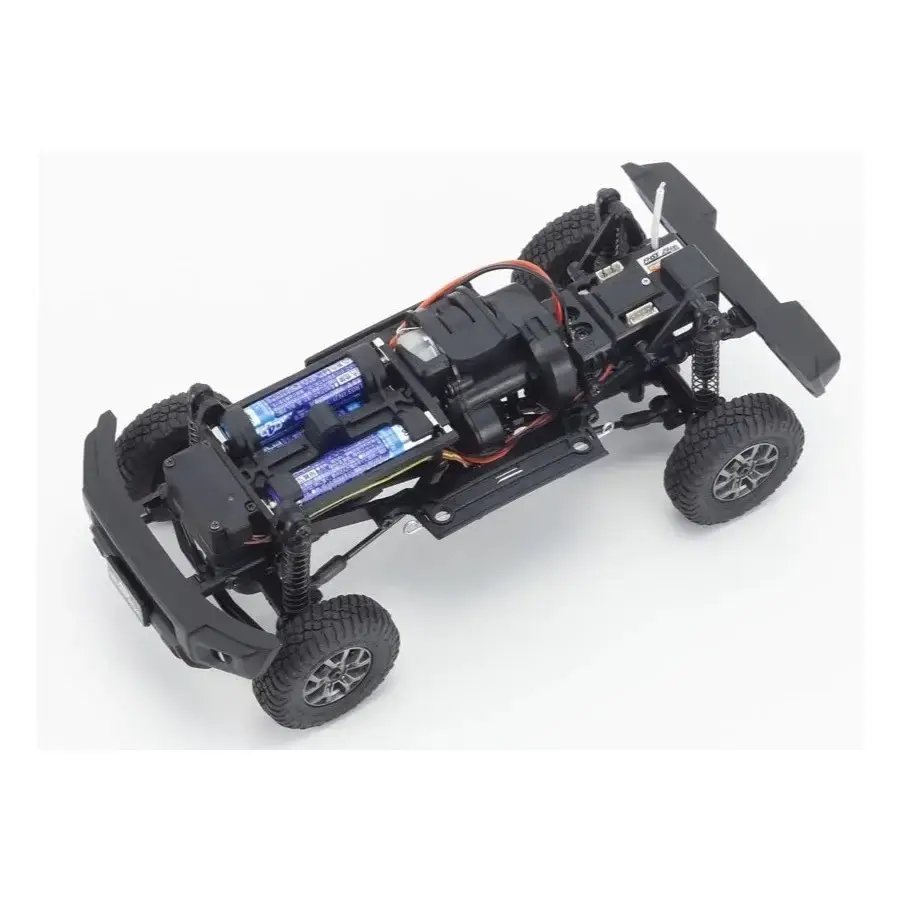

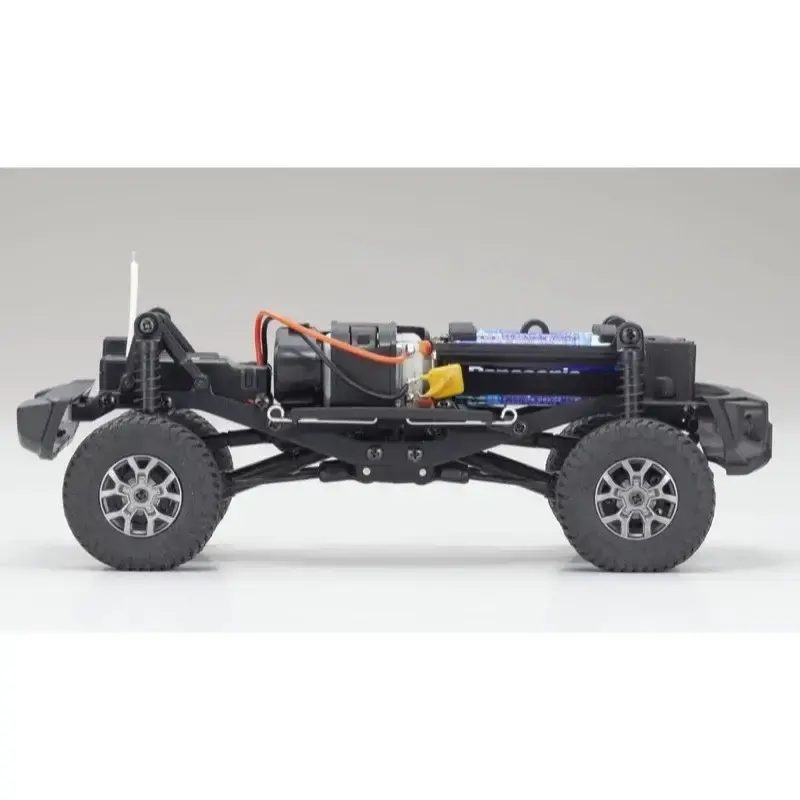

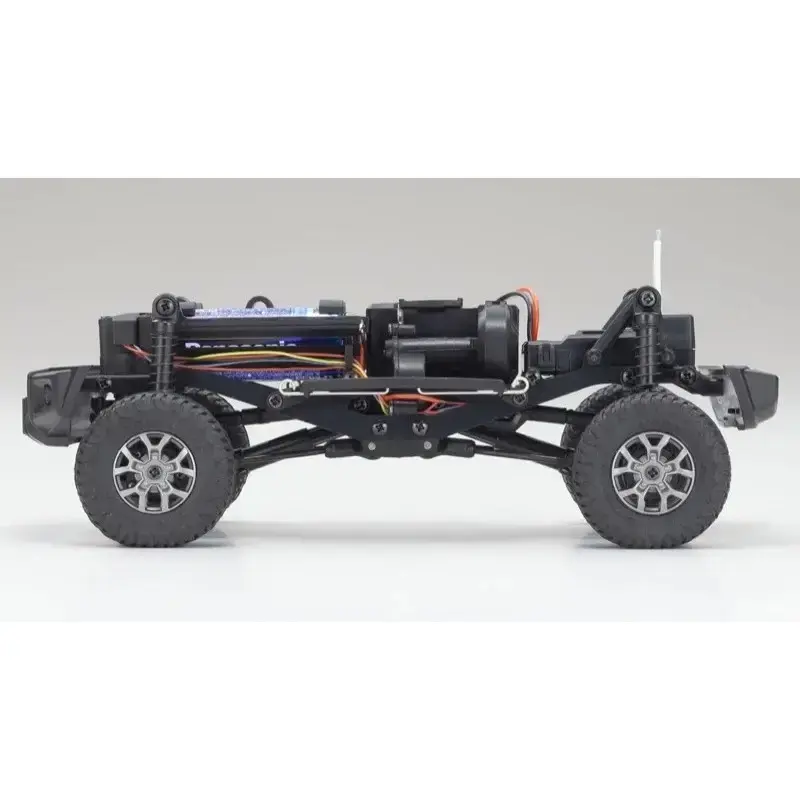

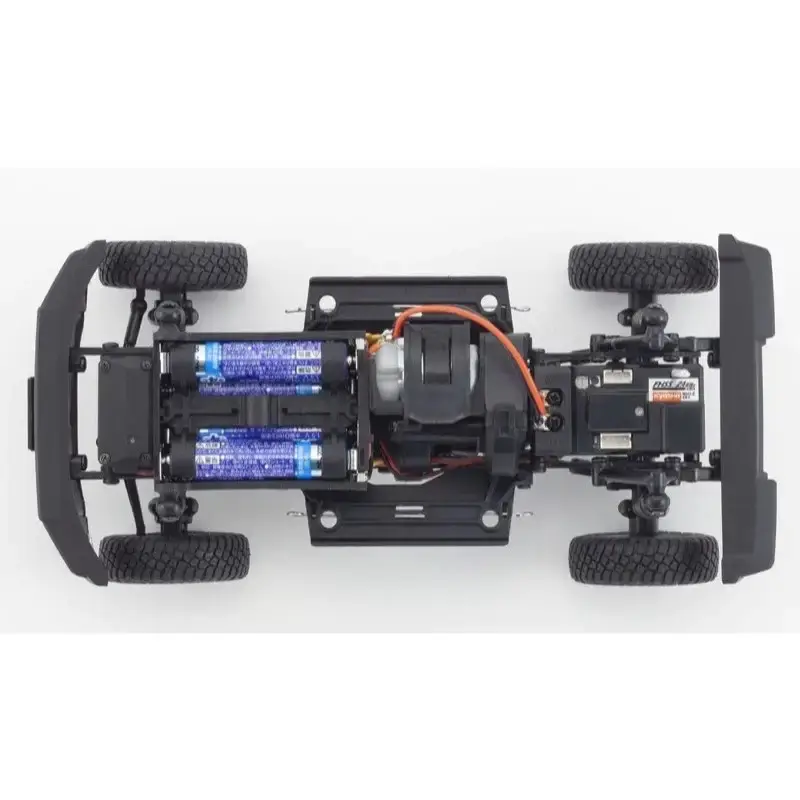

• Incorporates a ladder frame design to offer superior balance & durability
• Newly designed one-touch body mount

Product Specifications

• Length 193mm
• Width 84mm
• Height 90.0mm
• Chassis Type MX-01
• Wheel Base 120mm
• Tread F/R:72.7mm
• Weight 242g (excl. battery)
• Motor/Engine 130 Class
• Gear Ratio 55.44：1/46.20：1/39.60：1/34.65：1/30.80：1/27.72：1
• Front Tire Diameter Φ37.0mm
• Rear Tire Diameter Φ37.0mm
• Front Tire Width 12mm
• Rear Tire Width 12mm
• Battery 4 x AAA Alkaline
• Transmitter Syncro KT-531P
• Speed：Approx. 2.7km/h〜5.4km/h  (Pinion gears 10T〜 20T)
• Running Time Approx. 60 mins
• Complete chassis with built-in electronics.
• Factory-painted body complete with many fine details
• KT-531P 2.4GHz transmitter
• Pinion gear set（10T、12T、14T、16T、18T、20T）
• 3 types of pinion gear spacers
