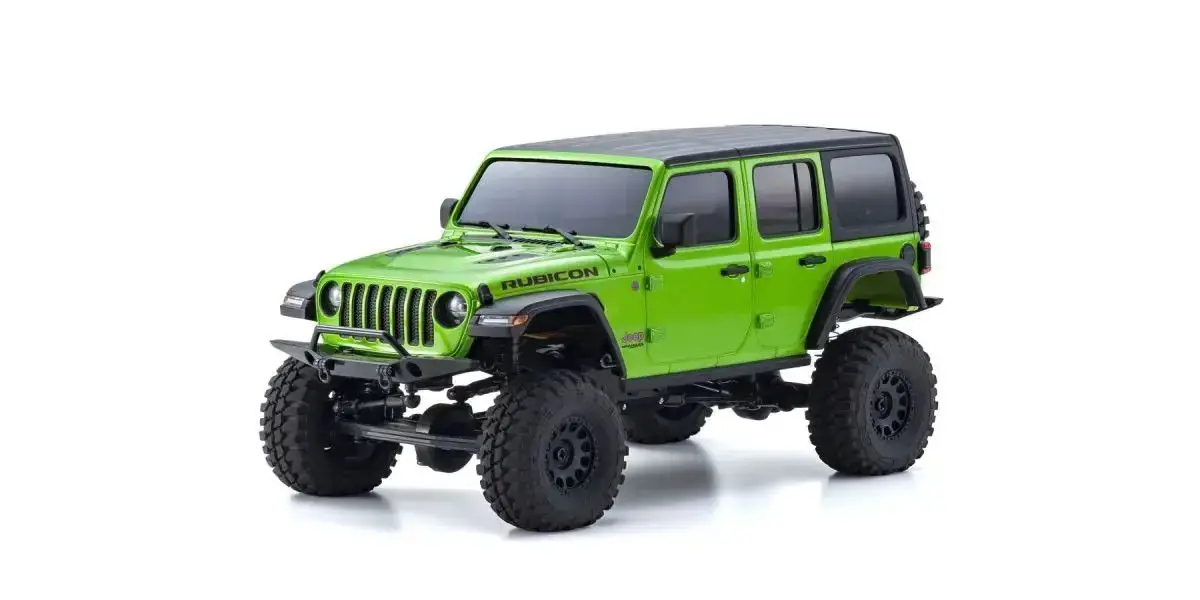

Kyosho 1/24 MINI-Z 4x4 Jeep Wrangler Unlimited Rubicon MX-01 Readyset w/Interco

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.

PAINTED BODY

Fully pre-painted body looks like a luxury diecast car replica. The thicker body material also provides superior durability. Succeeding through a series of grueling off-road tests, this Jeep® has earned the "TRAIL RATED®" badge it wears proudly on the left side as a mark of its proven off-road performance. This MINI-Z 4x4 version embodies the spirit and performance of the original Jeep® for you to enjoy.

FRONT GRILLE & LED LIGHTS

The signature seven slot front grille of the Jeep® has been reproduced in immaculate detail, including back mesh netting. Original cut design of the headlight lenses, indicators and tail lights are reproduced as clear parts so you can incorporate the optional LED lights to enjoy an ultra-realistic car experience.

LOOK FOR MATTE BLACK PAINT!

Matte black coating enhances the texture of the Freedom Top® and the black overfender that wraps the trapezoidal wheel arch. The highly detailed finish is applied to mirrors, wipers, door handles, tail light protectors as well as the bonnet grille, bonnet hood catch and radio antenna. However, the keyhole is finished in silver.

BODY MOUNT

A newly-designed one-touch body mounting system is used instead of the mounts commonly used on all previous Mini-Z cars and trucks. The new system uses spring-wire retainers to quickly and easily install and remove the body.

LADDER FRAME

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of of rigidity and flex for superior performance and durability.

SOLID AXLES

Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.

The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, maximum range of motion, and smooth operation.

ADJUSTABLE WHEELBASE

The 4WD system transmits drive force to the wheels from the main gear unit in the center of the chassis through front and rear center shafts. The wheelbase can be set to either 110mm or 120mm by adjusting the length of the spacers on the upper arms. Note the Jeep® uses a 120mm setting.

COIL OVER TYPE, SHOCK ABSORBER

The newly designed shock absorbers feature 360-degree spring retainers, which means they can't be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose.

STEERING ANGLE

The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, This model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.

DRAG LINK & TIE ROD

The steering servo drag link and the rugged molded tie rod are part of a steering system that delivers an incredible amount of steering angle, which results in excellent rock crawling capability

TIRES & WHEELS

This model features a scale reproduction of Toyo Tire's export brand "Nitto Ridge Grappler" tires mounted on custom wheels.

BATTERY TRAY

Four AAA batteries are located on top-front section of the chassis to ensure good ground clearance and achieve realistic rock crawler performance.

GEARBOX AND GEARS

The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor.

SLIPPER CLUTCH

A standard slipper clutch protects the drive system by reducing the torque when excessive load is applied. Note the metal upper shaft and primary gear for durability.

130 MOTOR

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds

NEW SPEED CONTROLLER

The on-board electronics are also unique to the Mini-Z 4x4, with special features that improve the crawling experience. The accessory ports on top of the board allow an optional LED light set (MZW429R) to be easily plugged in to enhance realism.

STEERING SERVO

The component steering servo features its own casing to allow enhanced performance, and it connects to the receiver/ESC with an independent connector.

Features

• Injection molded bodies enhanced with accessory parts recreate a level of detail in the MINI-Z 4x4 series that surpasses all MINI-Z bodies that have come before.
• The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck.

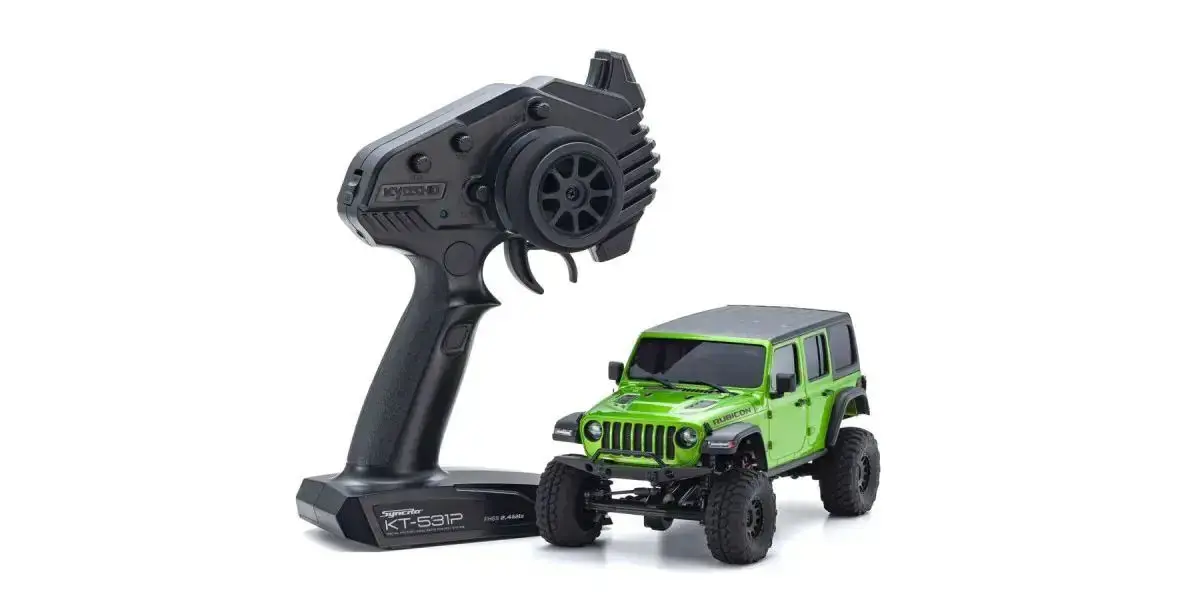

• Included KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions. Control feel has improved with adoption of sponge steering wheel. Gyro effect can be fine-tuned through volume adjustment.

What's In The Box

• Complete chassis with built-in electronics.
• Factory-painted body complete with many fine details
• KT-531P 2.4GHz transmitter
• Pinion gear set（10T、12T、14T、16T、18T、20T）
• 3 types of motor spacers
• Pairing stick

What You Need (Not Included)

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for chassis（Alkaline or NiMH）
