Kyosho 11252R CALMATO Alpha 40 TRAINER EP/GP Toughlon (Red)

Product Information

This new addition to the Kyosho Calmato Alpha 40 lineup exhibits an optimal balance of flying stability and direct control response, ideal for flight training. The Calmato reacts calmly to severe control inputs and maintains its posture even with unexpected stalls at low speed to create the best early flying experience for beginner flyers. Film covering is upgraded from PVC to superior quality reverse-side printed Toughlon which delivers both improved durability and lighter weight. Urethane clear coating can also be applied to prevent wrinkling over long time periods and unlike PVC films, a dry-type cover film can also be applied for damage repairs. The fuselage features the Calmato’s unique EP/GP convertible design that requires no gluing to dramatically reduce assembly time. Popular red colouring pattern provides differences on upper and lower surfaces to improve visibility when flying. The exquisite finish replicates competition model standards and provides beginners and existing Calmato Alpha owners with the 1 model to enjoy all aspects of R/C airplane flying.

What's in the box?

  • Pre-assembled fuselage covered in film

  • Linkage parts set

  • Engine mount

  • Fuel tank

  • Silicon tube

  • Motor mount

  • Spinner

  • Main, nose gear set

  • Cowling for EP

  • Decals

Features

  • Superior stability and direct control response provide an ideal introduction to R/C airplane flight

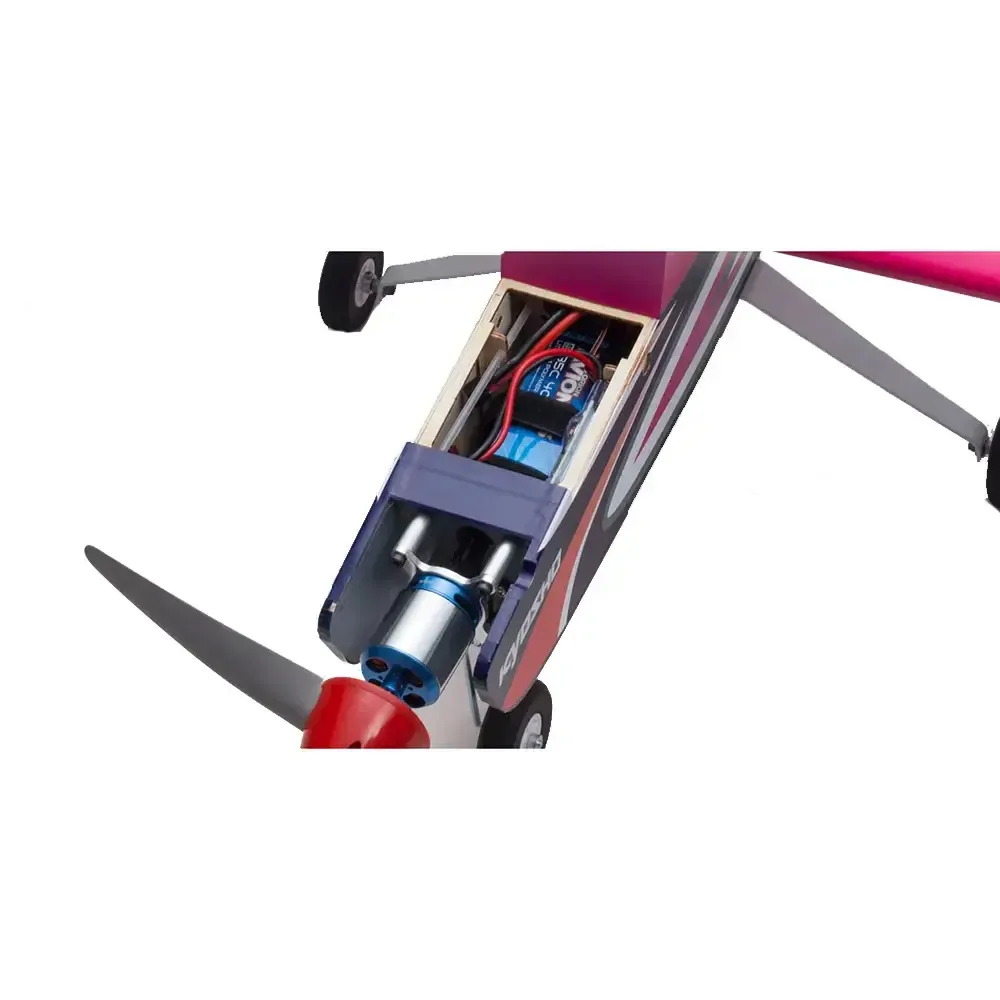

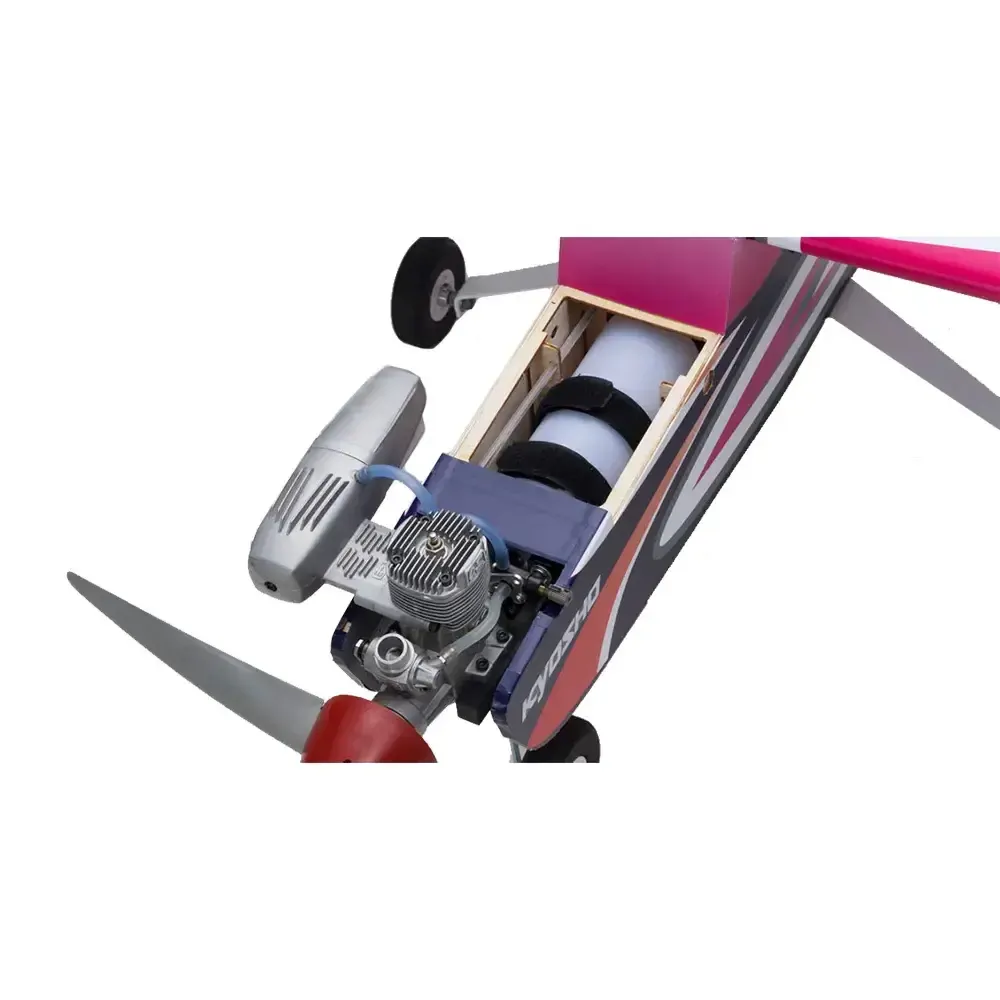

  • Convertible design allows choice of preferred power source, electric motor (EP) or glow/nitro engine (GP)
  • Covered in lightweight printed Toughlon film that is more resistant to wrinkling and sagging than PVC film
  • Glue-less design requires no adhesives to complete

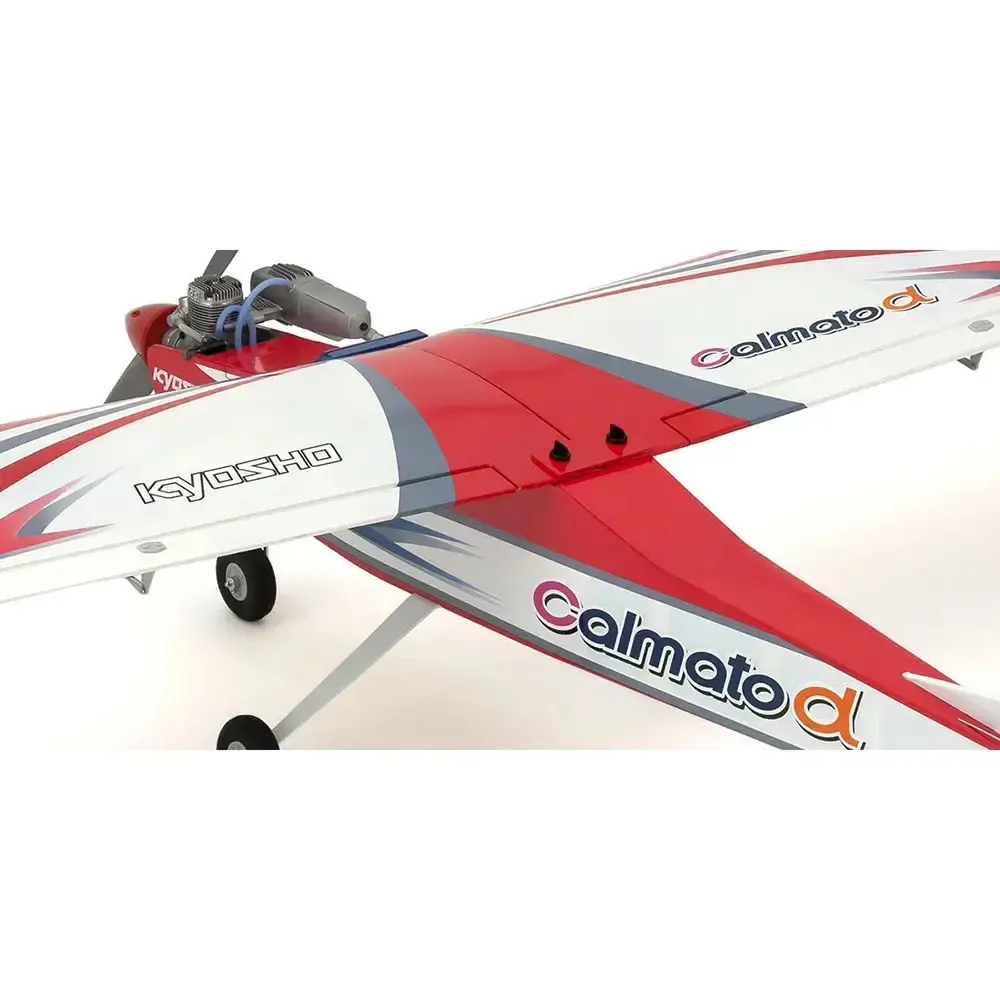

  • Main wing halves are joined by aluminium pins and can be separated for easy transportation
  • Vertical stabilizer, servo bed, aileron and rudder are all pre-installed
  • Use of 4-cell 14.8V Li-Po battery enables powerful flight
  • Lightweight structure of the balsa fuselage provides calm and easy flight characteristics
  • Equipped with rudder-linked movable nose gear
  • Flexible pipe linkage rods for rudder and elevator are pre-installed
  • Includes pre-installed fuel tank
  • Includes spinner, linkage parts set and lightweight sponge tyres

What you need

Electric Power

  • 4 channel radio system
  • 4 x standard servos
  • 100mm Y extension cord x 1 for aileron servo
  • 200mm extension cord x 2 for aileron servo
  • Outrunner brushless motor for 40-50 class
  • ESC
  • LiPo battery
  • Suitable charger
  • Propeller

Gas Power

  • 4 channel radio system
  • 5 x standard servos
  • 100mm Y extension cord x 1 for aileron servo
  • 200mm extension cord x 2 for aileron servo
  • 2 cycle 40-46 engine
  • Glow fuel
  • Starting tools (plug heater, starter, starter battery, charger)
  • Propeller

Product Specifications

  • Length: 1300mm
  • Width: 1600mm
  • Weight: EP/2,550g (approx.) GP/2,450g (approx.)
  • Motor: 600-1000W BL (sold separately)
  • Engine: 2 Cycle 40-46 class engine (sold separately)
  • Battery: (EP) 14.8V-4,000-5,000mAh Li-Po battery (sold separately)
  • Main Wing Area: 44dm2
  • Wing Loading: 55.7-55.9g/dm2
  • Airfoil: Original semi-symmetrical
  • Propeller size: D11 x P7-D12 x P8 (sold separately)
  • Tyre size: Nose 60mm / Main 60mm
  • Dihedral: 2.5°
  • Side Thrust: 2°
  • R/C system: (EP) 4ch +, 4 servo, 1 ESC (sold separately)
  • R/C system: (GP) 4ch +, 5 servo (sold separately)
