Description

 Specifications

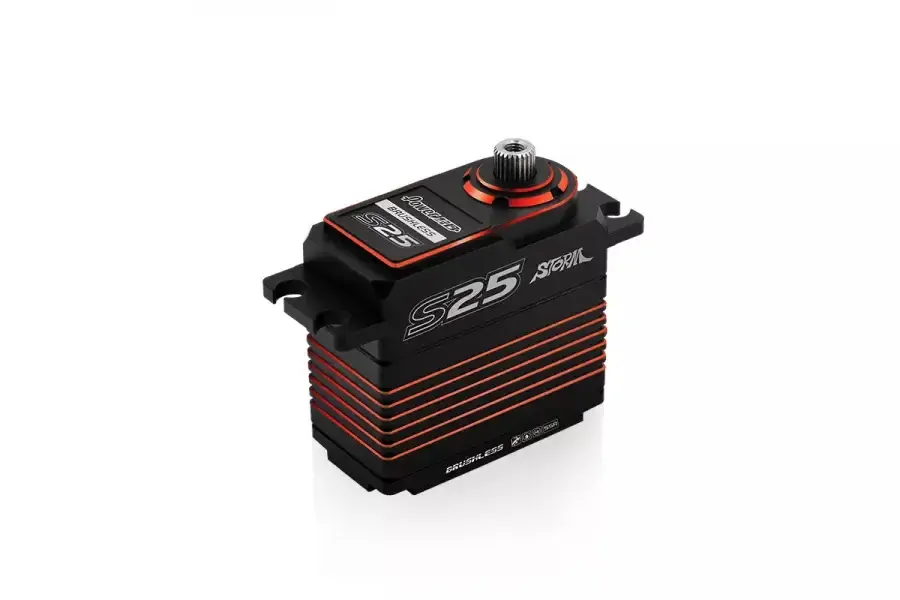

The Power HD S range has been specially designed for the high demands required in all classes of racing including 1/10 & 1/8th off road. The latest technology allows these new servo's to operate in SSR mode (Super Speed Response) allowing a natural feel and instant feedback on track. The new design has more accurately machined gears than ever before, offering more precision and reliability to meet the ever increasing demands of the competition racing market.

Features

  • Full CNC Machined metal high-grade oxygen shell
  • 7075+303 Titanium & Steel gearing
  • Japan NOBLE potentiometer
  • High pressure brushless
  • compatible with 6.0-8.4v voltage
  • Upgraded PCB, support SSR, SUR super high speed mode

Specifications

  • Torque(6.0V): 21.5 kg-cm (298.6 oz/in)
  • Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
  • Speed: 0.075 sec (6.0V) │ 0.060 sec (7.4V)
  • Operating Voltage：6.0 ~ 7.4 DC Volts
  • Weight: 75.0 g (2.65 oz)
  • Bearing Type：Ball Bearing x 2
  • Motor Type：Brushless Motor
  • Gear Type：Titanium & Steel
  • Operating Temperature: -20℃~60℃
  • Working frequency：1520μs / 333hz
  • Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
