Proline Protoform Type-S 190MM Pro-Light Weight Clear Touring Car Body - PR1560-22

Overview

The Type-S is PROTOform's new high downforce racing body. For modified classes or any other track condition/class where more grip is needed, the Type-S is the ultimate aerodynamic solution. With ultra-precise steering characteristics and superior rear grip, the balance provided is unmatched by any other body on the 190mm electric touring car market.

Extensively tested by our world-class team of drivers, it was proven there was no track surface the Type-S body couldn't handle: ETS carpet, outdoor or indoor asphalt, even the new high-grip CRC black carpet.

With PRO-Lite bodies now being the standard for indoor carpet racing, the overall stiffness of the body was taken into consideration. Added ridges along the hood, a-pillar and trunk bed provide rigidity even in thinner materials giving you less body tuck and less flex while not sacrificing performance. A small deck lid spoiler also adds both rigidity and rear grip.

The critical tuning aid of body positioning is once again made easier with our Mounting Marks inside the front wheel arches. Positions for 0, +2mm, +4mm and +6mm are scribed in for your convenience.

The Type-S is Global Body Spec compliant and fully EFRA (#4056) & ROAR approved. Made in the USA from our new high-quality, super-durable polycarbonate. Included are a PROTOform decal sheet, window masks, overspray film and metric wing mounting hardware.

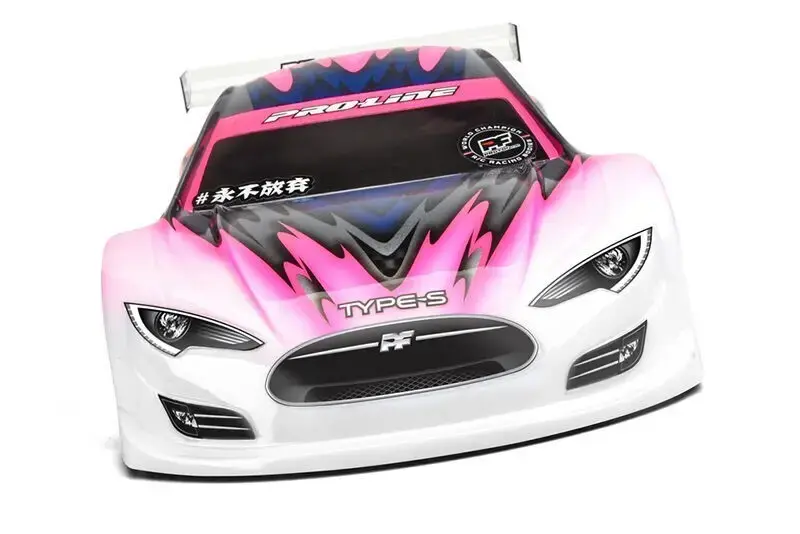

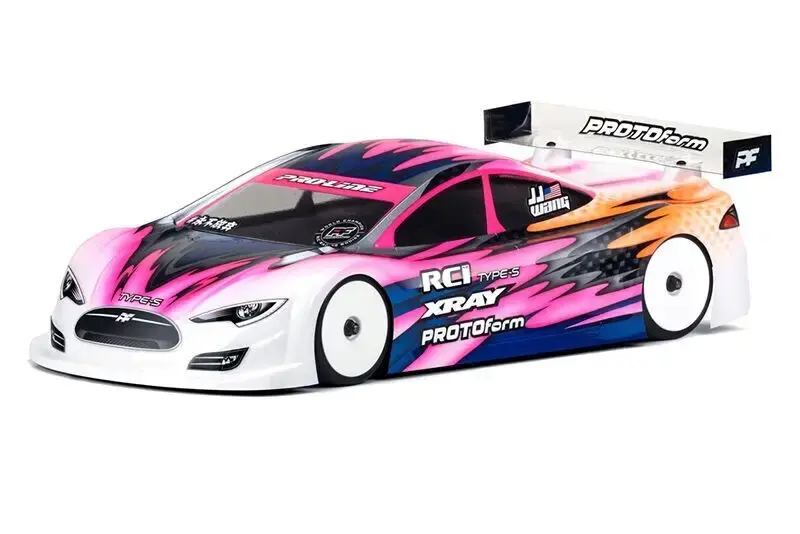

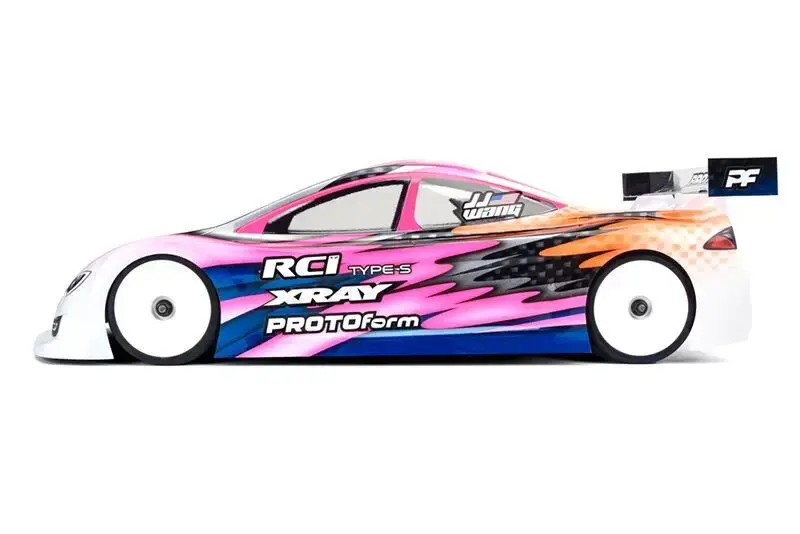

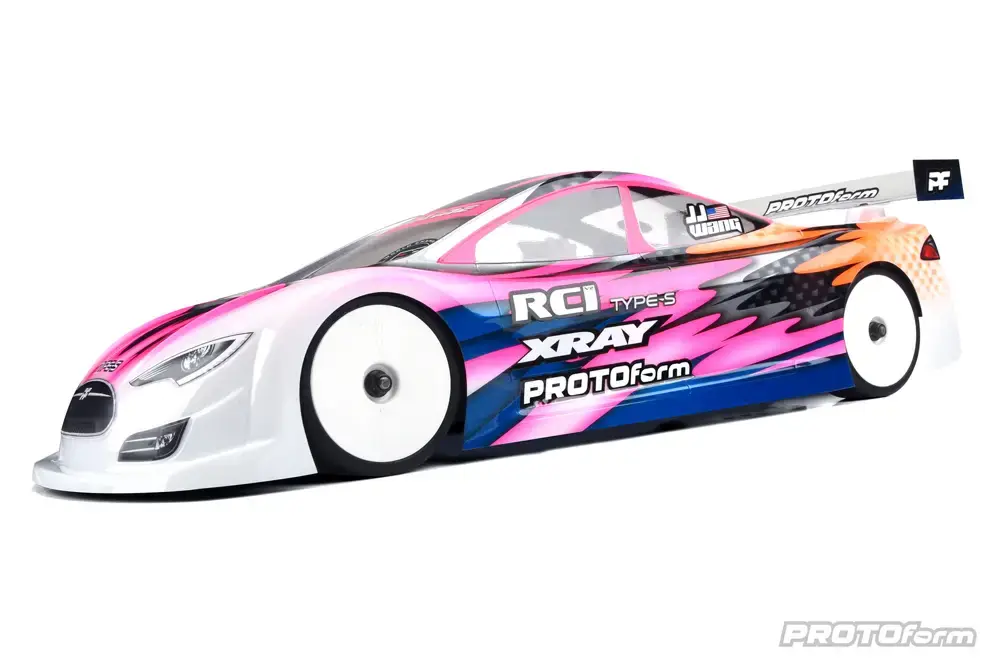

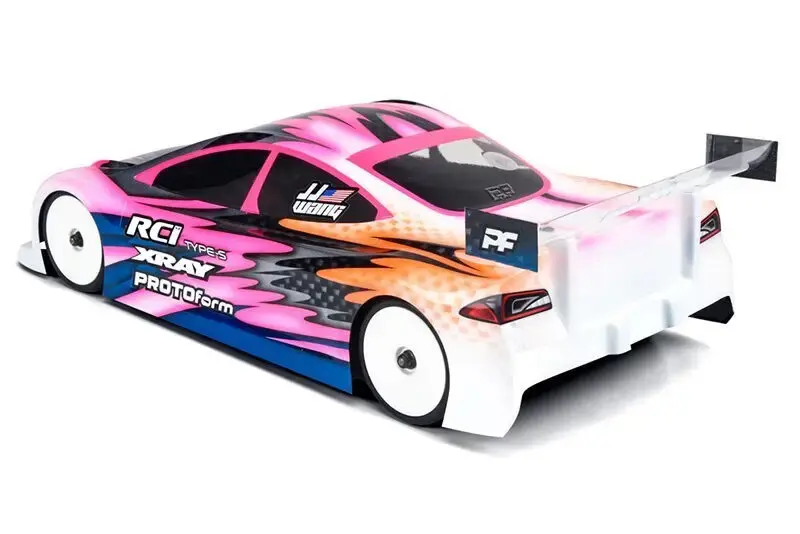

This is sold as a clear and unpainted body. Image of the painted body is only to display details. No vehicle chassis is included with this product.



Product Details

Proline Protoform Type-S 190MM Pro-Light Weight Clear Touring Car Body

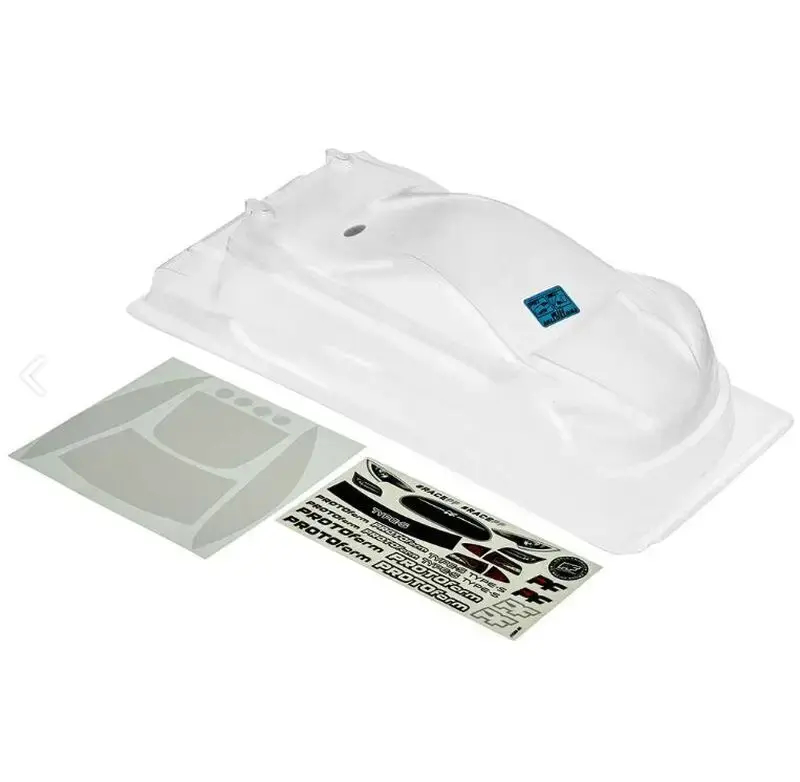

In The Box

  • Clear Type-S Body
  • Wing Buttons (2 pcs)
  • Under-wing Nuts (2 pcs)
  • M3 x 6 Black Screws (2 pcs)
  • Decal Sheet
  • Window Masks
  • Paint-then-peel Oversrpay Film

Features

  • High Downforce Aerodynamics
  • Ultra Precise Steering Characteristics
  • Improved Stability and Forward bite
  • Every Detail Considered for Added Rigidity
  • EFRA and ROAR Approved
  • Mounting Marks for Easy Body Positioning
  • Made in the USA

Fits

  • 190mm Touring Car

Product Specifications

Length:   422mm
Width:   192.5mm
Height:   115mm
Wheelbase:   253mm-260mm
