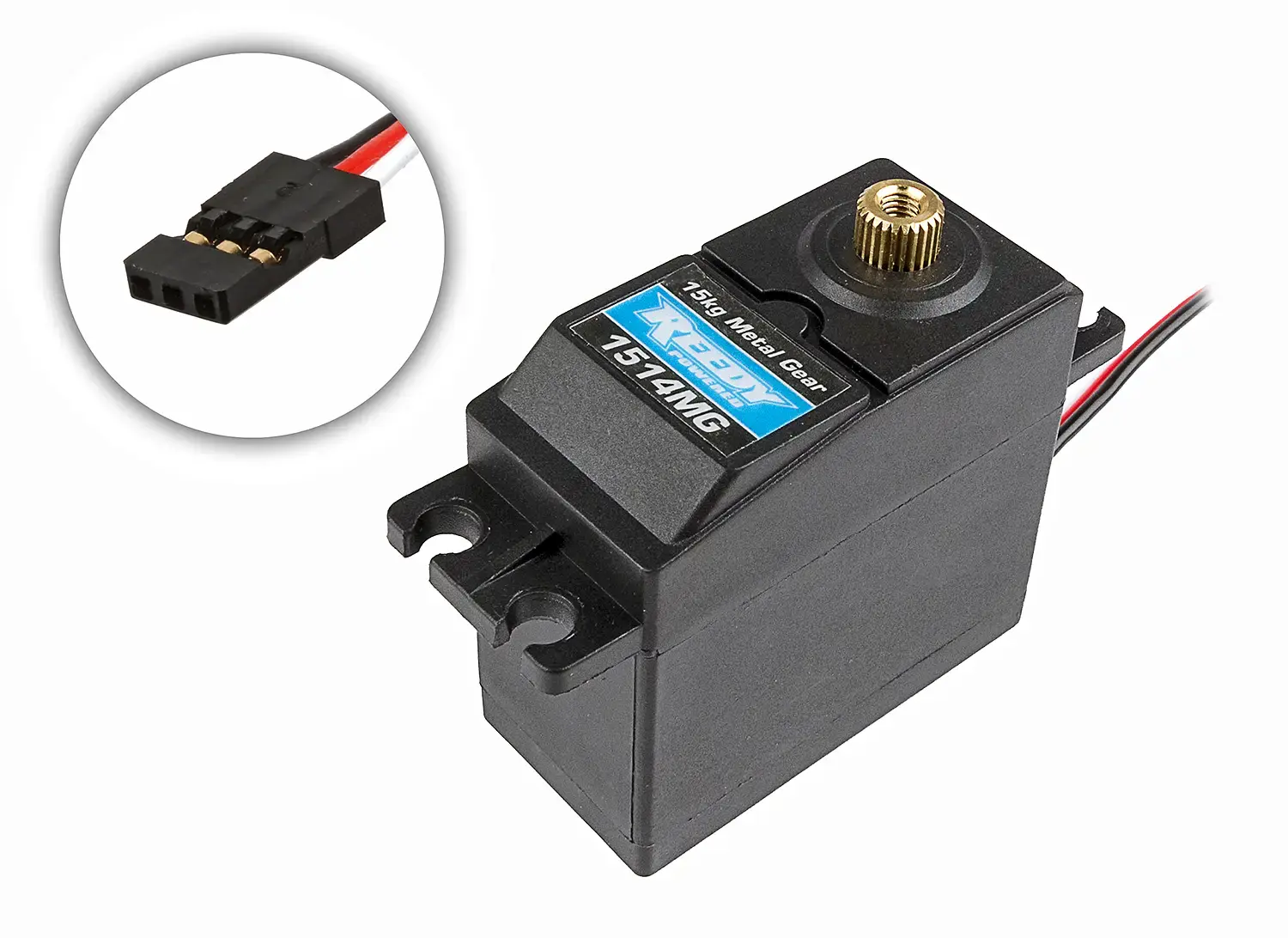

Reedy 1514MG Digital HV MG Servo 15kg

The Reedy 1514MG Digital Hi-Torque Metal Gear Servo is a quality upgrade for RTR vehicles with speed and torque ratings that improve driving precision by giving drivers a better "feel" for their vehicle. These servos are also a great option for entry level racers who want to enter the hobby economically while they learn to drive and tune their race car.

High voltage compatibility means that increased ESC BEC output voltage can be used without fear of damaging sensitive internal components. Precision metal gears, dual ball bearings, and a water-resistant outer case further improve reliability and value.

Features:

  • Reliable, high-torque motor
  • High-impact case material
  • Precision metal gears
  • Dual ball bearings
  • Water resistant

Specifications:
Signal: Digital
Input (V): 6.0V-7.4V
Speed (sec/60 deg.), 6.0V: 0.16
Speed (sec/60 deg.), 7.4V: 0.14
Torque (kg-cm), 6.0V: 14.0
Torque (kg-cm), 7.4V: 15.0
Dimensions (mm): 40.8 x 20.1 x 38.0
Weight (g): 52.0
Connector: FUT
Spline: 25
