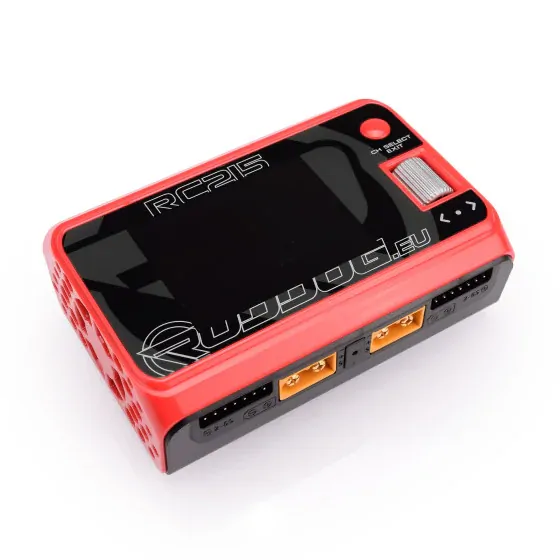

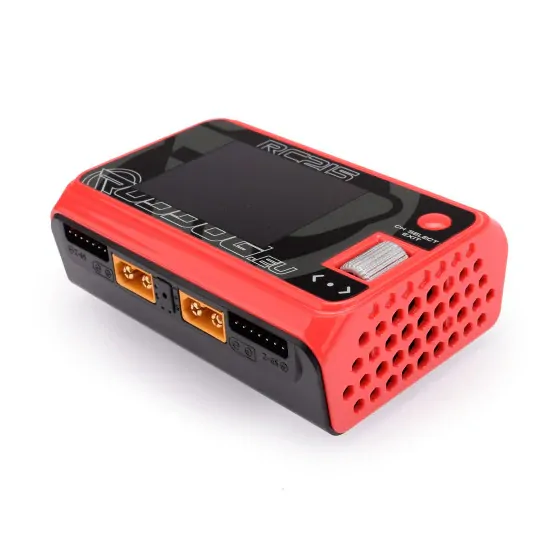

RUDDOG RC215 500W Dual Channel LiPo Battery DC Charger
or 4 payments of $40.00 with
Info
Description
The RUDDOG RC215 500W Dual Channel LiPo Battery DC Charger is a compact and powerful device that allows to charge up to two battery packs simultaneously with up to 15A of charge current. When used in the combined ASYNC mode, a maximum of 25A of charge current is possible. The DC charger can be used with 1S to 6S LiHV/LiPo, 1 to 16 cell NiMH or 1S to 10S batteries and it works with 7VDC to 28VDC input. A powerful discharge function allows for up to 3A of discharge current or 15A when used in the Recycle mode. A 320x240 pixel 2.4 inch LC display allows to monitor the charger?s and batteries? vital signs with the compact 98x69x35mm dimensions making it easy to store and transport the charger for weekly racing or traveling abroad.
Specifications & features:
- Input voltage: 7-28VDC, max. 30A
- Battery type: LiHV/LiPo/LiIon 1-6S, NiMH 1-16S, Pb 1-10S
- Charge power: 0.1-15A (max. 250W per channel in SYNC mode), 0.2-25A (max. 500W both channels combined in ASYNC mode)
- Discharge power: 0.1-3A (max. 12W per channel), 0.1-15A (max. 250W per channel in Recycle mode)
- Balance current: 800mA @2-6S
- USB: 2.1A, 5V
- Dimensions: 98x68x35mm
- Weight: 220g
- LC display: IPS 2.4 inch 320x240 pixel
- Wheel select button
Requires Power Cord to connect to DC Power Supply
Description
SpecificationsThe RUDDOG RC215 500W Dual Channel LiPo Battery DC Charger is a compact and powerful device that allows to charge up to two battery packs simultaneously with up to 15A of charge current. When used in the combined ASYNC mode, a maximum of 25A of charge current is possible. The DC charger can be used with 1S to 6S LiHV/LiPo, 1 to 16 cell NiMH or 1S to 10S batteries and it works with 7VDC to 28VDC input. A powerful discharge function allows for up to 3A of discharge current or 15A when used in the Recycle mode. A 320x240 pixel 2.4 inch LC display allows to monitor the charger?s and batteries? vital signs with the compact 98x69x35mm dimensions making it easy to store and transport the charger for weekly racing or traveling abroad.
Specifications & features:
- Input voltage: 7-28VDC, max. 30A
- Battery type: LiHV/LiPo/LiIon 1-6S, NiMH 1-16S, Pb 1-10S
- Charge power: 0.1-15A (max. 250W per channel in SYNC mode), 0.2-25A (max. 500W both channels combined in ASYNC mode)
- Discharge power: 0.1-3A (max. 12W per channel), 0.1-15A (max. 250W per channel in Recycle mode)
- Balance current: 800mA @2-6S
- USB: 2.1A, 5V
- Dimensions: 98x68x35mm
- Weight: 220g
- LC display: IPS 2.4 inch 320x240 pixel
- Wheel select button
Requires Power Cord to connect to DC Power Supply
The RUDDOG RC215 500W Dual Channel LiPo Battery DC Charger is a compact and powerful device that allows to charge up to two battery packs simultaneously with up to 15A of charge current. When used in the combined ASYNC mode, a maximum of 25A of charge current is possible. The DC charger can be used with 1S to 6S LiHV/LiPo, 1 to 16 cell NiMH or 1S to 10S batteries and it works with 7VDC to 28VDC input. A powerful discharge function allows for up to 3A of discharge current or 15A when used in the Recycle mode. A 320x240 pixel 2.4 inch LC display allows to monitor the charger?s and batteries? vital signs with the compact 98x69x35mm dimensions making it easy to store and transport the charger for weekly racing or traveling abroad.
Specifications & features:
- Input voltage: 7-28VDC, max. 30A
- Battery type: LiHV/LiPo/LiIon 1-6S, NiMH 1-16S, Pb 1-10S
- Charge power: 0.1-15A (max. 250W per channel in SYNC mode), 0.2-25A (max. 500W both channels combined in ASYNC mode)
- Discharge power: 0.1-3A (max. 12W per channel), 0.1-15A (max. 250W per channel in Recycle mode)
- Balance current: 800mA @2-6S
- USB: 2.1A, 5V
- Dimensions: 98x68x35mm
- Weight: 220g
- LC display: IPS 2.4 inch 320x240 pixel
- Wheel select button
Requires Power Cord to connect to DC Power Supply
| SKU | RP-0405 |
| Brand | Ruddog |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000064000m3 |
-
