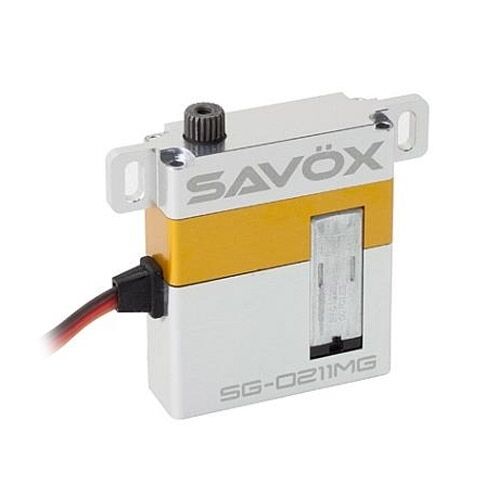

Savox Digital servo 30x10x36 8kg @ 0.13 - SAV-SG0211MG

Product Information

The SG-0211MG is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.

Features

• Metal Gear train for extended life and durability.
• Special design for glider applications.
• Special design for glider applications.
• All aluminum case for secure mounting.

Technical Details

• Operating Temperature: 14¡ - 122¡F (-10¡ - 50¡C)
• Running Current (no load): 120mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1500mA @4.8 V, 1900mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 100¡ (1000 _ 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 _ 2200 µ second
• Maximum Travel: Appx 165¡ (800 _ 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed

Product Specifications

• Gears: Metal
• Case: Full metal
• Length ca.: 30.0mm
• Width ca.: 10.0mm
• Height ca.: 36.0mm
• Weight ca.: 29g
• Input voltage: 4.8 - 6.0 Volt
• Torque at 6.0 V ca: 80 Ncm
• Speed at 6.0 V ca: 0.13 sec/60¡
• Torque at 4.8 V ca: 60 Ncm
• Speed at 4.8 V ca: 0.16 sec/60¡
• Motor: Coreless
• Ball bearings: 2
• Spilne: 21 Tooth
