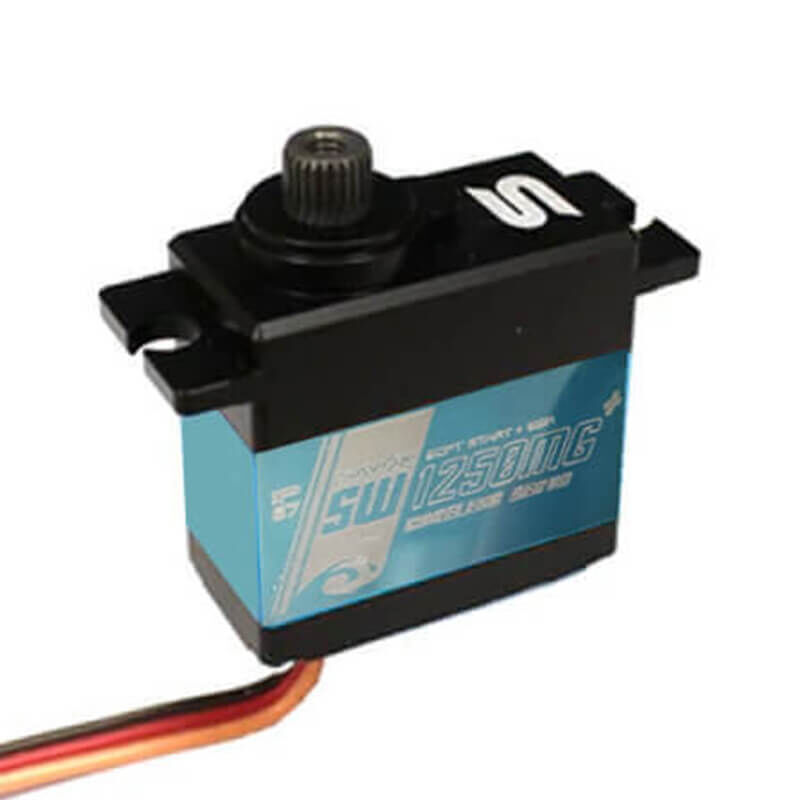

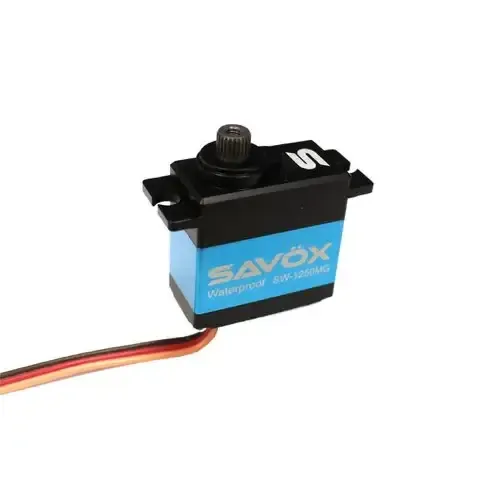

Savox SW-1250 Waterproof Digital Metal Gear "Ultra Torque" Mini Servo - SAV-SW1250MG



Product Information

Savox SW-1250 Waterproof Digital Metal Gear "Ultra Torque" Mini Servo. The Savox SW-1250 Waterproof Digital Metal Gear "Ultra Torque" Mini Servo is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.





Features

  • Full aluminum waterproof case.
  • Strong metal gear train for increased durability.
  • Ultra torque and speed for mini applications
  • Designed for Traxxas 1/16 vehicles.



Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 80mA @4.8V, 100mA @6.0V
  • Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings:
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type:



Product Specifications

  • Torque @ 4.8v: 5.0 kg-cm/69.4 oz-in
  • Torque @ 6.0v: 8.0 kg-cm/111.1 oz-in
  • Speed @ 4.8v: 0.12 sec/60 deg
  • Speed @ 6.0v: 0. 10sec/60 deg


(SAV-SW1250MG)
