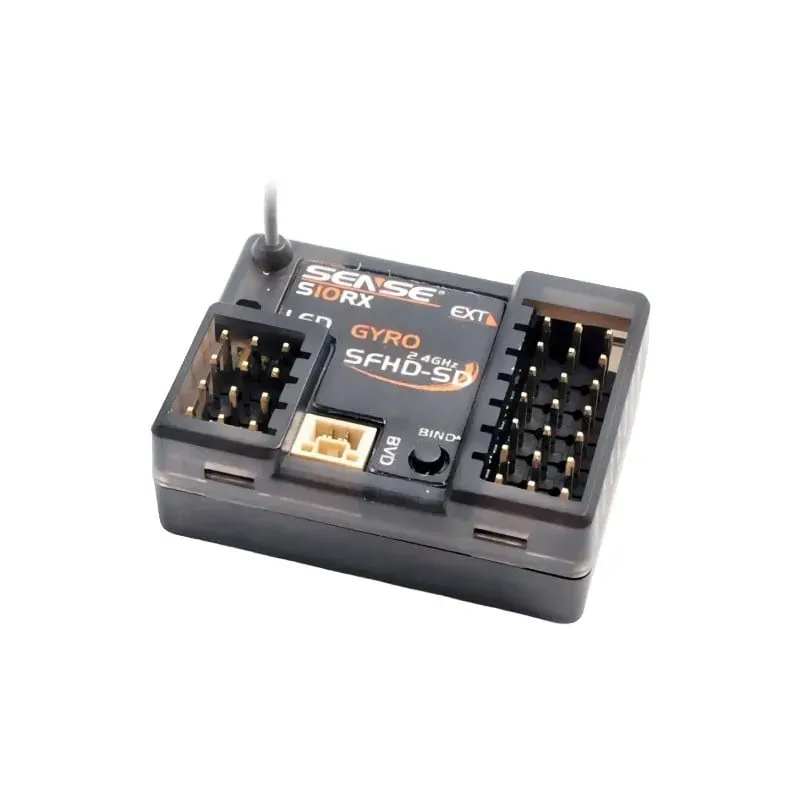

The Sense Innovations S10RX 10-Channel Surface Receiver with Built-In Gyro is a high-performance receiver designed exclusively for use with the Sense Innovations S10 Surface Transmitter. Combining advanced wireless communication, integrated gyro technology and over-the-air firmware updates, the S10RX delivers precise control, exceptional reliability and real-time telemetry for RC cars and boats.

Featuring 10 PWM output channels, the S10RX provides ample connectivity for advanced vehicles requiring multiple servos, accessories and programmable functions. The integrated built-in gyro improves vehicle stability and steering control, helping drivers maintain better control on loose surfaces and at high speeds.

The receiver supports both unidirectional and bidirectional transmission modes. In unidirectional mode it receives control signals from the transmitter, while bidirectional mode establishes a full-duplex communication link that allows the receiver to send live telemetry data such as voltage, temperature, acceleration, attitude and vehicle speed back to the compatible Sense S10 transmitter.

A built-in transparent data passthrough system allows receiver configuration and firmware updates using the same RF communication link, eliminating the need for separate programming hardware while simplifying the overall system architecture.

For added security and interference protection, every S10RX receiver features an independent identification system. Each receiver carries its own unique identification code which is verified every time it communicates with the transmitter, improving operational stability and reducing the possibility of interference.

Firmware updates are easily performed via Wi-Fi over-the-air (OTA) when used with the Sense S10 transmitter, allowing new features and performance improvements to be added as they become available.

Available from Campbelltown Hobbies, the Sense Innovations S10RX is an ideal upgrade or replacement receiver for S10 radio users looking for premium performance, built-in gyro functionality and advanced telemetry support.

Required Items

• Sense Innovations S10 Surface Transmitter
• Compatible RC Car or Boat
• Suitable Power Supply (5–9V DC)

Specifications

Brand: Sense Innovations

Model: S10RX

Part Number: SENSES10RX

Product Type: Surface Receiver

Compatible Transmitter: Sense Innovations S10

Channels: 10 PWM

Built-In Gyro: Yes

Wireless Protocol: SFHD-SD

Transmission Modes:

• Unidirectional
• Bidirectional Telemetry

RF Frequency: 2403–2480 MHz

Operating Voltage: 5–9V DC

Output: PWM / PPM

Antenna: External Single Antenna

Data Passthrough: Supported

OTA Firmware Updates: Supported

Telemetry Support:

• Voltage
• Temperature
• Attitude / Acceleration
• Vehicle Speed

Operating Temperature: -10°C to +60°C

Operating Humidity: 20–95% RH

Dimensions: 34.5 × 26 × 13.6mm

Weight: 10g

Certifications:

• CE-RED
• FCC-ID
• RoHS

What's Included

• Sense Innovations S10RX 10-Channel Receiver
• Built-In Gyro
