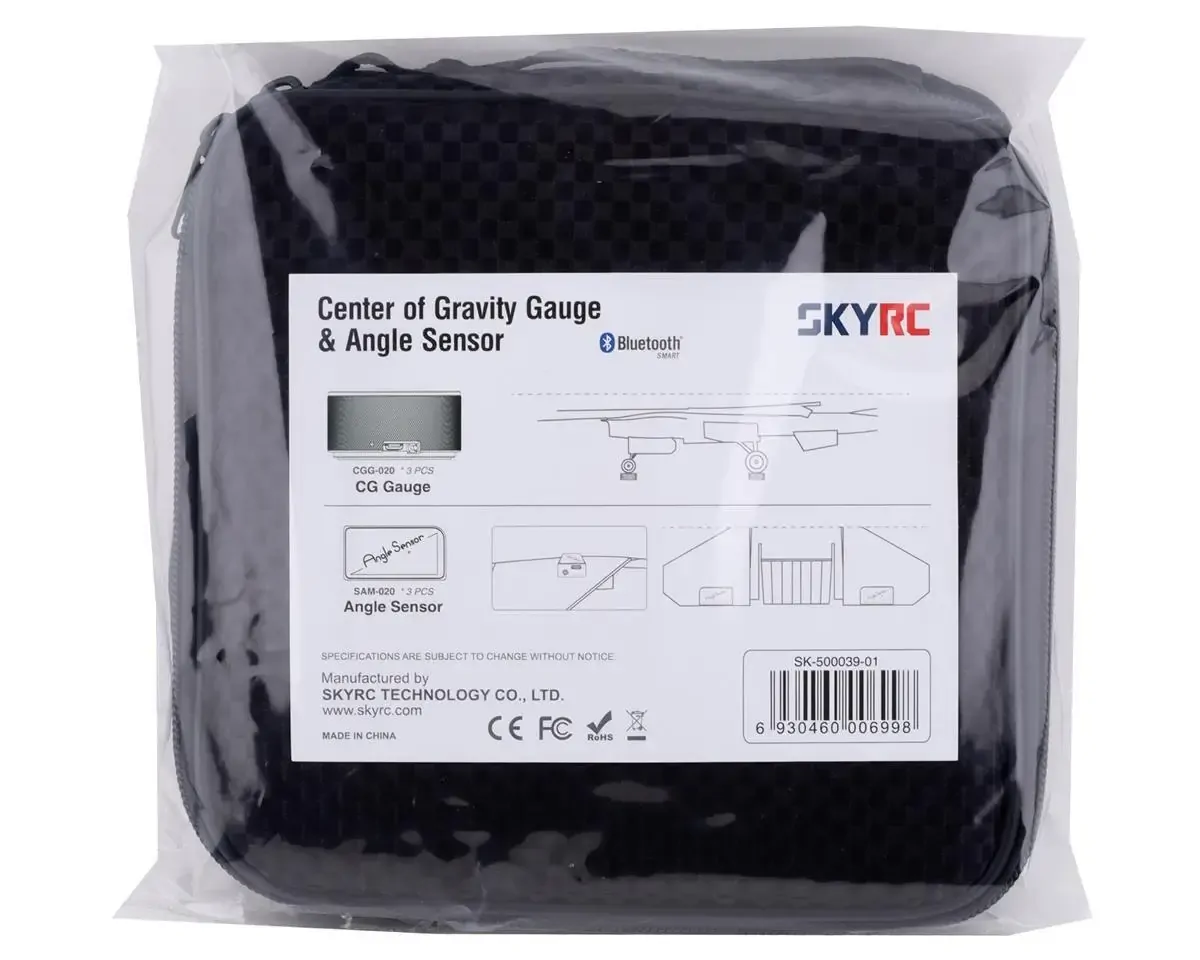

SKYRC SK-500039-01 Digital Airplane CG Gauge & Angle Sensor Combo

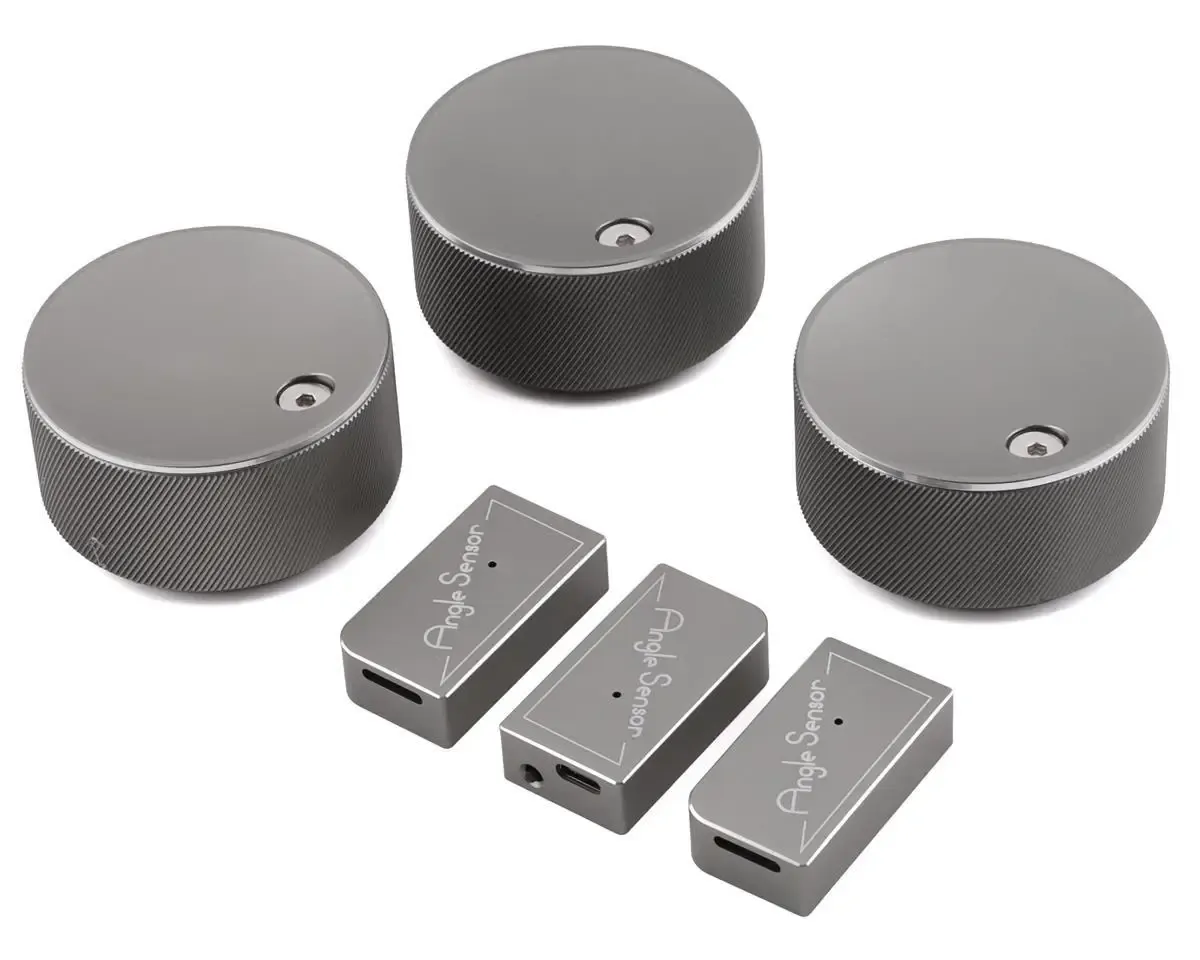

The SkyRC Center of Gravity Gauge is an advanced tool. This CG gauge allows you to check and adjust the balance of an airplane with precision. You are a Gauge away from a creating a better flying experience! Center of gravity is critical to have a controllable model aircraft. Incorrect CG will result in a hard to control model, and could lead to catastrophic results. SkyRC CG Gauge measures the weight and the center of gravity for fixed-wing aircraft with a maximum load of 20kg. The unit consists of three weighing modules, which are wirelessly controlled via Bluetooth connection to your smartphone using the RC Gears app. The maximum load for a single module is 20kg.

Plus, the system includes angle sensors that allow you to check and adjust the throw parameters of the control surfaces. Surface angle adjustment is another critical factor for fixed wing aircraft. Using this tool will allow you to match throw of each control surface. This tool also helps measure the maximum value of the rudder, relative angle of the mixing control surface, and differential angle value of the aileron. Mechanical measuring is the typical method to acquire the data, but is difficult and creates significant deviation, making it almost impossible to find the relative angle's value. The SkyRC Angle Gauge is the solution. The unit consists of three modules, which are also wirelessly controlled via Bluetooth connection to your smartphone using the RC Gears app.

Features:

• ONE Gram Matters: The slight difference in the center of gravity will bring you a different flying experience. The data tested by the CG Gauge has high reliability and accuracy. The measurement is accurate to 1g with the default unit as gram which is switchable to ounce. Thanks to the gauge, counter weighing becomes more accurate, bringing a better flying experience to our pilots.
• Safe Balancing, Safer Piloting: Forward or backward offset by the center of gravity will cause difficulty in lifting and even blowing up. SkyRC CG Gauge features an accurate algorithm that immediately enables pilots to know the aircraft's CG. Add or lose weight accordingly by comparing the real-time position against the input! Enjoy a pleasant and safe flight.
• High Accuracy: The data tested by Angle Gauge has high reliability and accuracy. The measurement is accurate to 2 degrees with a travel accuracy of 0.1 mm, bringing a better flying experience to our pilots.
• Accuracy meets Craftsmanship: High-hardness aluminum is selected for the case, and strict CNC machining guarantees the stability and reliability that is dust-proof and has strong impact resistance. The top of the weighing module adopts arc shape inspired by the wine glass's bottom, which prevents the wheel from sliding and enables the wheel to be automatically centered. The measurement accuracy is improved!
• Bluetooth5.0: Faster & More Stable. SkyRC CG Gauge is built with Bluetooth 5.0, which enables a faster and more stable connection. The app instantly displays real-time data once connected. Counterweighing is like a breeze!
• Everything is connected: The app receives and records data in real-time via Bluetooth!
• Silent Guarding with Single Battery: Thanks to the Bluetooth 5.0 ultra-low power consumption and our proprietary protocol, a single built-in 3.7V 10440 rechargeable LiPo battery provides sufficient power for comfortable use.

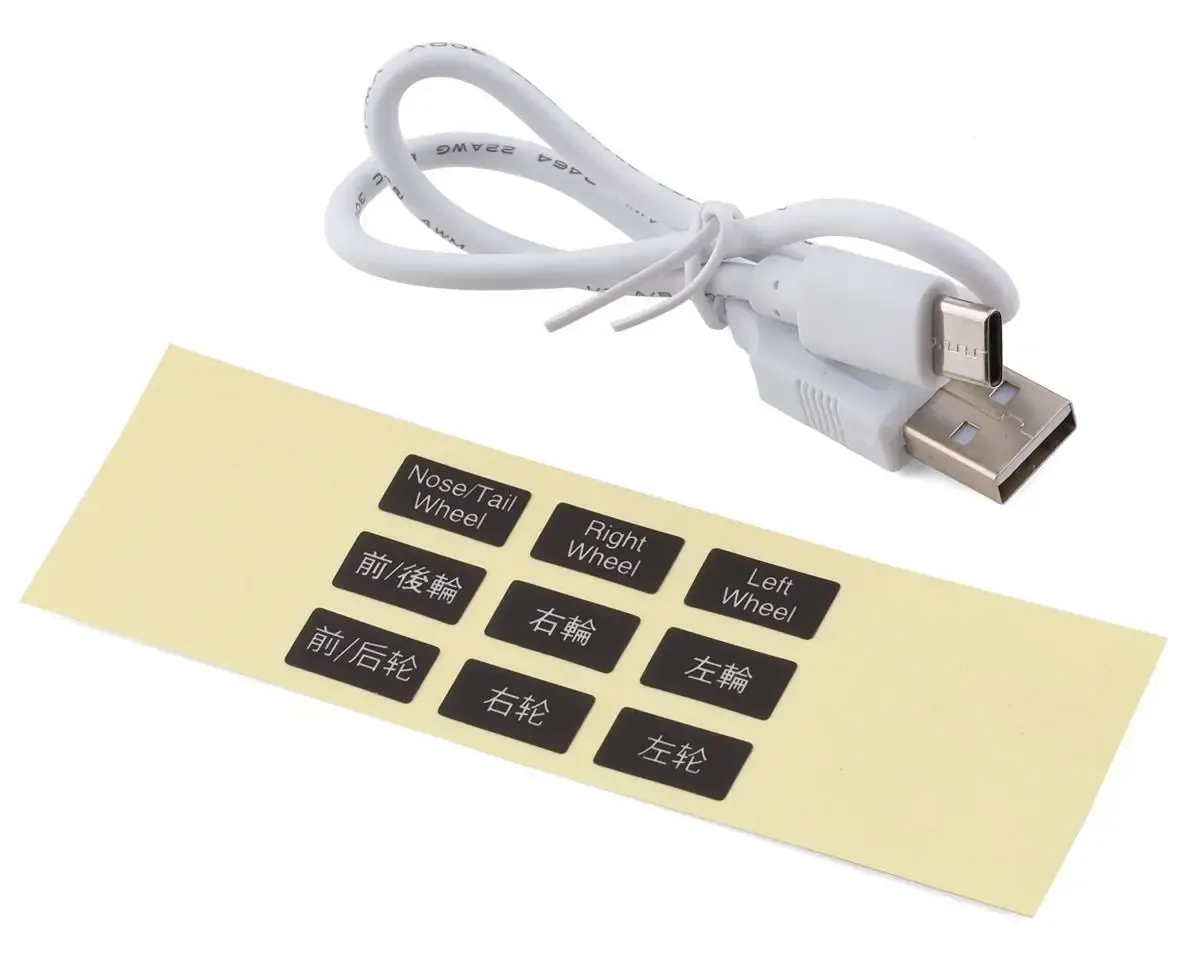

• Universal Charging Interface: The charge port is USB Type C which is accepted as the de facto connector today, so most mobile phone's cable can easily handle the charging.

Specifications:

• CG Gauge:
  • Working Voltage: 3.4-4.2V
  • Working Current: ?15mA
  • Interface: Type C
  • Input Voltage: 5V
  • Input Current: 200-300mA
  • Low-voltage Protection: ?3.4V (Flashes Red)
  • Load: max. 20kg/module
  • Accuracy: ±3g (Measuring)
  • Accuracy: 1g/0.01oz (Display)
  • Working Temperature: 0?-50?
  • Working Humidity: 5%-90% (No Condensation)
  • Storage Temperature: -10?-50?
  • Storage Humidity: 1%-75% (No Condensation)
• Angle Gauge:
  • Working Voltage: 3.4-4.2V
  • Working Current: ?10mA
  • Interface: Type C
  • Input Voltage: 5V
  • Input Current: 200-300mA
  • Low-voltage Protection: ?3.4V (Flashes Red)
  • Measuring Accuracy: ±2°
  • Travel Accuracy: ±0.1mm
  • Working Temperature: 0?-50?
  • Working Humidity: 5%-90% (No Condensation)
  • Storage Temperature: -10?-50?
  • Storage Humidity: 1%-75% (No Condensation)

SKYRC SK-500039-01 Digital Airplane CG Gauge & Angle Sensor Combo

Question 1: What is the primary purpose of the SKYRC SK-500039-01 Digital Airplane CG Gauge & Angle Sensor Combo?

Answer 1: The primary purpose of the SKYRC SK-500039-01 Digital Airplane CG Gauge & Angle Sensor Combo is to facilitate precise measurement and adjustment of the center of gravity (CG) and control surface angles for model airplanes, enhancing their controllability and flight performance.

Question 2: Why is the center of gravity (CG) crucial for model aircraft, and how does this gauge help with it?

Answer 2: The center of gravity is crucial for model aircraft because it affects their stability and control during flight. An incorrect CG can lead to difficulties in control and potentially catastrophic results. This gauge helps by measuring the CG accurately and allowing pilots to adjust it as needed for safe and optimal flight performance.

Question 3: What is the maximum load capacity of the SKYRC CG Gauge for fixed-wing aircraft?

Answer 3: The SKYRC CG Gauge can measure fixed-wing aircraft with a maximum load capacity of 20kg.

Question 4: How is the SKYRC CG Gauge controlled wirelessly, and what smartphone app is used for this purpose?

Answer 4: The SKYRC CG Gauge is controlled wirelessly via a Bluetooth connection to a smartphone using the RC Gears app.

Question 5: Can you explain the importance of angle sensors in this tool and how they help with control surface adjustments?

Answer 5: Angle sensors in this tool are important for checking and adjusting the throw parameters of control surfaces. They ensure that control surfaces are set to the correct angles, which is critical for stable and controlled flight.

Question 6: What specific parameters can be measured and adjusted using the angle sensors in this combo?

Answer 6: The angle sensors can measure and adjust parameters such as the maximum value of the rudder, relative angle of the mixing control surface, and differential angle value of the aileron.

Question 7: How accurate is the measurement provided by the CG Gauge in terms of weight and center of gravity?

Answer 7: The CG Gauge provides accurate weight measurements with a measurement accuracy of ±3g and displays weight in units of 1g or 0.01oz. This high level of accuracy ensures precise center of gravity measurement.

Question 8: What is the significance of having a Bluetooth 5.0 connection in the SKYRC CG Gauge, and how does it enhance the user experience?

Answer 8: Bluetooth 5.0 enhances the user experience by providing a faster and more stable connection between the gauge and the smartphone app. This ensures real-time data display and easy counterweighing adjustments.

Question 9: What type of battery does the SKYRC CG Gauge use, and how long does it last on a single charge?

Answer 9: The SKYRC CG Gauge uses a built-in 3.7V 10440 rechargeable LiPo battery with ultra-low power consumption. It provides sufficient power for comfortable use during measurements.

Question 10: What is the charging interface for the gauge, and why was USB Type C chosen?

Answer 10: The charging interface for the gauge is USB Type C. USB Type C was chosen because it is widely accepted as the standard connector, making it convenient for users to charge the gauge using most mobile phone cables.
