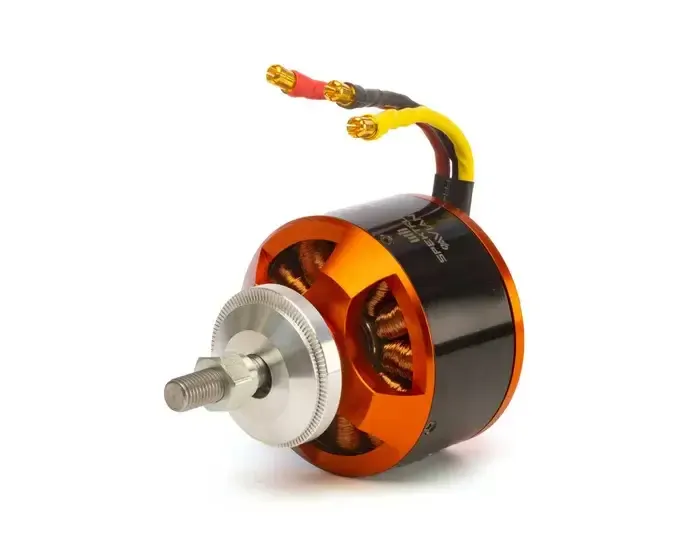

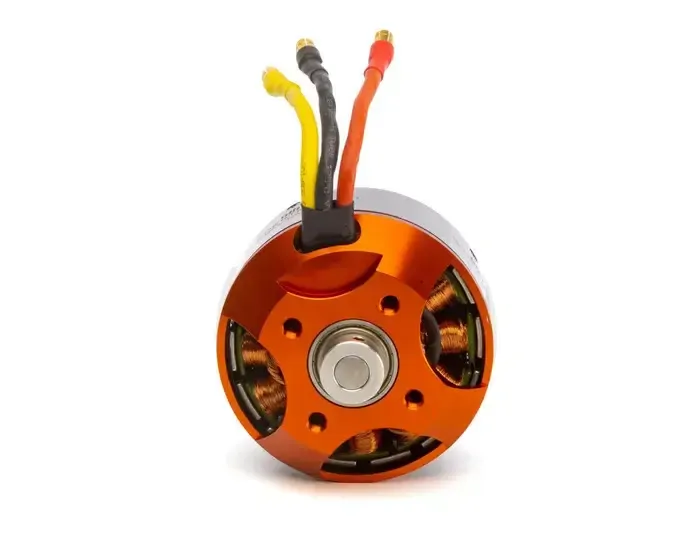

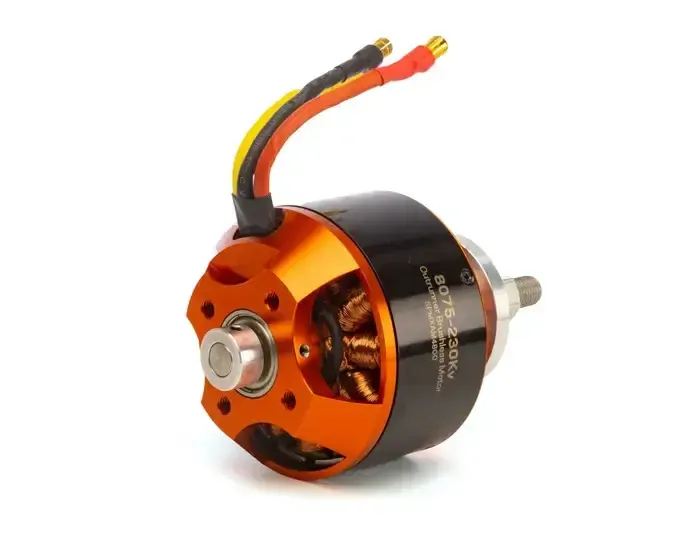

Spektrum Avian 8075-230Kv Brushless Outrunner Motor - SPMXAM4800



Product Information

This Avian 8075-230Kv Outrunner Brushless Motor is compatible with the Hangar 9 Pitts S-2B 50-60cc RC plane.

The combination of superior performance, high reliability and user-friendly features make the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's an Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!



Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.



Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion
  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminium motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 120 amp HV ESC
  • Perfect electric conversion upgrade for 50cc size gas combustion power systems



Product Specifications

  • Type: Outrunner Brushless
  • Size: 230Kv
  • Voltage: 33.3 - 55.5V
  • Continuous Current: 110A
  • Maximum Burst Current: 135A
  • Speed Control: 80 - 100A Recommended
  • Weight: 44.1oz (1250g)
  • Overall Diameter: 3.14" (80 mm)
  • Shaft Diameter: 0.39" (10 mm)
  • Shaft Length: 0.79" (20 mm)
  • Overall Length: 2.9" (74 mm)
