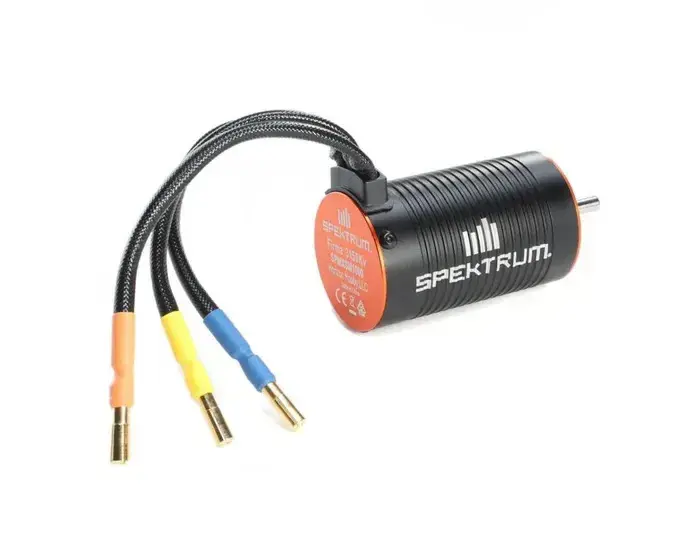

Spektrum Firma 3150Kv Brushless Motor - SPMXSM1000



Product Information

The Spektrum Firma 3150Kv Brushless Motor is a great choice for 1/10 Scale 4WD models.

Low cog 4-pole 8-magnet rotor design, CNC machined aluminium housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC.



What's In The Box

  • Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors



What You Need

  • Electronic Speed Control such as the Firma 130 Smart ESC



Features

  • Perfect upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore)
  • High-quality 4-pole sintered rotors
  • Includes 4mm gold plated bullet connectors
  • Precision ball bearings and hardened steel 5mm shaft



Product Specifications

  • Weight: 8.7oz (247g)
  • Connector Type: 4mm Bullet
  • Efficiency: 90%
  • Recommended Speed Control: Spektrum Firma 130 Smart ESC
  • Motor Type: Brushless, Brushless
  • Overall Length: 2.4" (60mm)
  • RPM/Volt (Kv): 3150Kv
  • Bushing Or Bearing: Bearing
  • Wire Gauge: 12 AWG
  • Input Voltage: 6-13.2V
  • Outer Diameter: 1.4 in (36mm)
  • Output: 1300W
  • Shaft Diameter: 3/16" (5mm)
  • Maximum Continuous Current: 100A
  • Cells: 2-3S LiPo, 4-9 cell NiMH
  • Number of Poles: 4
