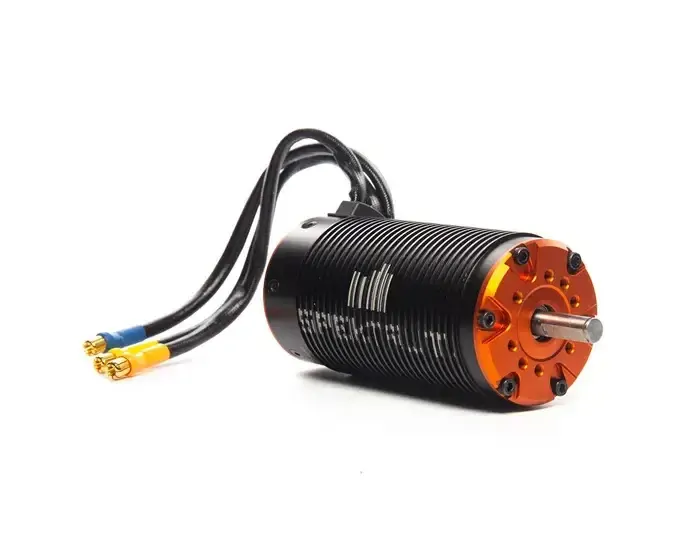

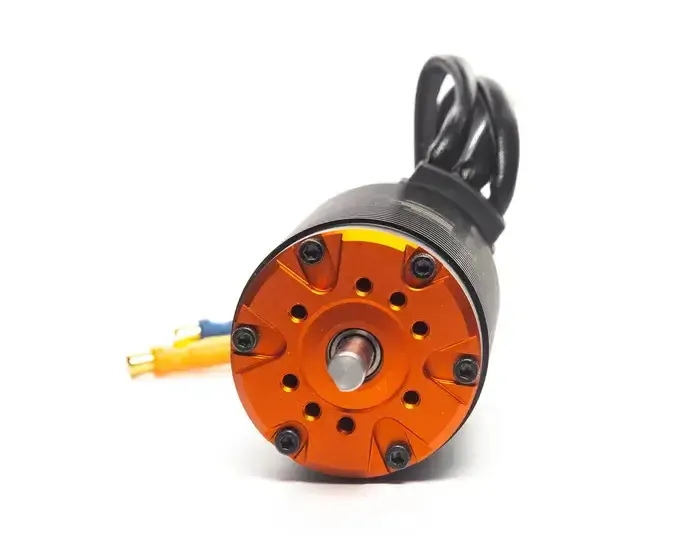

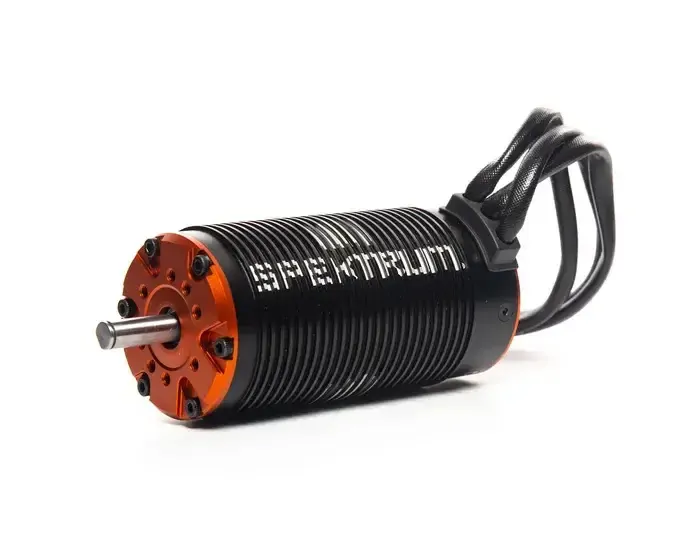

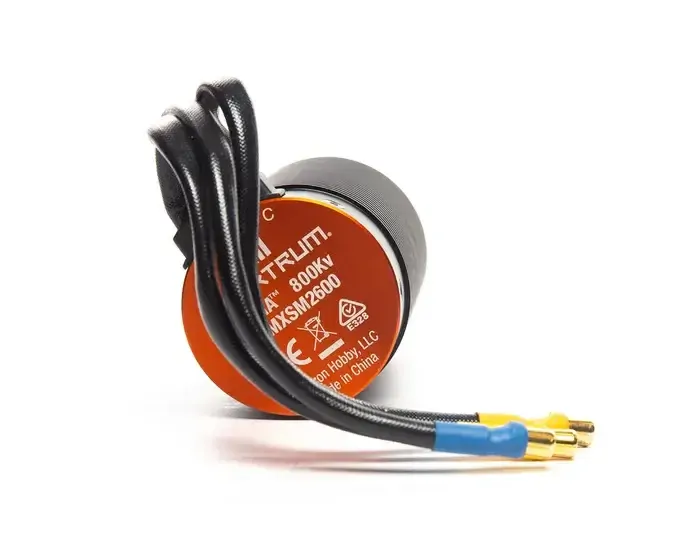

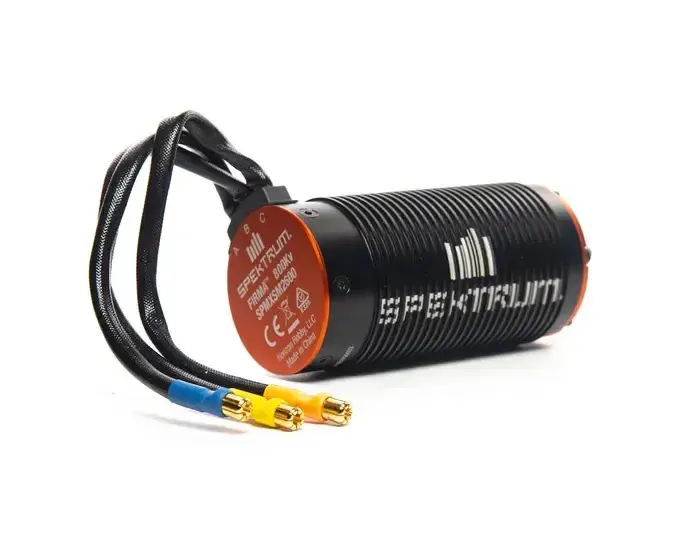

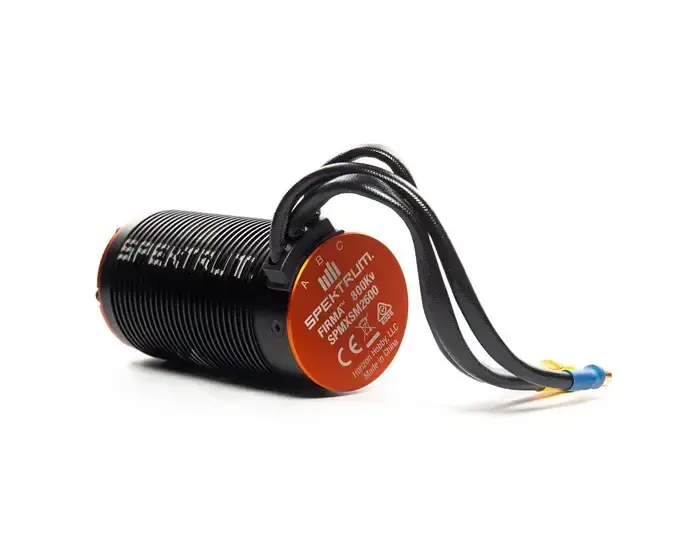

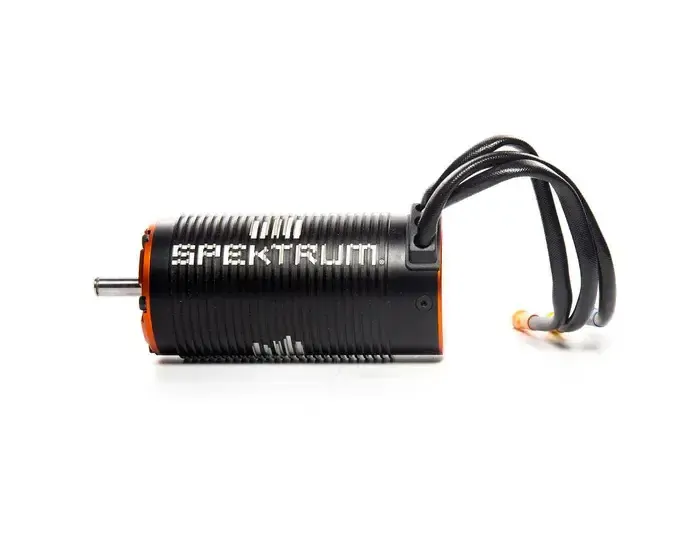

Spektrum Firma 800Kv 4-pole BL Motor - SPMXSM2600



Product Information

This Firma 800Kv 4-pole Brushless Motor is compatible with the Arrma 1/8 Kraton EXtreme Bash Roller Speed Monster Truck, 1/7 Limitless All-Road Speed Bash Roller and the 1/7 Mojave EXtreme Bash Roller.

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.



What You Need

  • 160A ESC



Features

  • Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries
  • High efficiency design
  • 8S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
  • Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip



Product Specifications

  • Type: Brushless Sensorless Inrunner
  • Size: 5611
  • Bearings or Bushings: Bearing
  • Voltage: 11.1 - 29.6V (3 - 8S)
  • RPM/Volt (Kv): 12,475 / 15V
  • Resistance (Ri): .0049 ohms
  • Continuous Current: 110A
  • Speed Control: Spektrum Firma 160A Brushless Smart recommended
  • Weight: 39.86oz (1130g)
  • Overall Diameter: 2.2" (56 mm)
  • Shaft Diameter: 0.3" (8 mm)
  • Shaft Length: 0.867" (22 mm)
  • Overall Length: 5.23" (133 mm)
