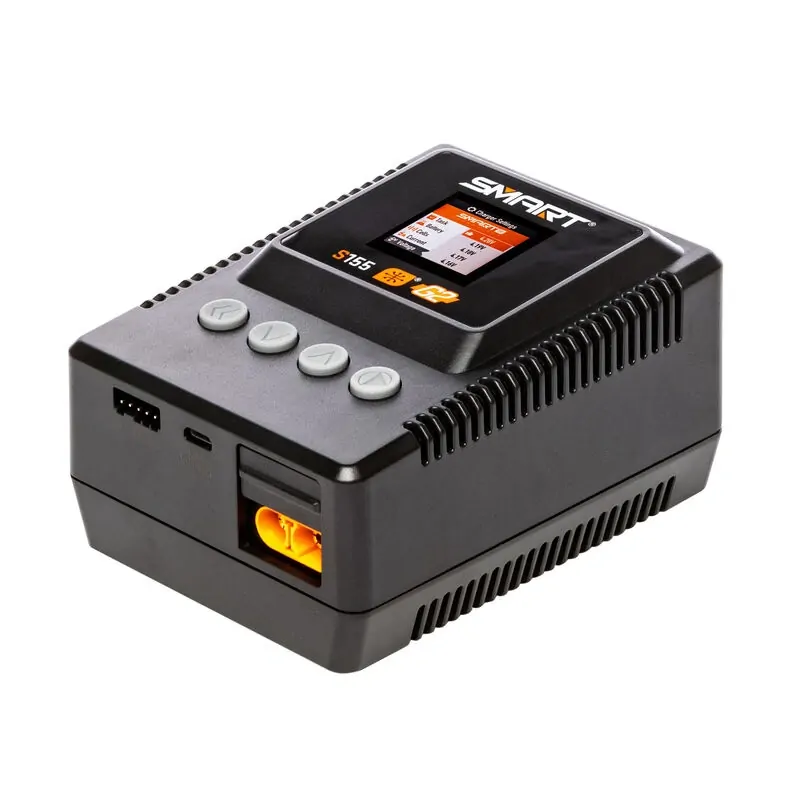

The Spektrum S155 G2 55W AC Smart Charger brings straightforward charging to RC cars, crawlers, boats and aircraft. Its colour LCD keeps charging progress easy to follow, while Smart Auto Charge recognises compatible Spektrum Smart batteries and loads their charging settings automatically.

Key features

• 55W single-channel AC charger with an integrated power supply.
• Selectable IC3 and IC5 connections for one battery at a time.
• Charge and balance Spektrum Smart G2 batteries through one connection, without a separate balance lead.
• Supports 1–4S lithium batteries and 1–12-cell NiMH and NiCd packs.
• Colour LCD, simple button controls and Smart charge-time countdown.
• Front USB connection for firmware updates.

What’s included

• Spektrum S155 AC Smart Charger.
• Detachable AC power cord.
• Instruction manual.

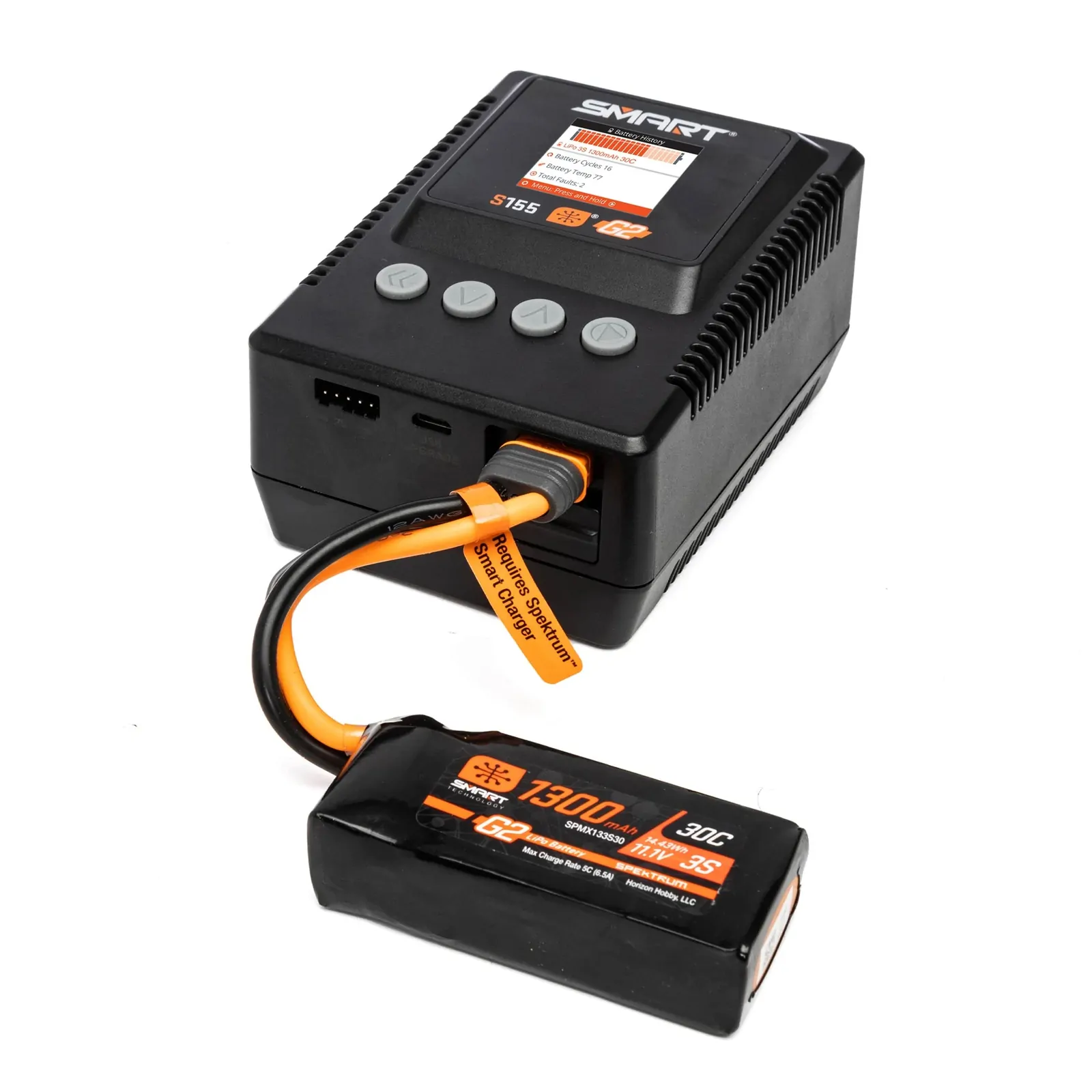

Batteries are sold separately. Any battery shown in the photos demonstrates the charging connection.

Battery compatibility

Suitable for LiPo, LiFe, Li-ion and LiHV packs within its 1–4S range, plus 1–12-cell NiMH and NiCd batteries. It supports both Smart and conventional packs; Smart features require a compatible Spektrum Smart battery. Conventional lithium packs use the JST-XH balance connection as well as the main charge lead. IC3 and IC5 ports accept the corresponding EC3 and EC5 connectors.

Getting started

Connect the supplied power cord to the charger and an AC outlet, then select the appropriate IC3 or IC5 connection. Connect your battery; Smart Auto Charge can retrieve the settings from a Smart pack. For a conventional pack, select its chemistry, cell count and charge current, and connect its balance lead when charging a lithium battery. Monitor progress on the colour screen.

Can I charge two batteries at once?

The S155 has one charging channel. Select either the IC3 or IC5 connection to charge one battery at a time.

Does it charge Smart G2 batteries?

Yes. Compatible Smart G2 packs charge and balance through their main IC connector, with no separate balance lead.

Can I use conventional batteries?

Yes. It supports conventional packs within the listed chemistry and cell-count ranges. Conventional lithium packs connect their balance lead to the JST-XH balance port.

Is a separate power supply required?

No. The charger has an integrated AC power supply and includes a detachable power cord.
