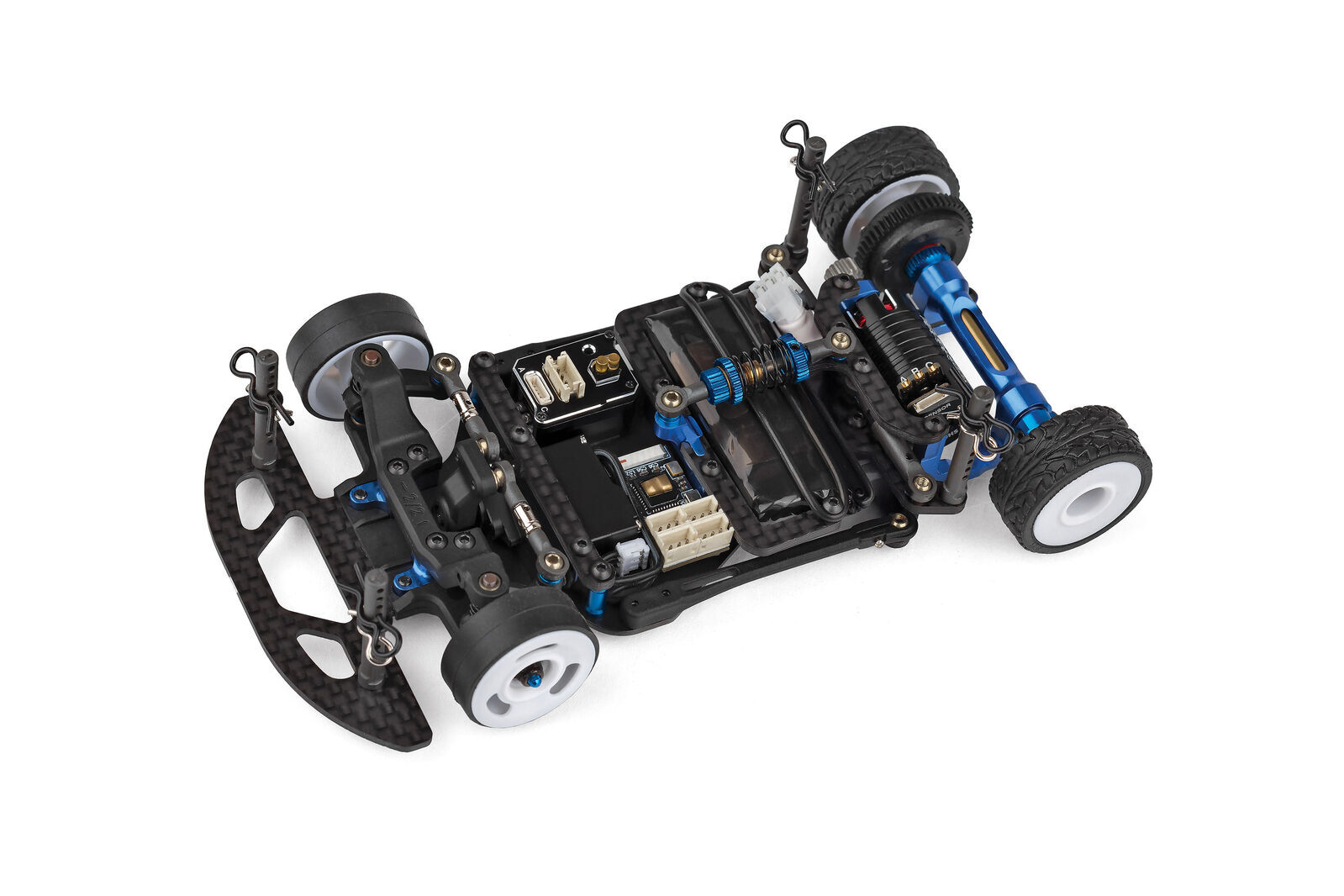

Team Associated RC28R Team Kit

1/28 Scale 2WD Electric On-Road Competition Kit

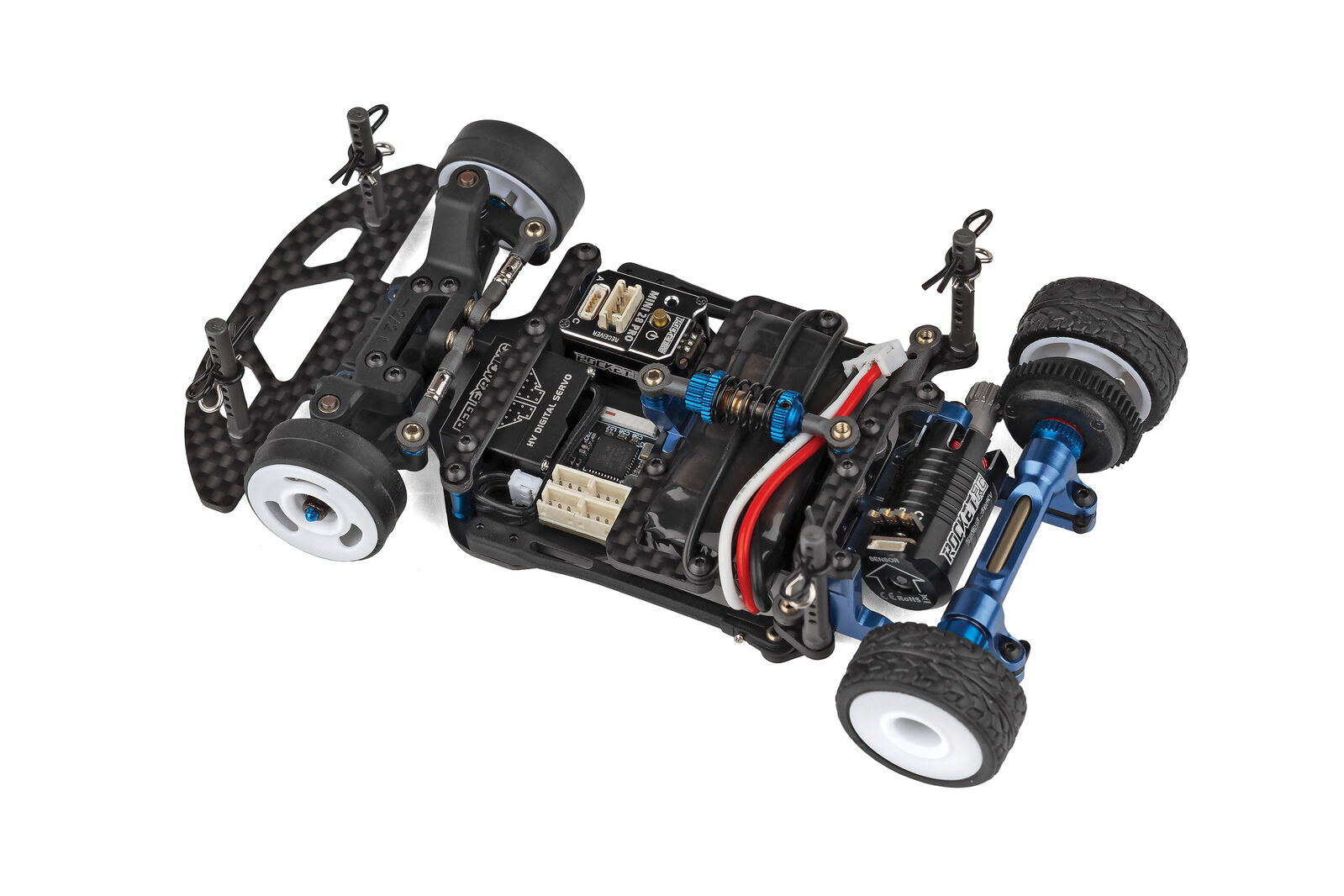

Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.

The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.

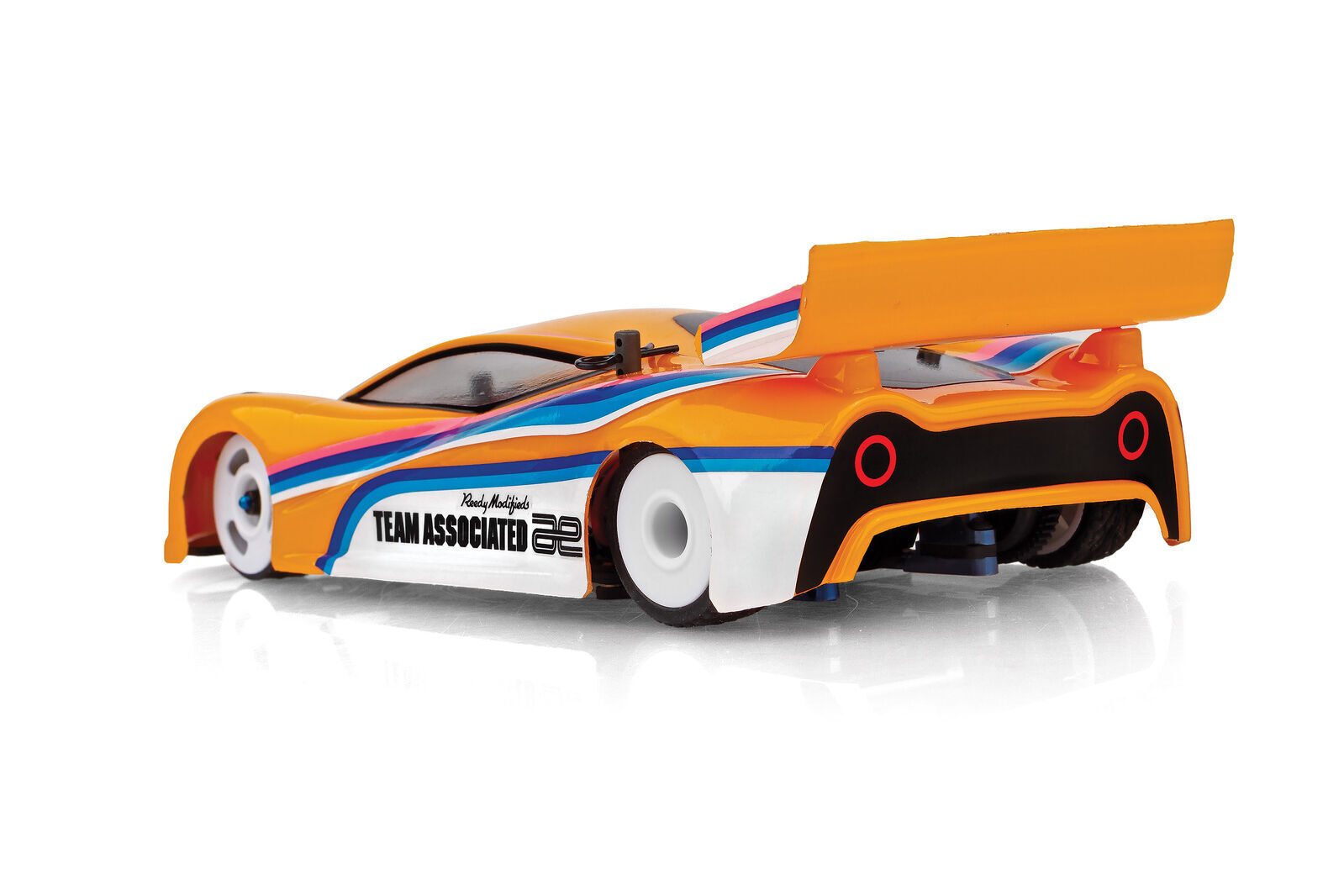

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Body. Assembly required.

Features

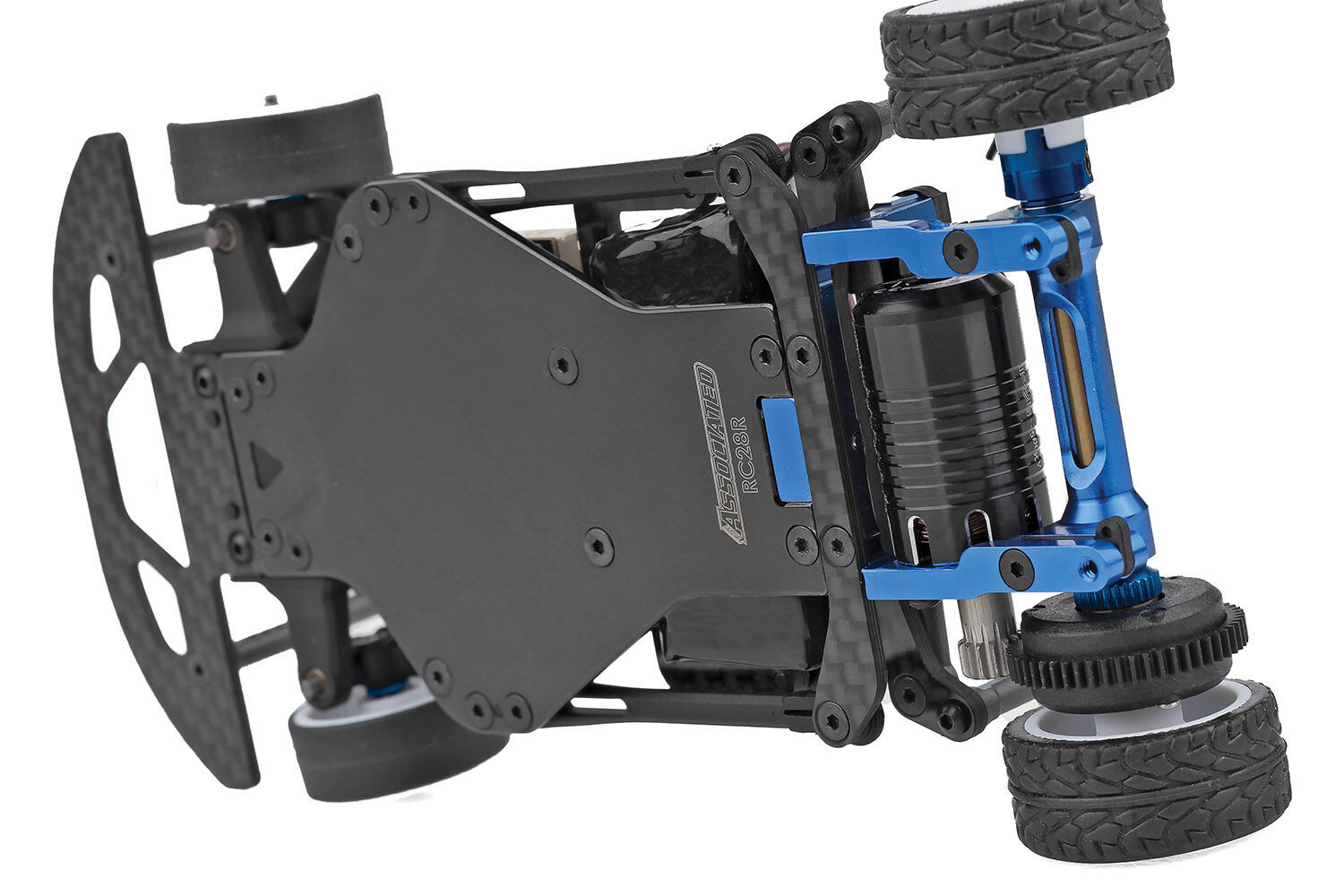

• Steel chassis plate for low center of gravity

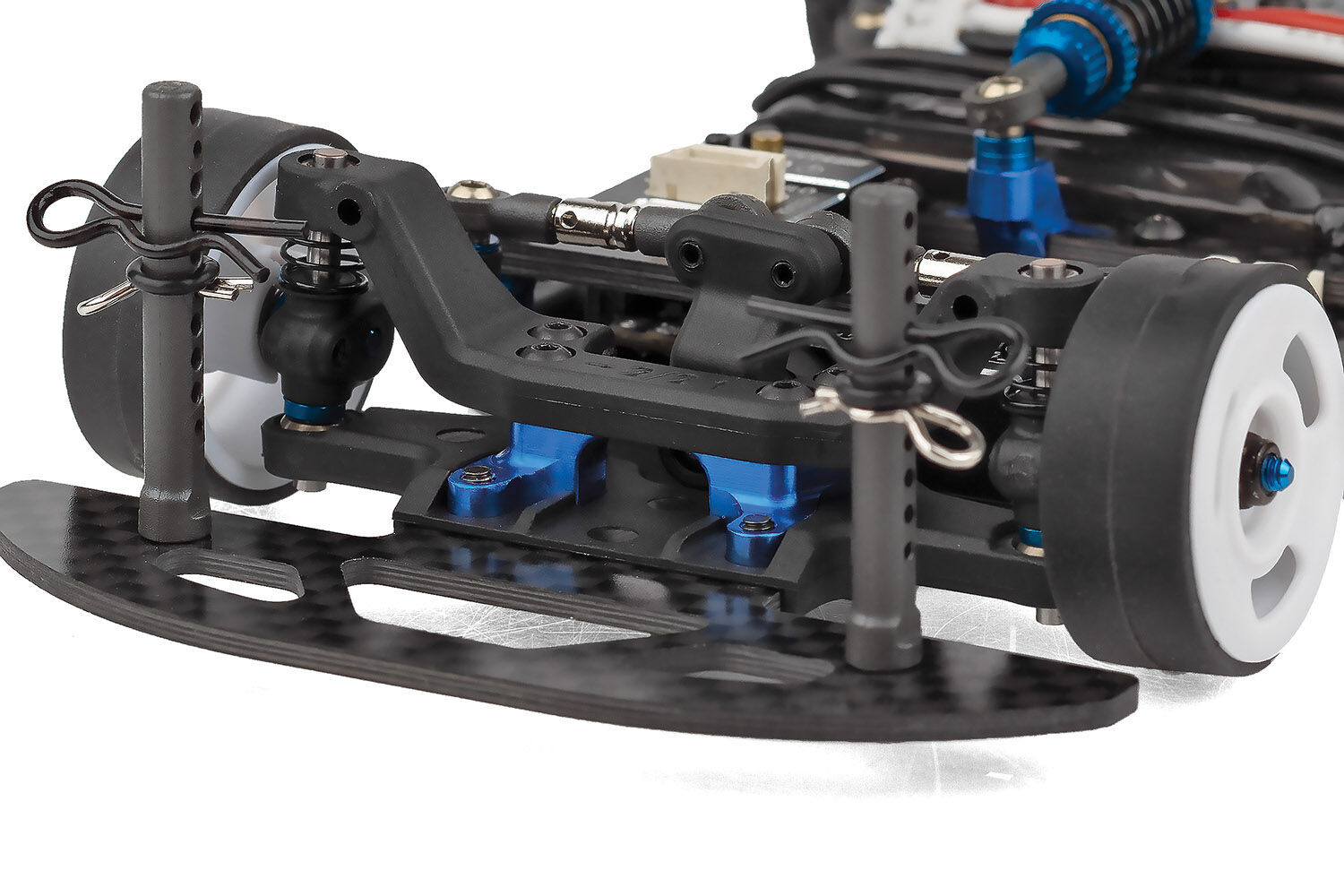

• Fixed arm style front end with optional molded upper arms to adjust caster and camber
• Front bulkhead design allows for quick upper arm changes with consistent fitment and position
• Optimized steering geometry with adjustable servo mount to tune ackerman on the fly

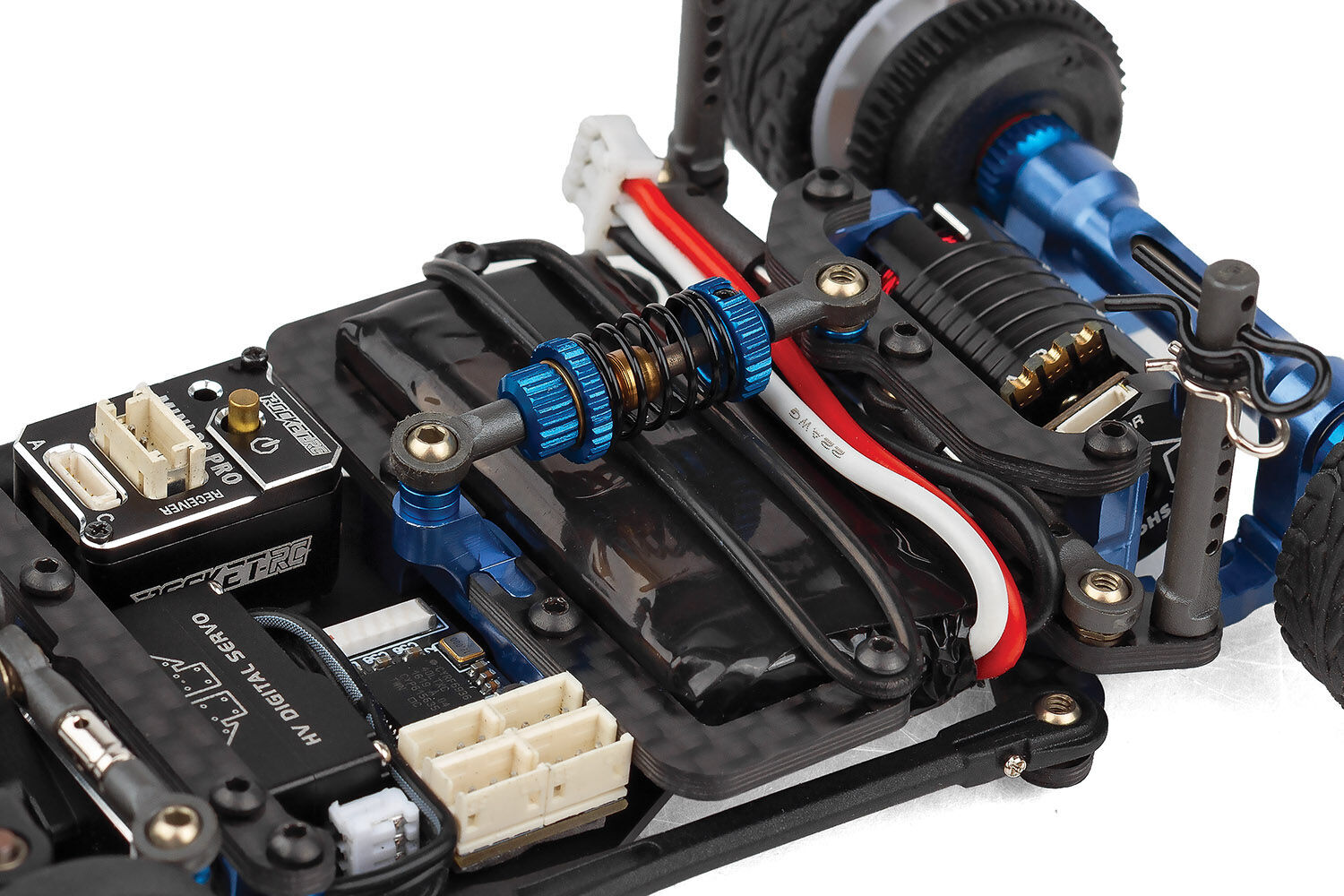

• Easily removable battery holder to access the battery without removing center shock
• Torsion style side links act as side spring with soft, medium, and hard options included
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level
• Optimized roll geometry with side damper tubes

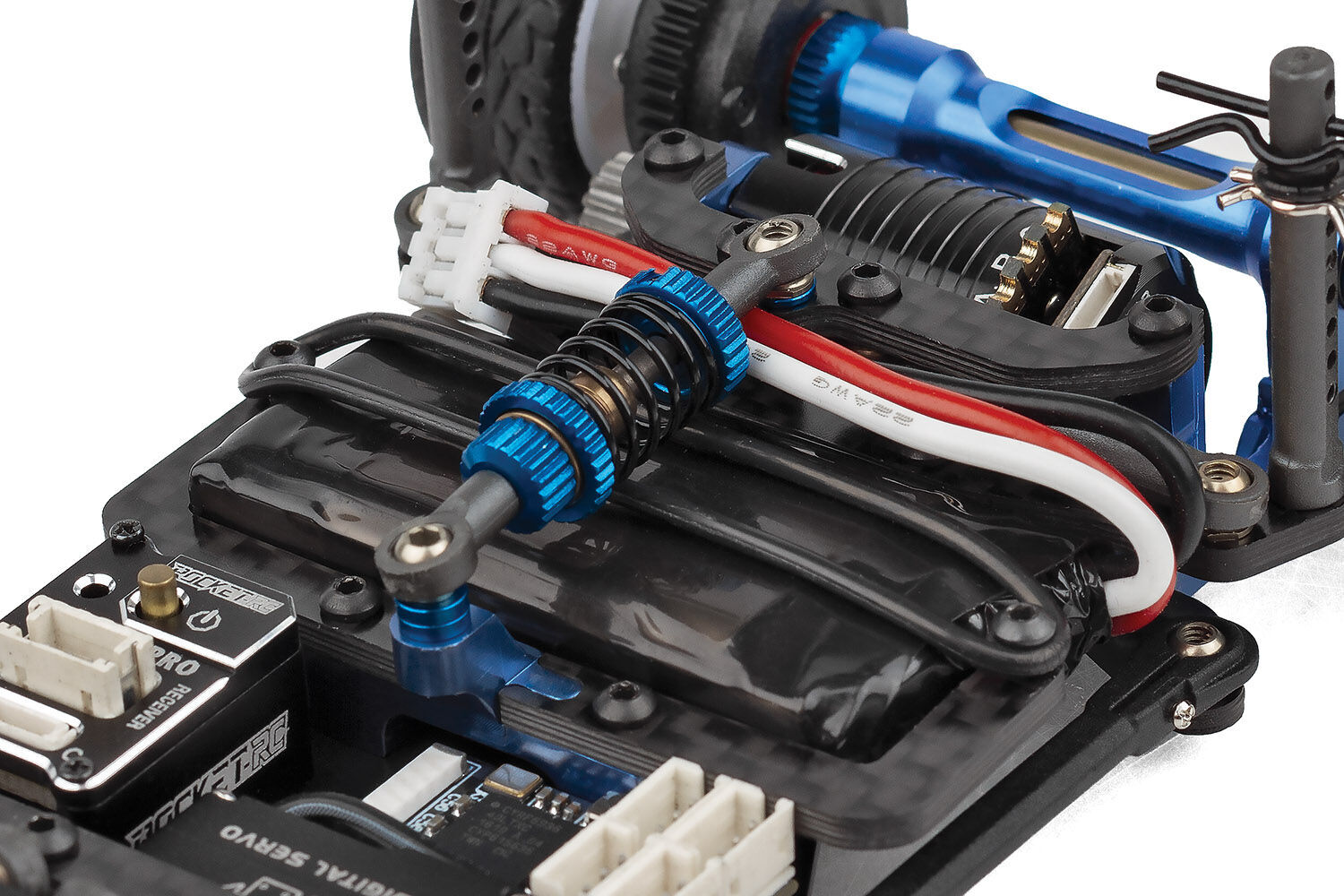

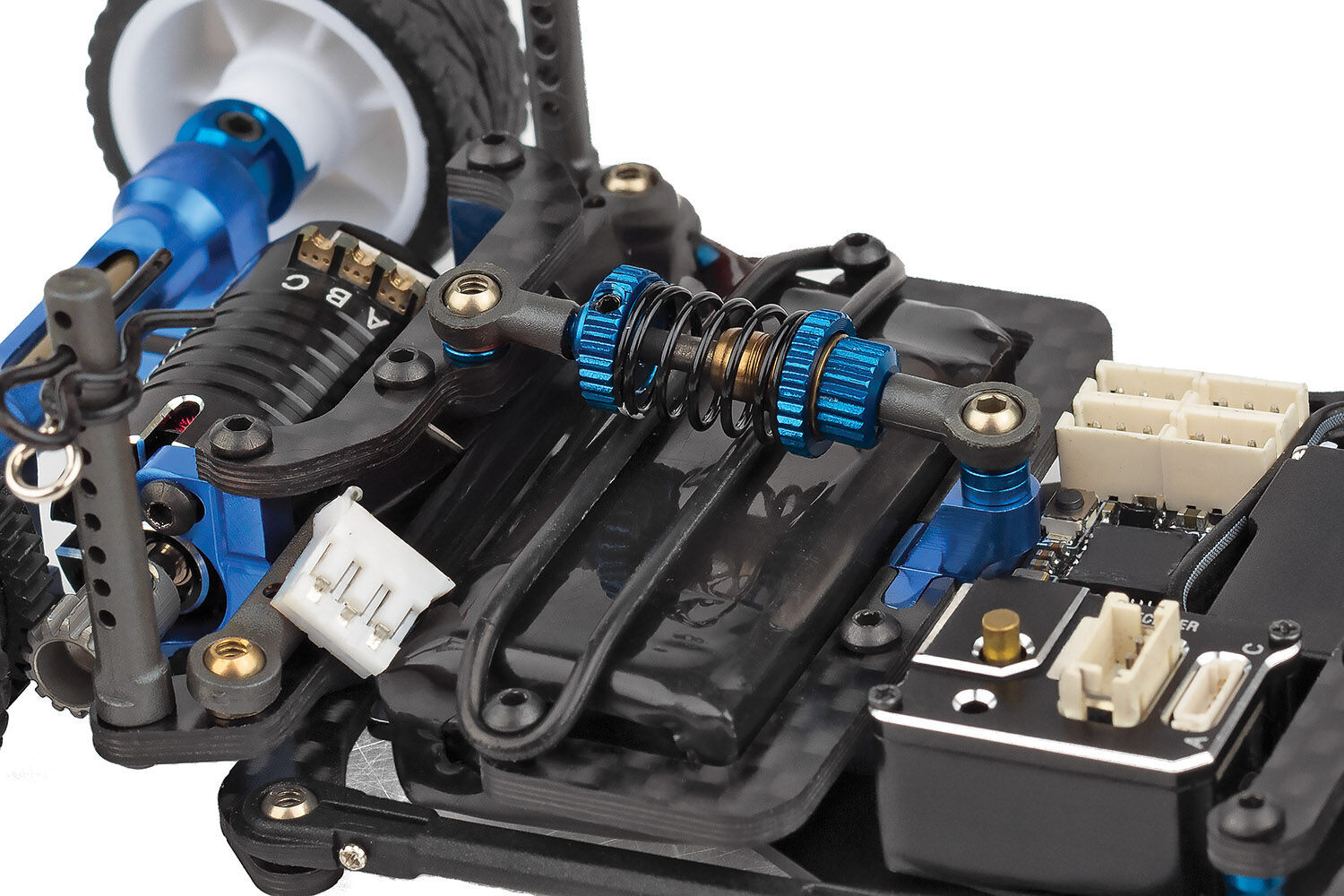

• Threaded aluminum center shock with adjustable droop and spring collar

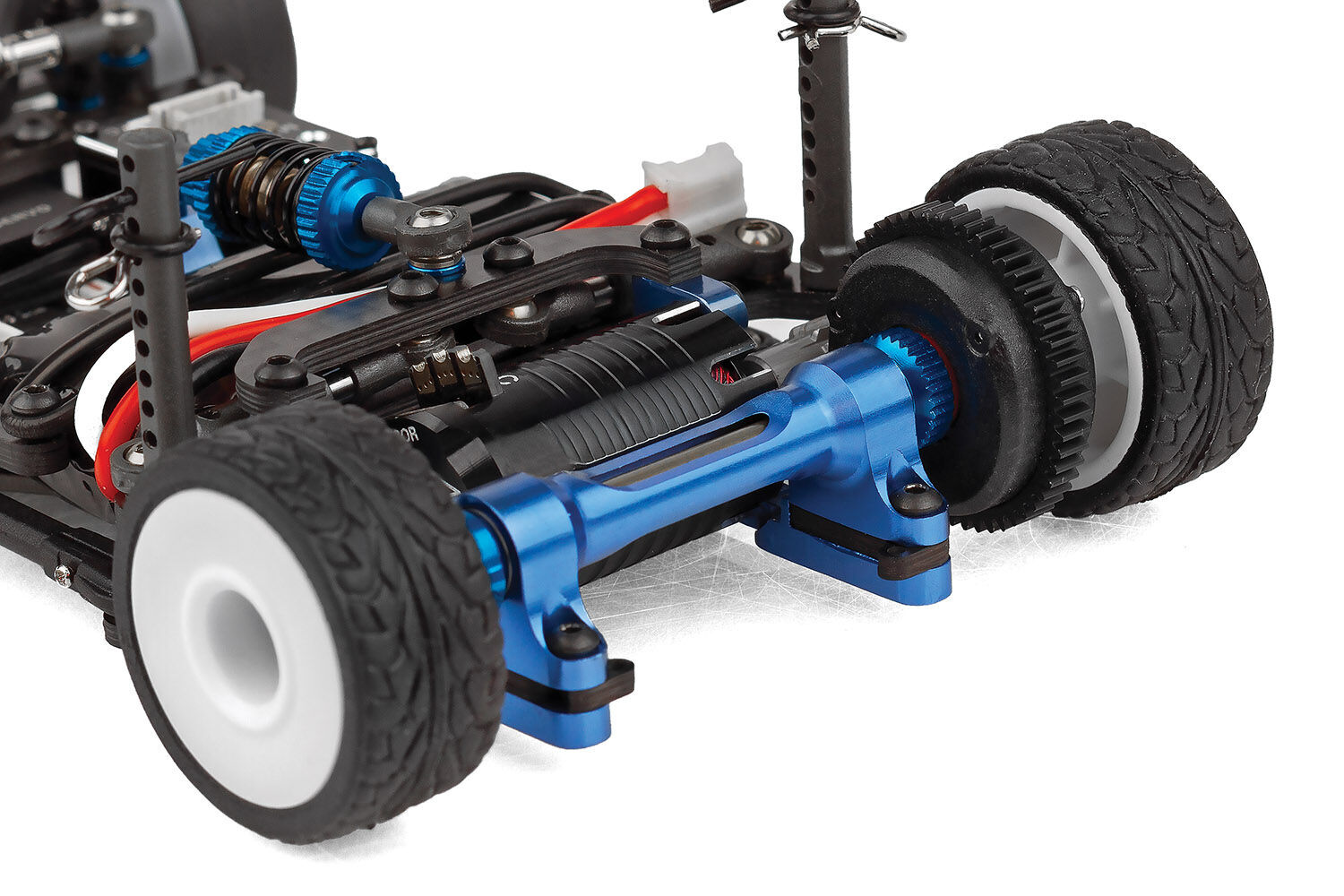

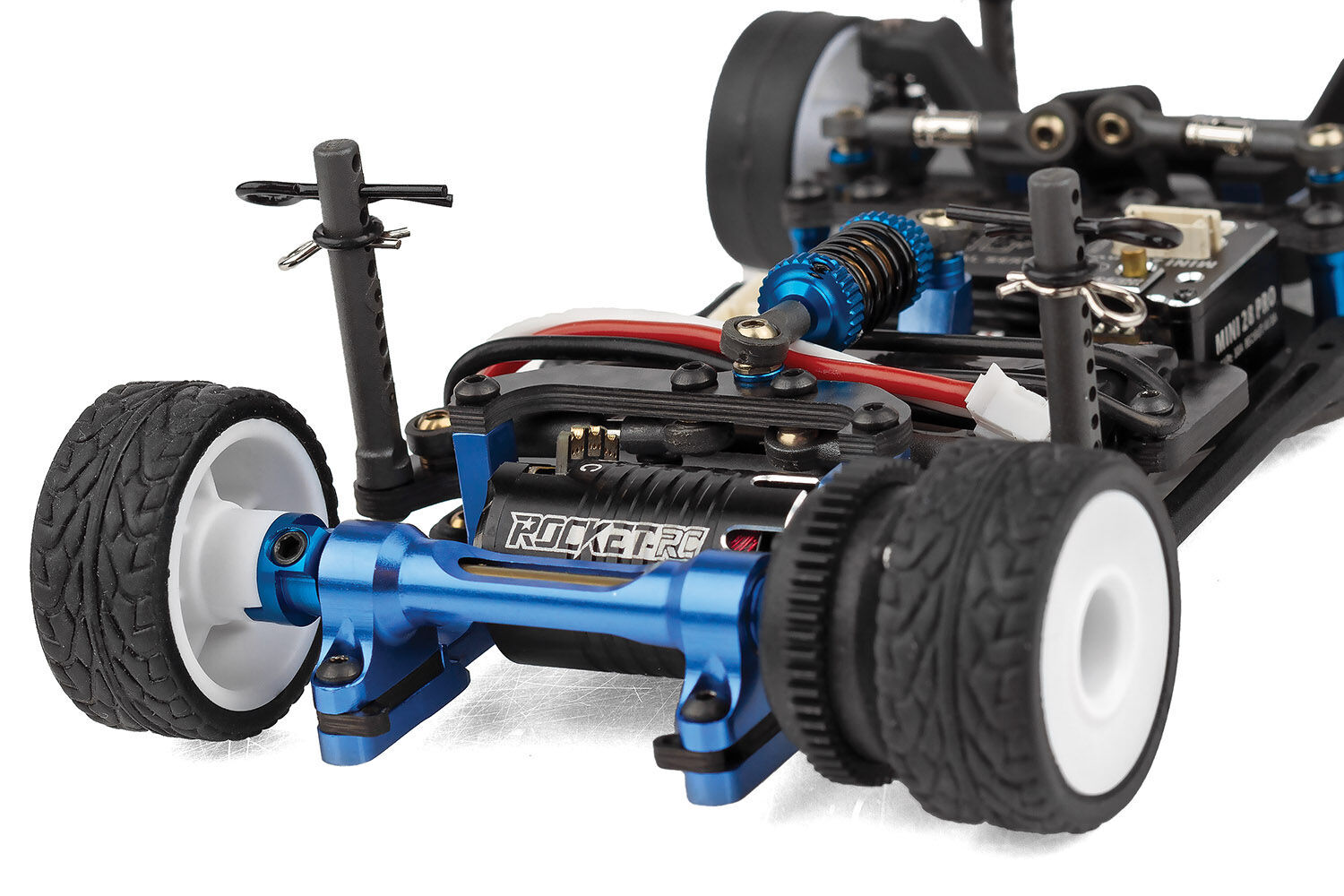

• Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
• Gear differential included and can fit other aftermarket options currently available
• Hard plastic and polycarbonate body mounting options included
• White wheels included that fit optional front wheel flanges to tune steering feel
• Universal front bumper included

What You Need (Not Included)

• Motor
• Esc
• Servo
• Transmitter & Receiver
• Battery
• Charger
• Tires
• Body

Other Helpful Items You May Need (Not Included)

• Silicone Shock Fluid (Refer to catalog for complete listings)
• Silicone Diff Fluid (Refer to catalog for complete listings)
• Body Scissors (AE Part # 1737)
• Reamer / Hole Punch
• FT Wrench Set (AE Part #1519)
• Hobby Knife
• Needle Nose Pliers
• Wire Cutters
• Soldering Iron
• Calipers or a Precision Ruler
• 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers
