This is a wide curve cant introduction rail with a radius of 391mm, a curve angle of 22.5°, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced from flat without cant to canted rail gradually.

Features

• Ballast and sleepers are painted for a beautiful appearance
• PC sleepers are expressed
• Rails are joined together with nails for easy and reliable connection
• Connection compatible with conventional TOMIX rails
• Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• Compatible with single-track piers by attaching the separately sold single-track pier base to the bottom
• Can be used as a double-track rail by connecting CR (L) 354-22.5-WP (sold separately) inside
• Wide rail when used as a double-track rail Compatible with double-track elevated piers by attaching a coupling for the cant section (coupling for wide rails and slab rails on the flat lead-in section) to the underside. - Power supply by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails) . can also be installed, but conventional feeders cannot be installed)
• Sensors for wide rails and slab rails can be installed with additional machining by the user (sensors for slab rails and one-touch mounting sensors cannot be installed)
• Supports mounting on various overhead line poles Gradually changes from 0 degrees to about 4 degrees with a curve angle of 22.5 degrees

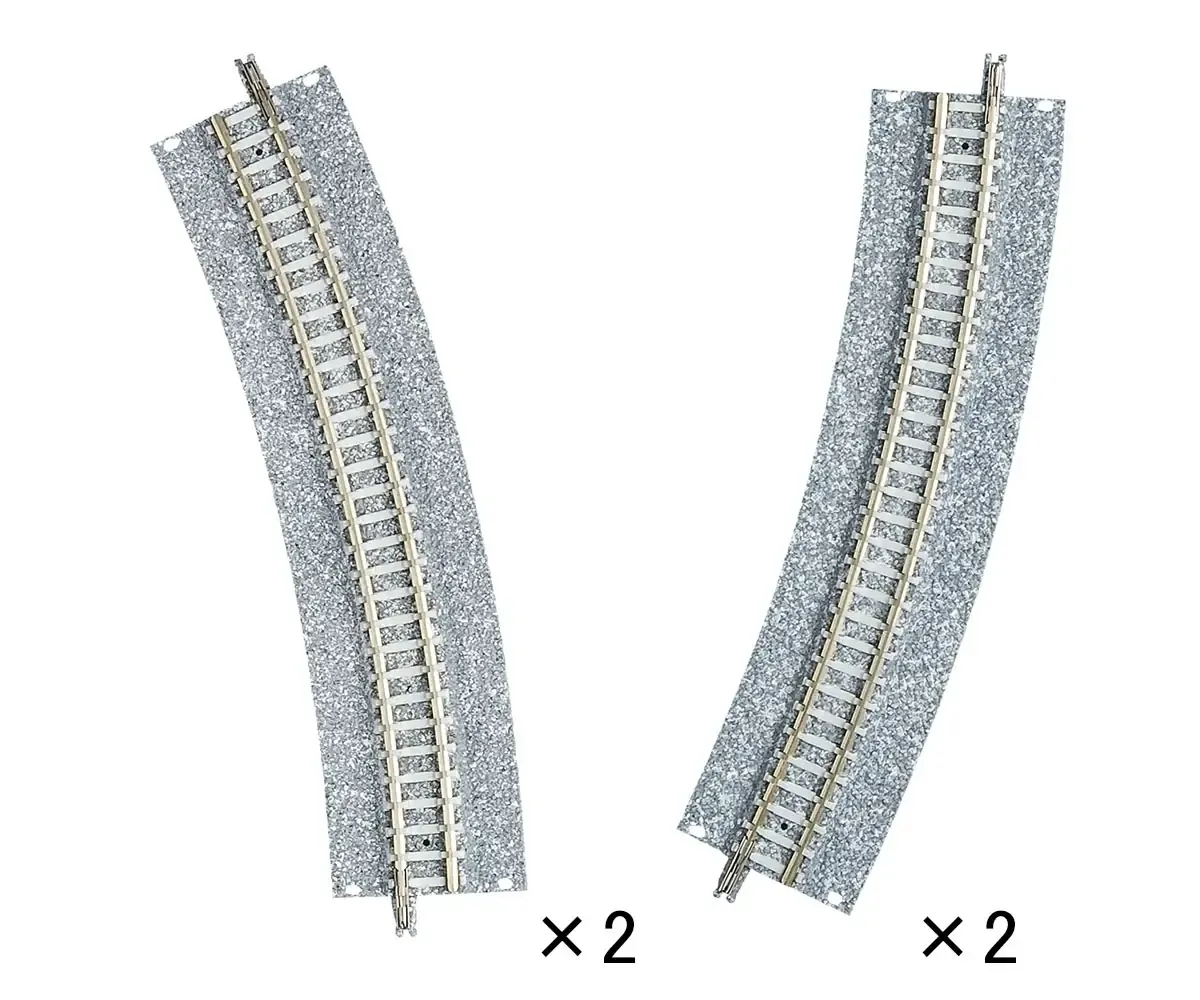

• One set of each 2 pieces: CR, which gradually cant while curving to the right, and CL, which gradually cant while curving to the left

• Wide PC approach rail CR391-22.5-WP(F)
• Wide PC approach rail CL391-22.5-WP(F)
• Runner parts: Wide rail joint
