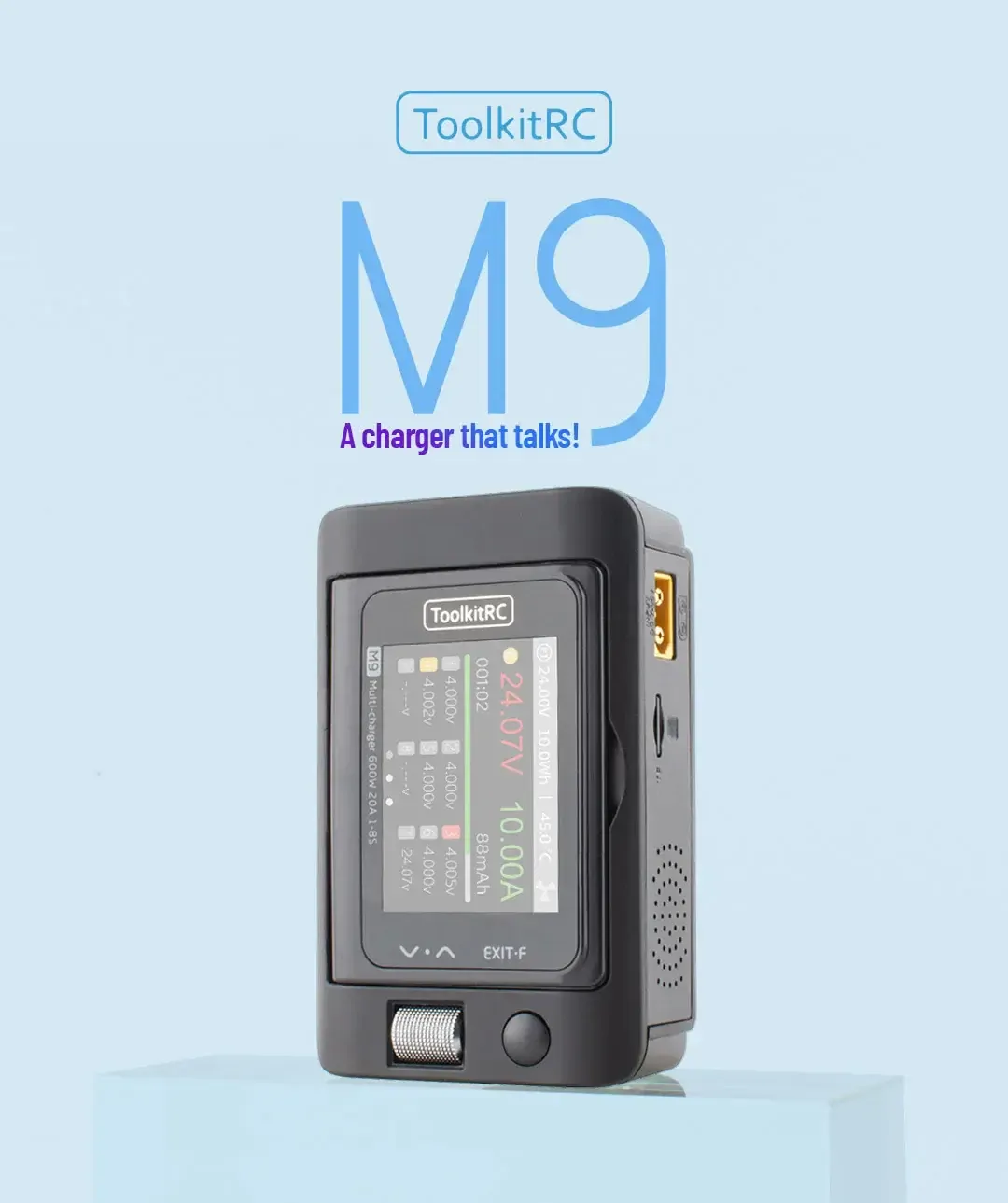

Toolkitrc m9 600w 20a usb fast charing dc smart charger

specification:

• input: 7-35v@max35a
• battery type: lipo lihv life lion lto@1-8s nimh @1-20s pb @1-10s
• charging power: 0. 1-20a@600w
• discharging power: 0. 1-20a@600w recycle external 0. 1-3a@20w normal mode
• balance current: 1000ma@4. 2v
• usb a+c output: 5-20v@65w pd qc pps afc scp
• measure:
• pwm: 880-2200us @20-400hz
• ppm: 880-2200us*8ch @20-50hz
• sbus: 880-2200us*16ch @20-100hz
• voltage: 1. 0v-5. 0v@1-6s
• esc: 1-20a@1-35v max 600w
• output:
• pwm: 500-2500us @20-1000hz
• ppm: 880-2200us*8ch @50hz
• sbus: 880-2200us*16ch @74hz
• power supply: 1. 0-20a@1-35v  mode:cc+cv
• lcd: 2. 4*ips rgb 320*240 pixel
