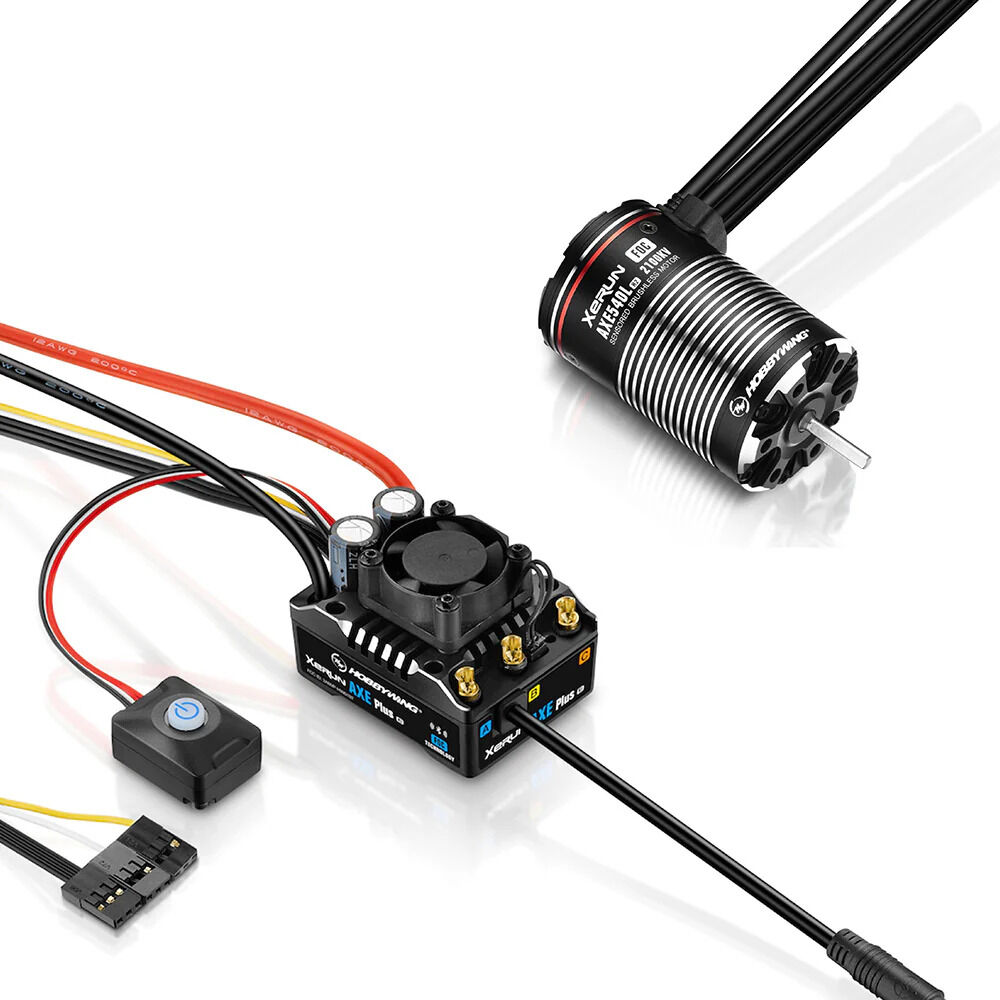

AXE Plus R3 Combo and AXE550L 3300KV R2

Introducing the Hobbywing XeRun AXE PLUS R3 Sensored Brushless Crawling Speed Control and AXE 550L 3300KV R2 Combo. The ESC supports up to 6S LiPo battery. It has a maximum output current of up to 135A. The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler.

Experience the best of control and power with the Combo Xerun AXE Plus R3 & AXE 550L 3300KV R2 Motor by Hobbywing. This combination offers precise control and impressive performance for RC enthusiasts seeking top-tier performance. The Xerun AXE Plus R3 ESC ensures a smooth ride, while the AXE 550L 3300KV R2 Motor delivers powerful acceleration. Together, they elevate your RC adventures to new heights, ready to tackle any challenge.

Features Motor

• FOC (Field-Oriented-Control) for super linearity and high torque
• Patented Staggered Pole rotor design for ultra-low torque ripple
• Applicable to all weather and track conditions
• Built-in high precision magnetic encoder

Technical Specifications Motor

• Type: Brushless FOC
• Pole: 4
• KV Rating: 3300KV
• LiPo Cells: 2S-3S
• No Load Current: 4.7A
• Outer Diameter: 36.0mm
• Length: 63.8mm
• Shaft Diameter: 5mm
• Shaft Length: 15.5mm
• Weight: 247g
• Application: 1/10 Rock Crawler

Features XeRun AXE Plus R3

• Stronger performance thanks to FOC (Field-Oriented-Control) technology.
• Drag brake adjustable up to 200% for unparalleled holding power on slopes.
• Super BEC with max. 6A and three voltage levels for using different servos.
• Waterproof and dustproof to IP67 standard.
• Smart torque delivery and speed control for easy control and constant speed under all loads.
• Built-in Bluetooth module.
• Multiple controller protection functions including reverse polarity protection.
• Only compatible with Xerun AX "R2" and "R3" motor series.

Technical Specifications XeRun AXE Plus R3

• Type: Brushless Sensored FOC
• Current (cont./peak): 135A / 600A
• Cells: 2S-6S LiPo
• Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
• AXE R2: 540 / 540L / 550
• AXE R3: 4274
• BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
• Waterproof: Yes
• Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
• Fan: 25 x 25 x 10mm, powered by BEC
• Connectors: XT60
• Programming: Per Bluetooth and "HW LINK"-App
• Firmware Upgrade: Yes
• Dimensions: 49.5 x 37.9 x 32.8mm
• Weight: 126.5g
• Application: 1/10, 1/8, 1/6 Rock Crawler
