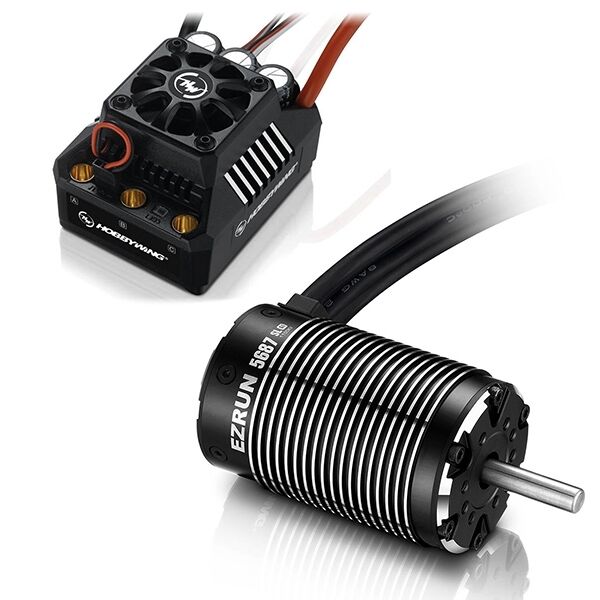

Hobbywing 38010802 EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo w/5687SL (1100kV)

The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/5 scale, 1150kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.

Specifications:

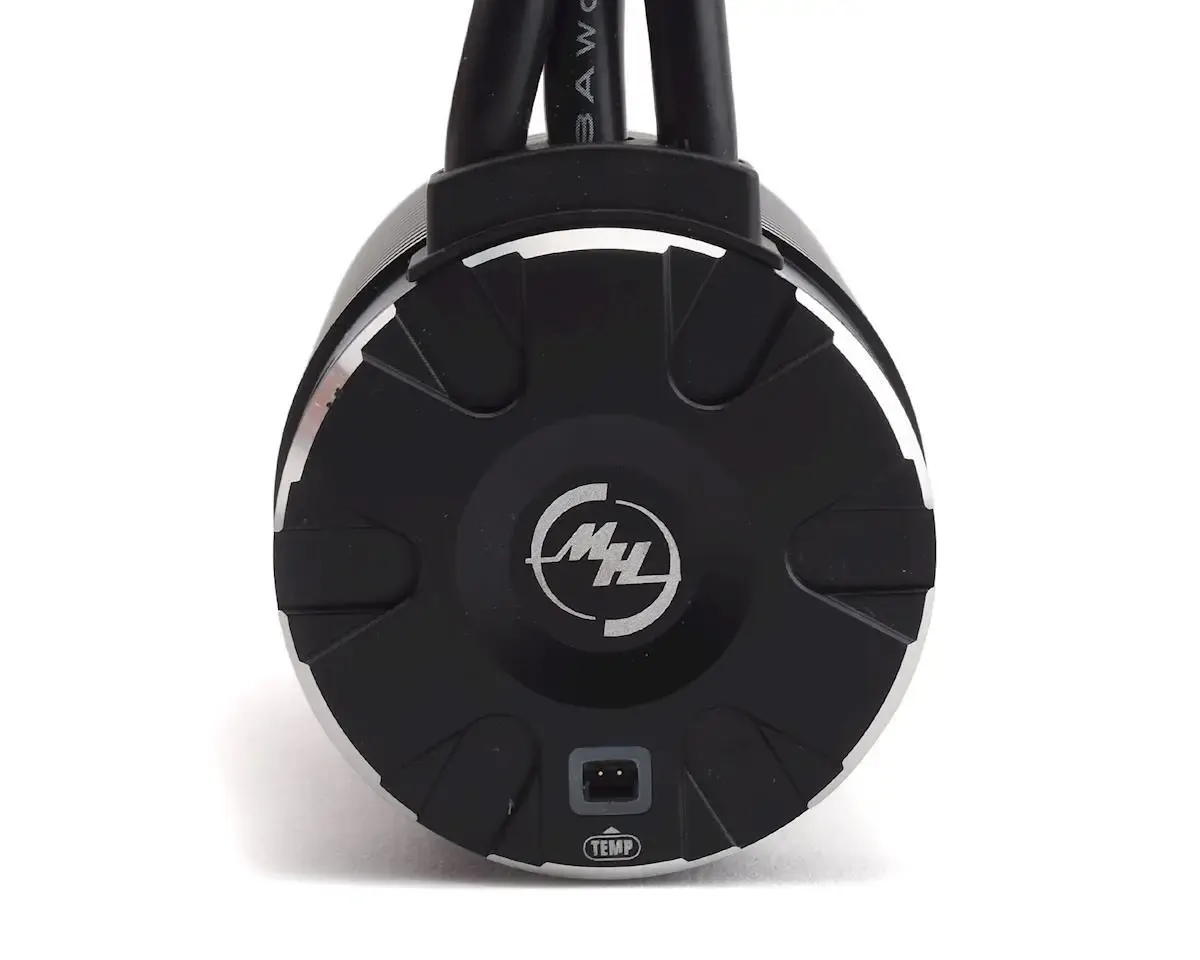

• Motor:
  • Model: 5687SL-1100KV
  • Pole: 4
  • KV (No-load): 1100KV
  • Resistance: 0.0041 ½
  • Current (No-load): 4.1 A
  • Max Output Power: 5800 W
  • Current at the point of M.O.P: 200 A
  • Motor Diameter: 56mm
  • Motor Length: 87mm
  • Shaft Diameter: 8.0mm
  • Shaft Length: 31.0mm
  • LiPo Cells: 3-8
  • Weight: 916g (32.21oz)
  • Applicable: 1/5th RC Vehicles Truck/Dragster
• ESC:
  • Continuous Current: 160A
    Peak Current:
  • Peak Current:
  • Peak Current: 1,050A
  • Motor Type: Sensorless Brushless Motor
  • Applications: 1/6th Touring Car, Buggy, Truggy and Truck
  • Motor Limit: With 6S LiPo/18S NiMH: KV ²1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ²1200 (5892 size motor)
  • LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
  • BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
  • Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
  • Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
  • Size (LxWxH): 70x56x46.5mm
  • Weight: 240g
  • Programming Port: FAN /PRG Port
