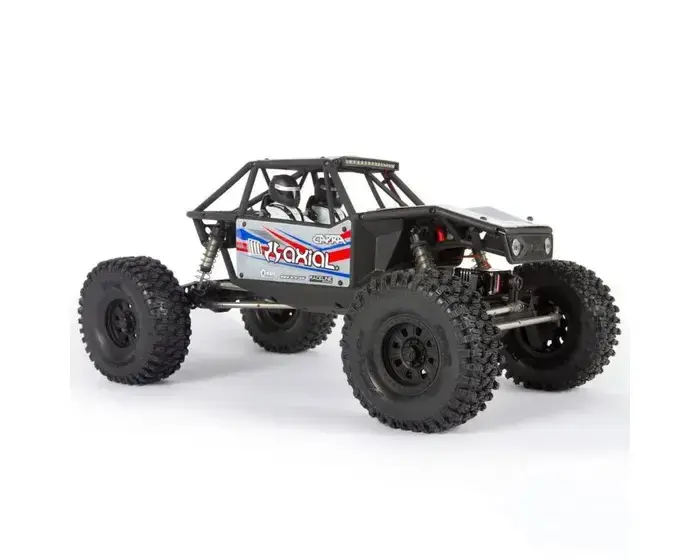

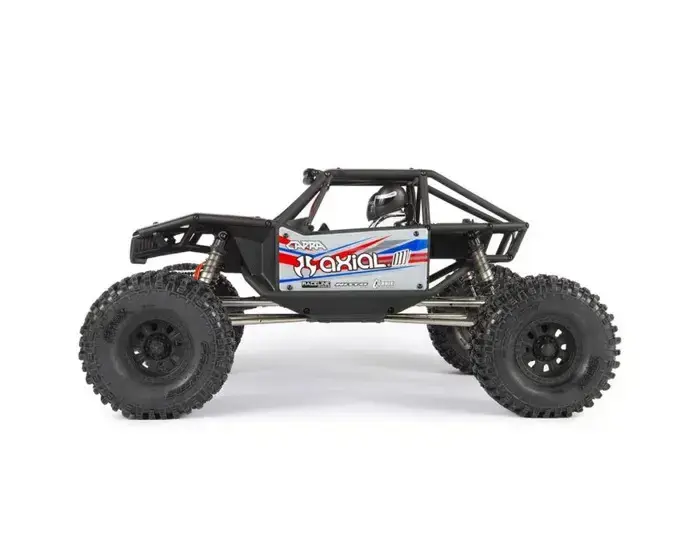

Axial Capra 1.9 UTB Crawler Kit - AXI03004



Product Information

Engineered with advanced drivers in mind the Axial® Capra™ 1.9 Unlimited Trail Buggy Builder’s Kit brings you an RC crawler with unparalleled design that features a DIG function operated through your transmitter that will give you a tighter turning radius. Kit the Capra out with your own choice of electronics for the ultimate customised ride.



What’s in the Box

  • (1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD Kit
  • (1) Product manual



Features

  • Newly designed transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only

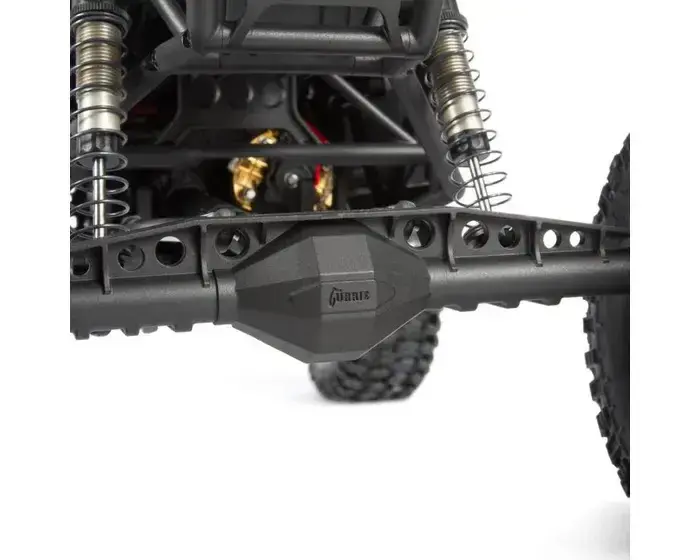

  • Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance

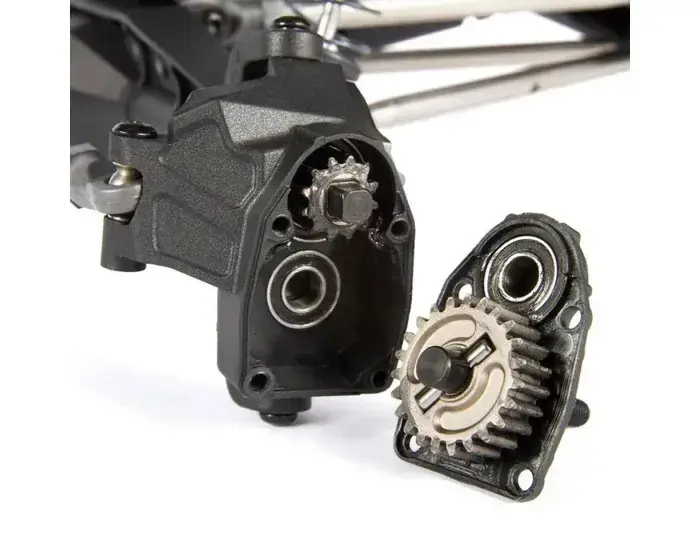

  • Includes all-metal gears, from the centre transmission to the lockers and portal axles

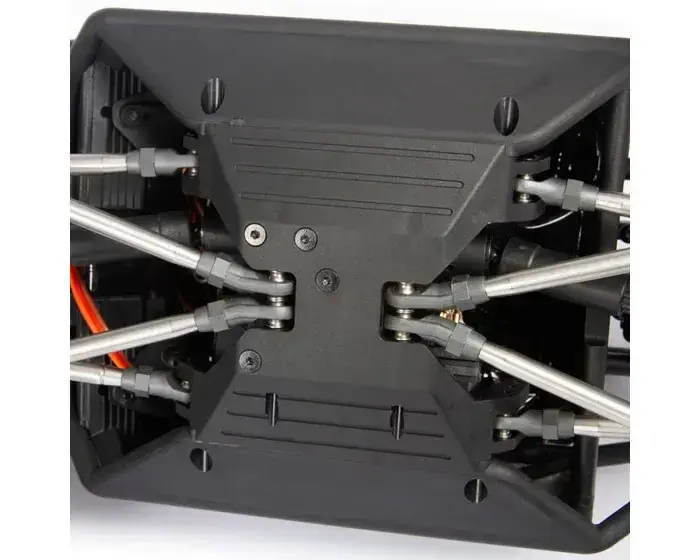

  • Tube chassis design offers optimum clearance plus realistic scale looks

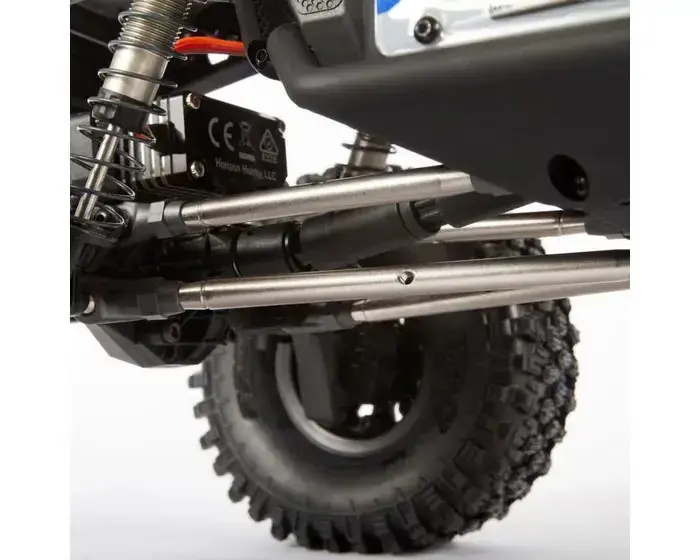

  • All pivot points are on stainless steel balls for a durable, long-lasting suspension point
  • Includes injection-moulded, 3-piece, licensed Raceline beadlock wheels
  • Adjustable oil-filled shocks feature hard anodised, threaded shock bodies, a single coilover spring, and a cap with a bleed port

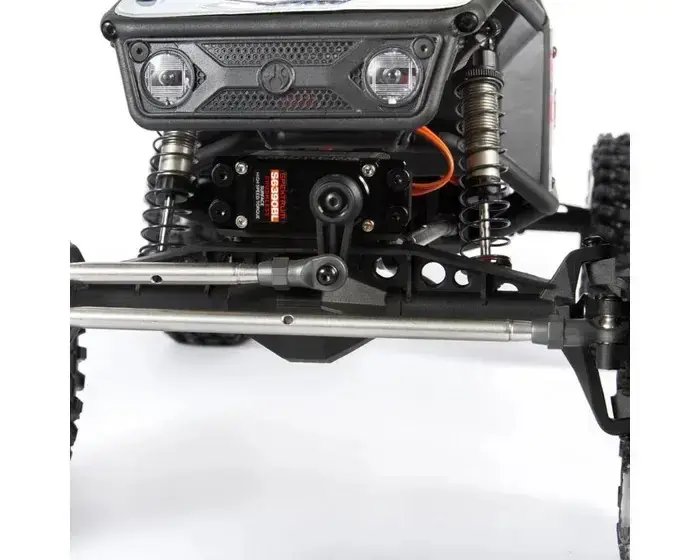

  • All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain
  • Durable, machined aluminium universal
  • Finely tuned suspension geometry delivers the best crawling capabilities
  • Increased ground clearance at the diff pumpkin from Currie F9 Portal Axles
  • All-metal gears fitted from the centre transmission through to the portal axles and lockers
  • DIG function on newly designed transmission locks the rear axle for forward power only giving you a tighter turning radius – for DIG function
  • you will need an SX107 Spektrum Micro Servo (SPMSSX107) and a 3-channel radio.

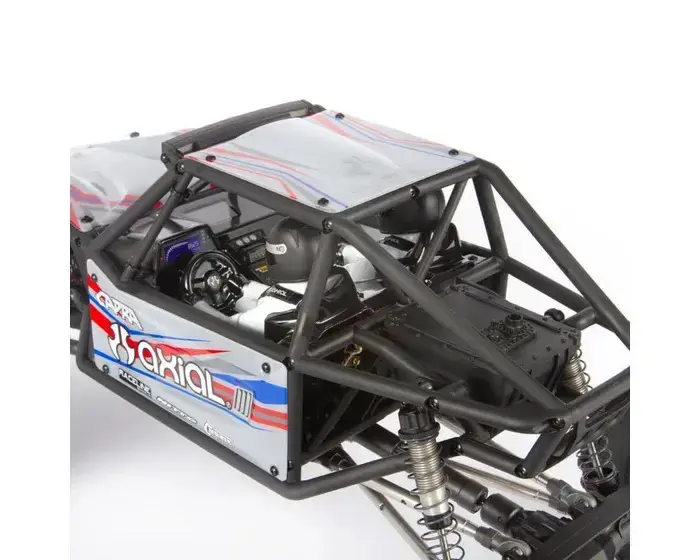

  • Realistic scale tube chassis design allows for huge clearance.
  • Durable stainless steel ball pivot points throughout for enduring suspension

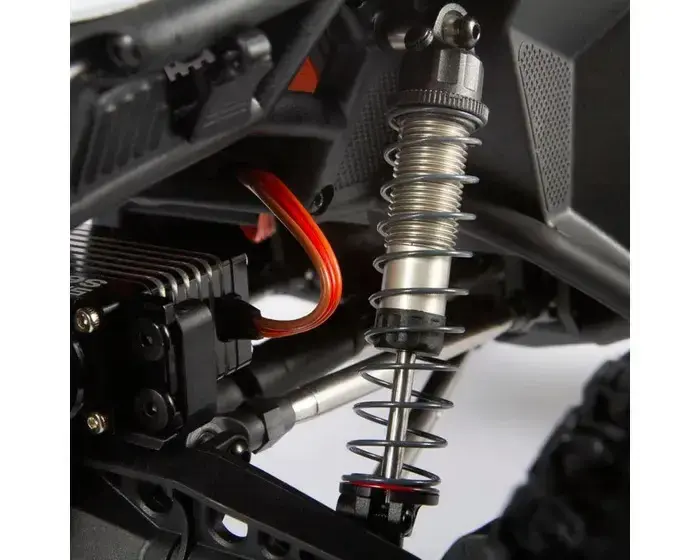

  • Oil filled adjustable shocks featuring a single coil over spring, hard anodized threaded shock bodies and a bleed port equipped cap

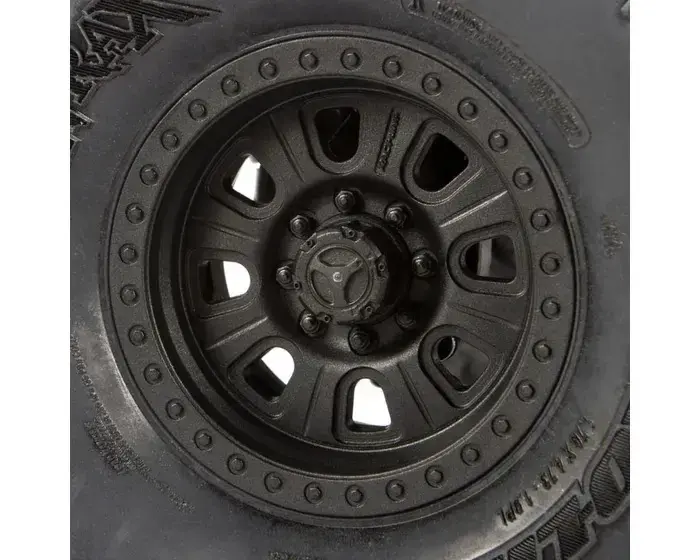

  • Fully licensed 3-piece injection moulded Raceline beadlock wheels (tyres are not included)
  • Front universal axles are made from all-metal and provide 45 degrees of steering angle with a smooth action that improve performance and
  • efficiency in the drivetrain.
  • Machined aluminium universal for increased durability
  • Suspension geometry has been fine-tuned and the upper link mounts have multiple mounting locations to give you optimal crawling
  • performance.



What You Need

  • Radio System
  • Servo
  • ESC
  • Motor
  • Battery
  • Charger
  • Spektrum™ SX107 Micro Servo SPMSSX107 (for Dig operation)
  • 1.9" Mounted Tyres
  • Paint



 Product Specifications

  • Type:Scale 4x4 Crawler
  • Completion Level: Kit
  • Scale: 1/10
  • Length: 17 in (431.8mm)
  • Width: 10.25 in (260.35mm)
  • Height: 8.25 in (209.55mm)
  • Weight: 4 lb (1.8kg)
  • Ground Clearance: 3 in (76.2mm)
  • Wheelbase: 12.5 in (317.5mm)
  • Track: 8.75 in (222.25mm)
  • Front Track: 8.75 in (222.25mm)
  • Rear Track 8.75 in (222.25mm)
  • Chassis: Injection Moulded Tubular
  • Suspension: 4-Link Solid Axle
  • Shock Type: Aluminum Oil-Filled/Coil-Over Spring
  • Drivetrain: 4WD
  • Differential: Locked
  • Wheel Type: Beadlock Raceline Monster
  • Wheel Diameter: 1.9 in (48.26mm)
  • Wheel Width: 1 in (25.4mm)
  • Motor Size: 540
  • Pinion: 14T
  • Gear Pitch: 32-Pitch
  • Internal Gear Ratio: 5.14:1
  • Final Drive Ratio: 37:1
  • Ball Bearings: Complete Vehicle
  • Experience Level Advanced
  • Recommended Environment: All-Terrain
  • Is Assembly Required: Yes
