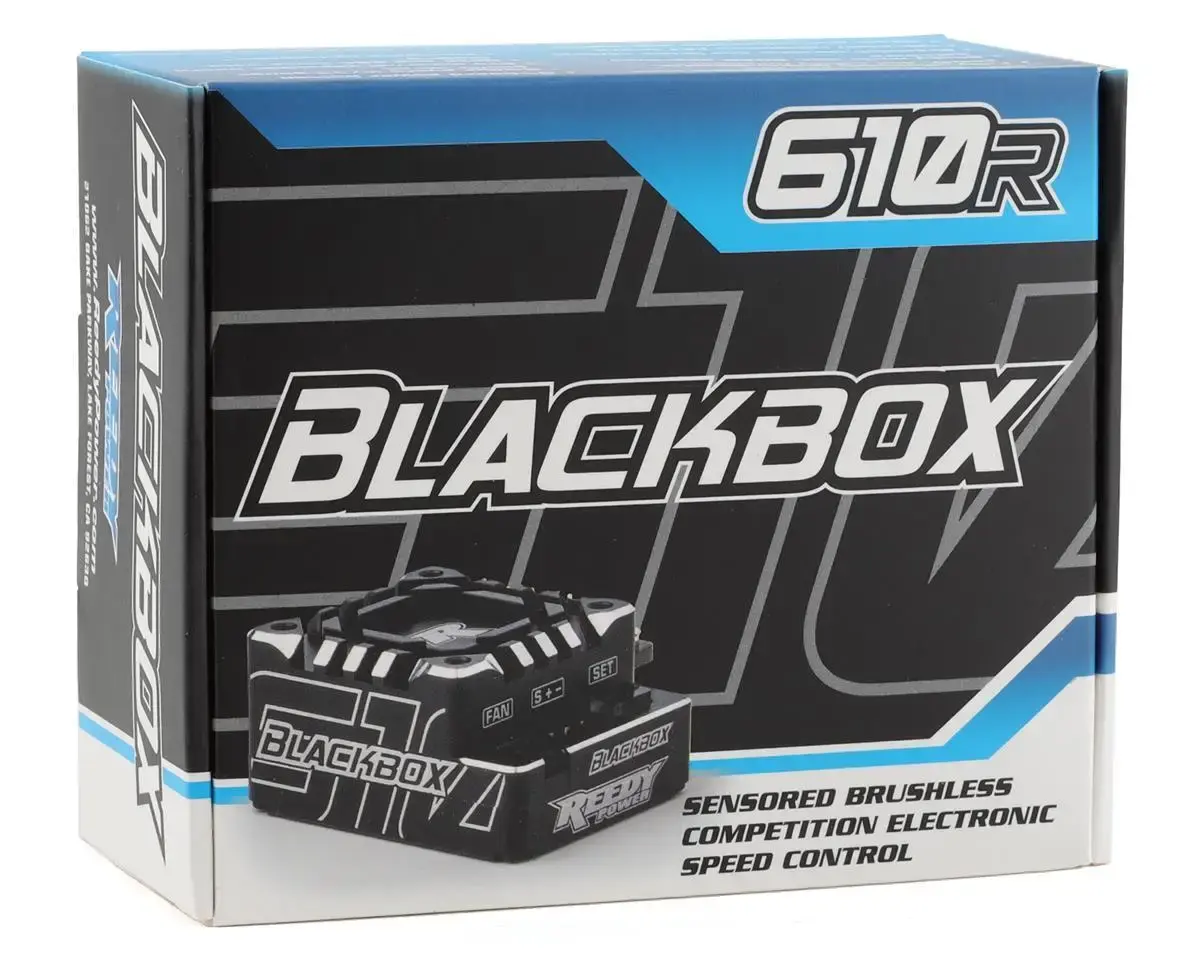

Blackbox 610R Competition ESC w/Programmer

This is the Reedy Blackbox 610R 2S Competition ESC with PROgrammer2. Building off of the innovative features used with the Reedy Blackbox 510R ESC the 610R gives users even more performance and adjustability. Using updated 32-bit hardware this gives the user crisp and instant throttle response along with incredible brake feel.

Features:

  • CNC-machined black aluminum case with integrated heat sink
  • Fully adjustable brake, throttle, power, and safety functions (with Blackbox PROgrammer2: ASC27027)
  • Blinky mode with ROAR approved software
  • Precision throttle and brake control
  • Ultra-low resistance FET board
  • On-board power button
  • 32-bit microcontroller unit (MCU)
  • Solder tabs with 13-gauge power wires
  • Pro external capacitor board
  • RPM and ESC temp data logging (with Blackbox PROgrammer2: ASC27027)
  • Firmware updateable (with Blackbox PROgrammer2: ASC27027)



Specifications:
Voltage Input: 2S LiPo
Suggested Applications: 1:10 off-road, 1:10 on-road
Resistance (ohms): 0.00043
Continuous Current (A): 160
Dimensions (mm): 38.5x36.9x19.5
Motor Limit: 4.5T
Weight w/o wires & fan (g): 45
BEC (Adjustable): 6.0-7.4V/5A
Power Wires: 13-gauge silicone
Fan: Optional

This part fits the following vehicles:

  • RC10SC6.4
  • RC10T6.4
