The incredible performance of the SP5 starts at the heart of the motor--the stator

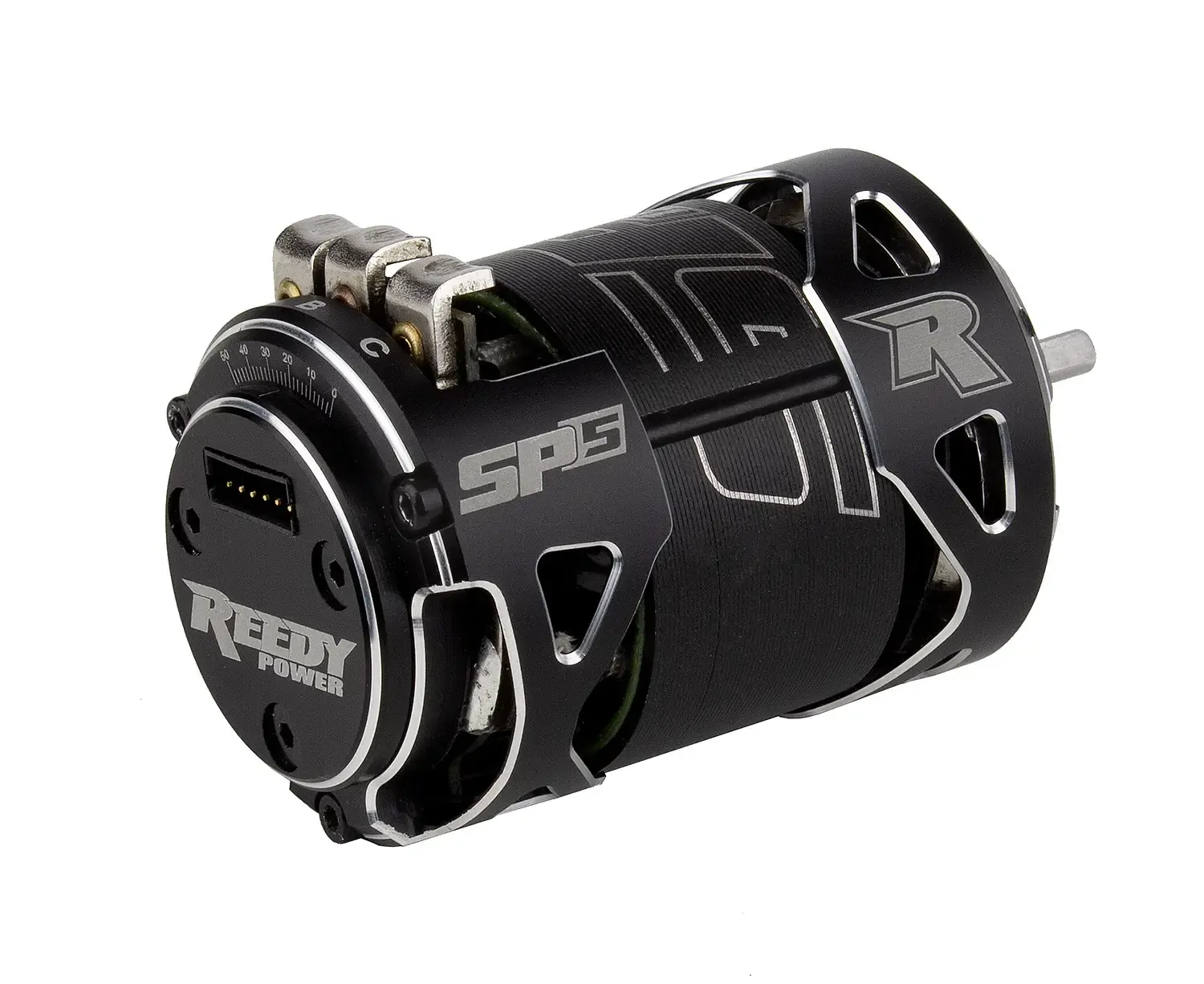

Reedy's all-new Sonic SP5 stock motors feature an all-new and unique design, incorporating many features that will put it at the top of the pyramid when it comes to stock motor performance.

The incredible performance of the SP5 starts at the heart of the motor--the stator. Designed in-house, the stator's profile is intended to achieve maximum torque and power output without sacrificing RPM. High-quality copper magnet wire, sized to the maximum that the rules allow and wound with care to keep resistance near the legal minimum, is treated with heat transfer epoxy to dissipate heat and reduce internal temperatures resulting in less fade over the course of the race. An oversized collector ring not only dissipates heat, but in conjunction with thick solder tabs, reduces resistance and power loss.

A balanced rotor features a high-strength magnet that takes full advantage of dimensional rules to produce fade-free power with maximum effectiveness. The rotor is supported by precision stainless steel ball bearings to accommodate high RPM loads with exceptional efficiency and reliability. Like all Reedy Sonic motors, a high-quality sensor board rounds out the motor's interior.

Externally, the SP5 utilizes a lightweight two-piece CNC machined aluminum housing with an aluminum endcap and timing adjustability to accommodate fine-tuning for specific applications. This lightweight package is a welcome way to improve vehicle handling while improving chassis tuning flexibility.

Features:

• CNC-machined housing with optimized air cooling
• Custom high-power stator design
• Low-resistance solder tabs and collector ring
• Balanced rotor with high-strength magnet
• Dual precision ball bearings
• Aluminum end cap with adjustable timing
• Completely rebuildable
• Competition proven
• ROAR approved

Parts List

1. Part #: 27486 - Sonic 540-SP5 Sensor Board
2. Part #: 27487 - Sonic 540-SP5 Motor Screw Set
3. Part #: 27483 - Sonic 540-SP5 Rotor, 12.5 x 7.15 x 25.8mm
4. Part #: 27484 - Sonic 540-SP5 Rotor, 12.3 x 7.15 x 25.8mm
5. Part #: 27476 - Sonic 540-SP5 Titanium Motor Screw Set
6. Part #: 27456 - 540-M4 Ball Bearing Set
7. Part #: 27457 - Reedy HV 30mm Aluminum Motor Fan
8. Part #: 27458 - Reedy HV 40mm Aluminum Motor Fan
9. Part #: 27423 - Reedy HV Motor Fan, with 195 mm extension
10. Part #: 994 - Flat Sensor Wire 125 mm/4.92 in, B5
11. Part #: 995 - Flat Sensor Wire 175 mm/6.89 in, B5M
12. Part #: 978 - Flat Sensor Wire, 70 mm/2.76 in
13. Part #: 979 - Flat Sensor Wire, 110 mm/4.33 in
14. Part #: 980 - Flat Sensor Wire, 150 mm/5.91 in
15. Part #: 981 - Flat Sensor Wire 200 mm
16. Part #: 982 - Flat Sensor Wire 270 mm/10.63 in

FAQ about Reedy Sonic SP5 Stock Motors

What is the key feature of the Reedy Sonic SP5 stock motors?

Answer: The key feature of the Reedy Sonic SP5 stock motors is their incredible performance, which begins with the design of the stator.

How does the stator in the SP5 motor contribute to its performance?

Answer: The stator in the SP5 motor is designed to achieve maximum torque and power output without sacrificing RPM. It is made with high-quality copper magnet wire, treated with heat transfer epoxy to dissipate heat, and has an oversized collector ring to reduce resistance and power loss.

What makes the rotor in the SP5 motor special?

Answer: The rotor in the SP5 motor features a high-strength magnet and is balanced to produce fade-free power with maximum effectiveness. It is supported by precision stainless steel ball bearings for high RPM loads.

Are there any external features that contribute to the SP5 motor's performance?

Answer: Yes, externally, the SP5 motor has a lightweight two-piece CNC-machined aluminum housing with an aluminum endcap and timing adjustability. This design helps improve vehicle handling and chassis tuning flexibility.

What are some of the technical specifications of the SP5 motor?

Answer: The SP5 motor is designed for 1-2S LiPo cells, has a diameter of 35.9mm, a length of 52.5mm, a shaft diameter of 3.15mm, and weighs between 147-151 grams. It comes with a stock rotor labeled as #27483.

Is the Reedy Sonic SP5 motor suitable for competitive racing?

Answer: Yes, the Reedy Sonic SP5 motor is competition proven and ROAR approved, making it suitable for competitive racing.

Can the SP5 motor be rebuilt if needed?

Answer: Yes, the SP5 motor is completely rebuildable, allowing users to maintain and customize it as needed.

What is the purpose of the heat transfer epoxy used in the motor's design?

Answer: The heat transfer epoxy is used to dissipate heat and reduce internal temperatures in the motor, resulting in less fade over the course of a race.

Why is the collector ring oversized in the SP5 motor?

Answer: The oversized collector ring, in conjunction with thick solder tabs, is designed to dissipate heat and reduce resistance and power loss in the motor.

How does the adjustable timing feature in the SP5 motor housing work?

Answer: The SP5 motor housing has an aluminum endcap with adjustable timing, allowing users to fine-tune the motor's performance for specific applications by altering the timing settings.
