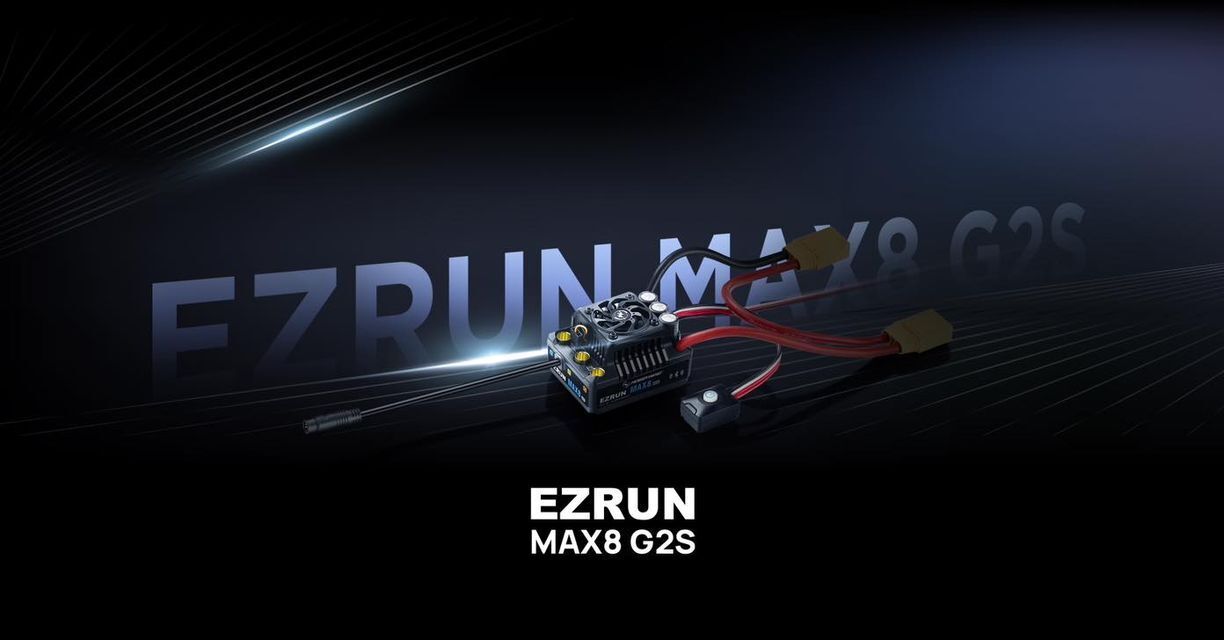

EZRUN MAX8 G2S ESC 160A

Introducing the EzRun MAX8 G2S Speed Control. EzRun MAX8 G2S Optimized hardware, increases in stability and reliability.

Extreme output, easy to control.

The ESC has power, yet smooth and linear throle response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably.

Optimized hardware, increases in stability and reliability.

Based on the Max8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further
improved.

Built-in Bluetooth, directly connected to the mobile APP

The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter seings, data reading, firmware upgrades and other operations.
Note: The data includes throle amount, voltage, current, temperature, speed, etc.

Built-in data logging function, ease of obtaining power operating status.

The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the eective distance
is only about 5m!

Efficient cooling system

A frameless fan with patented technology is used. The large flow of air from the side of the fan eectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the
optimal operating temperature.

High level of protection

The protection level reaches IP67, with excellent waterproof and dust-proof performance. It is able to cope with harsh environments, various climate conditions and has all-weather operation capabilities.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

1/8th power system turbo timing technology

Turbo timing that is adjustable up to 32 degrees. Using turbo allows motor RPM to be increased through advanced ESC electronic timing.

Capacitor overheating protection

The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.

Super Built-in BEC

The ESC has a built-in super BEC with a maximum output current of up to 15A. The output voltage can be switched in three levels of 6V/7.4V/8.4V.  Drivers are able to enjoy using high-voltage servos with this function.

Waterproof Sensor Harness

The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems.
Note: Supports normal adaptor sensored motors, it requires an additional adapter wires for other motors.

Product Specifications

General:

• Continuous / Peak Current: 160A / 1050A
• Motor Type: Sensored & Sensorless Brushless Motor
• LiPo Cells: 3S - 6S LiPo

Programming & Connectivity:

• Programming Method:
  • iOS or Android smartphone with the HW LINK app

Size & Weight:

• Dimensions: 60 x 48 x 40.5mm
• Weight: 192g

Performance & Compatibility:

• Best Motor Combination: EzRun 4278 / 4268 SD G2
• Suitable for:
  • On-Road
  • Monster Truck
  • Off-Road
  • Short Course Truck

Motor Limitations:

• With 4S LiPo: KV ² 3000
• With 6S LiPo: KV ² 2400 (4278 size motor)

BEC Output:

• Switch Mode: 6V / 7.4V / 8.4V (adjustable)
• Continuous Current: 6A

Cooling System:

• Fan with Intelligent Start & Stop:
  • Fan remains off at low temperatures to reduce noise and save power.
  • Automatically activates when ESC reaches a preset temperature for optimal cooling.
