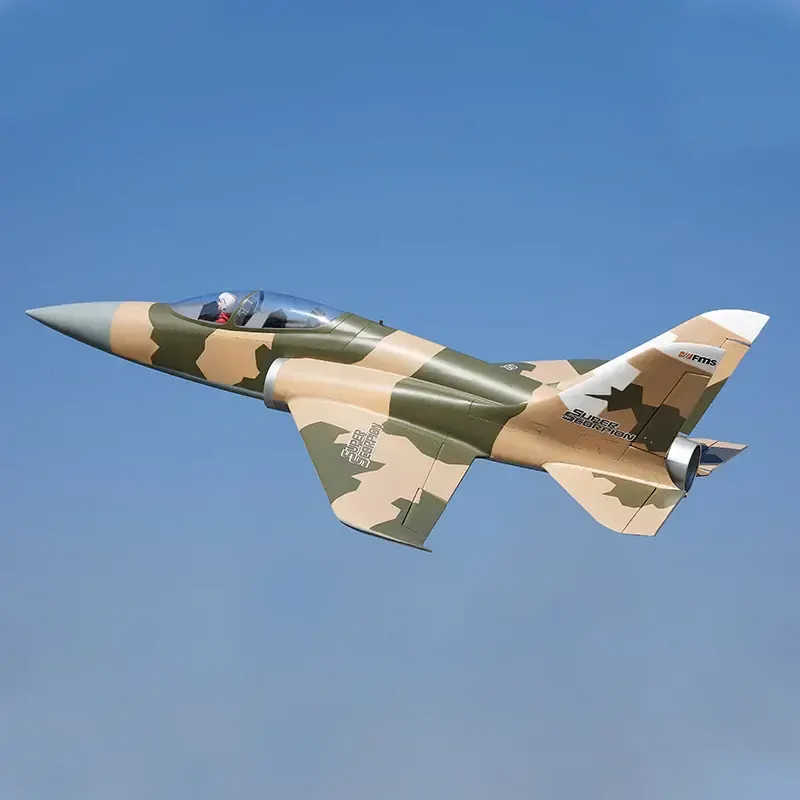

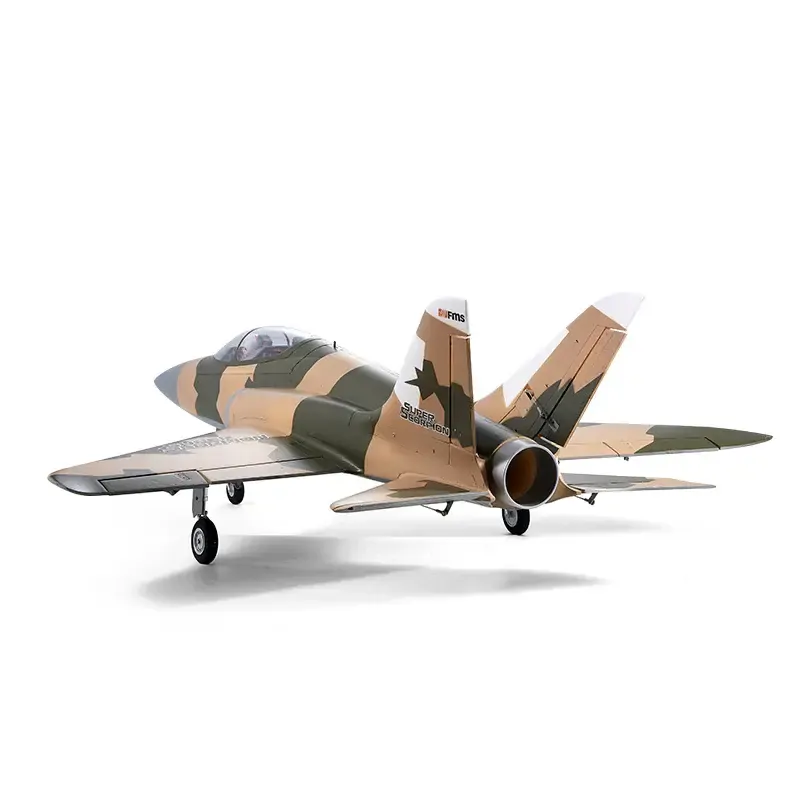

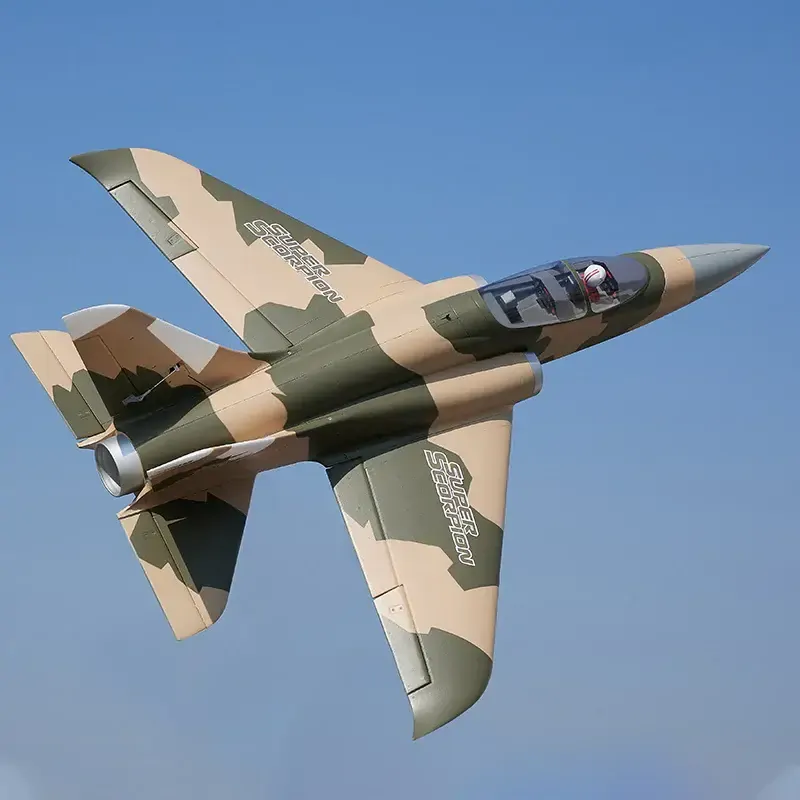

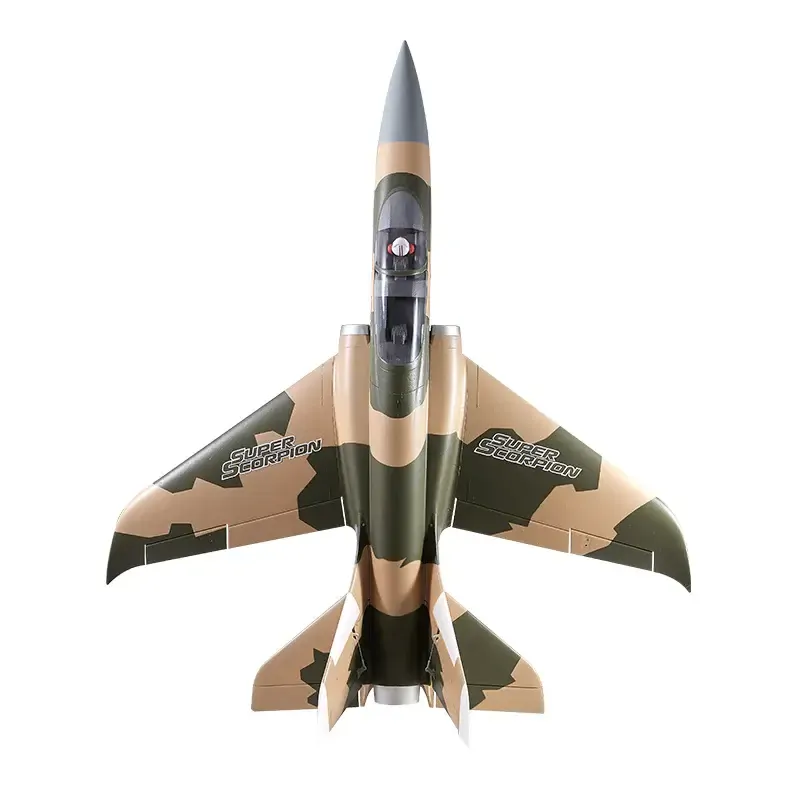

FMS EDF Jet 90mm Super Scorpion V2 PNP Camo 6S Version

The all-new FMS 90mm EDF Super Scorpion V2 is here. Designed to elevate your flight experience with its upgraded inrunner motor and unique 12-blade fan. You'll feel the power and hear the difference! Choose between striking orange or camouflage paint schemes, both optimized for increased visibility and realism in flight. Available in 6S and 8S versions, this advanced sport jet delivers on every front; speed, stability, and maneuverability. Ready to dominate the skies? The Super Scorpion V2 has arrived!

Features

• Improved CNC-machined trailing link struts for smooth suspension and reduced impact during takeoff, landing, and taxiing.
• Available in a 6S version powered by a 3670-KV1950 inrunner motor.
• Two paint scheme options: orange and camouflage.
• Electric retracts with locked-rotor mode and over-current protection for safety and durability.
• Multi-plug connectors designed for enhanced durability, reliability, and simple assembly.
• Preinstalled ball link connector for increased control throw and precision.
• Screw-together assembly for a hassle-free setup.
• High-quality wear-resistant tires for improved longevity and performance.
• Buckle-design latch to prevent unexpected canopy release during flight.
• Flap functionality to ease takeoff and landing maneuvers.
• Environmentally friendly water-based paint for superior color and adhesion.
• Constructed from high-quality EPO foam for durability and lightweight performance.

What's In the Box

• 90mm Super Scorpion V2 EDF PNP.
• 120A ESC with reverse thrust function (installed).
• 6S (3670-KV1950 inrunner motor).
• 90mm 12-blade ducted fan (installed).
• 9 high-precision all-metal digital servos (installed).
• Product manual.

What You Need (Not Included)

• 6-channel transmitter and receiver.
• 6S (22.2V 5000mAh-6000mAh 45C with EC5 connector) or 8S (29.6V 5000mAh-5500mAh 45C with EC5 connector).
• LiPo battery charger.

Notes to Buyers

• RTF (Ready to Fly): Includes everything needed to fly, such as a transmitter, receiver, battery, charger, and pre-installed electronics.
• PNP (Plug-and-Play): Includes ESC, motor, and servos pre-installed. Does not include transmitter, receiver, battery, or charger.
• Heat Sensitivity: EPO foam and cockpits can bubble or deform under high heat. Avoid leaving them in direct sunlight when not in use.
• Reflex V3: Not included and needs to be purchased separately.
• Receiver Requirements: A 6-channel receiver is needed for Ailerons, Elevator, Throttle, Rudder, Landing Gear, and Flaps. Upgrade to 7 or more channels for advanced features like thrust reverse and Reflex control.

Specifications Comparison: 6S vs. 8S Models

General Dimensions:

• Wingspan: 1140mm / 44.9 in (both models).
• Overall Length: 1320mm / 52 in (both models).

Weight:

• Flying Weight (6S): Around 3500g.
• Flying Weight (8S): Around 3950g.

Power System:

• Motor Size (6S): 3670-KV1950.
• Motor Size (8S): 4075-KV1500.
• ESC: 120A (both models).

Servos:

• 13g Servos: 5 pcs (both models).
• 23g Servos: 4 pcs (both models).

Radio & Control:

• Radio: 6CH Channel (both models).
• CG (Center of Gravity): 150-160mm (both models).

Propulsion:

• Prop Size: 90mm 12-blade ducted fan (both models).
• Recommended Battery (6S): 22.2V 5000mAh-6000mAh 45C with EC5 connector.
• Recommended Battery (8S): 29.6V 5000mAh-5500mAh 45C with EC5 connector.

Control Surfaces:

• Aileron: Yes (both models).
• Rudder: Yes (both models).
• Flaps: Yes (both models).
• Retracts: Yes (both models).

Performance:

• Approx. Flying Duration: 3 minutes (both models).

User Recommendations:

• Minimum Age: 14+ (both models).
• Experience Level: Intermediate (both models).
• Assembly Time: 10 minutes (both models).

Aerodynamics:

• Wing Load (6S): 119 g/dm² (0.23 oz/in²).
• Wing Load (8S): 134.3 g/dm² (0.26 oz/in²).
• Wing Area: 29.4 dm² (455.5 sq.in) (both models).
