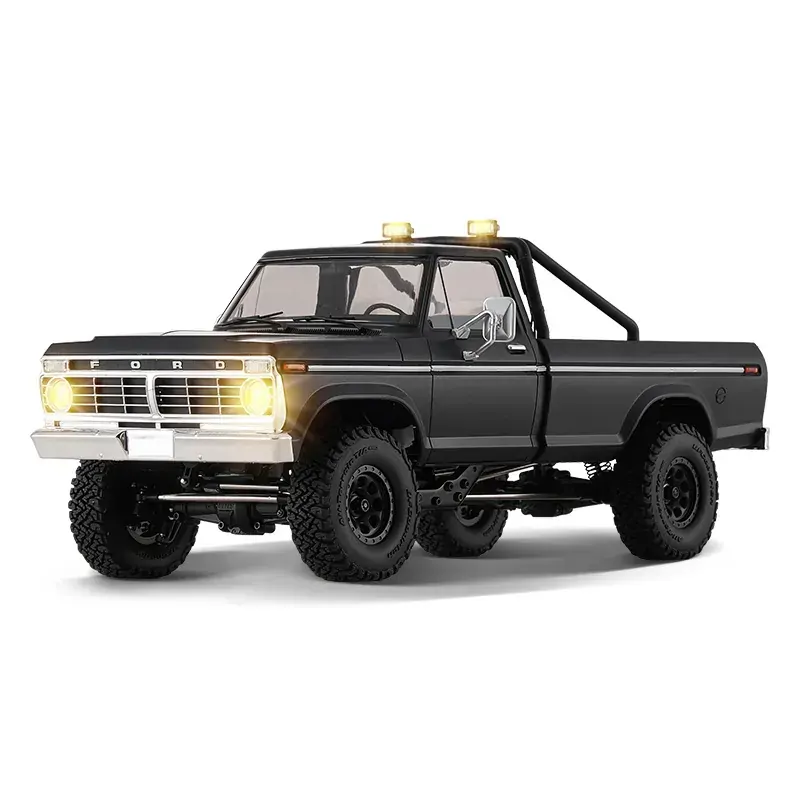

The FMS FCX18 II 1/18 Ford F-100 Brushless RTR Ð Black combines an officially licensed Ford F-100 hard body with the all-new second-generation FCX18 II platform, delivering detailed scale realism and capable off-road performance in a compact Ready-to-Run crawler.

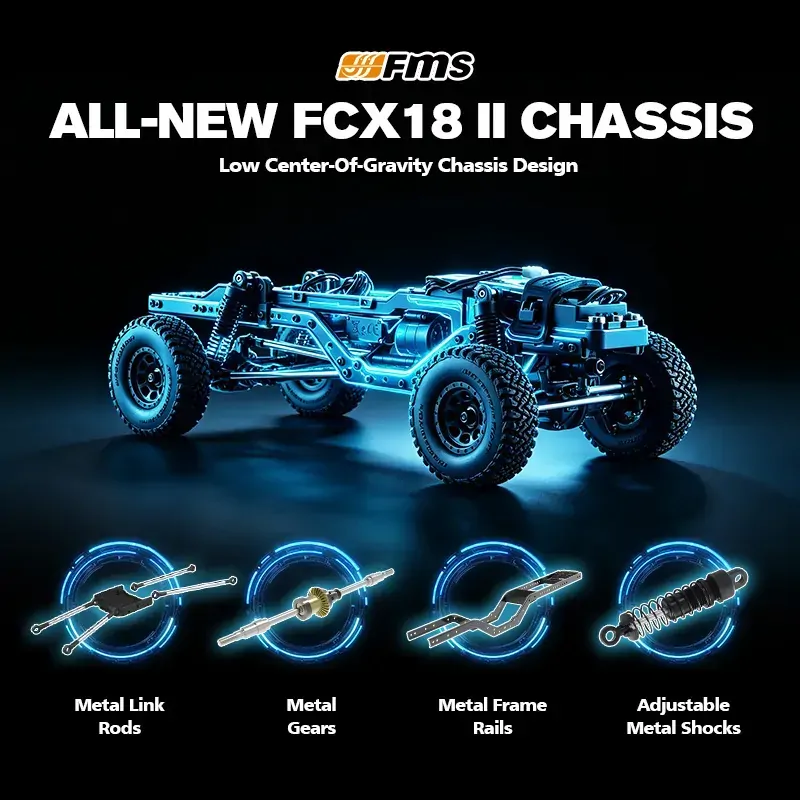

The new FCX18 II Low Centre of Gravity chassis places the motor and transmission lower in the vehicle to improve climbing stability, reduce body roll and provide better control over steep and uneven terrain. The platform combines a solid axle layout, reverse transmission design and four-link suspension with durable metal components throughout the chassis.

Power comes from a new 1312 2600KV brushless motor paired with a dedicated 10A brushless ESC. The sensored? [not specified] brushless system provides smooth power, quick throttle response and efficient performance, giving the F-100 the control required for technical crawling while still offering faster trail driving capability.

Unlike an integrated ESC/receiver arrangement, the FCX18 II uses an independent ESC and receiver. This modular configuration makes individual components easier to replace and provides greater flexibility for future upgrades and customisation.

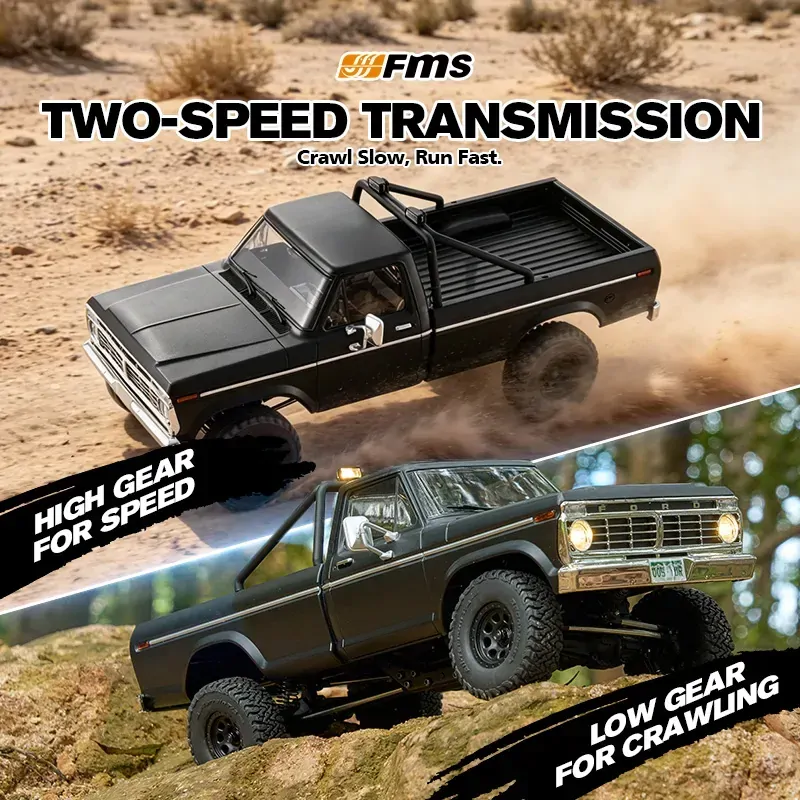

The two-speed transmission provides two distinctly different driving characteristics. Low gear delivers the torque and precise control required for technical crawling and steep climbs, while high gear provides increased speed for trails and more open terrain.

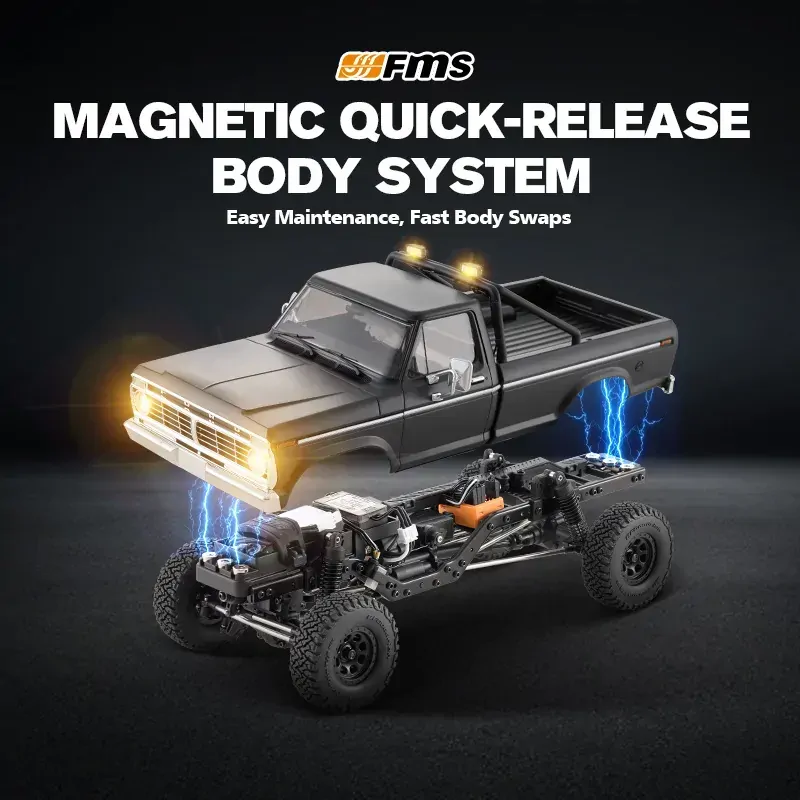

Another major development is the new magnetic quick-release body system. Eleven high-strength magnets secure the hard body while allowing it to be removed in seconds without tools. Integrated magnetic electrical contacts automatically connect the body-mounted lighting system, eliminating the need to disconnect lighting wires when removing the body for battery changes or maintenance.

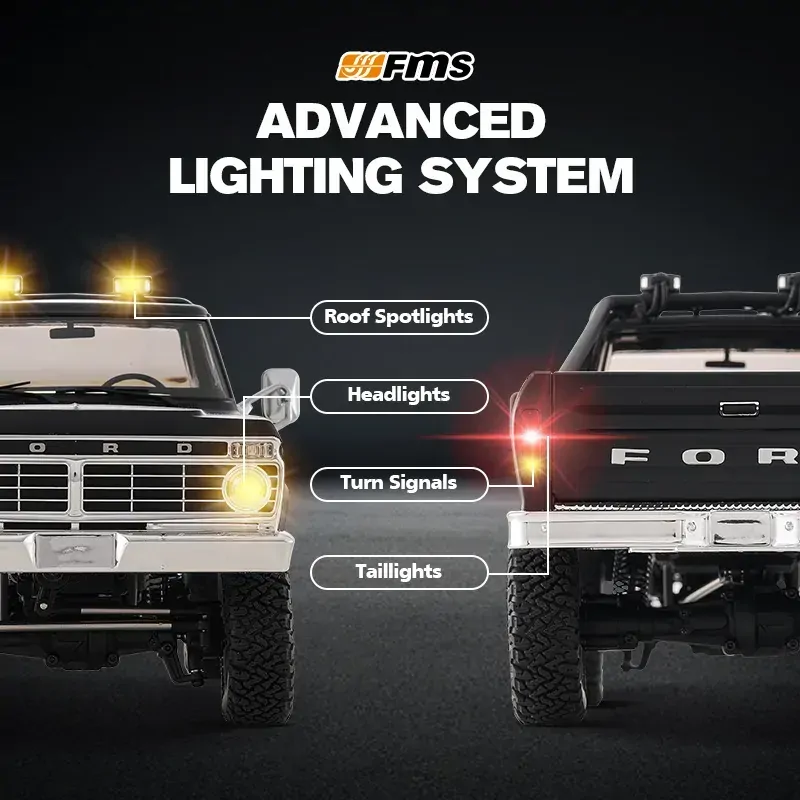

The officially licensed Ford F-100 hard body features authentic Ford badging, grille, bumpers, door handles and roll bar. A fully moulded interior adds a detailed steering wheel and textured seats, while the comprehensive lighting system includes headlights, taillights, turn signals and roof-mounted spotlights with multiple controllable lighting functions.

Officially licensed BFGoodrich KO3 tyres complete the scale appearance while providing traction for crawling and trail driving. The FCX18 II also features metal frame rails, suspension links, steering rods, oil-filled shocks, drivetrain gears and servo gears for increased strength and durability.

A 7.4V 900mAh 2S LiPo battery and USB charger are included, providing approximately 40Ð60 minutes of runtime. The package also includes the FS-MG44 transmitter, with an approximate radio range of 80 metres.

Available from Campbelltown Hobbies, the FMS FCX18 II Ford F-100 Brushless RTR combines classic Ford styling, a new brushless power system and a heavily upgraded crawler platform in one highly detailed 1/18 scale package.

Required Items

• 4 _ AAA Batteries for Transmitter

Specifications

Brand: FMS
Model: FCX18 II Ford F-100
SKU: FMS118L01BLBK
Scale: 1/18
Vehicle Type: RC Crawler / Trail Truck
Completion Level: Ready-to-Run (RTR)
Colour: Black
Drive System: Full-Time 4WD
Motor: 1312 2600KV Brushless
ESC: SO-ESC10ABL-1312 10A Brushless ESC
Receiver: FMS-R6B-BS-B
Radio: FS-MG44 Transmitter
Battery: 7.4V 900mAh 2S LiPo
Charger: USB Charger
Radio Range: Approximately 80m
Runtime: Approximately 40Ð60 Minutes
Transmission: Two-Speed
High Gear Ratio: 17.7
Low Gear Ratio: 94.2
Axles: Solid Axle
Transmission Layout: Reverse Transmission
Chassis: FCX18 II Low Centre of Gravity
Frame Rails: Metal
Suspension Links: Metal
Steering Rods: Metal
Shocks: Oil-Filled Metal Shocks
Drivetrain Gears: Metal
Servo Gears: Metal
Body Mounting: Magnetic Quick-Release
Body Magnets: 11 High-Strength Magnets
Body: Officially Licensed Ford F-100 Hard Body
Tyres: Officially Licensed BFGoodrich KO3
Lighting: Headlights, Taillights, Turn Signals & Roof Spotlights
Product Dimensions: 330 _ 145 _ 147mm
Wheelbase: 199mm
Tyre Size: ¯58 _ 19mm
Ground Clearance: 31mm
Approach Angle: 59¡
Departure Angle: 53¡

Key Features

• New FCX18 II Low Centre of Gravity chassis
• New 1312 2600KV brushless motor
• New independent 10A brushless ESC
• New independent receiver
• Officially licensed Ford F-100 hard body
• Officially licensed BFGoodrich KO3 tyres
• Detailed scale exterior and interior
• Two-speed transmission
• Magnetic quick-release body
• Magnetic lighting power contacts
• Full lighting system with multiple modes
• Metal chassis rails
• Metal suspension and steering links
• Metal bearings and drivetrain gears
• Oil-filled metal shocks
• Solid axles
• Reverse transmission design
• Extensive upgrade options available

What's Included

• 1 _ FMS FCX18 II 1/18 Ford F-100 RTR
• 1 _ FS-MG44 Transmitter
• 1 _ Receiver Ð Installed
• 1 _ 7.4V 900mAh 2S LiPo Battery
• 1 _ USB Battery Charger
• 1 _ Decal Sheet
• 1 _ Product Manual

Frequently Asked Questions – FMS FCX18 II 1/18 Ford F-100 Brushless RTR Black

Is the FMS FCX18 II Ford F-100 Ready-to-Run?

Yes. The FMS FCX18 II Ford F-100 is supplied as a Ready-to-Run package with the vehicle, transmitter, 7.4V 900mAh 2S LiPo battery and USB charger. You only need four AAA batteries for the transmitter.

Is the FMS FCX18 II Ford F-100 brushless?

Yes. The FCX18 II Ford F-100 features a new 1312 2600KV brushless motor paired with a dedicated 10A brushless ESC.

Does the FMS FCX18 II Ford F-100 have a two-speed transmission?

Yes. Low gear provides increased torque and precise control for technical crawling and steep climbs, while high gear provides faster driving for trails and open terrain.

What is different about the FCX18 II chassis?

The FCX18 II uses a new low centre of gravity chassis with a low-mounted motor and transmission. This layout improves climbing stability, reduces body roll and provides better control on steep and uneven terrain.

How does the magnetic body system work on the FMS FCX18 II Ford F-100?

Eleven high-strength magnets securely hold the body in position while allowing it to be removed quickly without tools. Magnetic electrical contacts automatically connect the body lighting system, so there are no lighting wires to disconnect during body removal.

Does the FMS FCX18 II Ford F-100 have working lights?

Yes. The vehicle features headlights, taillights, turn signals and roof-mounted spotlights with multiple controllable lighting functions.

What tyres are fitted to the FMS FCX18 II Ford F-100?

The FCX18 II Ford F-100 is fitted with officially licensed BFGoodrich KO3 tyres measuring approximately 58mm in diameter and 19mm wide.

What battery comes with the FMS FCX18 II Ford F-100?

The RTR package includes a 7.4V 900mAh 2S LiPo battery and USB battery charger.

How long does the FMS FCX18 II Ford F-100 run for?

The specified runtime is approximately 40 to 60 minutes, depending on driving conditions and use.

Does the FMS FCX18 II Ford F-100 use a combined ESC and receiver?

No. The FCX18 II features separate ESC and receiver components, making maintenance, replacement and future upgrades easier.

Are there upgrade parts available for the FMS FCX18 II?

Yes. The FCX18 II platform supports a range of upgrades, including optional portal axles, manually adjustable differentials and BATRAZZI components.
