FMS Rafale 80mm PNP

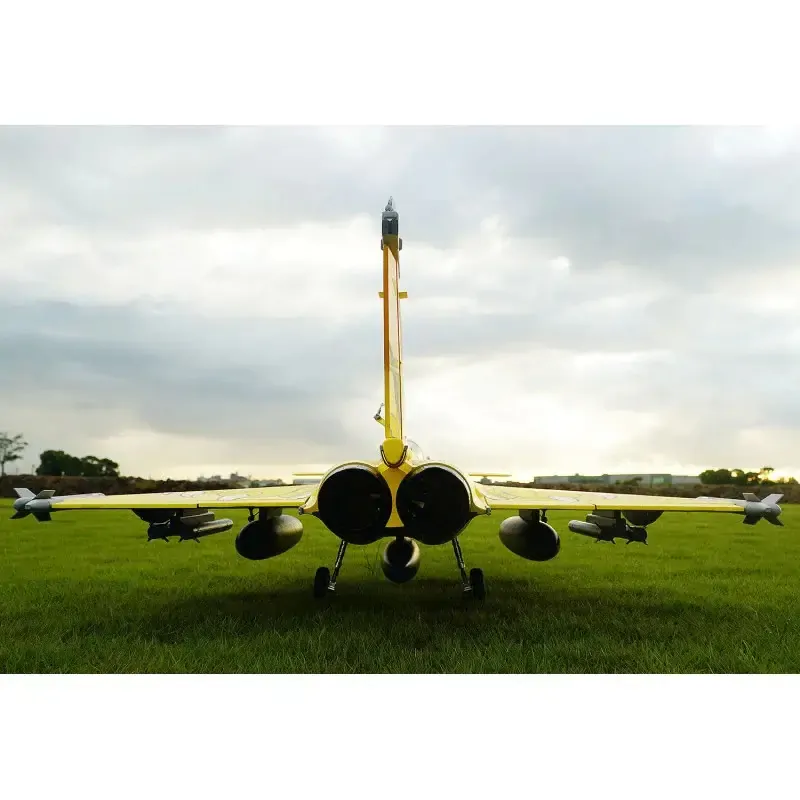

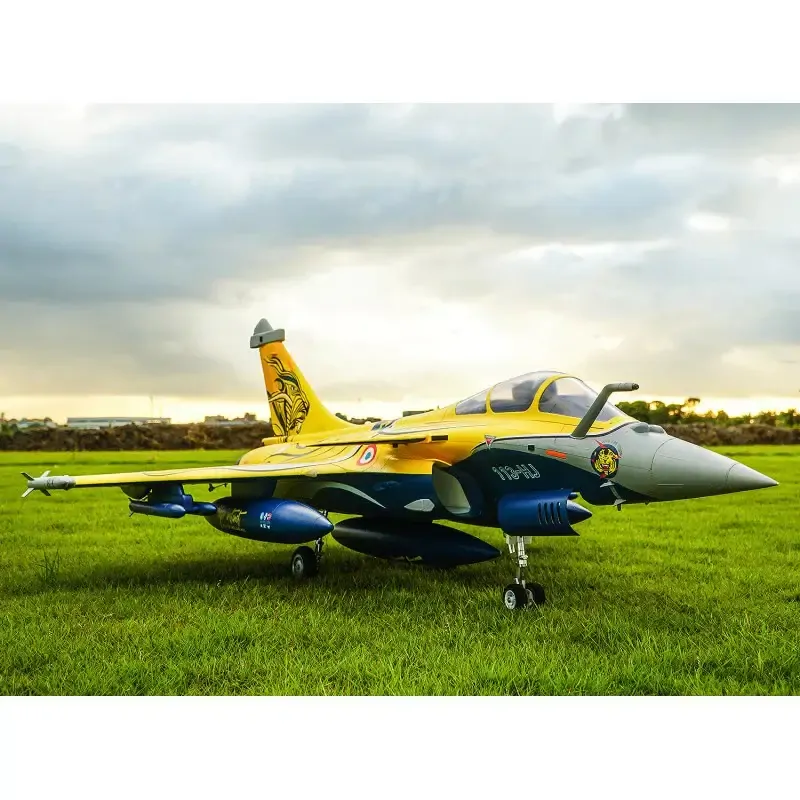

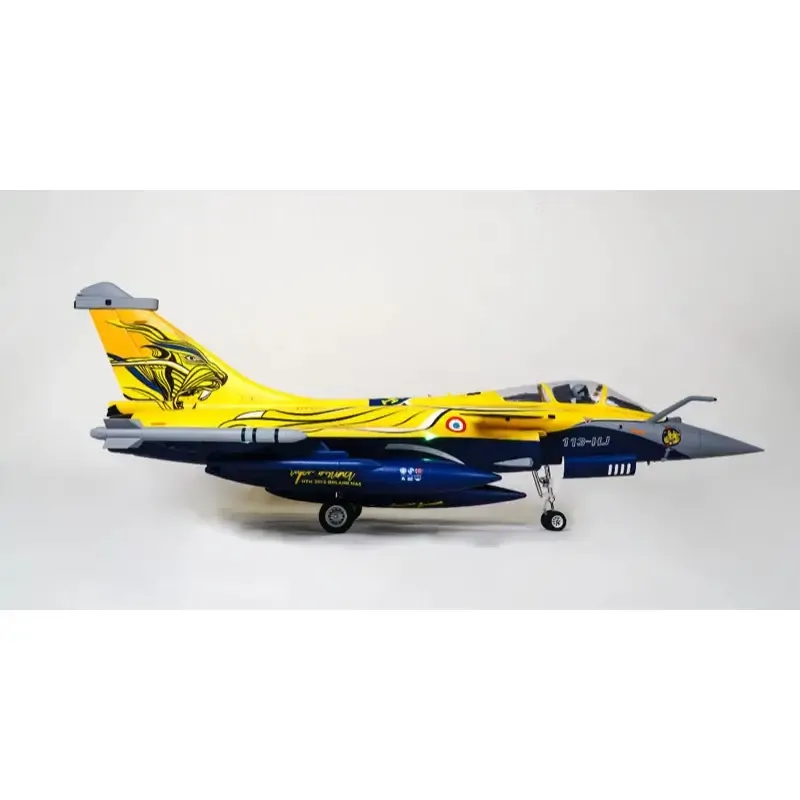

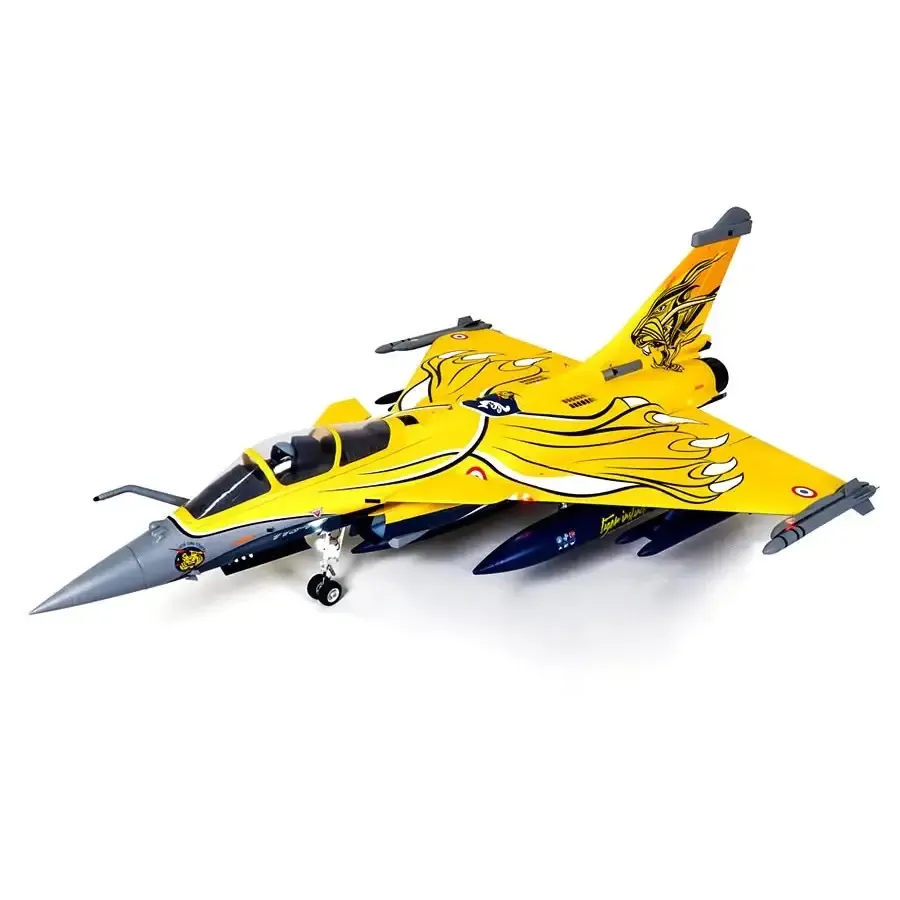

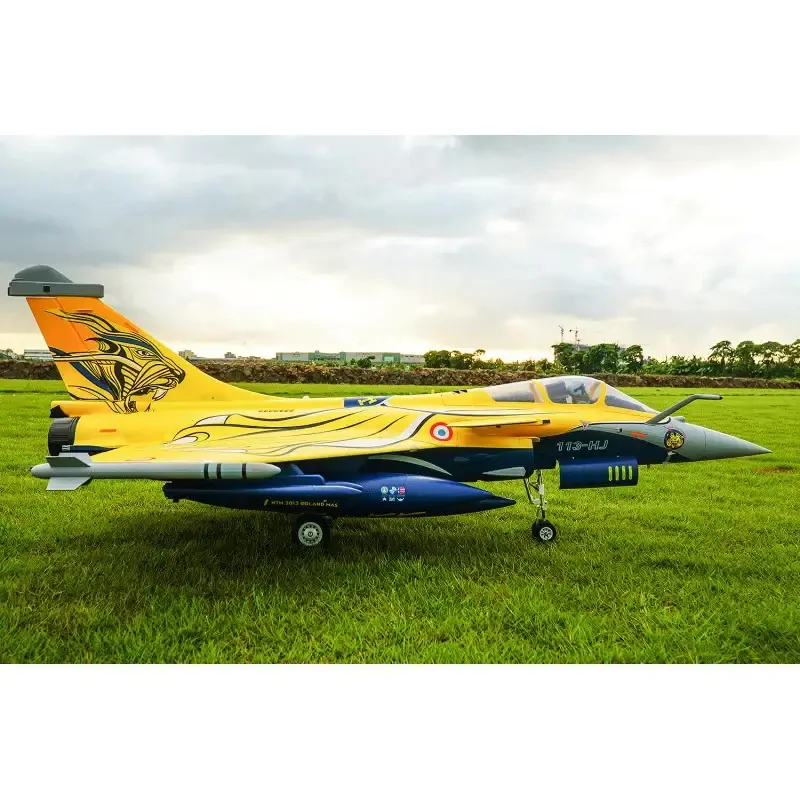

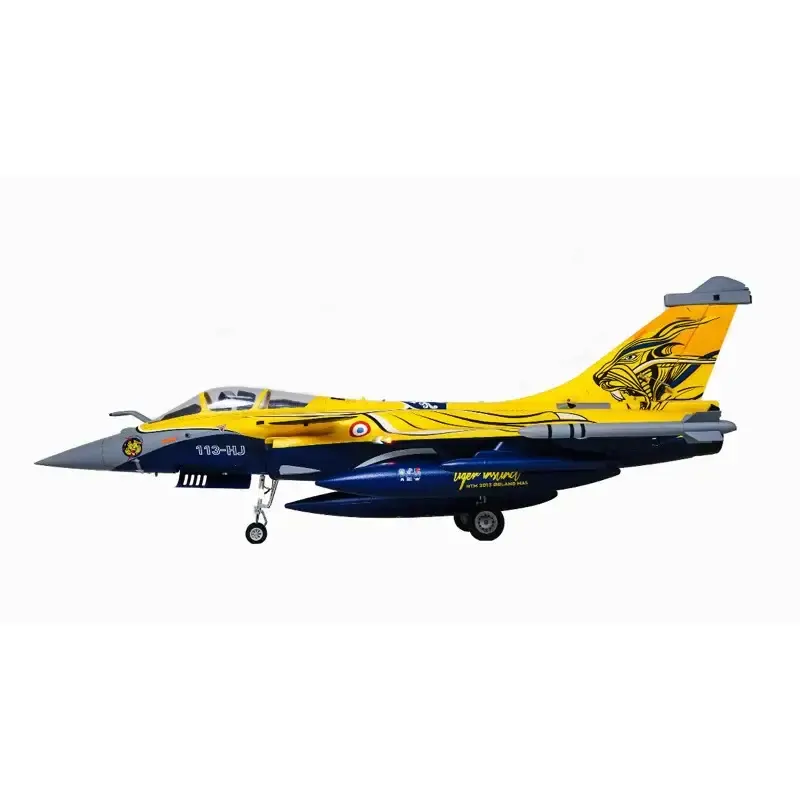

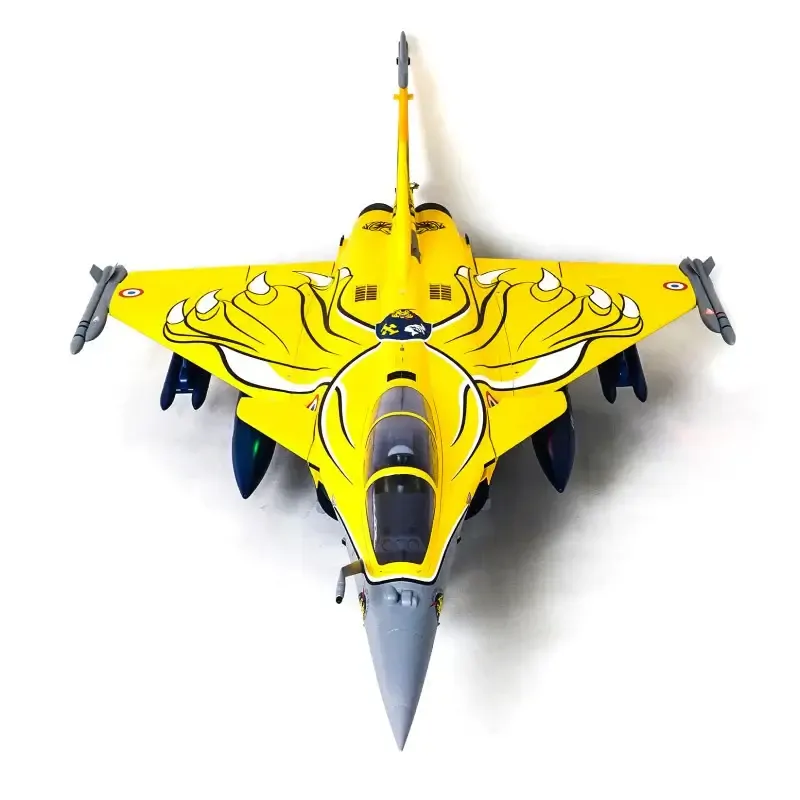

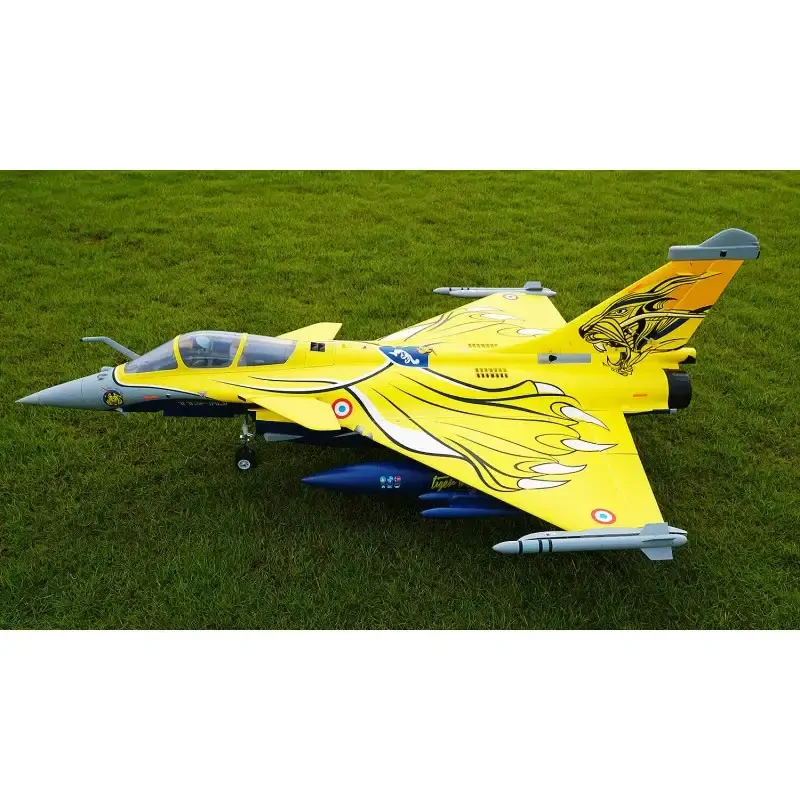

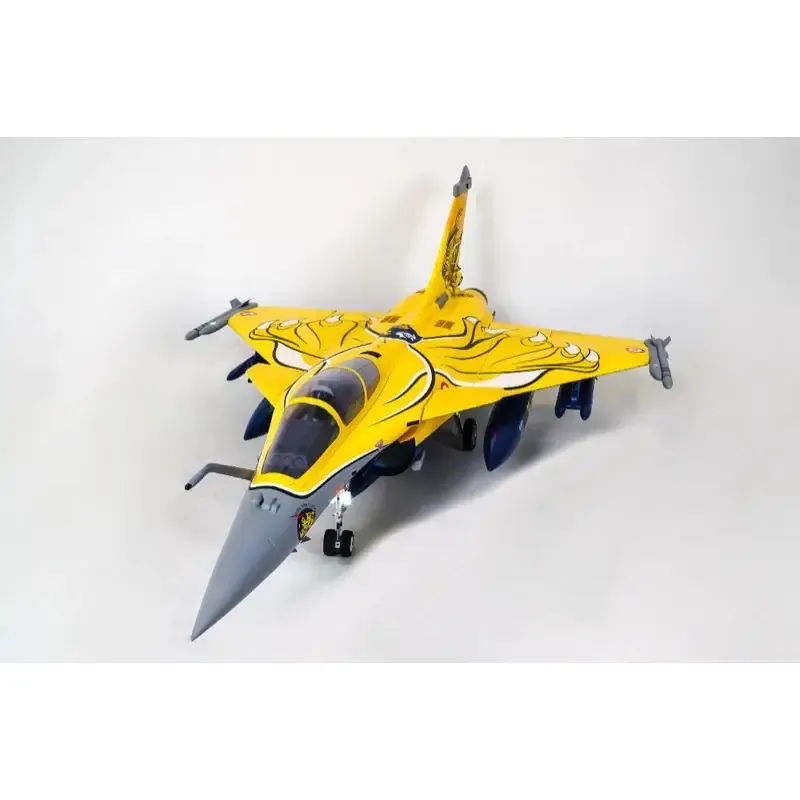

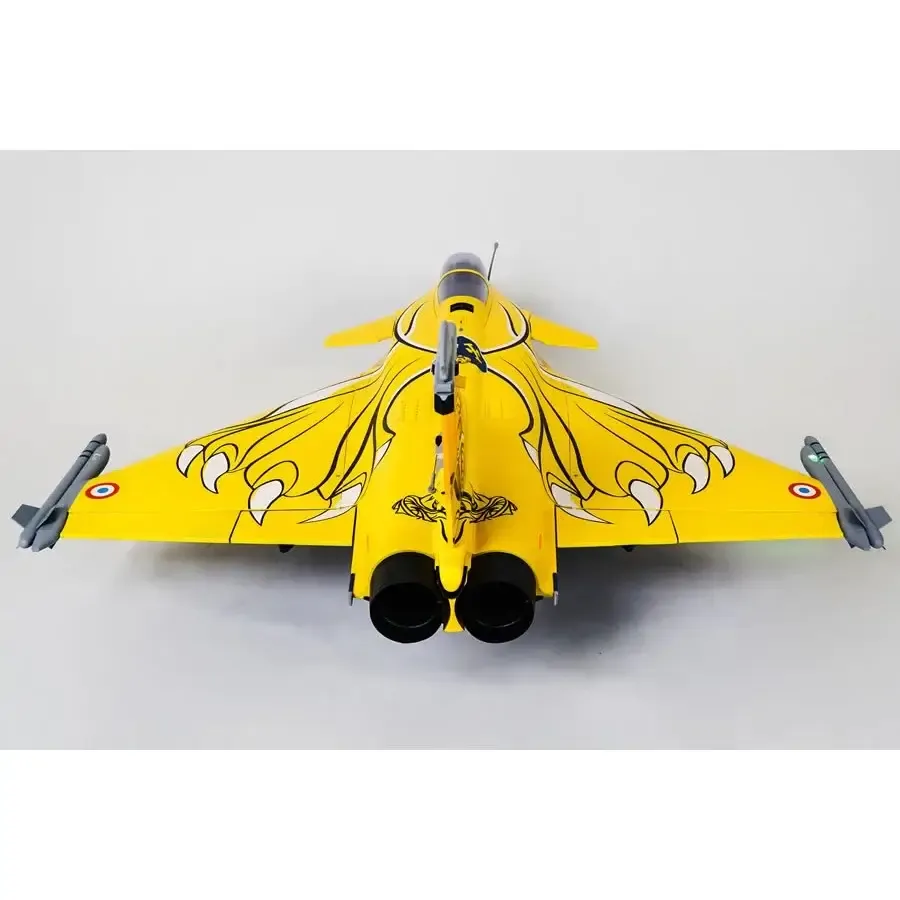

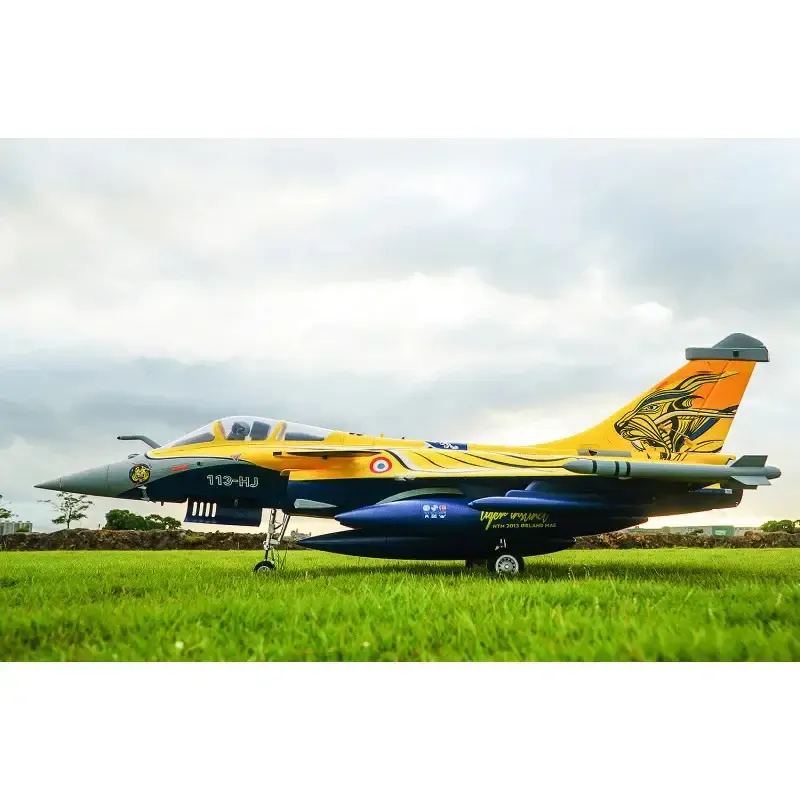

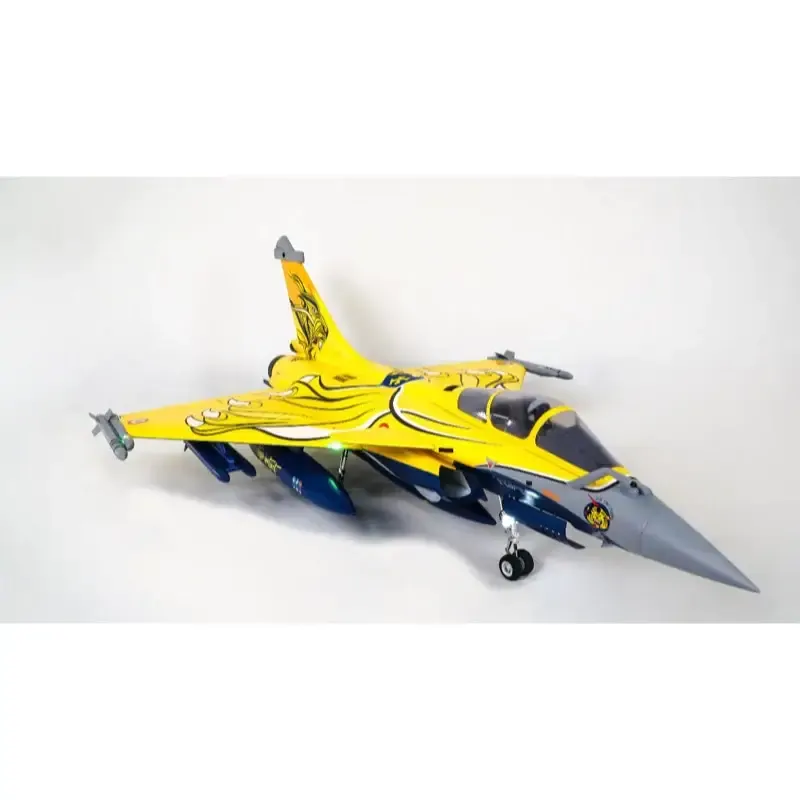

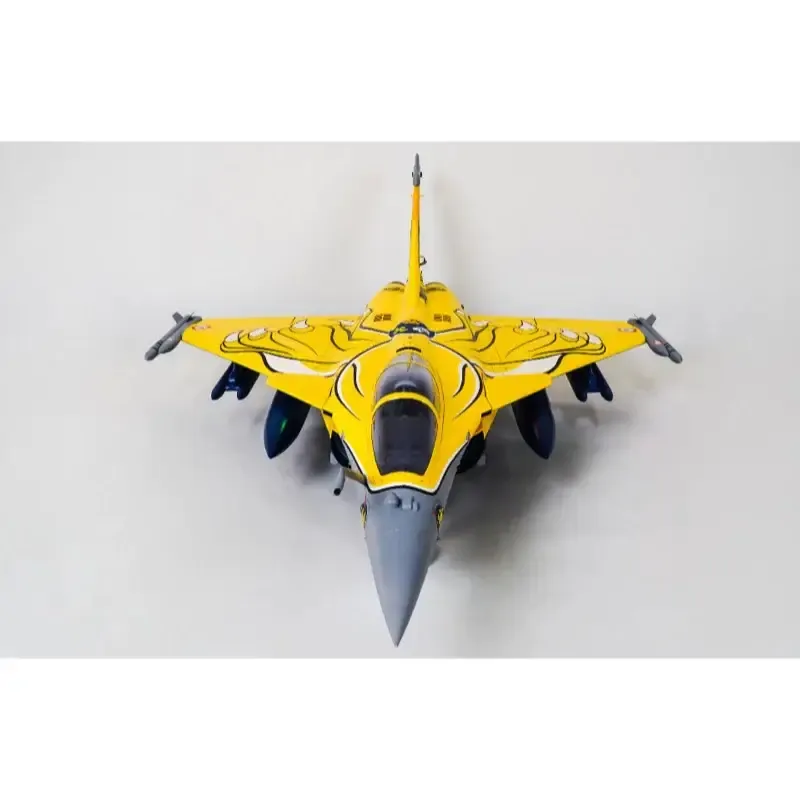

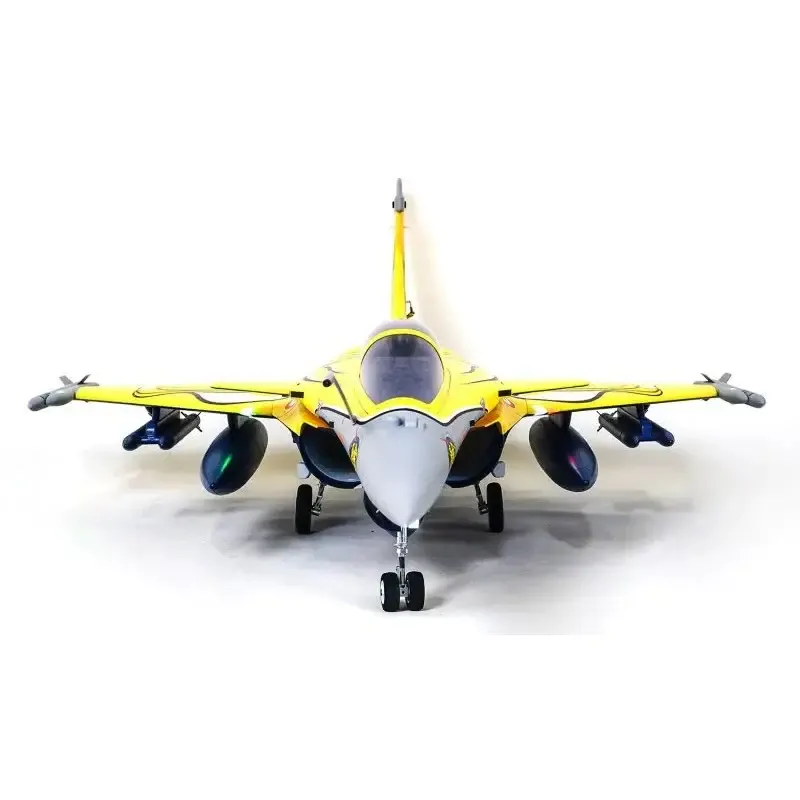

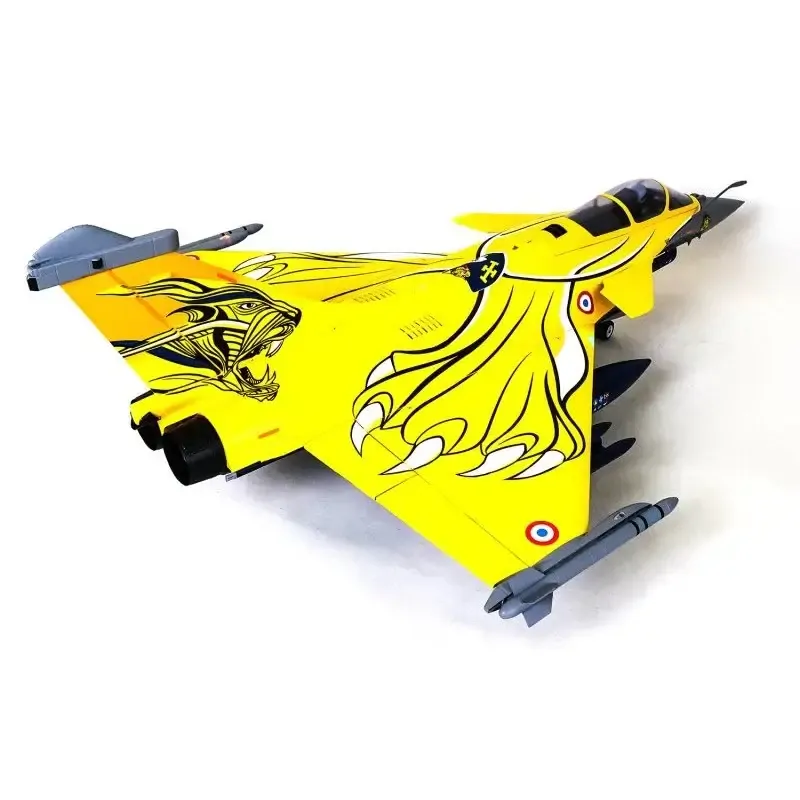

Like its full-scale counterpart, the FMS 80mm Rafale features an attractive trim scheme, excellent scale details, and fully functional canards—allowing the aircraft to be truly unique when compared to other 80mm EDF aircraft on the market today.

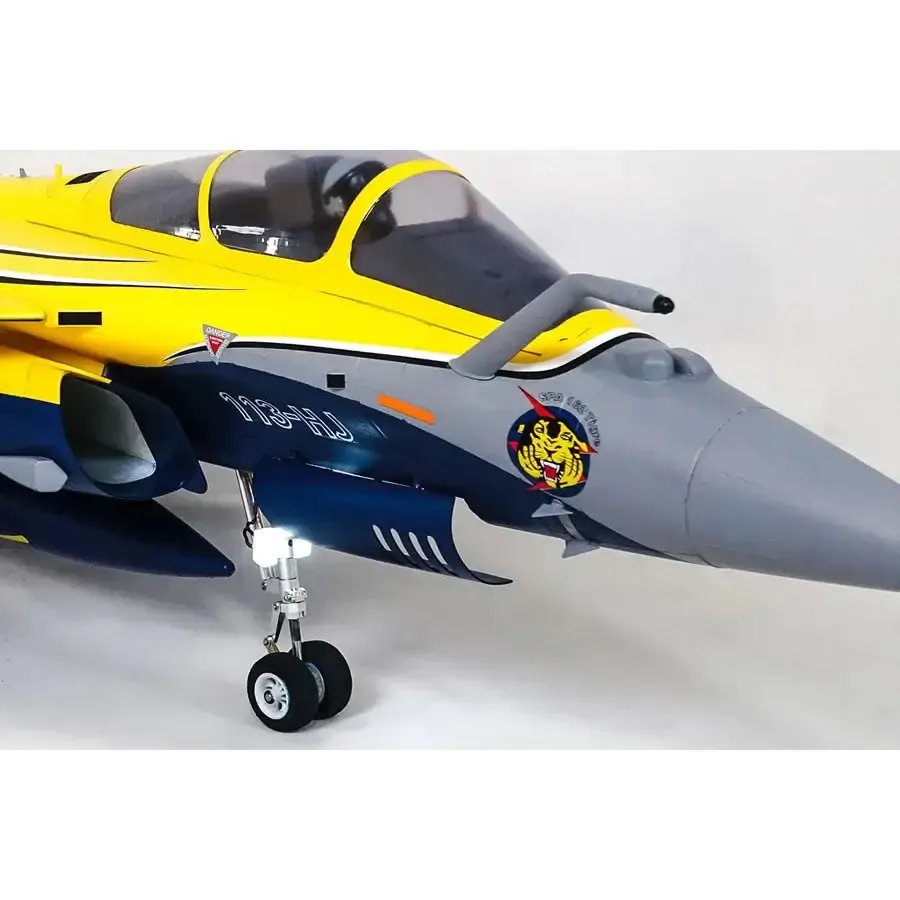

Developed to replicate both the looks and performance of the real aircraft, FMS has dedicated its decades-long experience into designing the 80mm Rafale. Details such as the pilot, cockpit interior, panels, removable armaments, auxiliary fuel tanks, refueling probe, targeting sensor, and dynamic features such as functional LED navigation and landing lights, CNC shock-absorbing electric retracts, functional canards, and flaps enhance the realism.

Designed by the French Dassault company, the Rafale is a highly maneuverable delta-winged fighter with a full-flying canard. Its excellent dogfighting, carrier operations, and air-to-surface attack performance have allowed it to gain worldwide success.

Functions such as delta-mixing, sequential landing gear bay doors, alternating flash navigation lights, nose gear landing lights, and slowed flaps are all controlled by a central control board. An 80mm 12-bladed EDF with a platinum edition 3280 inrunner motor and 100A high-performance ESC easily accomplishes fighter jet maneuvers with realistic sound and speed.

Like all other FMS aircraft, the 80mm Rafale was designed to reduce build time to a minimum. Utilizing screws, latches, and quick connectors, experienced builders can complete the build process in as little as 5 minutes.

Built-in Electronics
The complete electronics are built into the model. The 80mm 12-blade impeller is powered by a 3280 internal rotor and a 100A high-performance regulator. Seven digital servos with metal gears execute the control commands quickly and reliably. Functions such as delta mixing, sequential landing gear doors, alternating flash navigation lights, nose landing gear lights, and slowed-down flaps are all controlled by a central control board.

What You Need (Not Included)

• 6+ Channel 2.4 GHz Full Range Radio

• 6+ Channel 2.4 GHz Full Range Receiver

• 6 Cell 22.2V 4000mAh-5000mAh Li-Po Battery

• 6 Cell Li-Po Battery Charger

Features

• 3280-1200KV platinum edition In-runner motor with a high-performance 100A ESC

• Delta wing design with full flying canards and functional flaps

• CNC metal shock-absorbing landing gear

• Functional navigation and landing lights

• Central function controller

• Functional and static details lovingly replicated

• Water-based vibrant trim scheme

Product Specifications

• Type of kit: PNP

• Wingspan (mm): 974mm /38.3in

• Length (mm): 1409mm /55.5in

• Flying weight (gr): 3280g (approx)

• Wing Surface Area: 38.5 dm² (596.6 sq.in)

• Wing Loading: 85.2 g/dm² (0.17oz/in²)

• CG (Center of Gravity): Check manual

• Servos: 13g X 7pcs, 9g X 2pcs metal servos

• Servo type: Digital

• EDF Diameter Class (mm): 80

• Blades: 12

• Turbine shroud: Synthetic

• EDF Rotor: Synthetic

• Power System: 3280 KV2100 Brushless Inrunner

• Motor Type: In-Runner

• Electronic Speed Control: 100A

• Battery Cells: 6s - 22.2v

• Battery Capacity (mAh): 4.000 mAh, 5.000 mAh

• Surfaces: Ailerons, Elevator, Flaps, Canards

• Landing Gear: Retractable suspended gear

• Lights: Navigation lights, Landing light

• Material: EPO Foam, Carbon reinforcements

• Build time: 1/2 hour

• Required Radio: 6 channels minimum

• Recommended pilot skill level: Intermediate, Advanced
