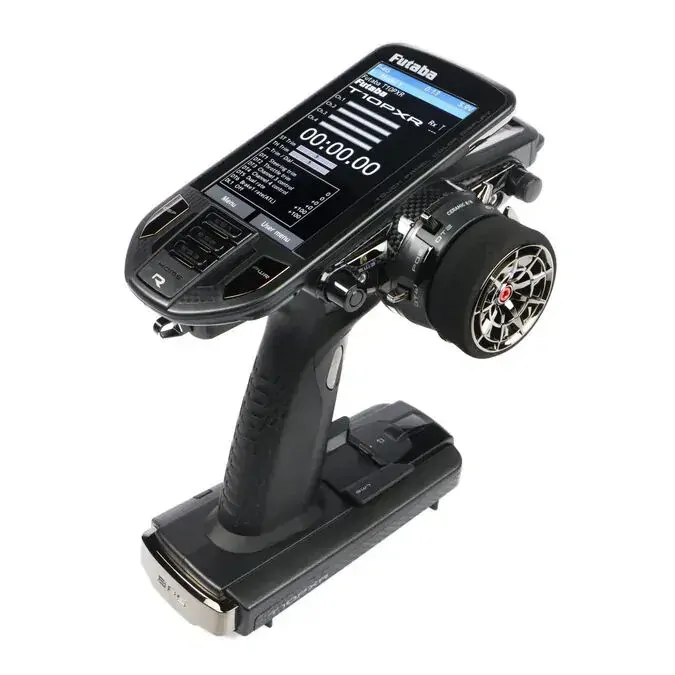

The Futaba 10PXR is Futaba's flagship competition-grade surface radio system, designed for serious racers who demand the highest level of precision, speed and customisation. Featuring a 10-channel architecture, advanced F-4G transmission technology, full telemetry support and a vibrant 4.3-inch colour touchscreen, the 10PXR delivers elite-level performance for RC cars, trucks, crawlers, tanks and other surface vehicles.

Powered by Futaba's fourth-generation F-4G telemetry system, the 10PXR provides up to 30% faster response when paired with compatible UR servos. The ultra-fast communication system delivers lightning-fast response and near-zero latency, helping drivers maintain maximum control in competitive racing situations.

The large HVGA transflective TFT-LCD touchscreen offers excellent visibility both indoors and outdoors while providing intuitive access to advanced programming features. With support for 40 model memories, users can easily manage multiple vehicles from a single transmitter, making it ideal for racers and hobbyists with diverse RC collections.

Supporting F-4G, T-FHSS, T-FHSS SR, FHSS and Mini-Z protocols, the 10PXR offers exceptional versatility across a wide range of RC applications. Advanced mixing functions include brake mixing, steering mixing, 4-wheel steering mixing, dual ESC crawler mixing, gyro mixing, tank mixing and CPS lighting control.

Ergonomically refined for extended use, the transmitter features ceramic bearings on both the steering wheel and trigger, adjustable steering wheel position, trigger adjustment, tension adjustment and an alternative narrow grip option. The transmitter can also be converted for left-hand operation.

Additional premium features include steering trim memory, vibration alerts, voice feedback, USB connectivity, microSD card support, S.Bus servo programming, MC-Link ESC compatibility, throttle speed adjustment and extensive dial and switch assignment capabilities.

At Campbelltown Hobbies, the Futaba 10PXR represents the ultimate surface radio system for racers seeking world-class performance, advanced telemetry and virtually unlimited customisation.

Included Items

• Futaba 10PXR 10-Channel Transmitter

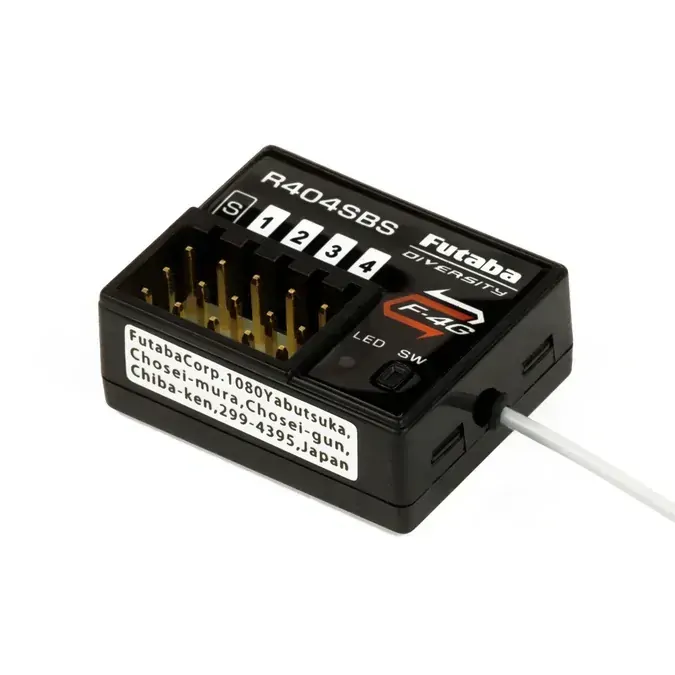

• Futaba R404SBS Receiver
• Instruction Manual

Required Items

• 4 x AA Batteries or Compatible Futaba Transmitter Battery
• Compatible RC Vehicle
• Compatible Servos and Electronics

Specifications

Transmitter

Channels: 10
Model Memory: 40 Models
Display Type: HVGA TFT-LCD Touchscreen
Display Size: 4.3 Inch
Transmission Modes: F-4G, T-FHSS, T-FHSS SR, FHSS, Mini-Z
Telemetry: Yes
Software Updates: MicroSD Card
Data Logging: MicroSD Card Compatible
USB Connectivity: Yes
Voice Feedback: Supported
Vibration Alerts: Supported

Performance Features

F-4G Ultra-Fast Response System
Up to 30% Faster Response with UR Servos
15-Point Response Adjustment System
Steering Trim Memory
Throttle Speed Adjustment
Advanced Telemetry Support

Mixing Functions

Brake Mixing
Steering Mixing
4WS Mixing
Dual ESC Mixing
Gyro Mixing
Tank Mixing
CPS Mixing

Adjustments

Wheel Offset Adjustment
Wheel Mounting Angle Adjustment
Throttle Trigger Position Adjustment
Trigger Tension Adjustment
Switch Assignment Function
Dial Assignment Function
Trim Lock Function
Dial Lock Function
Left-Hand Conversion Compatible

Compatibility

Mini-Z Compatible
S.Bus Servo Compatible
MC-Link Compatible
Futaba Telemetry Compatible

Optional Power Source

Futaba LT2F2000B LiPo Battery Compatible
