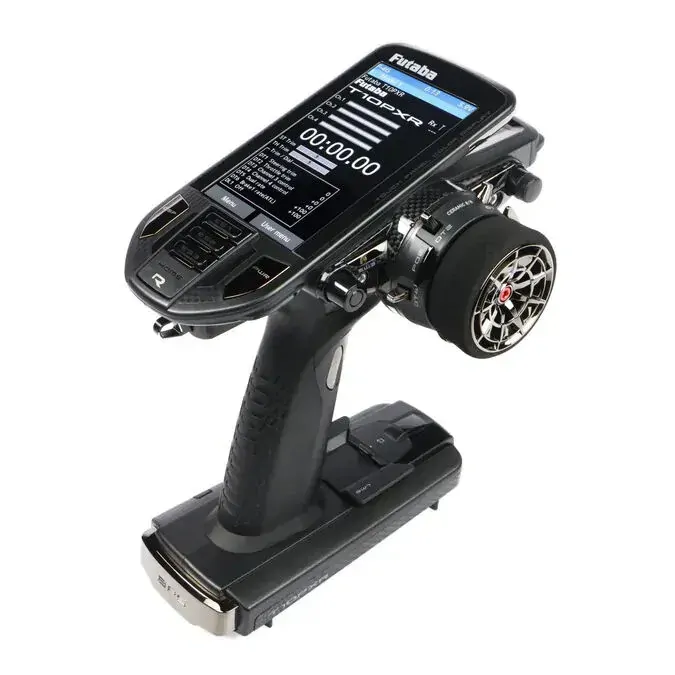

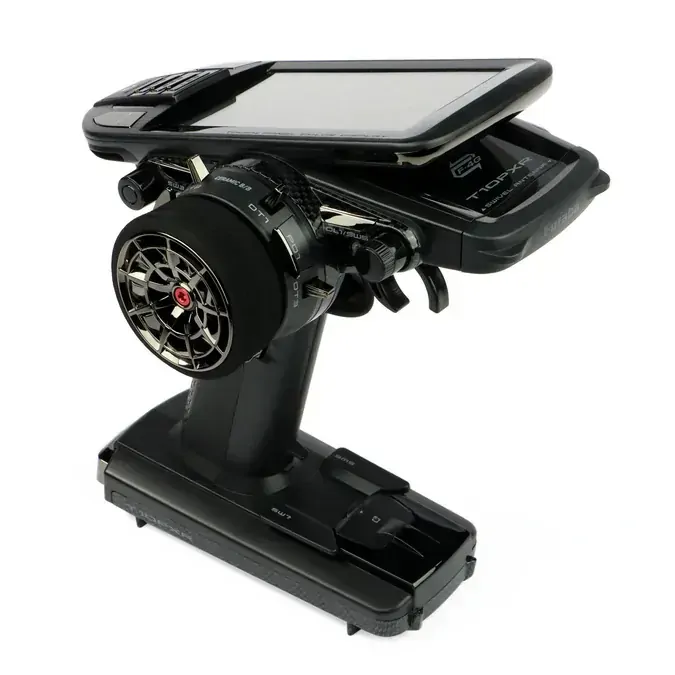

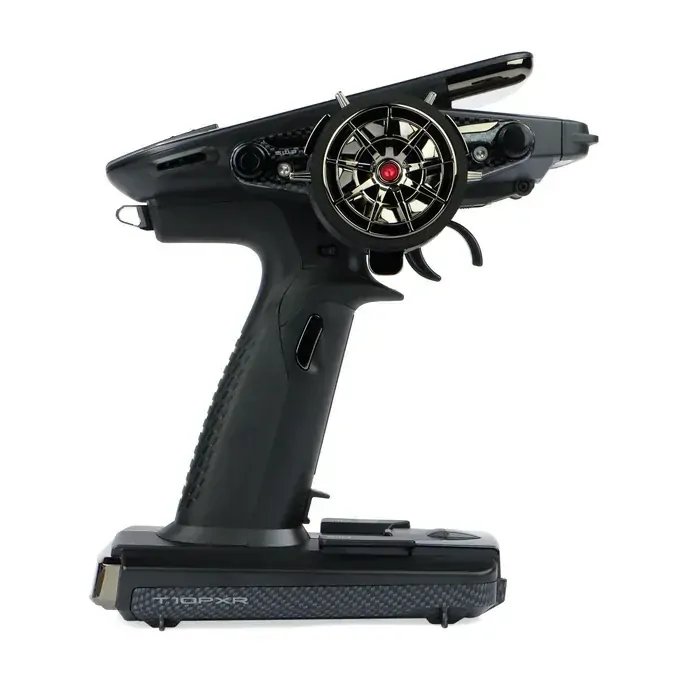

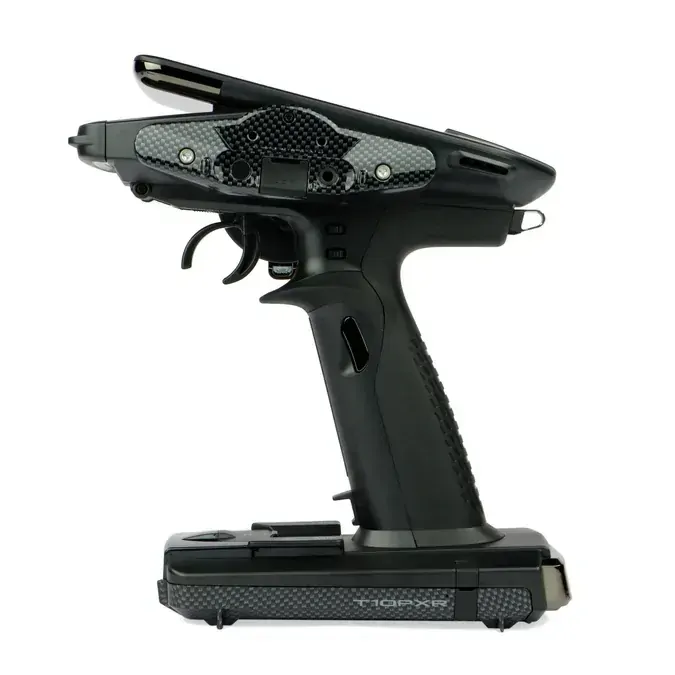

The Futaba 10PXR is Futaba's flagship competition-grade surface radio system, engineered for racers who demand ultimate precision, speed and customisation. Featuring an advanced 10-channel architecture, full-colour touchscreen interface, ultra-fast F-4G transmission technology and comprehensive telemetry support, the 10PXR delivers professional-level control for RC cars, trucks, crawlers, tanks and other surface vehicles.

At the heart of the system is Futaba's fourth-generation F-4G telemetry protocol, delivering up to 30% faster response when paired with compatible UR servos. The ultra-low latency communication system provides exceptional steering and throttle precision, giving racers a competitive advantage in demanding racing conditions.

The large 4.3-inch HVGA transflective full-colour touchscreen offers excellent visibility indoors and outdoors while providing intuitive access to advanced programming features. With support for up to 40 model memories, users can manage a wide range of vehicles without needing multiple transmitters.

The 10PXR supports multiple transmission protocols including F-4G, T-FHSS, T-FHSS SR, FHSS and Mini-Z compatibility. Advanced programming functions include brake mixing, steer mixing, 4-wheel steering mixing, dual ESC mixing, gyro sensitivity adjustment, tank mixing and CPS lighting control, making the radio suitable for virtually any RC surface application.

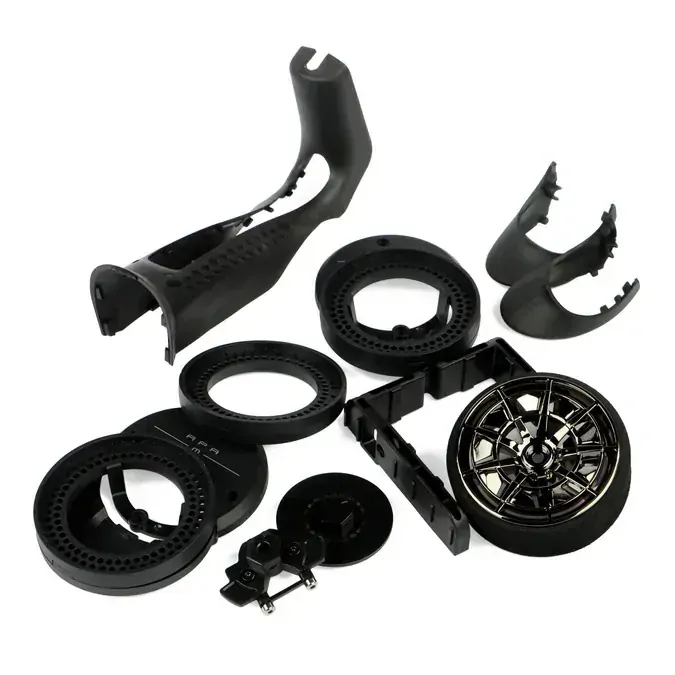

Ergonomics have been refined for serious racers, featuring ceramic bearings on both the steering wheel and trigger assembly, adjustable steering wheel position, trigger position adjustment, tension adjustment and interchangeable grip options. The transmitter can also be converted for left-hand operation.

Additional premium features include steering trim memory, vibration alerts, voice feedback support, USB connectivity, microSD card support for software updates and data storage, S.Bus servo programming and Futaba MC-Link ESC integration.

At Campbelltown Hobbies, the Futaba 10PXR represents the pinnacle of RC radio technology, delivering race-winning performance, advanced telemetry and unmatched customisation for serious competitors.

Included Items

• Futaba 10PXR 10-Channel Transmitter

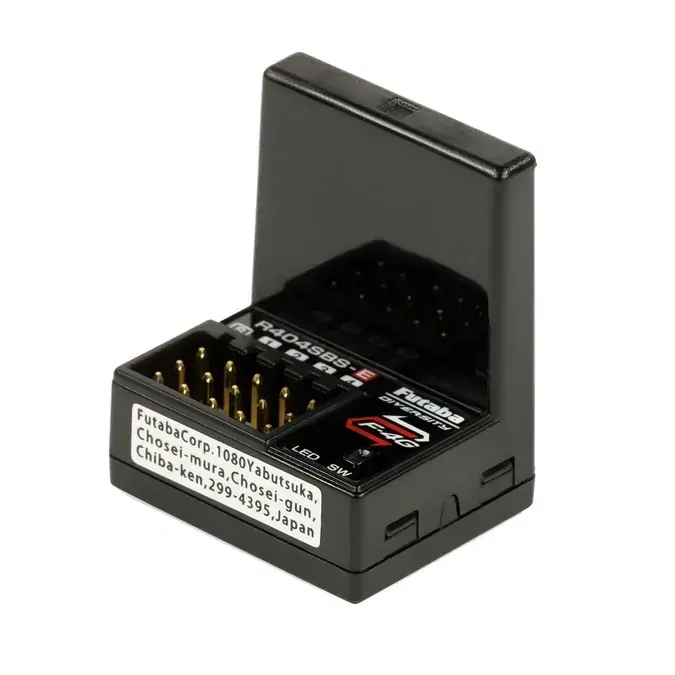

• Futaba R404SBSE Receiver
• Instruction Manual

Required Items

• 4 x AA Batteries or Compatible Futaba Transmitter Battery
• Compatible RC Vehicle
• Compatible Futaba Servos and Electronics (depending on application)

Specifications

Transmitter

Channels: 10
Model Memory: 40 Models
Display Type: HVGA TFT-LCD Colour Touchscreen
Display Size: 4.3 Inch
Transmission Systems: F-4G, T-FHSS, T-FHSS SR, FHSS, Mini-Z
Telemetry: Yes
Software Updates: MicroSD Card
Data Storage: MicroSD Card
USB Connectivity: Yes
Voice Feedback: Supported
Vibration Alerts: Supported

Performance Features

F-4G Ultra-Fast Response System
Up to 30% Faster Response with UR Servos
15-Step Response Adjustment System
Steering Trim Memory
Throttle Speed Adjustment
Dual Rate Adjustment
Advanced Telemetry Monitoring

Mixing Functions

Brake Mixing
Steering Mixing
4WS Mixing
Dual ESC Mixing
Gyro Mixing
Tank Mixing
CPS Lighting Mixing

Adjustments

Wheel Position Adjustment
Wheel Angle Adjustment
Throttle Trigger Position Adjustment
Trigger Tension Adjustment
Dial Assignment Function
Switch Assignment Function
Trim Lock Function
Dial Lock Function
Left-Hand Conversion Compatible

Compatibility

Mini-Z Compatible
S.Bus Servo Compatible
MC-Link Compatible
Futaba Telemetry Compatible

Optional Power Supply

Futaba LT2F2000B LiPo Battery Compatible

Frequently Asked Questions – Futaba 10PXR 10-Channel Computer Radio System

What is the Futaba 10PXR 10-Channel Computer Radio System?

The Futaba 10PXR is Futaba's flagship competition-grade 10-channel surface radio system featuring F-4G ultra-fast response technology, telemetry support, a full-colour touchscreen and extensive programming capabilities.

How many models can the Futaba 10PXR store?

The Futaba 10PXR can store up to 40 models internally, allowing users to manage multiple RC vehicles from a single transmitter.

What transmission protocols does the Futaba 10PXR support?

The Futaba 10PXR supports F-4G, T-FHSS, T-FHSS SR, FHSS and Mini-Z transmission systems.

Does the Futaba 10PXR support telemetry?

Yes, the Futaba 10PXR features full telemetry support through Futaba's F-4G and T-FHSS systems, allowing users to monitor vehicle data in real time.

Can the Futaba 10PXR be used with crawlers and 4-wheel steering vehicles?

Yes, the Futaba 10PXR includes dedicated 4WS mixing, dual ESC mixing and crawler-specific functions, making it ideal for advanced crawler setups.

Is the Futaba 10PXR suitable for racing?

Yes, the Futaba 10PXR is specifically designed for competitive RC racing and features Futaba's fastest response system, advanced telemetry and extensive tuning options.

Does the Futaba 10PXR include a receiver?

Yes, this version of the Futaba 10PXR includes the Futaba R404SBSE receiver.

Can the Futaba 10PXR be updated?

Yes, the Futaba 10PXR supports firmware updates via microSD card, allowing future software improvements and feature updates.
