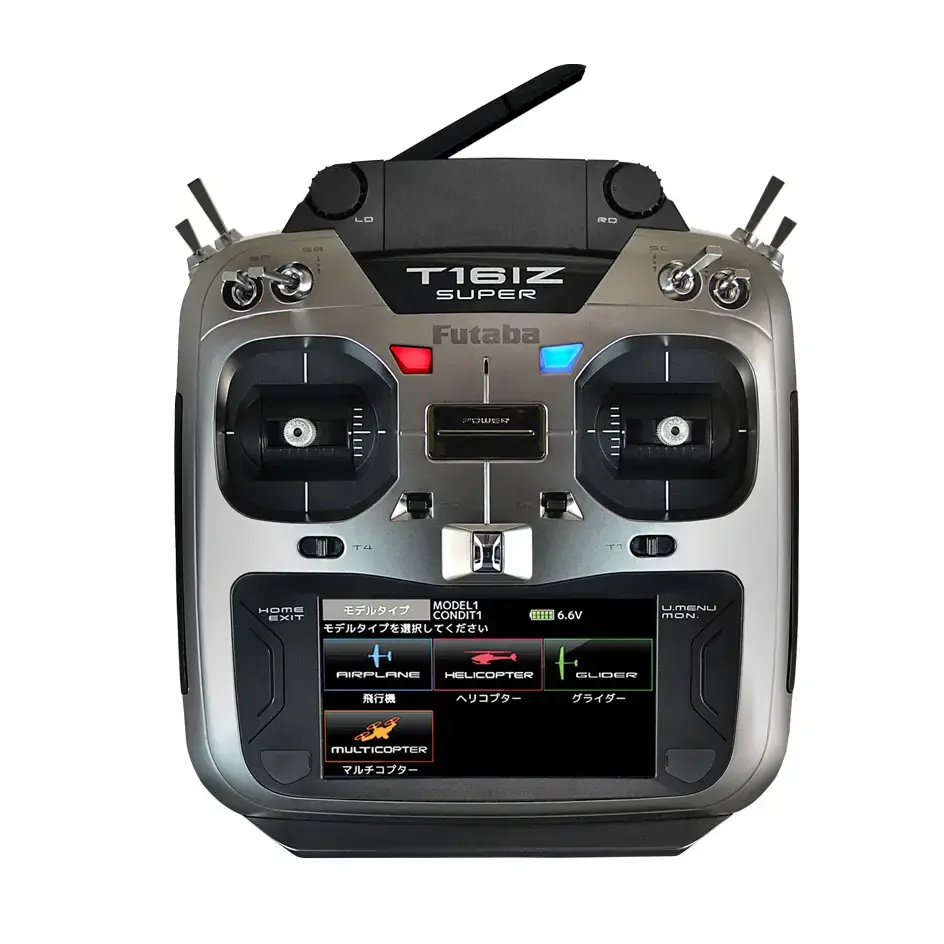

Futaba 16IZS 2.4GHz Incl R7308SB Receiver/Batt/USBChrge Lead M1

FASSTEST SYSTEM: The 16IZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL: The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD: T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER: T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry: The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD): Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS: The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK: Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB: The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

What's In The Box

YOUR T16IZ (PACKAGED WITH A S.BUS RECEIVER) INCLUDES THE FOLLOWING COMPONENTS:

• T16IZS Transmitter – Air Version includes ratcheting throttle – Helicopter Version includes smooth throttle
• R7308SB Receiver
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Neck Strap
• Manual (Printed short version

Product Specifications

Transmitter Specs

• TRANSMITTER FREQUENCY: 2.4 GHz band
• OPERATING SYSTEM: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
• POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery
• RF POWER OUTPUT: 100 mW EIRP
• WEIGHT (with battery): TBD

Receiver Specs

• R7308SB
• SIZE: 24.9 x 47.3 x 14.3 mm 0.98 x 1.86 x 0.56 in
• WEIGHT: 12.0 g 0.42 oz
• POWER REQUIREMENTS: 6.6 V LiFe Battery
• CURRENT DRAIN: 75 mA
• RF POWER OUTPUT: 25 mW EIRP
