Hobbywing 30402750 EZRUN 4268SL Sensorless Brushless Motor (2600kV)
or 4 payments of $34.53 with
Info
Description

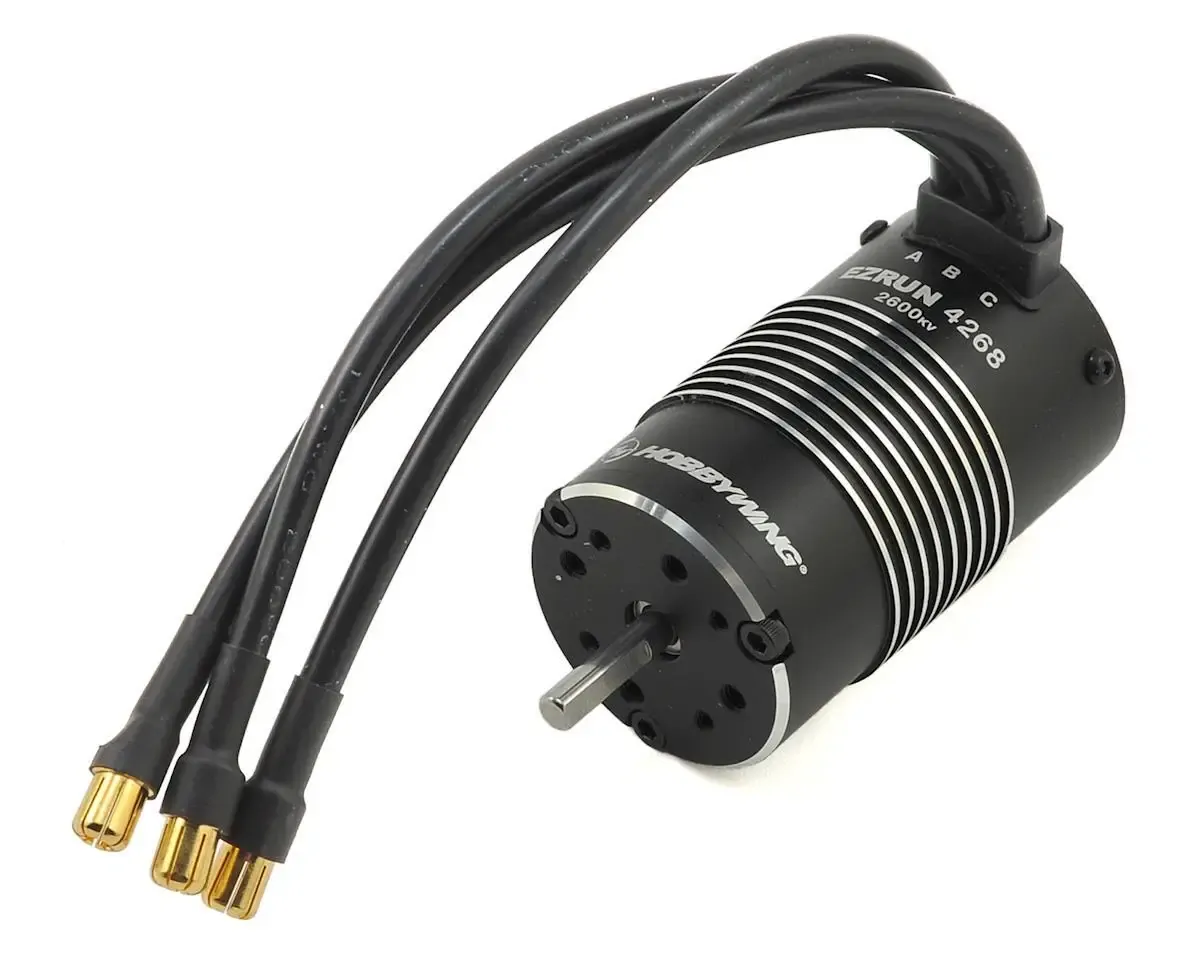

Hobbywing 30402750 EZRUN 4268SL Sensorless Brushless Motor (2600kV)
This is the Hobbywing EZRUN 2600kV, 4268SL Sensorless Brushless Motor. This 4268SL pairs perfectly to the Hobbywing EZRUN Max8 ESC and is ideal for 1/8 scale applications, such as buggy, truggy, SCT and on-road.
Features:
- 4 pole rotor for high torque, fast acceleration response and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 ESC.
Specifications:
Pole: 4
KV(No-load): 2600
R. (½): 0.0052
Current No-load_A_: 4.2
Max. Output Power_W_: 3000
C.at the point of M.O.P *(A): 120
Motor D.&L_mm_: _=42, L=68
Shaft D.&L of the projecting part_mm_: _=5, L=18.5
LiPo(S): 2-4
Weight: 343g (12.098oz)
Applicable: 1/8th Buggies/Touring Cars/SCTs
Installation Tips
- How to Mount the Motor into a RC vehicle. M3/M4 mounting screws (4*M3 & 4*M4) are needed here, as the mounting holes are 8mm in depth, so we don't recommend using the M3/M4 screws with the length exceeds 10mm to mount the motor into your vehicle. (Note: please choose the right mounting screws as per your chassis.) Please choose the right mounting screws as per your chassis.
- How to Connect the Motor to an ESC. There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
- Recheck the Installation & Connections. Recheck the installation and all the connections before turning on the power.
Description
SpecificationsHobbywing 30402750 EZRUN 4268SL Sensorless Brushless Motor (2600kV)
This is the Hobbywing EZRUN 2600kV, 4268SL Sensorless Brushless Motor. This 4268SL pairs perfectly to the Hobbywing EZRUN Max8 ESC and is ideal for 1/8 scale applications, such as buggy, truggy, SCT and on-road.
Features:
- 4 pole rotor for high torque, fast acceleration response and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 ESC.
Specifications:
Pole: 4
KV(No-load): 2600
R. (½): 0.0052
Current No-load_A_: 4.2
Max. Output Power_W_: 3000
C.at the point of M.O.P *(A): 120
Motor D.&L_mm_: _=42, L=68
Shaft D.&L of the projecting part_mm_: _=5, L=18.5
LiPo(S): 2-4
Weight: 343g (12.098oz)
Applicable: 1/8th Buggies/Touring Cars/SCTs
Installation Tips
- How to Mount the Motor into a RC vehicle. M3/M4 mounting screws (4*M3 & 4*M4) are needed here, as the mounting holes are 8mm in depth, so we don't recommend using the M3/M4 screws with the length exceeds 10mm to mount the motor into your vehicle. (Note: please choose the right mounting screws as per your chassis.) Please choose the right mounting screws as per your chassis.
- How to Connect the Motor to an ESC. There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
- Recheck the Installation & Connections. Recheck the installation and all the connections before turning on the power.
Hobbywing 30402750 EZRUN 4268SL Sensorless Brushless Motor (2600kV)
This is the Hobbywing EZRUN 2600kV, 4268SL Sensorless Brushless Motor. This 4268SL pairs perfectly to the Hobbywing EZRUN Max8 ESC and is ideal for 1/8 scale applications, such as buggy, truggy, SCT and on-road.
Features:
- 4 pole rotor for high torque, fast acceleration response and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 ESC.
Specifications:
Pole: 4
KV(No-load): 2600
R. (½): 0.0052
Current No-load_A_: 4.2
Max. Output Power_W_: 3000
C.at the point of M.O.P *(A): 120
Motor D.&L_mm_: _=42, L=68
Shaft D.&L of the projecting part_mm_: _=5, L=18.5
LiPo(S): 2-4
Weight: 343g (12.098oz)
Applicable: 1/8th Buggies/Touring Cars/SCTs
Installation Tips
- How to Mount the Motor into a RC vehicle. M3/M4 mounting screws (4*M3 & 4*M4) are needed here, as the mounting holes are 8mm in depth, so we don't recommend using the M3/M4 screws with the length exceeds 10mm to mount the motor into your vehicle. (Note: please choose the right mounting screws as per your chassis.) Please choose the right mounting screws as per your chassis.
- How to Connect the Motor to an ESC. There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
- Recheck the Installation & Connections. Recheck the installation and all the connections before turning on the power.
| SKU | HW30402750 |
| Brand | HOBBYWING |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000064000m3 |
-
Store StockBackorder
-
Warehouse StockIn Stock
In-stock items and stock levels are subject to change. If a stock error occurs, our team will notify you. Products may have different processing times depending on their stock location. Please check your cart for each item’s estimated dispatch time before completing your order. Processing time is separate from the carrier’s delivery time. Orders containing items from multiple locations will be dispatched once all items have arrived at our Campbelltown store and are ready to be sent together. Orders containing LiPo batteries, fuel or rocket engines will be sent via Standard Post. If you select Signature Not Required and your parcel is lost after being recorded as delivered, Campbelltown Hobbies cannot be held responsible for its replacement.
