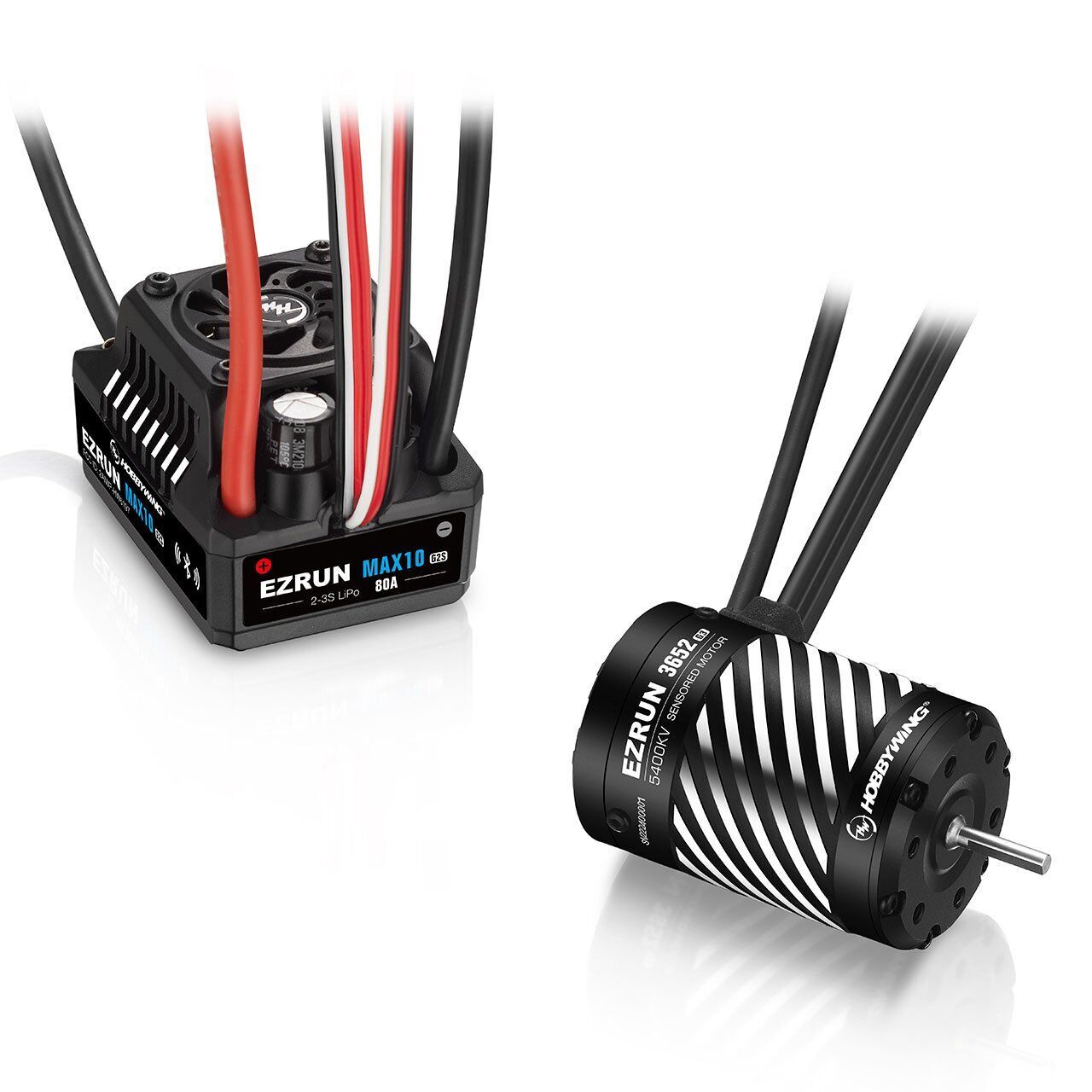

The Hobbywing EZRUN MAX10 G2S 80A Combo with 3652SD G3 5400KV Motor combines the latest MAX10 G2S 80A ESC with a matching high-speed EZRUN 3652SD G3 5400KV sensored brushless motor, creating a factory-matched power system for high-performance 1/10 scale RC applications.

The MAX10 G2S builds on the proven MAX10 G2 with three major additions: integrated Bluetooth programming, internal data logging and a new 8.4V BEC setting for compatible high-voltage servos.

Bluetooth is integrated directly into the ESC's power switch, eliminating the need for additional hardware when programming from a smartphone. Using the Hobbywing HW LINK app, drivers can adjust ESC parameters, review recorded running data and perform firmware updates wirelessly.

The internal data logging system records the last 10 minutes of runtime, allowing performance information to be reviewed graphically through the HW LINK app after each run.

When paired with the included Hobbywing EZRUN 3652SD G3 motor, the MAX10 G2S can take full advantage of its advanced motor functions. Turbo Timing of up to 20 degrees can increase maximum motor RPM by approximately 25%, while compatible motor overheat protection provides additional protection for the power system.

The supplied 3652SD G3 5400KV is a sensored, 4-pole brushless motor designed for high torque, rapid acceleration and stable power delivery. A CNC-machined aluminium housing and high-precision bearings provide strength and smooth operation, while its IP67 dust and waterproof construction makes it suitable for demanding RC environments.

The MAX10 G2S ESC is also rated IP67, with a waterproof sensor cable maintaining sensored communication between the ESC and motor.

Cooling is handled by an integrated heatsink and a temperature-controlled frameless cooling fan with side air discharge. The fan remains off when additional cooling is not required and activates automatically as temperatures increase.

The adjustable 5A switch-mode BEC provides selectable 6.0V, 7.4V and 8.4V outputs. The 7.4V and 8.4V settings require a 3S input battery; however, the supplied 5400KV motor itself is specified for 2S LiPo operation.

This particular 5400KV combination is therefore designed around 2S LiPo operation, delivering high motor speed for compatible 1/10 on-road and off-road applications, including light-duty short course trucks.

Available from Campbelltown Hobbies, the Hobbywing EZRUN MAX10 G2S 80A 5400KV Combo delivers a complete sensored brushless system with integrated Bluetooth, data logging, Turbo Timing and matched Hobbywing motor technology.

Required Items

• 2S LiPo Battery
• Compatible LiPo Battery Charger
• RC Radio System
• Steering Servo
• Suitable Pinion Gear for Vehicle Application

Specifications

ESC Ð Hobbywing EZRUN MAX10 G2S 80A

ESC Type: Sensored & Sensorless Brushless
Continuous Current: 80A
Peak Current: 520A
Input Voltage: 2-3S LiPo
BEC Type: Switch Mode
BEC Output: 6.0V / 7.4V / 8.4V Adjustable
BEC Continuous Current: 5A
Turbo Timing: Up to 20¡
Bluetooth: Integrated into Power Switch
Smartphone App: Hobbywing HW LINK
Internal Data Logging: Last 10 Minutes
Firmware Updates: Via App
Cooling Fan: Temperature-Controlled Frameless Fan
Fan Power: BEC
Waterproof Rating: IP67
Programming Port: Separate 3-Pin
Input Connector: XT60
Motor Output: Gold Bullet Sockets
Dimensions: 53 _ 39.5 _ 37.2mm
Weight: 125g Including Wires & Connectors

ESC Motor Limits

2S LiPo: Up to 6000KV
3S LiPo: Up to 4200KV with 3652/3665-size motor

Motor Ð Hobbywing EZRUN 3652SD G3 5400KV

Motor Type: Sensored Brushless
KV Rating: 5400KV
Battery Compatibility: 2S LiPo
Poles: 4
No-Load Current: ²6.8A
Length: 53mm
Diameter: 37mm
Shaft Diameter: 3.175mm
Weight: 227g
Housing: CNC-Machined Aluminium
Bearings: High-Precision
Waterproof Rating: IP67
Application: 1/10 On-Road / Off-Road & Light-Duty Short Course Truck

Programming Options

• Integrated Bluetooth
• Hobbywing HW LINK App
• LCD Program Box
• OTA Program Module

Protection Features

• Low-Voltage Protection
• ESC Overheat Protection
• Compatible Motor Overheat Protection
• Signal-Loss Protection
• Capacitor Overheat Protection
• IP67 Dust & Water Protection

Important Notes

The supplied 3652SD G3 5400KV motor is specified for 2S LiPo operation.

Although the MAX10 G2S ESC itself supports 2-3S LiPo, the ESC's specified 3S motor limit is 4200KV. Therefore, do not operate the supplied 5400KV motor on 3S based on the supplied specifications.

The ESC's 7.4V and 8.4V BEC settings require a 3S input battery, so those BEC settings are not applicable when using the supplied 5400KV motor on its specified 2S setup.

Effective Bluetooth range is approximately 5 metres by design.

What's Included

• 1 _ Hobbywing EZRUN MAX10 G2S 80A Brushless ESC
• 1 _ Hobbywing EZRUN 3652SD G3 5400KV Sensored Brushless Motor

Optional Accessories

• Hobbywing HW30502002 LCD Program Box Pro
• Hobbywing HW30850400 OTA Bluetooth Program Module
